Wharfedale Pro

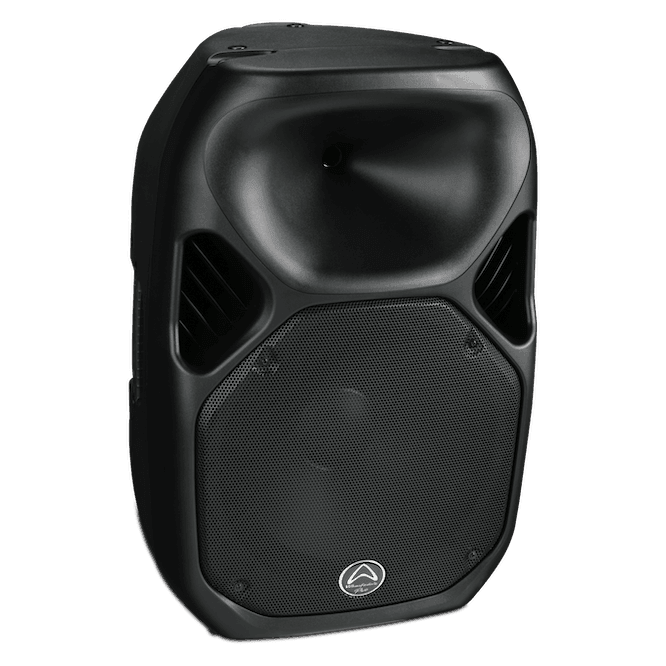

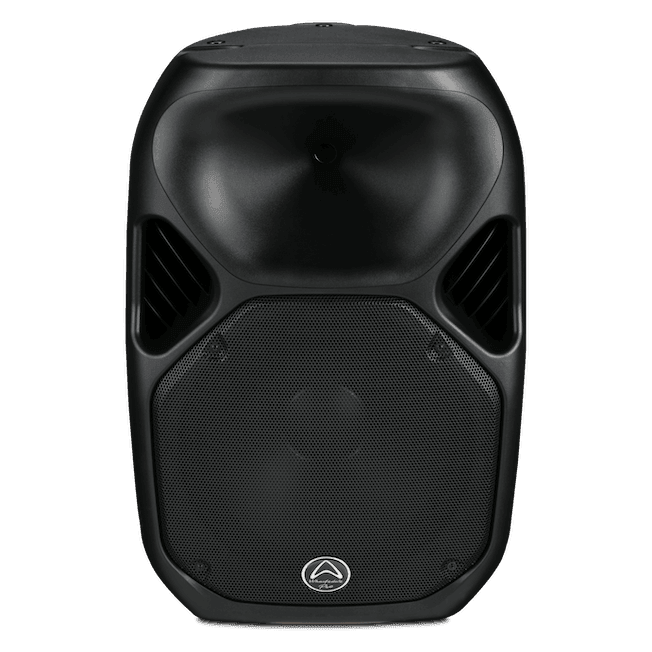

Wharfedale Pro Speaker Powered 1x12" 250W RMS Plastic Body
Wharfedale Pro Speaker Powered 1x12" 250W RMS Plastic Body
Regular price
Dhs.1,365.00 AED
Regular price
Dhs.0.00 AED
Sale price
Dhs.1,365.00 AED
Unit price
/
per
Couldn't load pickup availability
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
KEY FEATURES
- 12″ Bi-amplified active loudspeaker
- 1.75″ HF compression driver
- 2.5″ LF voice coil
- 300 w Continuous
- 600 w Peak
- Internal 6-position DSP
DESCRIPTION
Titan loudspeakers pride themselves on custom Wharfedale Pro drivers. The IRIS-X HF compression driver used in Titan-AX12 and Titan-AX15 features a 1.75″ voice coil and is unique at this price point.
All Titan Active models are bi-amplified. The internal amplifiers have been tuned specifically for the HF and LF drivers that we have chosen. This makes for perfect power and frequency transfer, resulting in the sonic experience that you’d expect from a Wharfedale Pro active loudspeaker.
SPECIFICATIONS
| Model Name | Titan-AX12 |
| System Type | Active 12” 2-way Bi-Amplified |
| Frequency Response (+/-3 dB) | 55 Hz-20 KHz |
| Frequency Range (-10 dB) | 50 Hz-20 KHz |
| Calculated Maximum SPL @1 m | 128 dB |
| LF Transducer Size (mm / inches) | 305 mm / 12” |
| Coil Size (mm / inches) | 64.26 mm / 2.5″ |
| HF Transducer Type | Compression Driver |
| Coil Size (mm / inches) | 44 mm / 1.75″ |
| Exit Size (mm / inches) | 25 mm / 1” |
| Diaphragm Material | Titanium |
| Nominal Coverage (H x V) | Hybrid Symmetry Horn 100° x 80° |
| Amplifiers | |
| Low-Frequency Power Amplifier | 250/500 W (Class D) |
| RMS/Peak Watts | |
| High-Frequency Power Amplifier RMS/Peak Watts | 50/100 W (Class D) |
| Controls—EQ | Note – EQ changed by DSP knob |
| DSP | 6 user presets |
| Hi Pass switch | 90 Hz |
| Amplifier Protection / Thermal protection | Yes |
| Low Line Voltage Shut Down | 60% Nominal line voltage |
| Driver Protection | Independent LF and HF limiters |
| DC Protection / Short Protection | Yes |
| Clip Limiter | Turns on ~250 W output |
| Limiter Indicator / Power Indicator | Red LED / Green LED |

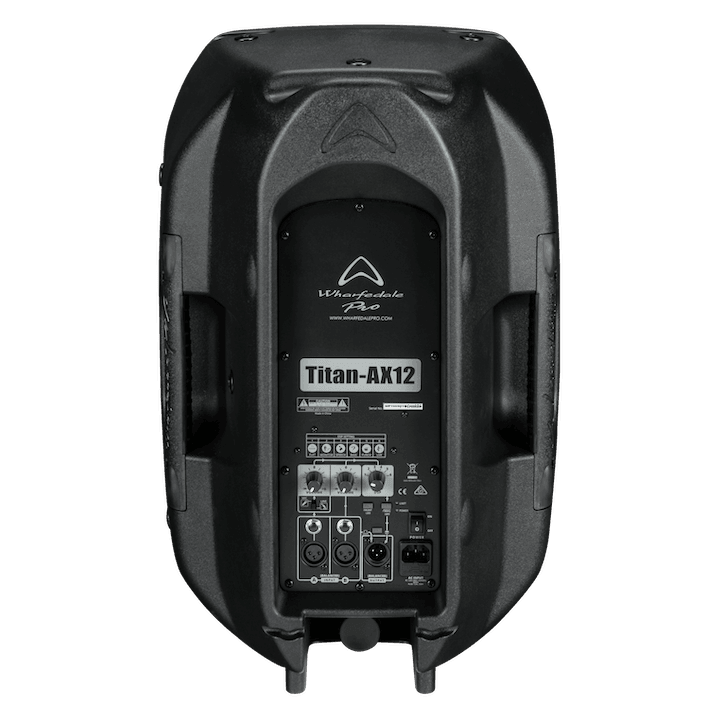

| Connectors | |
| Input – type | Switchable balanced mic/line level (Chan 1) |
| Input Connector | 2 * XLR & 2 * 1/4″ jack (Chan 1 Line/MIC) |
| Line Output Connector | Switchable LOOP/MIX Balanced socket XLR |
| AC Power Supply | SMPS |
| AC Power Options | AC100-120 V/220-240 V~ 50/60 Hz |
| Hardware | |
| Rigging / Bracket / Mounting Options | 10 M8 threaded inserts including 4 M8 threaded inserts on bottom in OmniMount 30.0-type footprint |
| 35 mm receptacle with lock screw | |
| 2 carry handles (one on each side) | |
| Optional wall-mount bracket | |
| LED Horn lighting (On/Off switch) | Yes |
| Enclosure Material and finish | Injection Moulded Polypropylene |
| Colour Options | Black / White |
| Grille Material & Finish | 1.2 mm steel |
| Dimensions – Unpacked – Height | 582.7 mm / 22.9″ |
| Width Front | 384.6 mm / 15.1″ |
| Depth | 318.6 mm / 12.5″ |
| Dimensions – packed – Height | 663 mm / 26.1″ |
| Width Front | 435 mm / 17.1″ |
| Depth | 408 mm / 16.1″ |
| Net Weight (kg / lbs) | 12.4 kg / 27.28 lbs |
| Gross Weight (kg / lbs) | 15.5 kg / 34.1 lbs |
| Sample | Sample |
