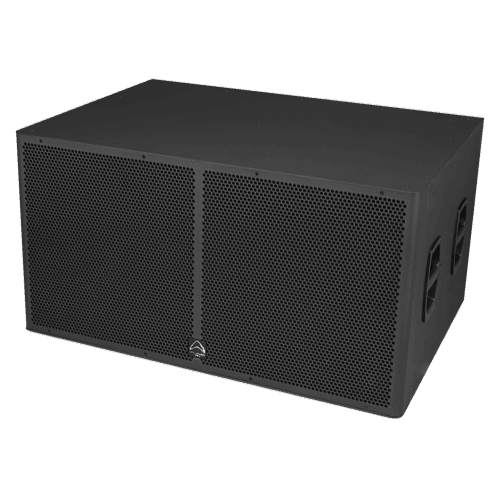

Wharfedale Pro WLA218BXF Line Array Subwoofer Passive 2x18" 2000W Continuous, IPX6 Waterproof Rated
Wharfedale Pro WLA218BXF Line Array Subwoofer Passive 2x18" 2000W Continuous, IPX6 Waterproof Rated
Couldn't load pickup availability
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
KEY FEATURES
- Dual 18” subwoofer
- 18mm Plywood construction
- Wax wrapped components
- Single WY-24K4Z waterproof input connector
- WY-24K4Z Cable connector included
- 148 dB Max SPL @ 1 m
DESCRIPTION
DUAL 8"
Safely protected from the rain, are the all-important drivers.
Dual 8.0″ Wharfedale Pro LF drivers with 2.0″ voice coils deliver a smooth and powerful sound as expected from a WLA series array.
The HF compression driver uses a neo magnet and a 3.0″ voice coil to produce detailed HF without harshness, even at high volumes.
DUAL 15"
The WLA-28SUBXF features 2 x 15″ custom Wharfedale Pro drivers with 4.0″ voice coils.
Designed for flying or ground stacking, this sub delivers a Max SPL @ 1 meter of 145 dB
CONNECTORS
All models of the WLA-28XF system use certified input connectors.
Inside the carton box there are also the cable connectors needed for easy system setup.
SPECIFICATIONS
| Model Name | WLA-218BXF |
| System Type | Passive |
| Configuration | 2 x 18″ Subwoofer |
| Frequency Response (+/- 3dB) | 30-800 Hz |
| Frequency Range (- 10 dB) | 25-1.0 KHz |
| (Passive)Sensitivity 2.83v/1m | 109 dB |
| (Passive)Calculated Maximum SPL @1m | 148 dB |
| System Rated Impedance | 4Ω |
| Low Frequency Transducer | |
| Size (mm / inches) | 470 mm / 18” |
| Voice Coil Size (mm / inches) | 102 mm / 4.0” |
| LF Magnet Material | ferrite |
| LF Frame Material | aluminium |
| Rated Impedance | 8 Ω x 2 |
| LF Power re:AES2-2012 | 1000 W x 2 |
| High Frequency Transducer | |
| HF Driver Type: | – |
| Coil Size (mm / inches) | – |
| Exit Size (mm / inches) | – |
| HF Magnet Material | – |
| Diaphragm Material | – |
| Rated Impedance | – |
| HF Power re:AES2-2012 | – |
| Waveguide Type | – |
| Nominal Coverage (H x V) | – |
| System Continuous Power (w) | 2000 W |
| System Programme Power (w) | 4000 W |
| System Peak Power (w) | 8000 W |
| Crossover frequency | |
| Hardware | 1 x WY-24K4Z (waterproof) |
| Rigging | |
| pole mount | No |
| handles | Yes |
| cabinet type | square |
| Enclosure Material and finish | 18 mm plywood/3.0 mm Aluminium |
| Colour Options | Waterproof black paint |
| Grille Material & Finish | 3.0 mm Black Aluminium |
| Dimensions – Unpacked (mm / inches): | |
| Height front | 568 mm / 22.4″ |
| Height Rear | 568 mm / 22.4″ |
| Width | 1073 mm / 42.2″ |
| Depth | 757 mm / 29.8″ |
| Dimensions – Packed (mm / inches): | |
| Height | 644 mm / 25.4″ |
| Width Front | 1143 mm / 45.0″ |
| Width Rear | 1143 mm / 45.0″ |
| Depth | 827 mm / 32.6″ |
| Weight | |
| Net Weight (kg / lbs) | 97.0kg / 213.4 lbs |
| Gross Weight (kg / lbs) | 111.0kg / 244.2 lbs |
