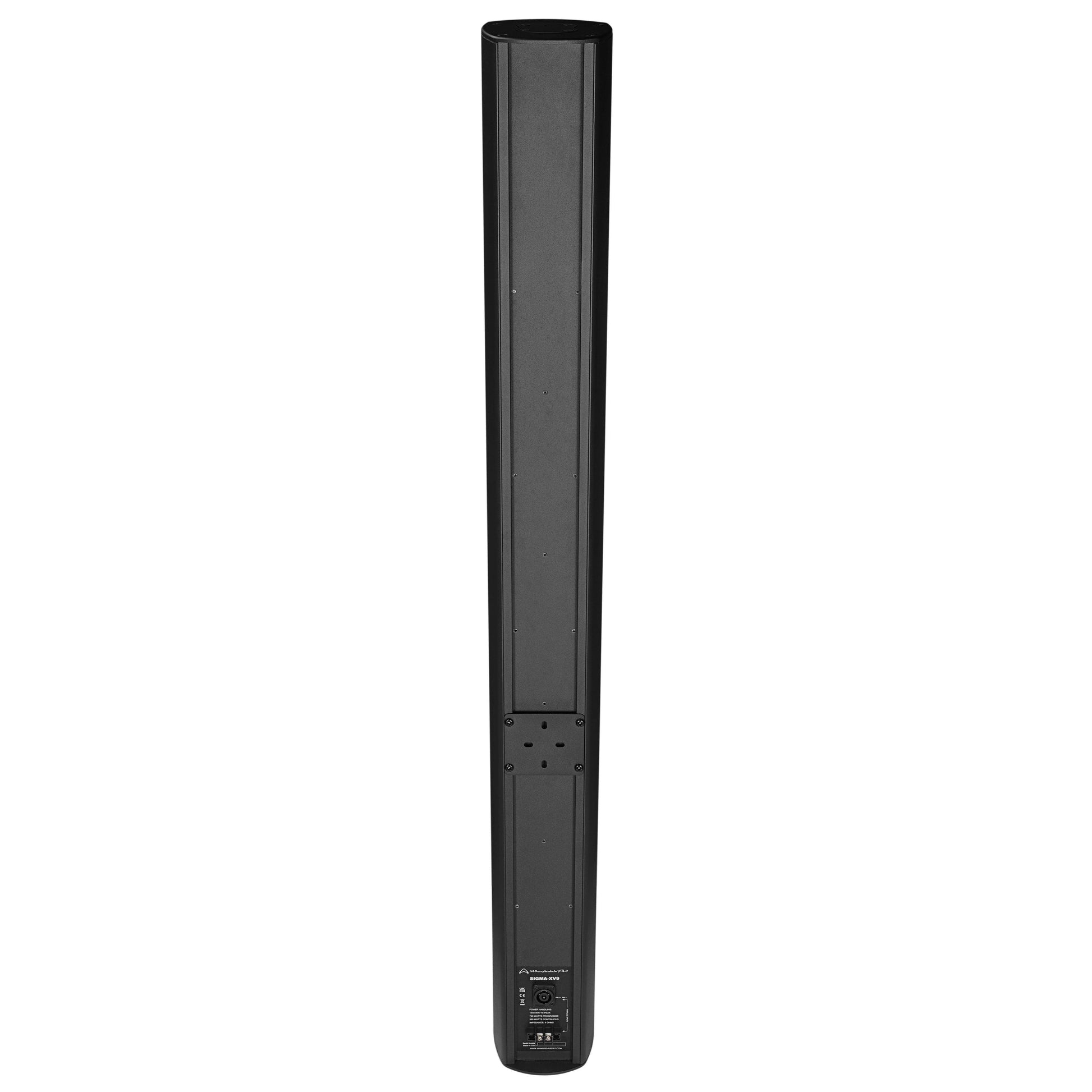

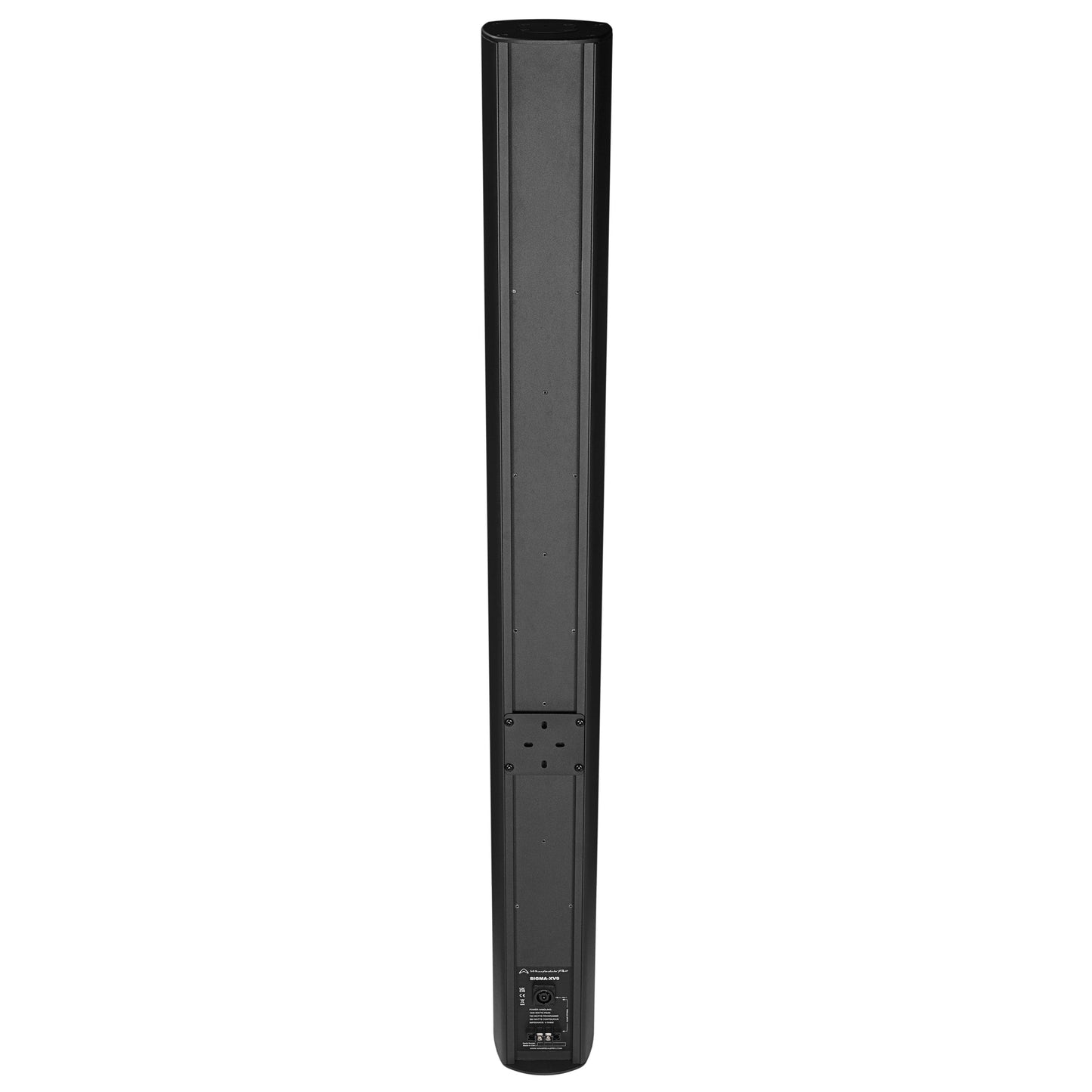

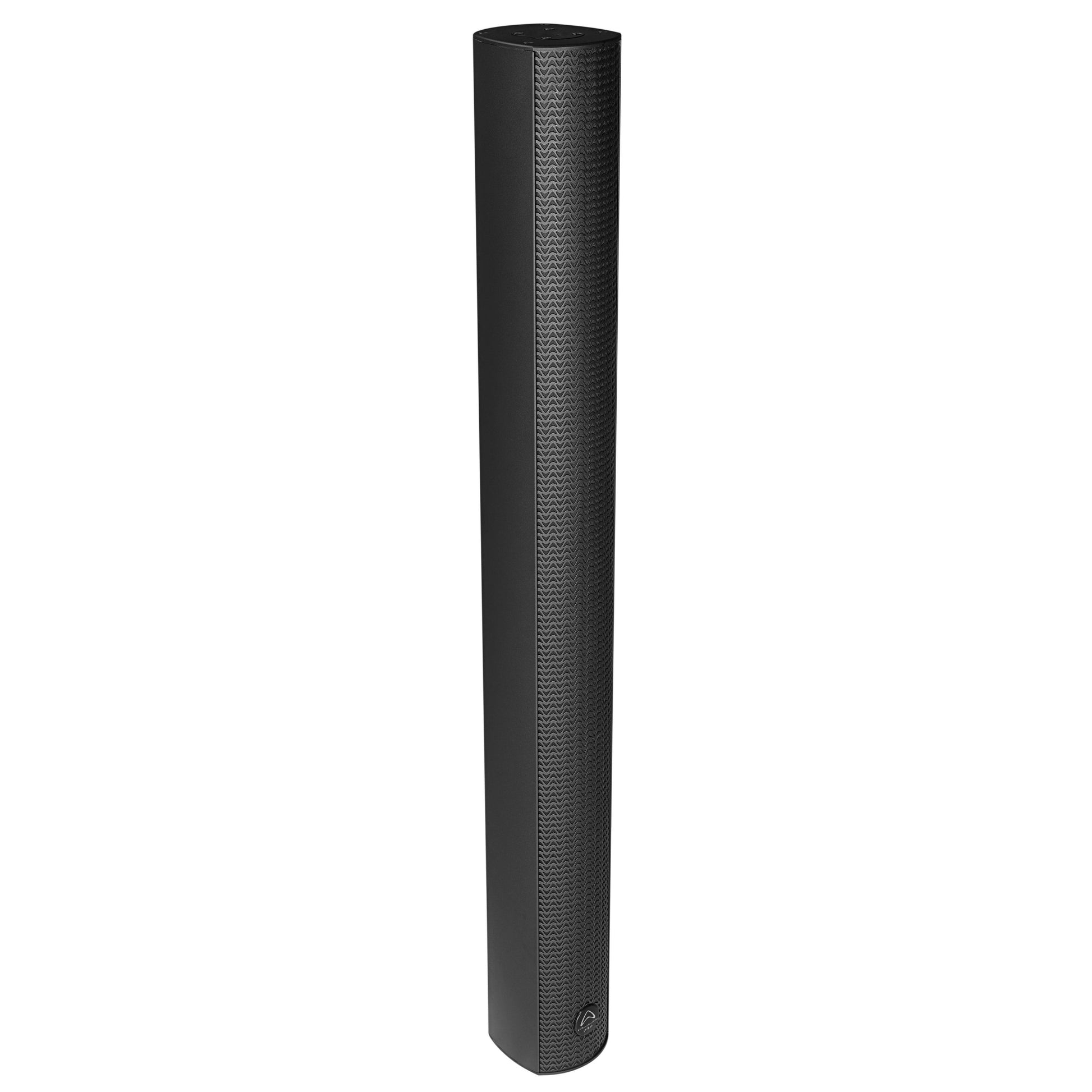

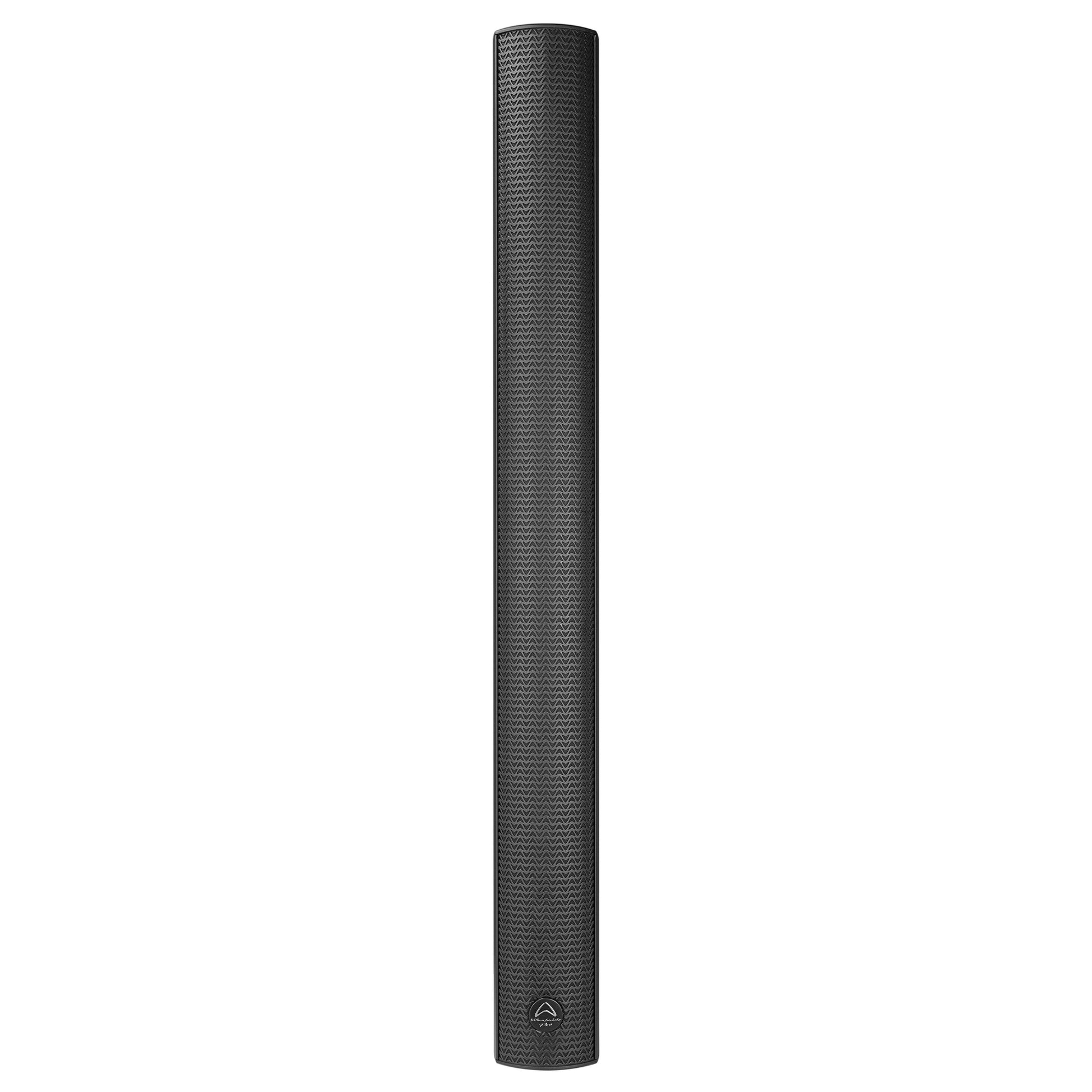

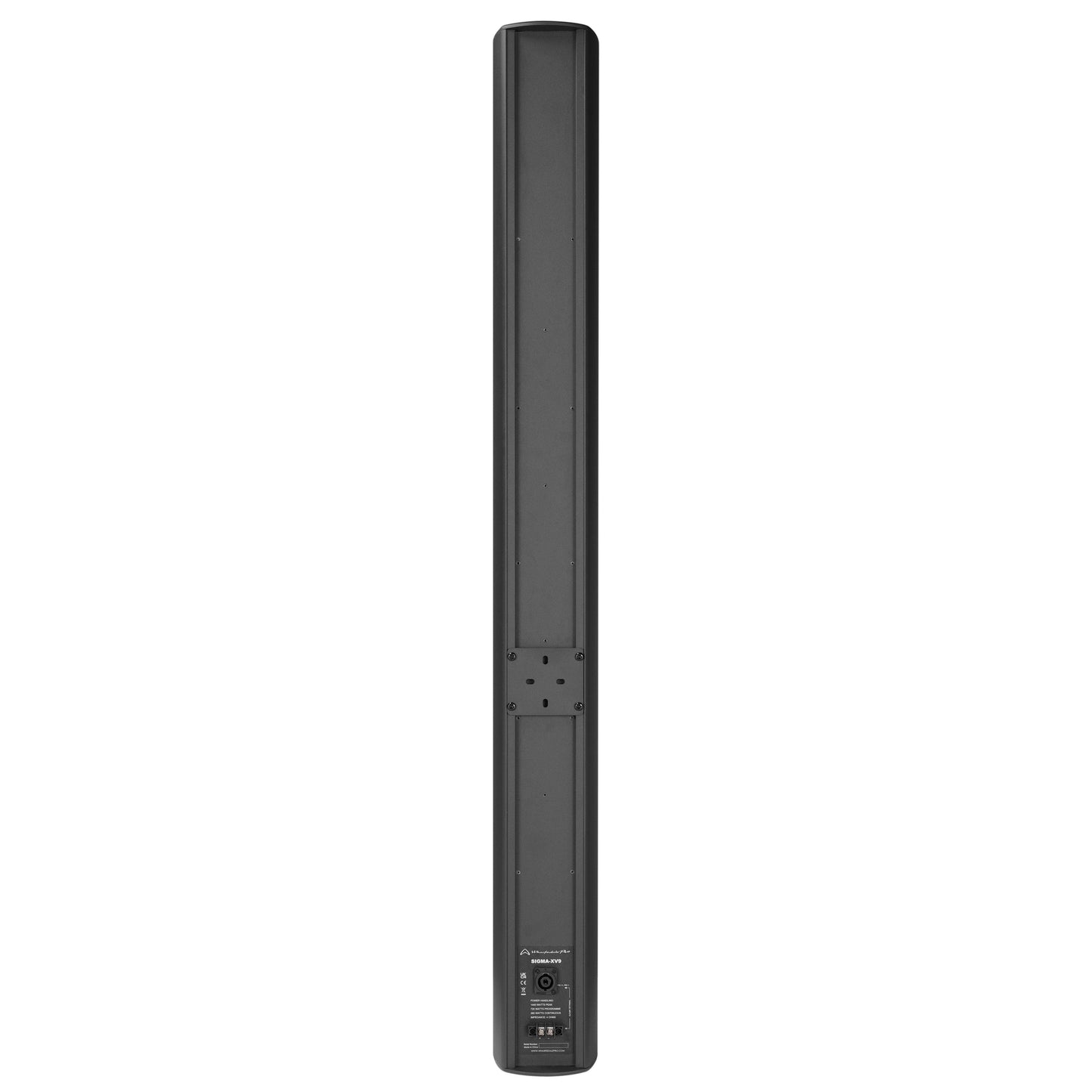

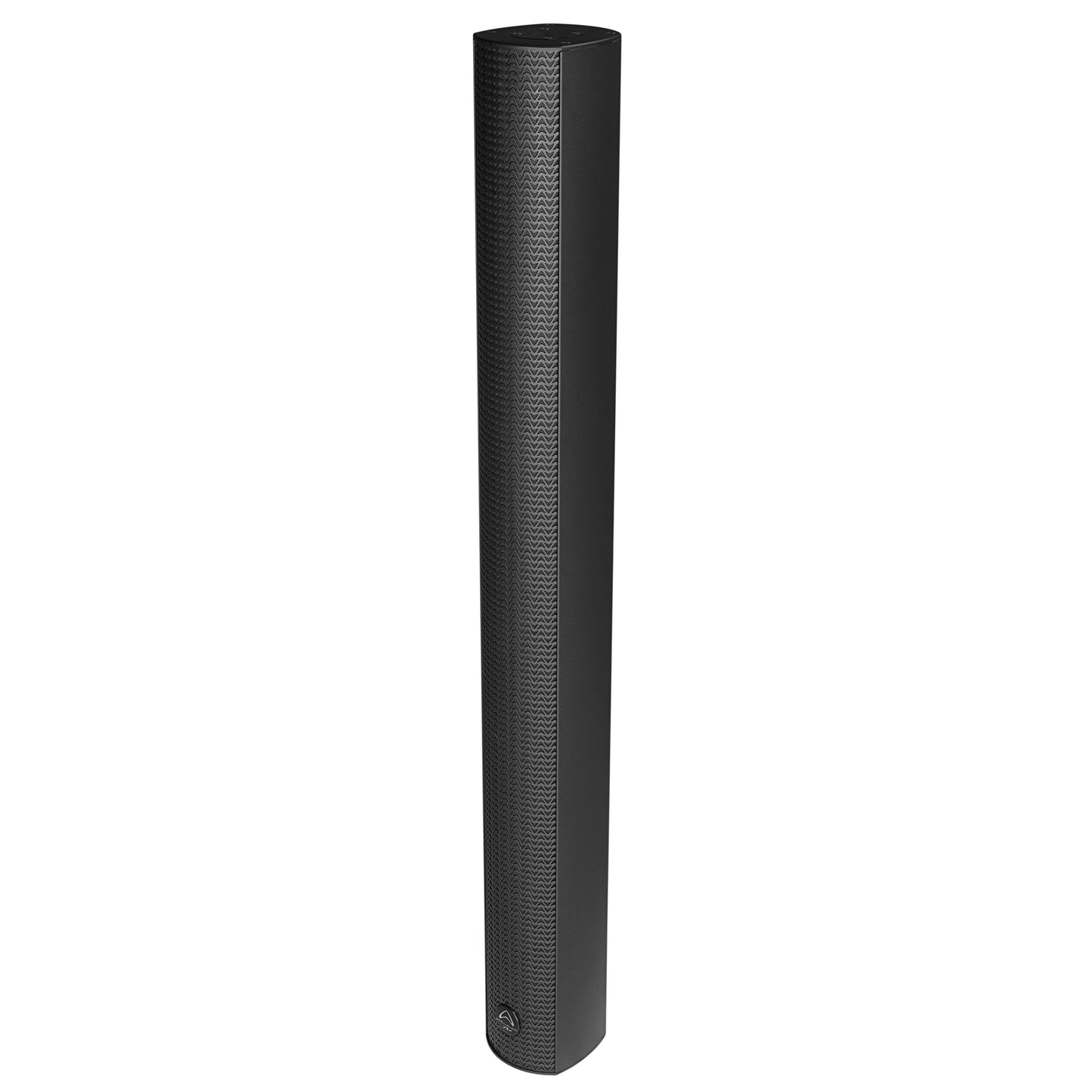

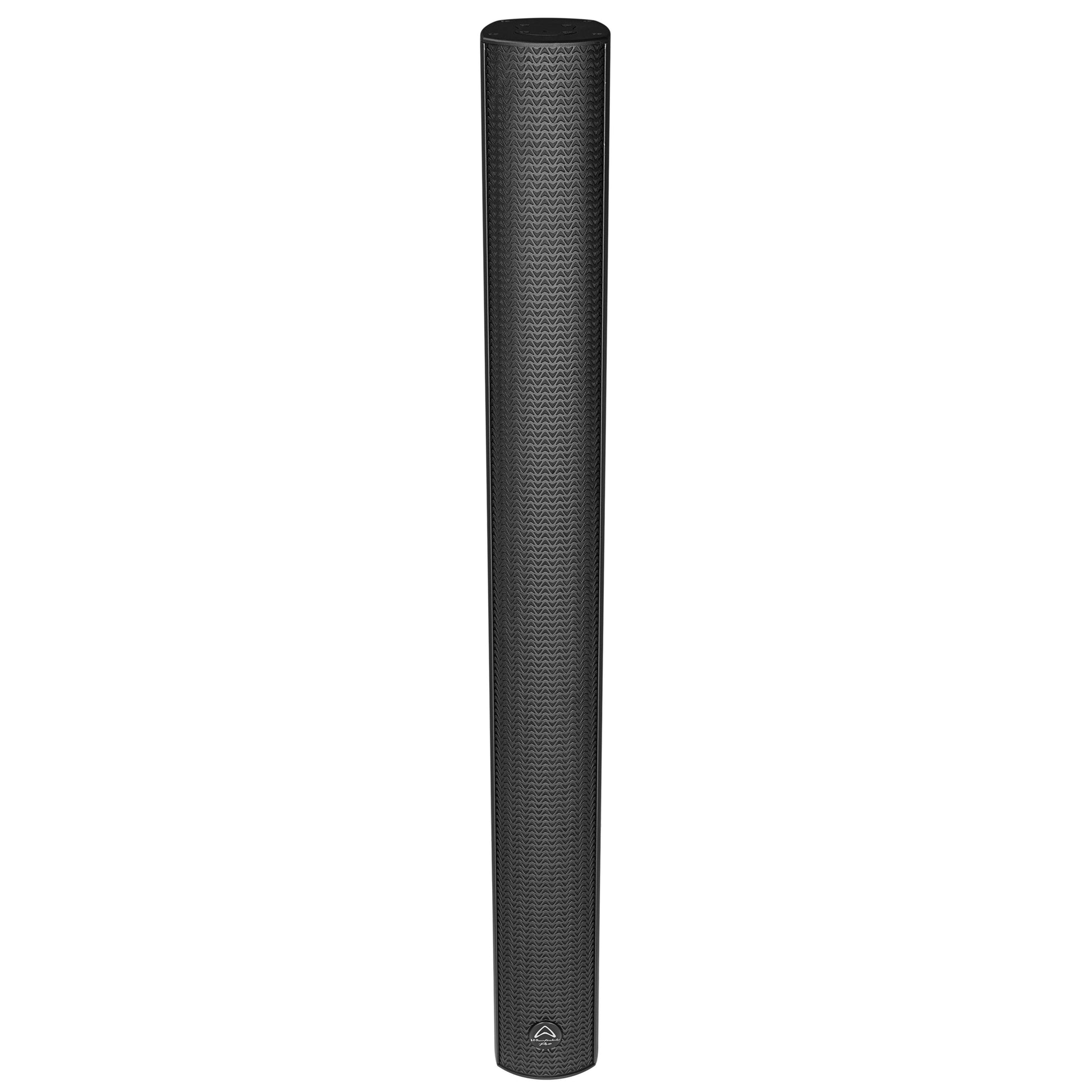

Wharfedale Pro SIGMA-XV9 Column Array Speaker
Wharfedale Pro SIGMA-XV9 Column Array Speaker
Couldn't load pickup availability
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
Ditch the Volume Struggle: Powerful Sound for Any Event
Tired of speakers that can't fill the room? The Wharfedale Pro SIGMAXV9 Column Array Speaker is your solution! This powerhouse packs a punch with 9 x 3" drivers and puts out a whopping 360 watts (AES continuous) and 720 watts (program) - enough to make itself heard at any event.
Here's what sets the SIGMAXV9 apart:
Crystal Clear Sound: Dual high-frequency compression drivers ensure crisp highs for clear, detailed audio.
Fills the Room: The innovative mini EVO-Fold waveguide spreads sound evenly in both horizontal and vertical directions, creating a cohesive soundscape that blankets the entire space.
Built to Last: The sleek aluminum body is built for professional use, making it a reliable choice for any gig.
Don't settle for weak sound at your next event. The Wharfedale Pro SIGMAXV9 delivers the power and clarity you need to make a lasting impression.
FEATURES:

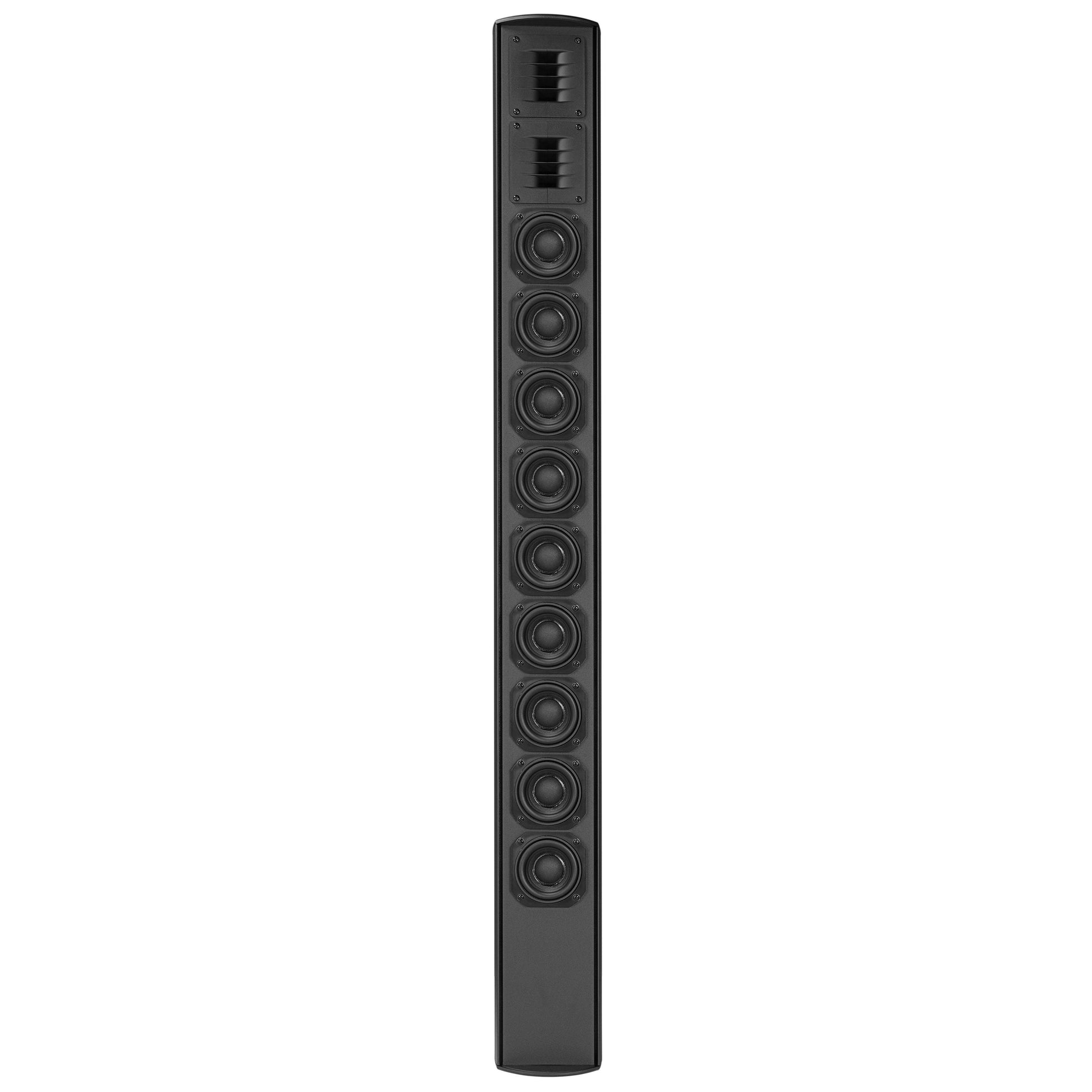

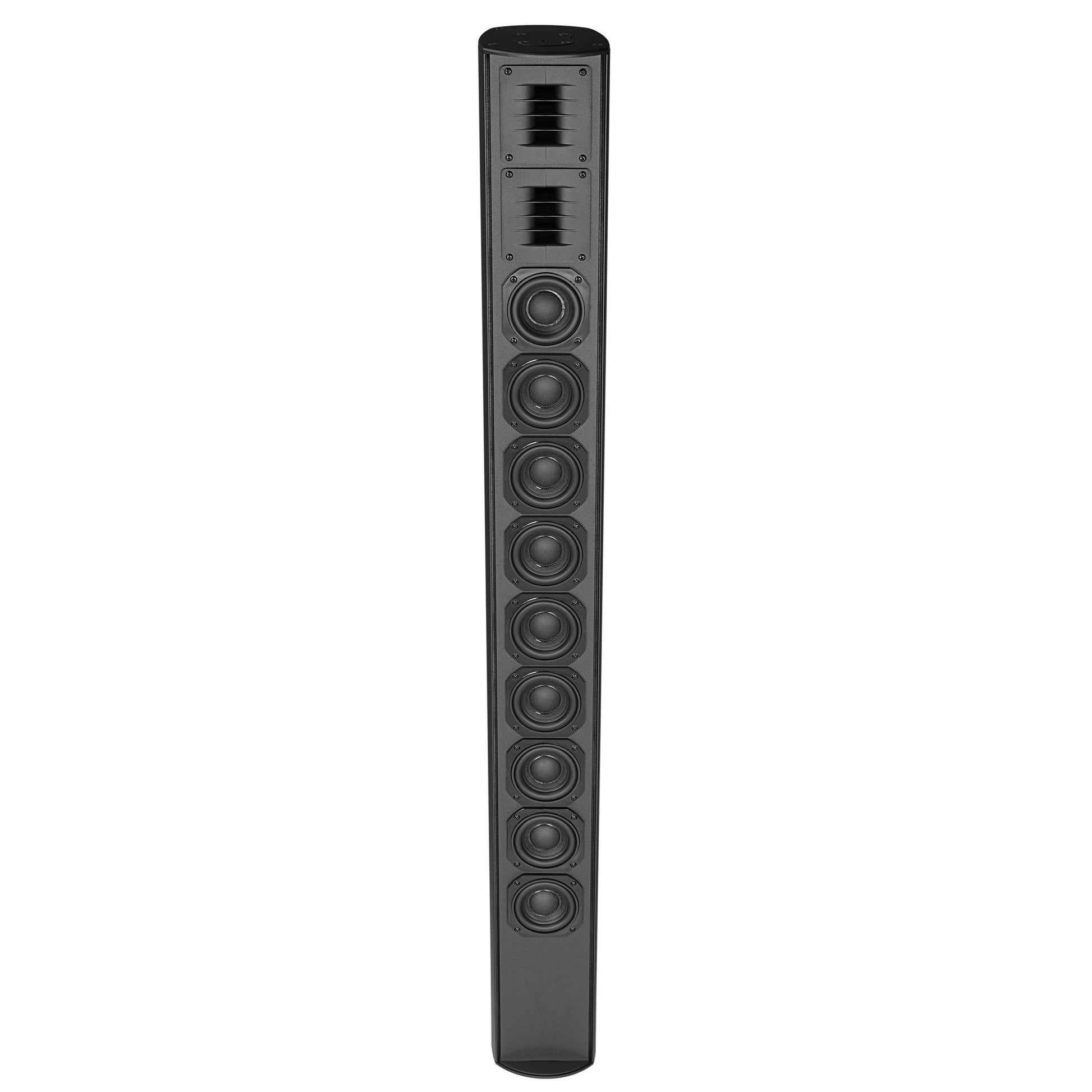

- 9 x 3″ full range drivers
- 2 x HF compression driver
- 360 W AES (Continuous)
- 720 W Programme
- 1440 W Peak
- 128 dB Max SPL @ 1 m
- 70 V / 100 V Hi-Z model available
SPECIFICATIONS:
| Model Name | SIGMA-XV9 |
| System Type | Passive |
| Configuration | Two-Way |
| Frequency Response (+/-3 dB) | 130 Hz – 18 KHz |
| Frequency Range (-10 dB) | 120 Hz – 20 KHz |
| Sensitivity 2.83 V / 1 m | 97 dB |
| Calculated Maximum SPL @1 m | 128 dB |
| System Rated Impedance | 4 Ω |
| Low Frequency Transducer | |
| Size (mm / inches) | 9 x 75 mm / 3″ |
| Voice Coil Size (mm / inches) | 33 mm / 1.3″ |
| Rated Impedance | 4 Ω |
| LF Power re:AES2-2012 | 40 W |
| High Frequency Transducer | |
| HF Driver Type | 2 x 1″ High Frequency drivers |
| Coil Size (mm / inches) | 25.4 mm / 1″ |
| Exit Size (mm / inches) | 25.4 mm / 1″ |
| Diaphragm Material | PEI |
| Rated Impedance | n/a |
| HF Power re:AES2-2012 | n/a |
| Waveguide Type | Mini EVO-Fold |
| Nominal Coverage (H x V) | 120˚ x 20˚ |
| LF Driver | 9 x 3″ |
| HF Driver | 2 x 1″ PEI EVO-Fold Driver |
| Power | |
| System Continuous Power | 360 W |
| System Programme Power | 720 W |
| System Peak Power | 1440 W |
| Transformer (T) | |
| Transformer Taps (70 V) | |
| Transformer Taps (100 V) | |
| Crossover frequency | 2.5 KHz |
| Recommended HPF | 160 Hz |
| = BW 18 dB/oct. | |
| Input Connector | 1 x speakON / 1x Barrier Strip |

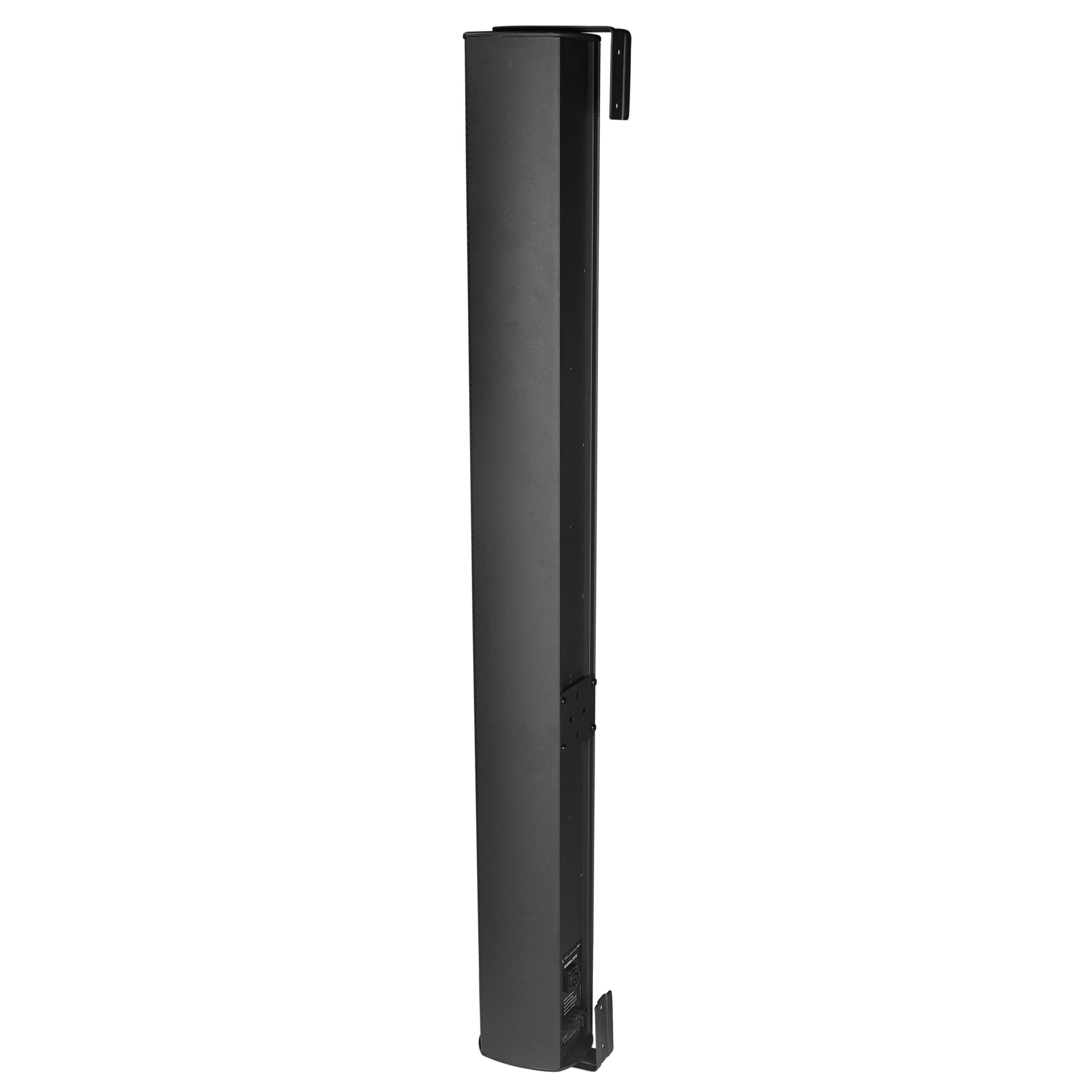

| Hardware | U Bracket included |
| Enclosure | |
| Enclosure Material | Aluminum |
| Finish | Black Paint / White Paint |
| Grille Material & Finish | 1.2 mm steel, painted |
| Dimensions – Unpacked | |
| Height | 1210 mm / 47.6″ |
| Width Front | 126 mm / 4.96″ |
| Width Rear | 92 mm / 3.62″ |
| Depth | 145 mm / 5.71″ |
| Dimensions – Packed | |
| Height | 1285 mm / 50.6″ |
| Width Front | 210 mm / 8.27″ |
| Width Rear | 210 mm / 8.27″ |
| Depth | 210 mm / 8.27″ |
| Weight | |
| Net Weight | 10.1 kg / 22.2 lbs |
| Gross Weight | 11.6 kg / 25.5 lbs |
| Optional Wall-mount bracket | WPB-SV |
