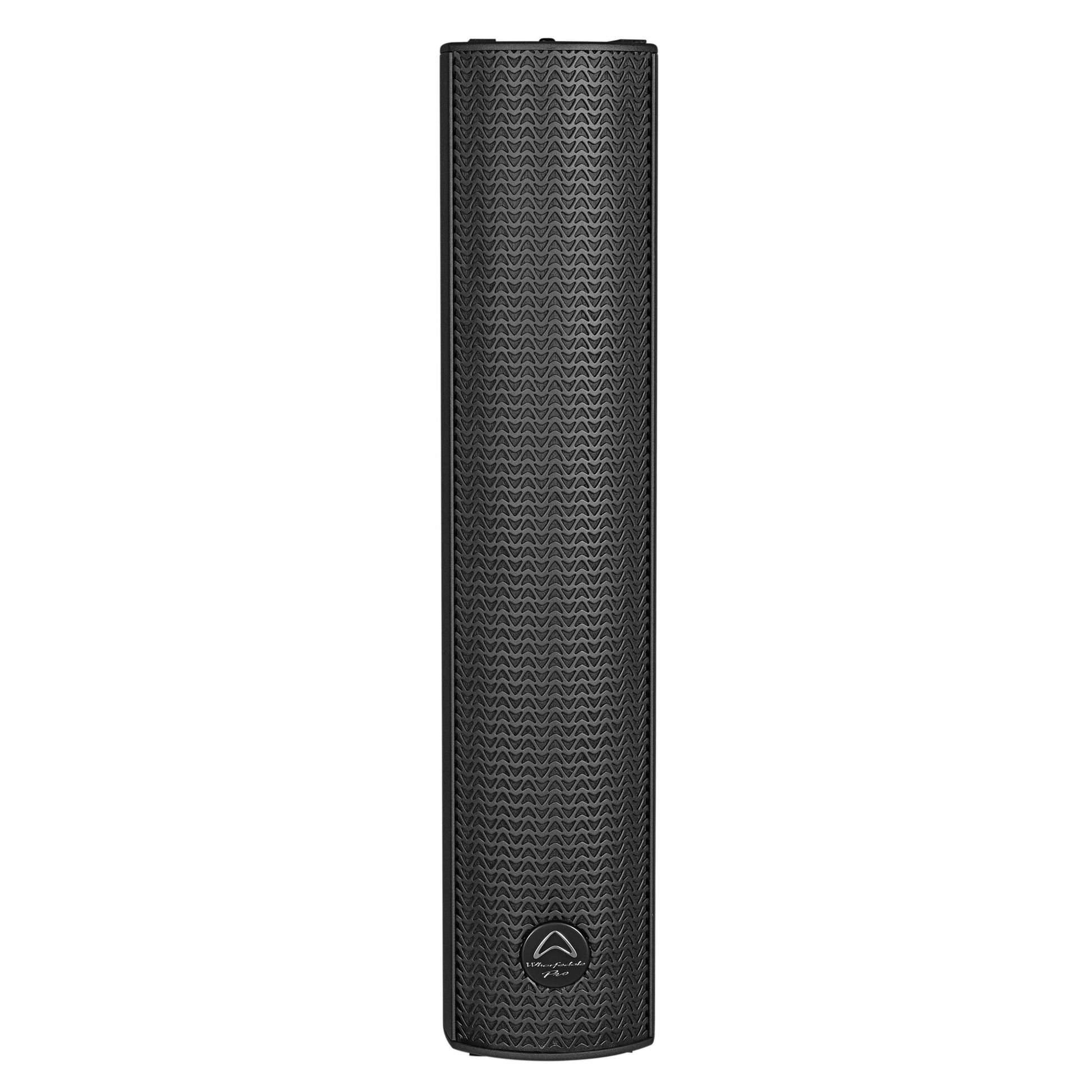

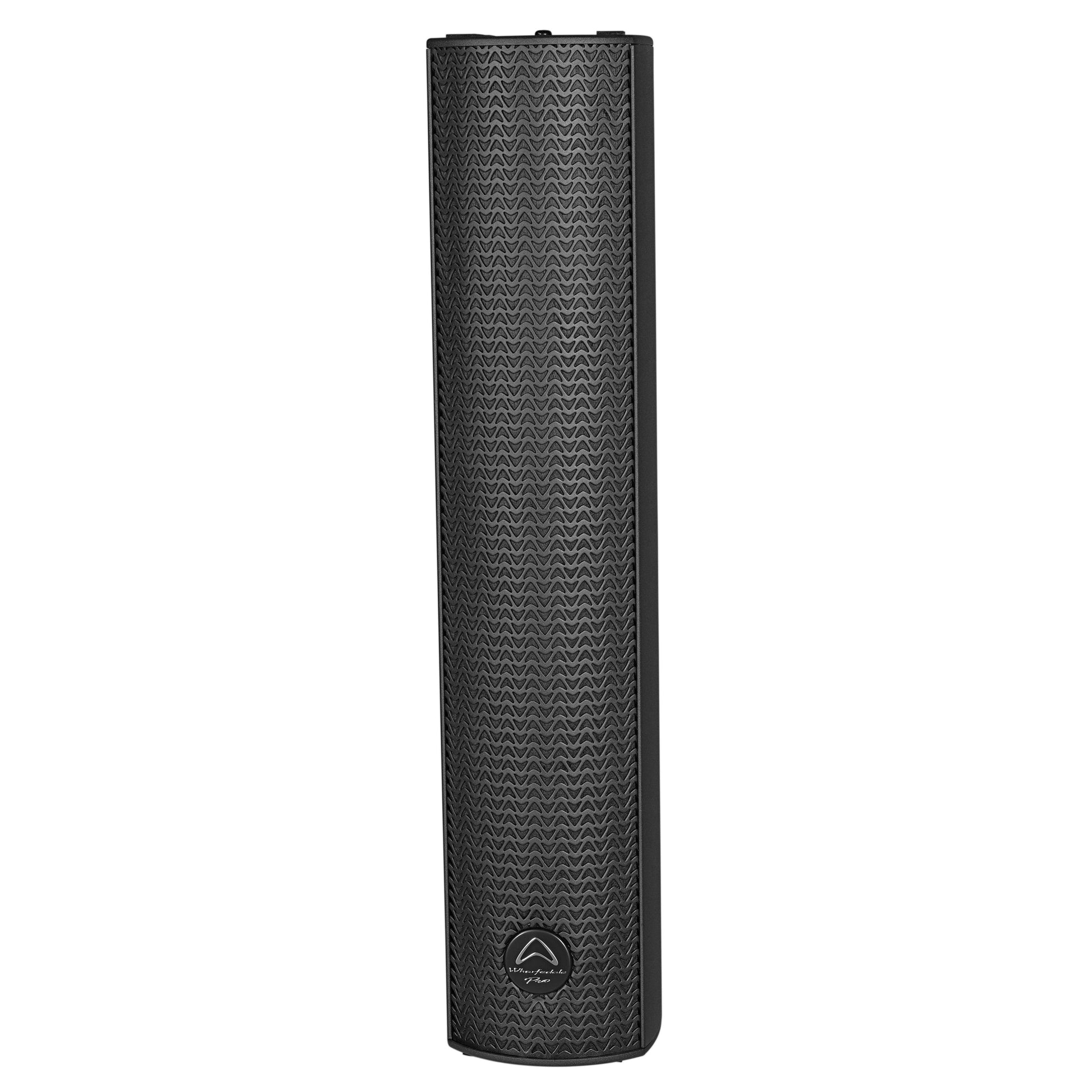

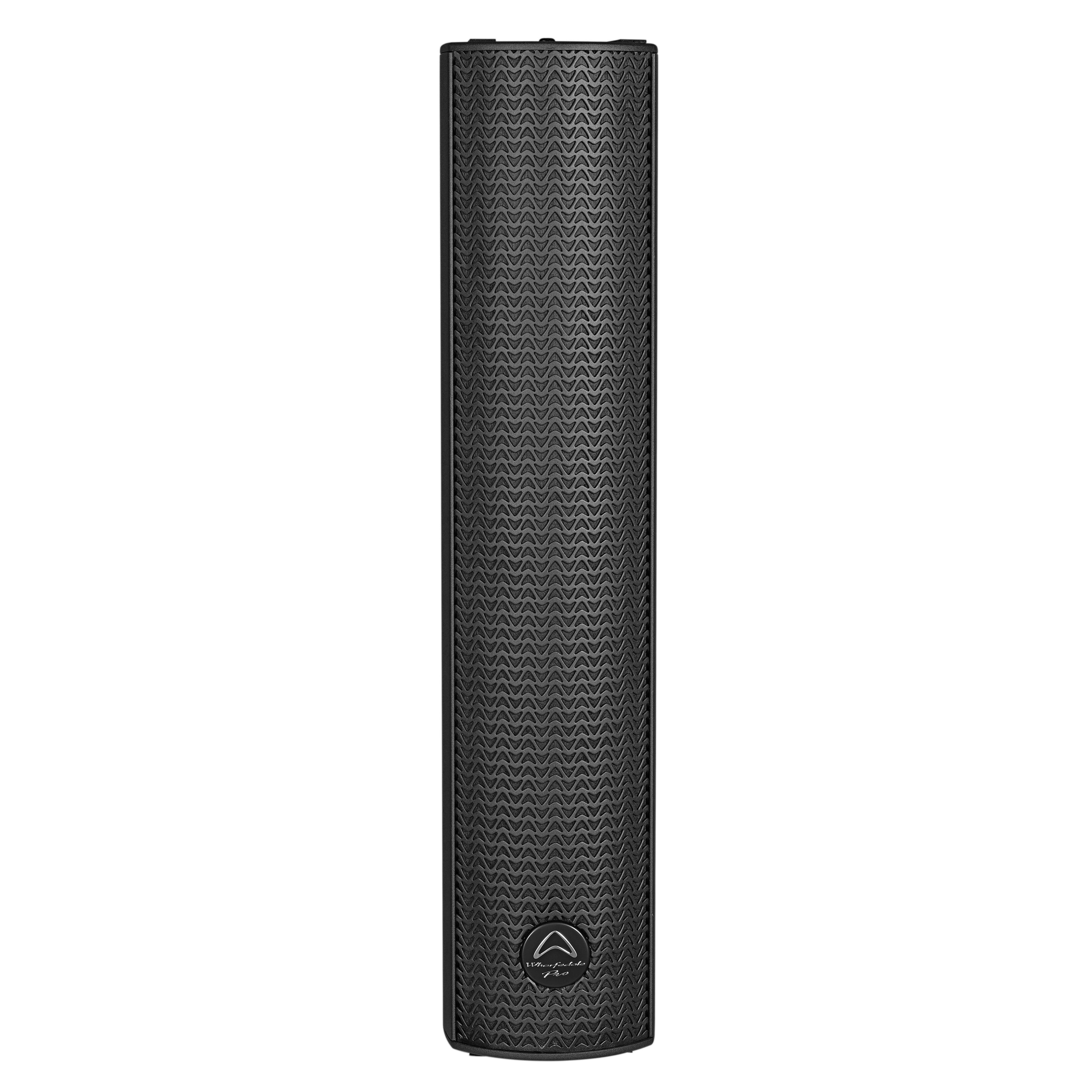

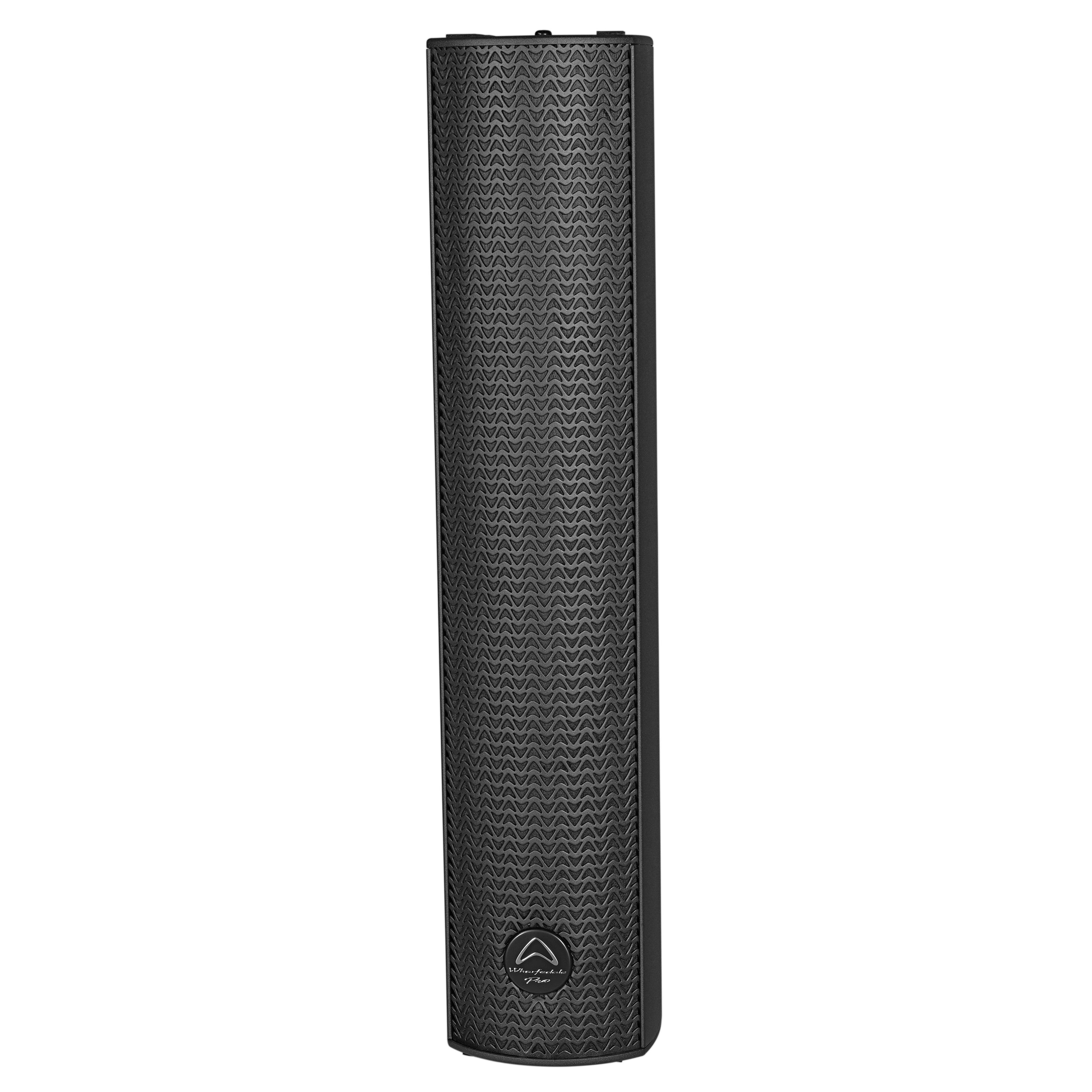

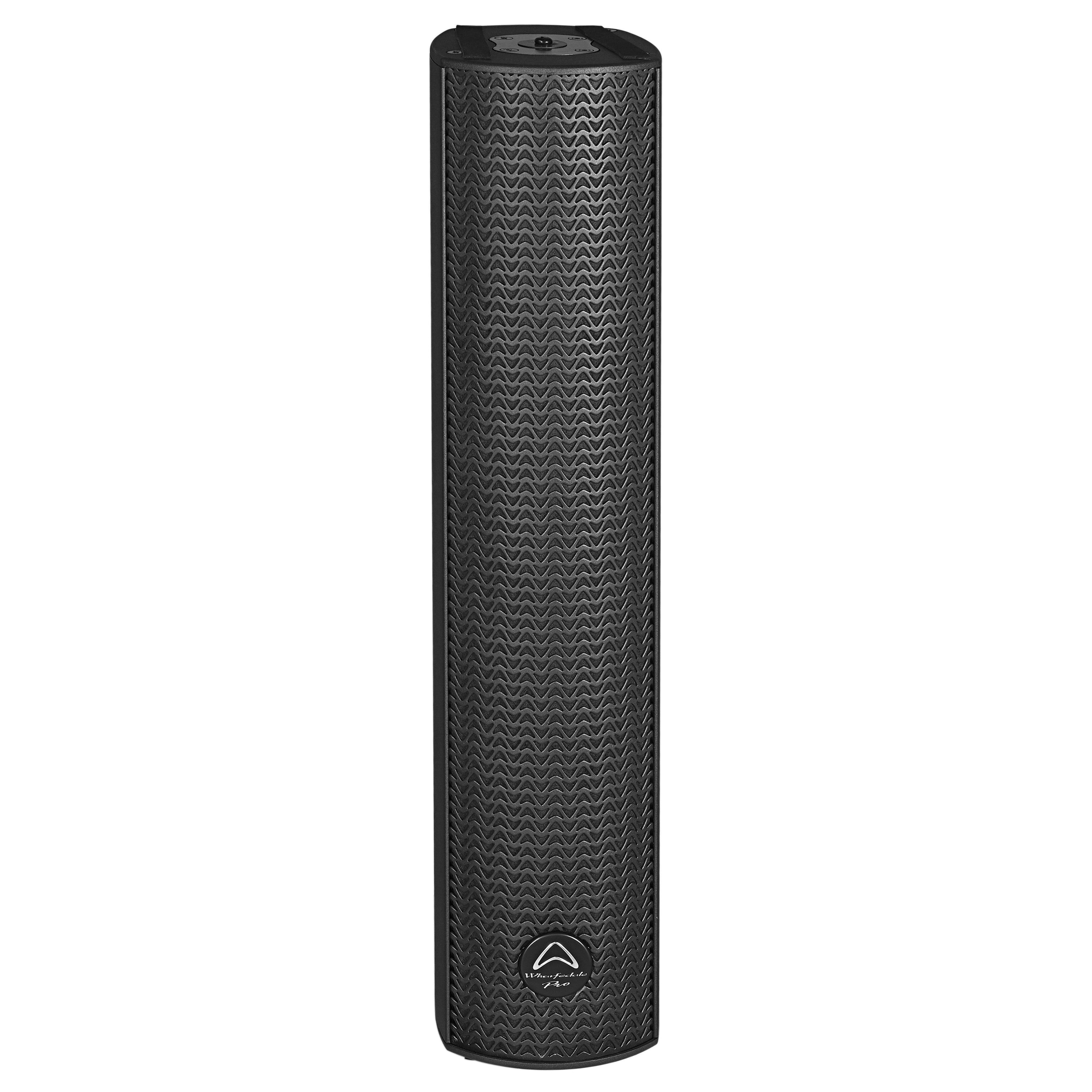

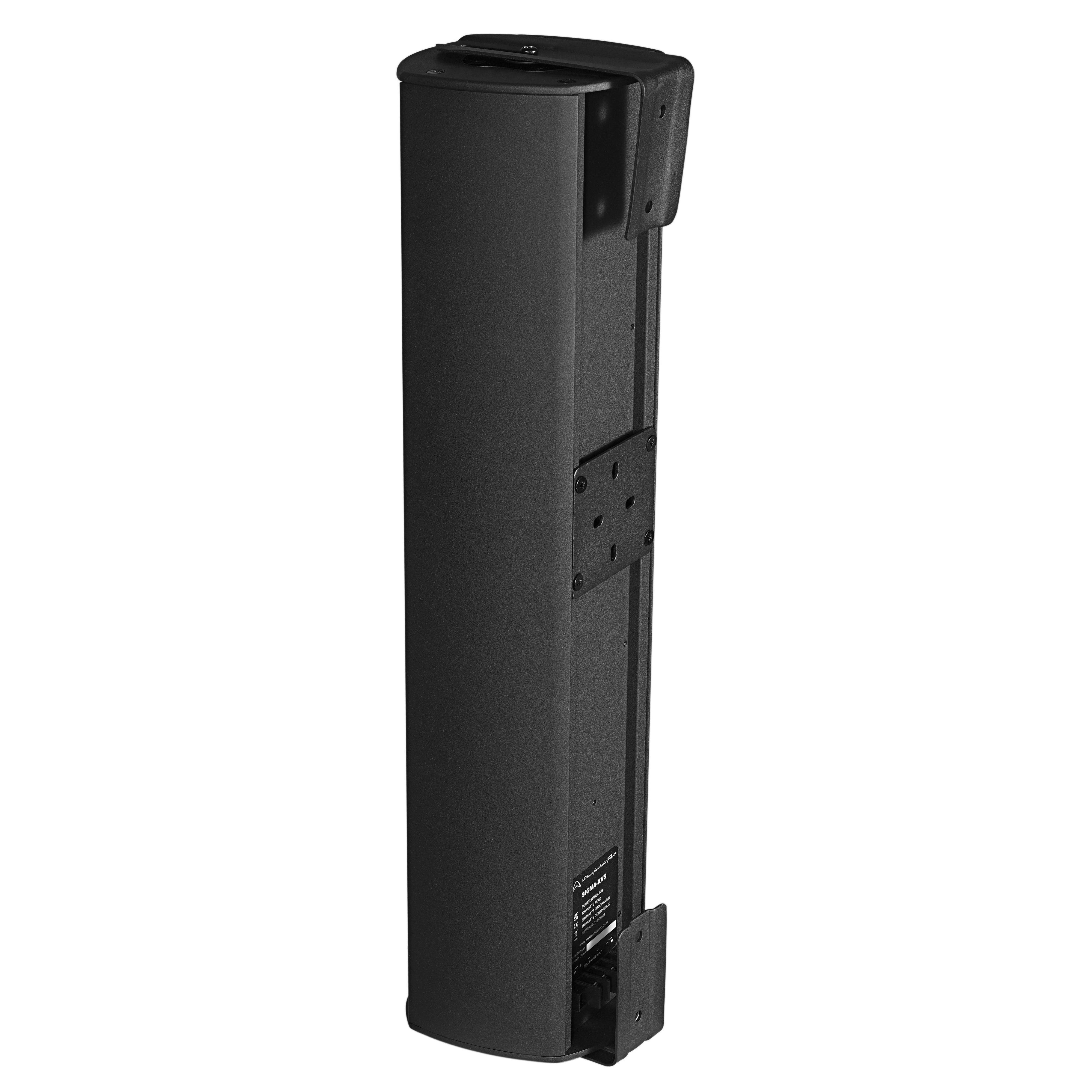

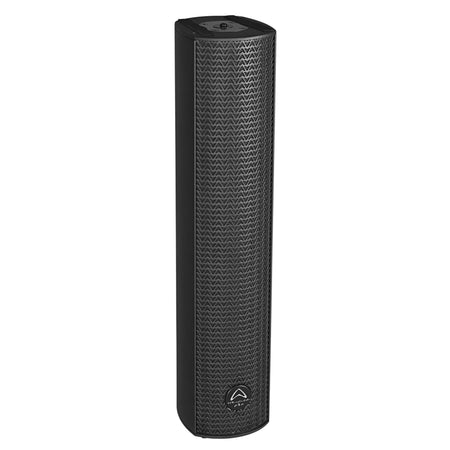

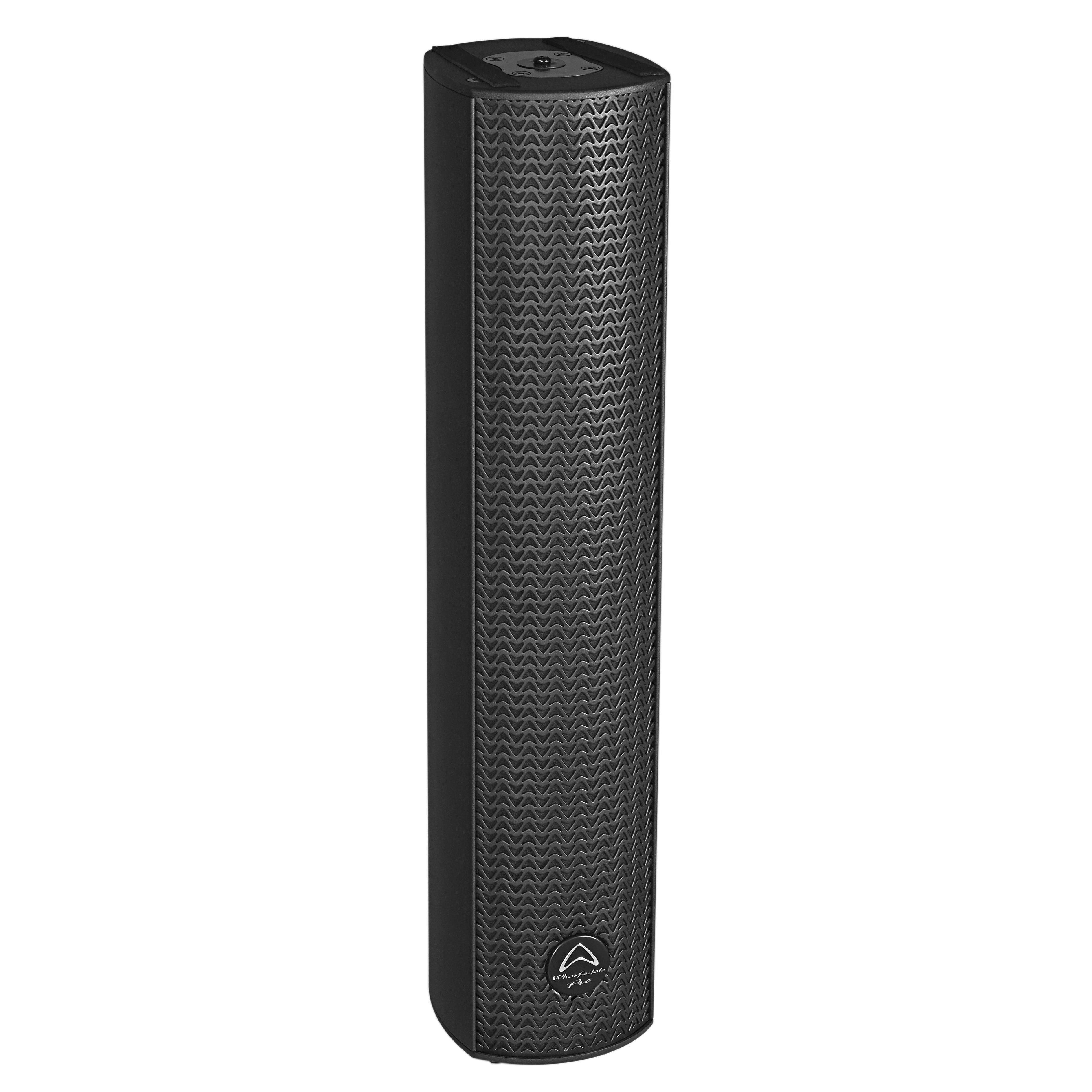

Wharfedale Pro SIGMA-XV5 Column Array Speaker
Wharfedale Pro SIGMA-XV5 Column Array Speaker
Couldn't load pickup availability
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
Want to elevate your sound system with powerful, consistent audio? The Wharfedale Pro SIGMAXV5 Column Array Speaker is your answer. This versatile speaker packs a punch with five 3-inch full-range drivers and a dedicated high-frequency driver, delivering 180 watts of continuous power and reaching impressive volumes of 123 dB at one meter. The innovative mini EVO-Fold waveguide technology ensures the sound spreads evenly across the entire space, both horizontally and vertically. This eliminates inconsistencies and creates a unified, coherent soundscape for your audience.
Features :
- 5 x 3″ full range drivers
- 1 x HF compression driver
- 180 W AES (Continuous)
- 360 W Programme
- 720 W Peak
- 123 dB Max SPL @ 1 m
- 70 V / 100 V Hi-Z model available
SPECIFICATIONS:
| Model Name | SIGMA-XV5 |
| System Type | Passive |
| Configuration | Two-Way |
| Frequency Response (+/-3 dB) | 160 Hz – 18 KHz |
| Frequency Range (-10 dB) | 150 Hz – 20 KHz |
| Sensitivity 2.83 V / 1 m | 95 dB |
| Calculated Maximum SPL @1 m | 123 dB |
| System Rated Impedance | 8 Ω |
| Low Frequency Transducer | |
| Size (mm / inches) | 5 x 75 mm / 3″ |
| Voice Coil Size (mm / inches) | 33 mm / 1.3″ |
| Rated Impedance | 4 Ω |
| LF Power re:AES2-2012 | 40 W |
| High Frequency Transducer | |
| HF Driver Type | 1 x 1″ High Frequency driver |
| Coil Size (mm / inches) | 25.4 mm / 1″ |
| Exit Size (mm / inches) | 25.4 mm / 1″ |
| Diaphragm Material | PEI |
| Rated Impedance | n/a |
| HF Power re:AES2-2012 | n/a |
| Waveguide Type | Mini EVO-Fold |
| Nominal Coverage (H x V) | 120˚ x 30˚ |
| LF Driver | 5 x 3″ |
| HF Driver | 1 x 1″ PEI EVO-Fold Driver |
| Power | |
| System Continuous Power | 180 W |
| System Programme Power | 360 W |
| System Peak Power | 720 W |
| Transformer (T) | |
| Transformer Taps (70 V) | |
| Transformer Taps (100 V) | |
| Crossover frequency | 2.5 KHz |
| Recommended HPF | 160 Hz |
| = BW 18 dB/oct. | |

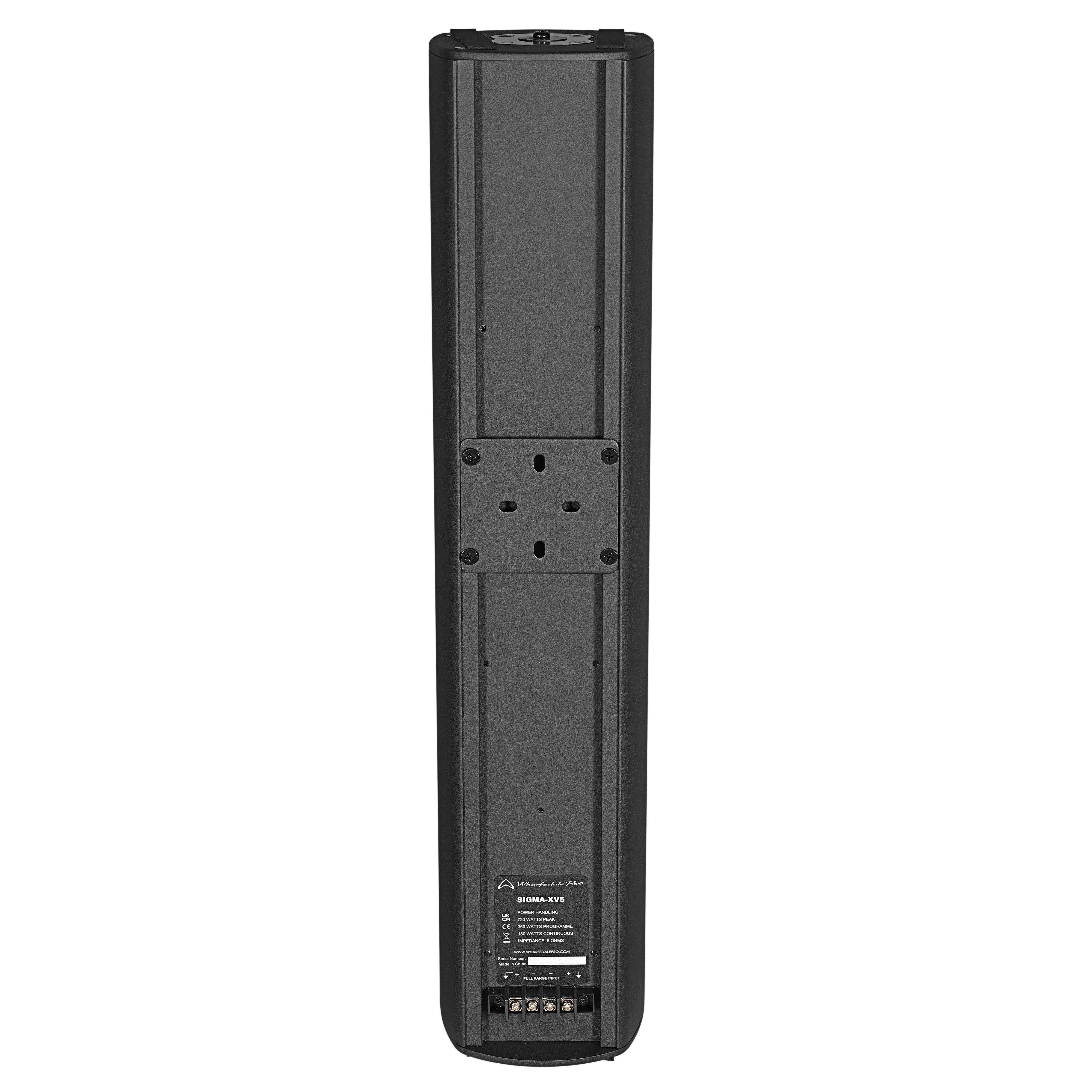

| Input Connector | 1 x speakON / 1x Barrier Strip |
| Hardware | U Bracket included |
| Enclosure | |
| Enclosure Material | Aluminum |
| Finish | Black Paint / White Paint |
| Grille Material & Finish | 1.2 mm steel, painted |
| Dimensions – Unpacked | |
| Height | 720 mm / 28.3″ |
| Width Front | 126 mm / 4.96″ |
| Width Rear | 92 mm / 3.62″ |
| Depth | 145 mm / 5.71″ |
| Dimensions – Packed | |
| Height | 865 mm / 30.1″ |
| Width Front | 210 mm / 8.27″ |
| Width Rear | 210 mm / 8.27″ |
| Depth | 210 mm / 8.27″ |
| Weight | |
| Net Weight | 6.8 kg / 14.96 lbs |
| Gross Weight | 7.6 kg / 16.72 lbs |

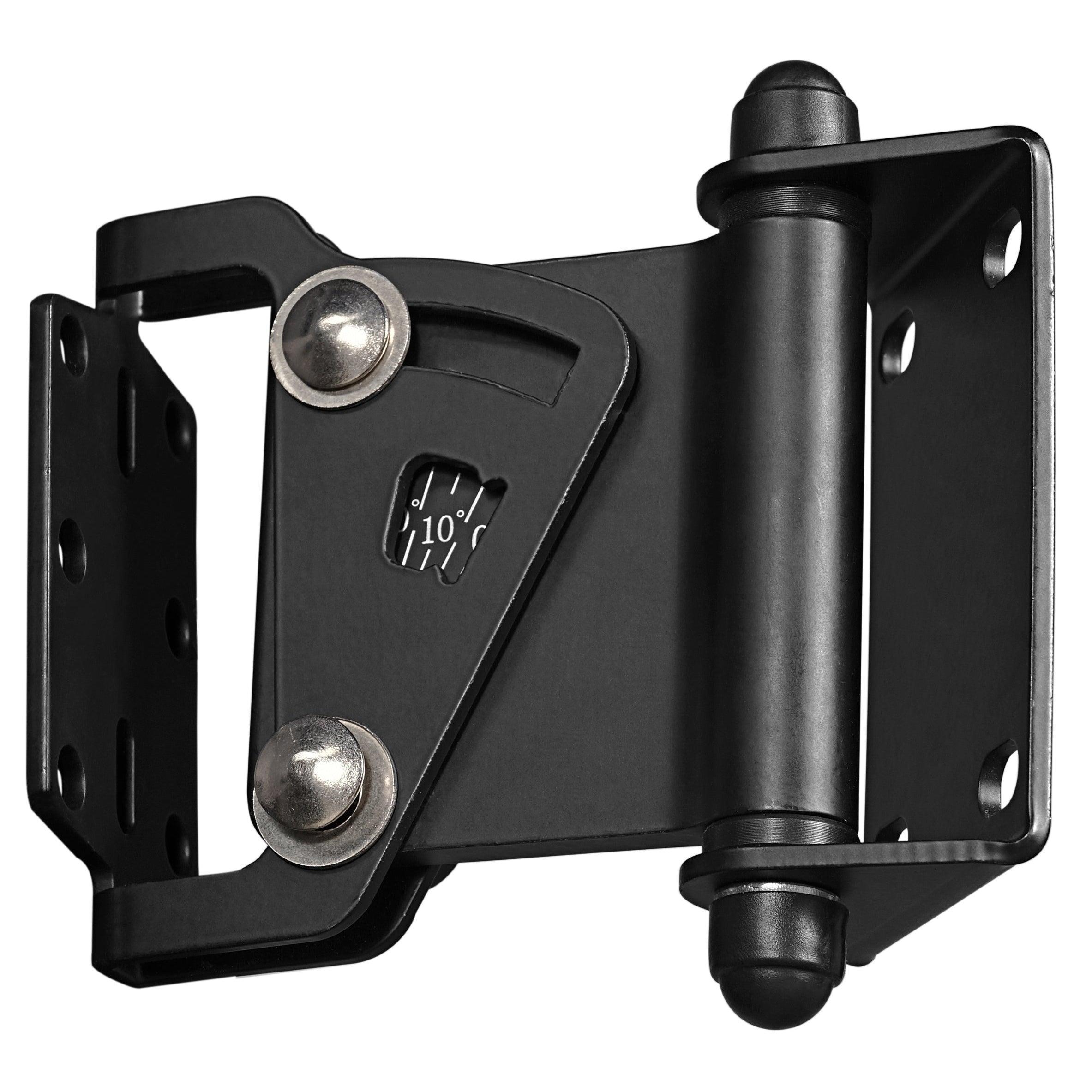

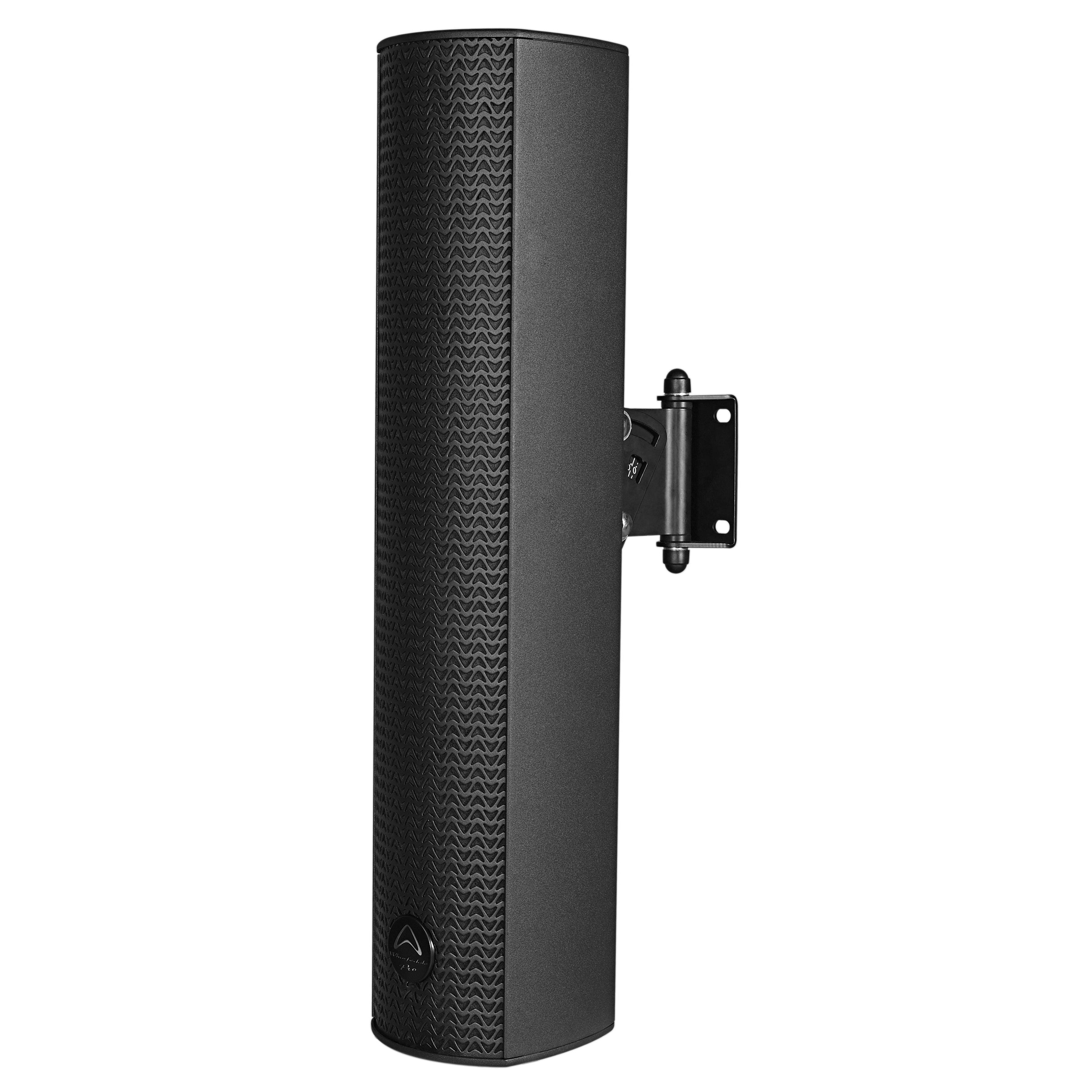

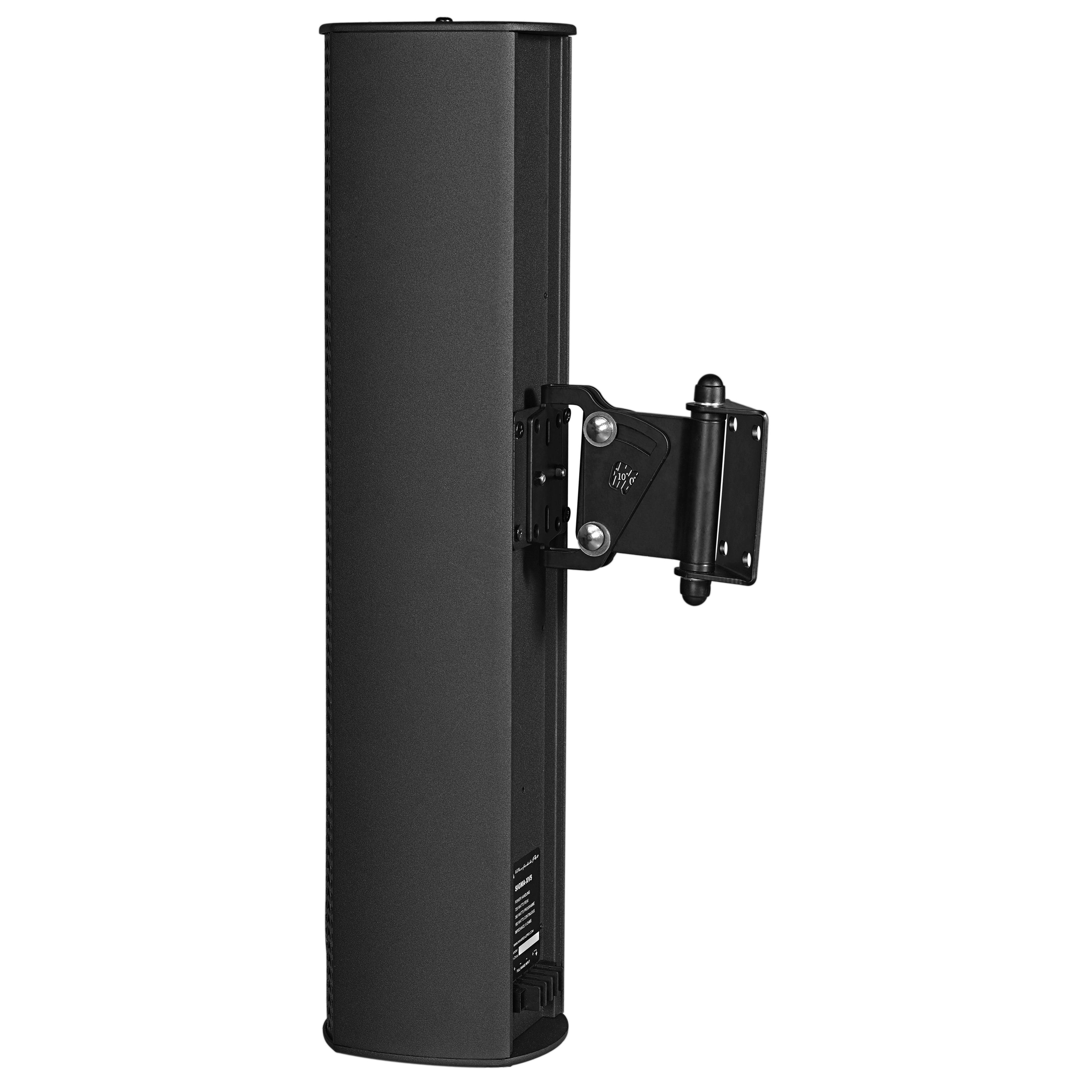

| Optional Wall-mount bracket | WPB-SV |
