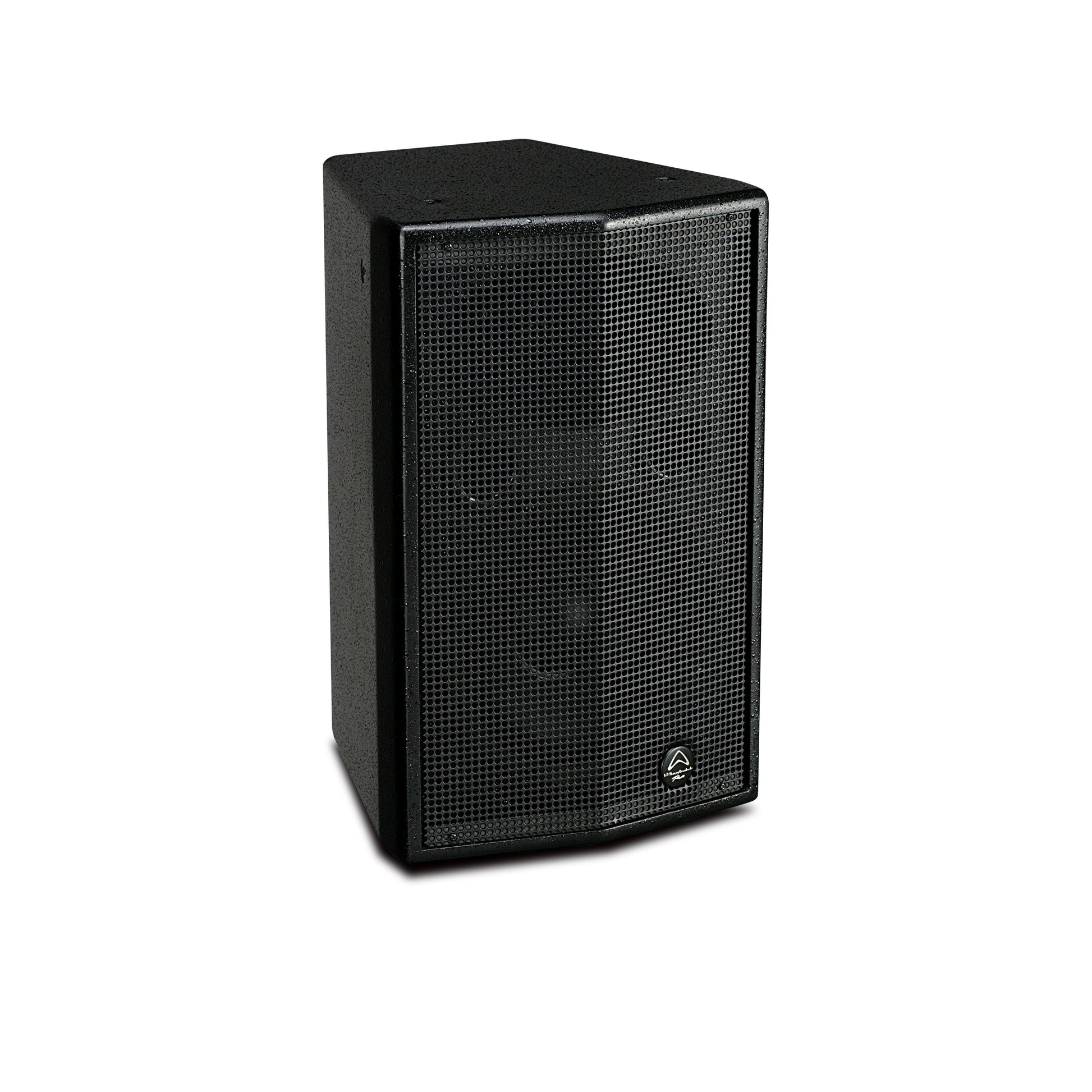

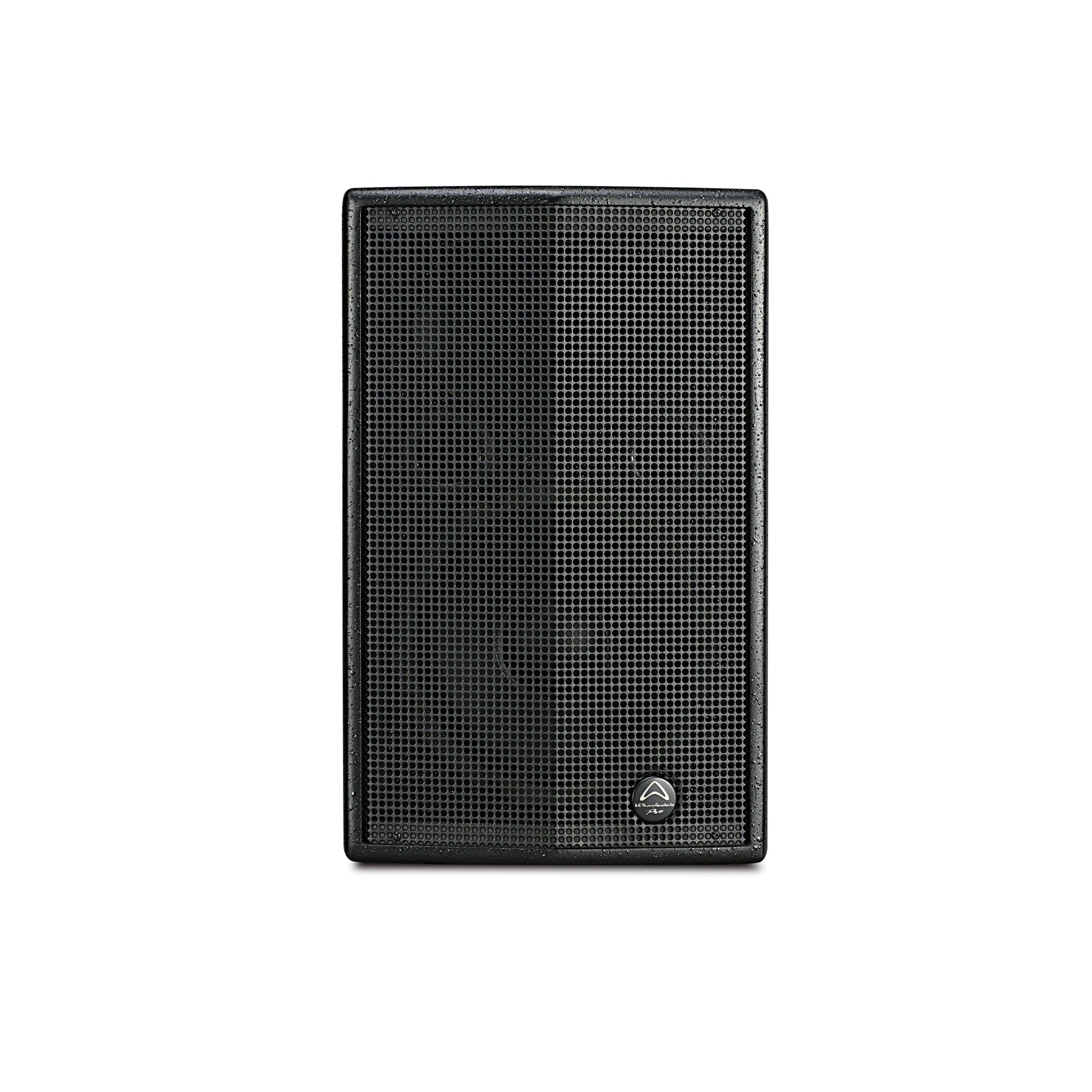

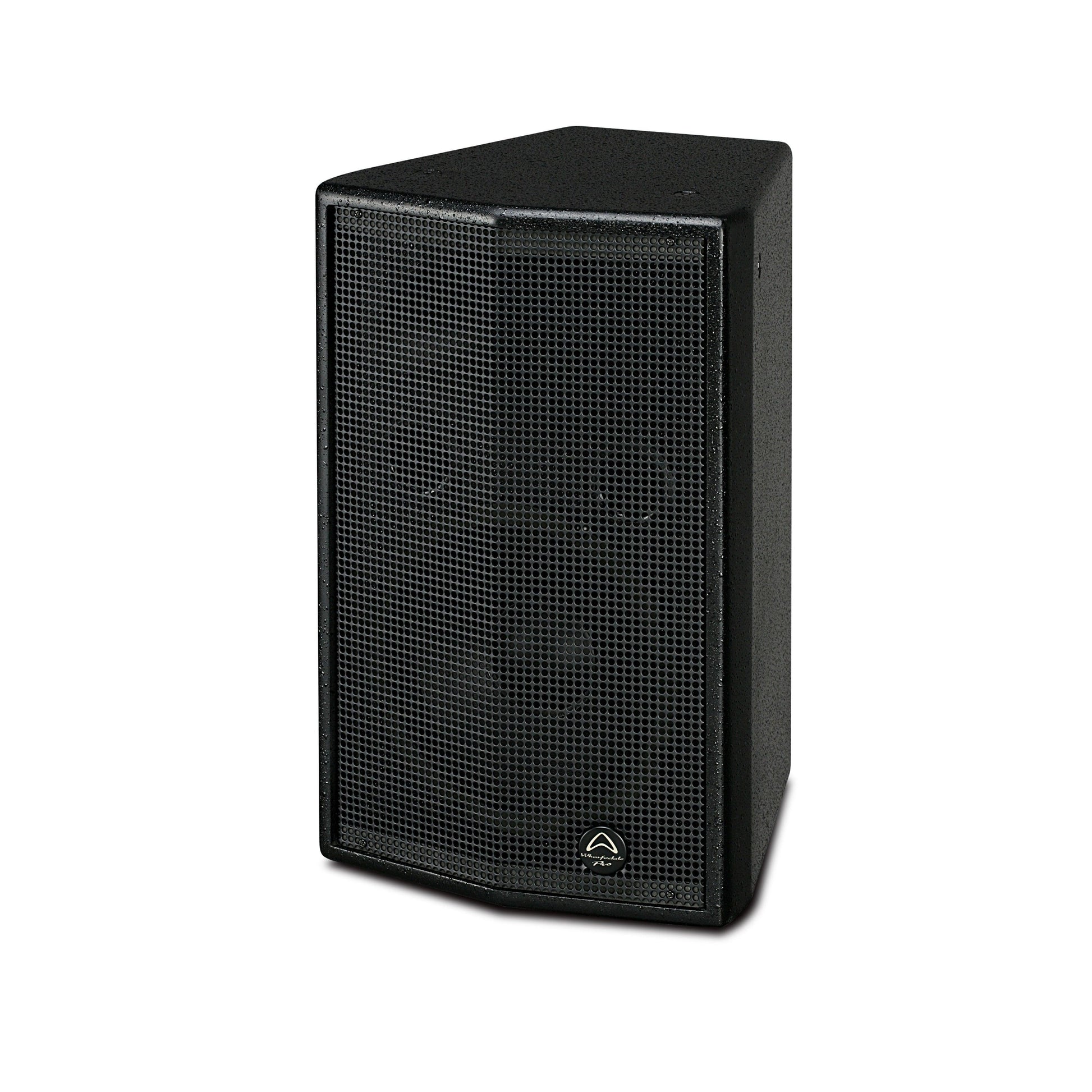

Wharfedale Pro SIGMA-10 Passive PA Speaker (Discontinued)
Wharfedale Pro SIGMA-10 Passive PA Speaker (Discontinued)
Couldn't load pickup availability
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
KEY FEATURES
- 10″ LF driver
- 1.5″ LF voice coil
- 1.75″ HF compression driver
- 124 dB Max SPL @ 1 m
- 400 watts Programme
- 800 watts Peak
DESCRIPTION
Wharfedale Pro engineers have matched the acoustic properties of the cabinet to the proprietary driver technology within, while taking physical aspects into consideration to ensure optimal positioning and size for installation.
By using a newly-developed angled-corner port system, cabinet height and overall size has been reduced – ideal for unobtrusive mounting within your venue. Additionally the angle-corner port system is fine-tuned acoustically to ensure low- end punch – just as you would expect with a larger PA speaker.
The cabinet of a full-range Sigma loudspeaker also features a pole mount socket ensuring the long-throw HF driver projects the sound directly to your audience. There are also 5 x M8 rigging points for safe and secure flying where needed. Sigma series are also coated in the latest generation chip-resistant, Rhino Rock paint.
SPECIFICATIONS
| Model Name | SIGMA-10 |
| System Type | Passive |
| Configuration | Two-way |
| Frequency Response (+/-3 dB) | 65 Hz – 18 KHz |
| Frequency Range (-10 dB) | 60 Hz – 20 KHz |
| Sensitivity 2.83 v / 1 m | 97 dB |
| Calculated Maximum SPL @1 m | 126 dB |
| System Rated Impedance | 8 Ω |
| Low Frequency Transducer | |
| Size (mm / inches) | 254 mm / 10” |
| Voice Coil Size (mm / inches) | 38 mm / 1.5” |
| Rated Impedance | 8 Ω |
| LF Power re:AES2-2012 | 200 w |
| High Frequency Transducer | |
| HF Driver Type | Compression Driver |
| Coil Size (mm / inches) | 44 mm / 1.75” |
| Exit Size (mm / inches) | 1″ |
| Diaphragm Material | Titanium |
| Rated Impedance | 8 Ω |
| HF Power re:AES2-2012 | 40 w |
| Nominal Coverage (H x V) | 90˚ x 60˚ |
| Power | |
| System Continuous Power | 200 w |
| System Programme Power | 400 w |
| System Peak Power | 800 w |
| Crossover frequency | 2.4 KHz |

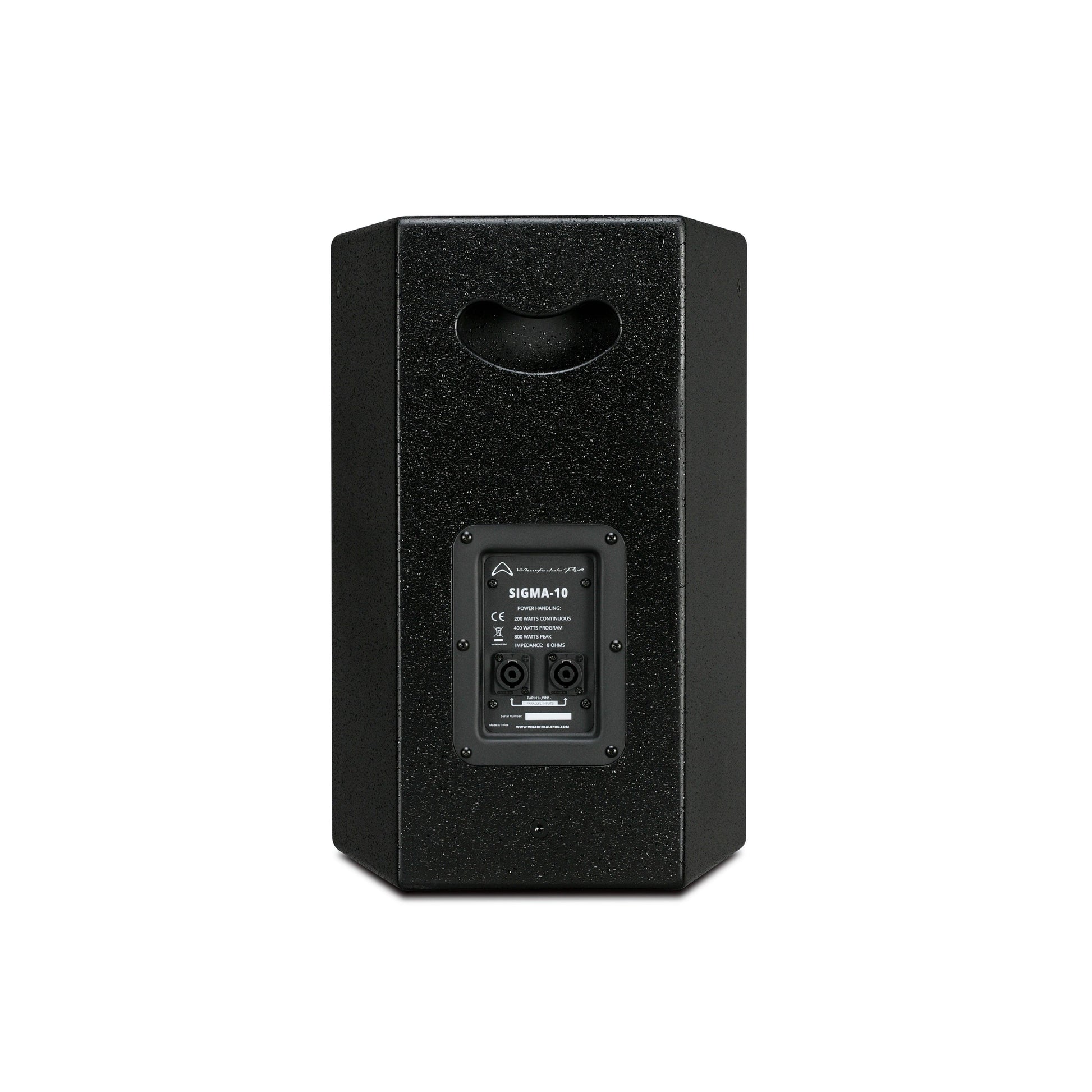

| Input Connector | 2 x NL4 (speakON compatible) |
| Hi Pass output connector | |
| Hardware | Dual-angle (0° /10°) 35 mm socket |
| M8 x 5 | |
| 1 handle on back | |
| Enclosure | |
| Enclosure Material | 15 mm MDF |
| Finish | Black Paint / White Paint |
| Grille Material & Finish | 1.2 mm steel, painted |
| Dimensions – Unpacked | |
| Height | 500 mm / 19.5″ |
| Width Front | 383 mm / 13.3″ |
| Width Rear | 213 mm / 8.4″ |
| Depth | 339 mm / 13.3″ |
| Dimensions – Packed | |
| Height | 585 mm / 23″ |
| Width Front | 451 mm / 18″ |
| Width Rear | 254 mm / 10″ |
| Depth | 384 mm / 13.3″ |
| Weight | |
| Net Weight | 15.4 kg / 34 lbs |
| Gross Weight | 17.8 kg / 38.5 lbs |
