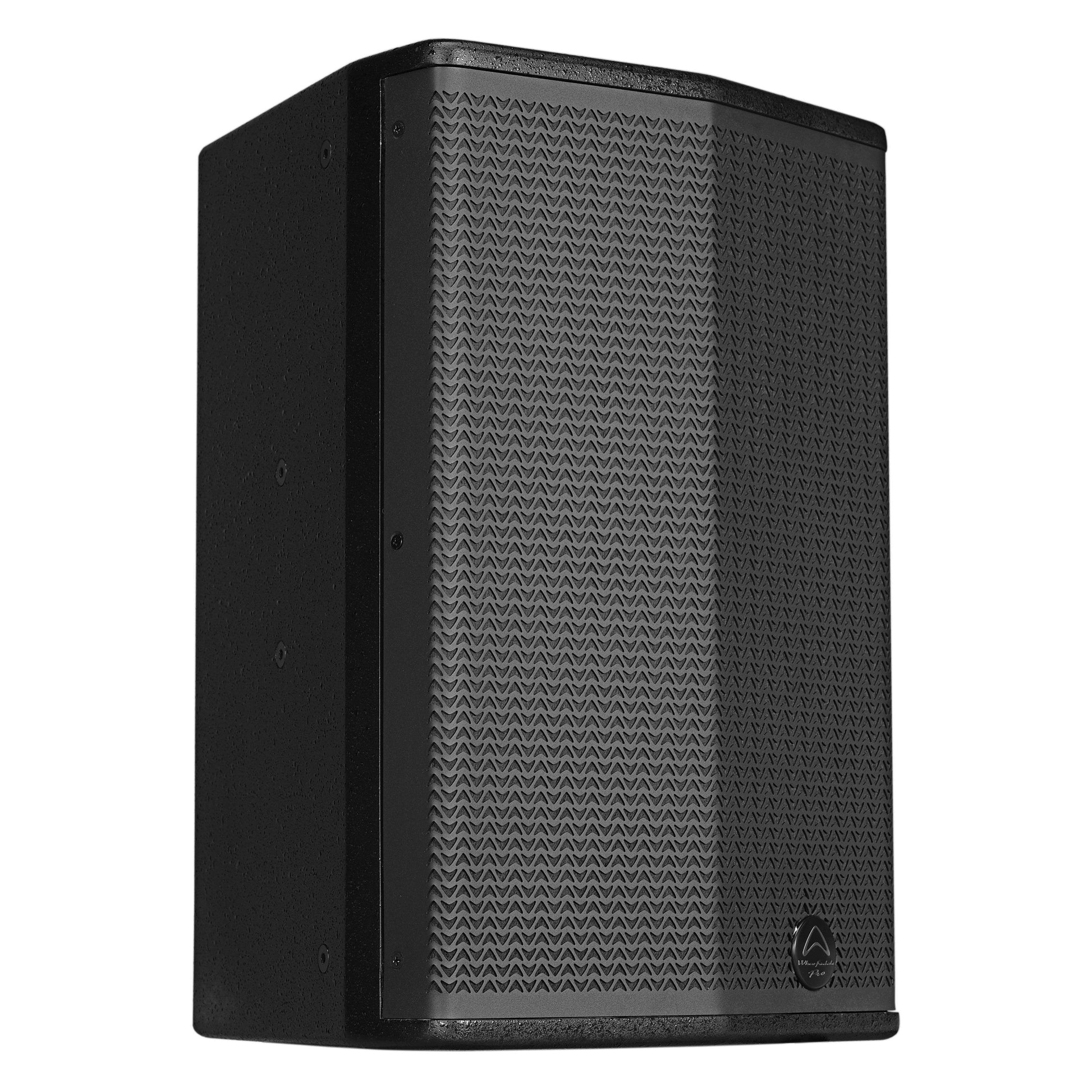

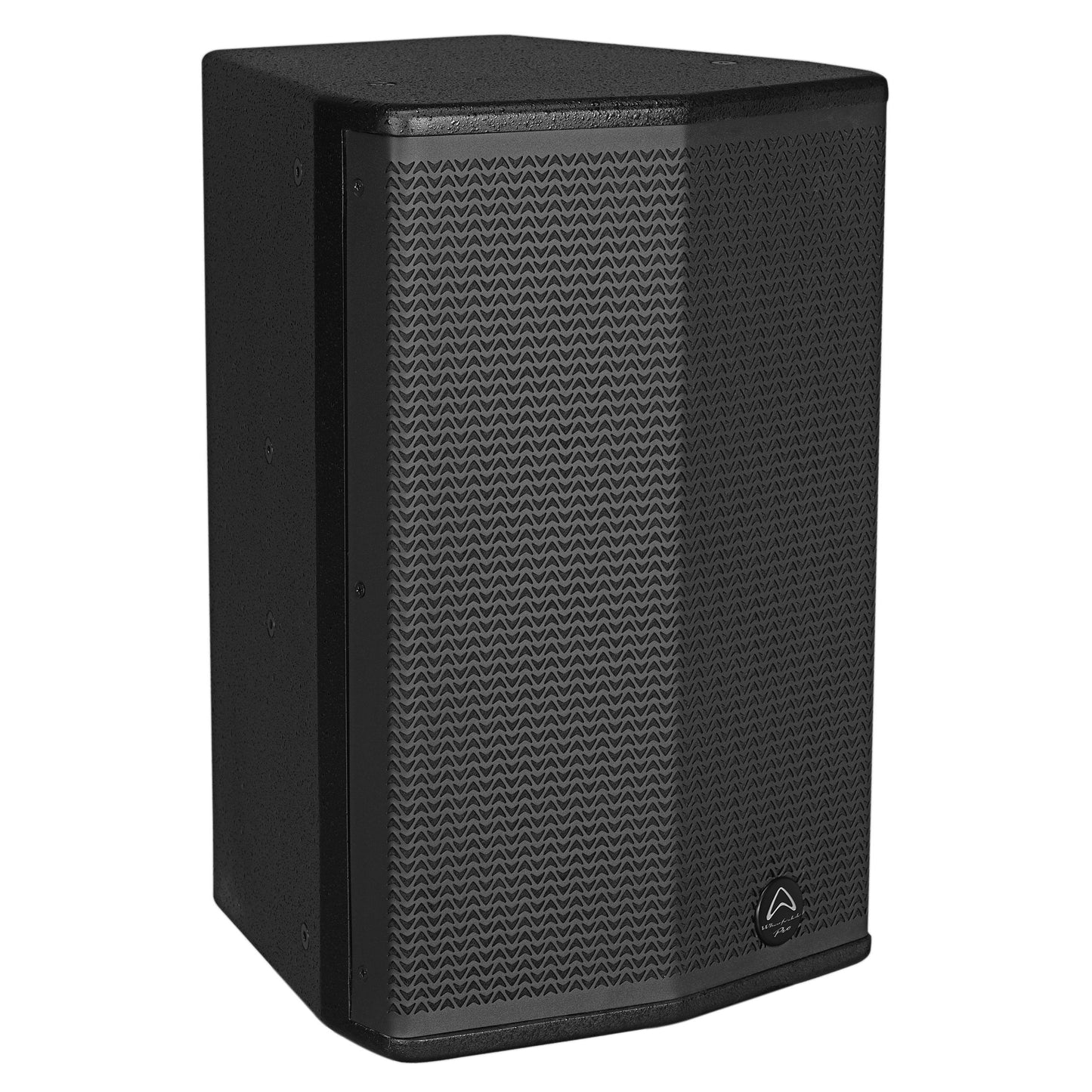

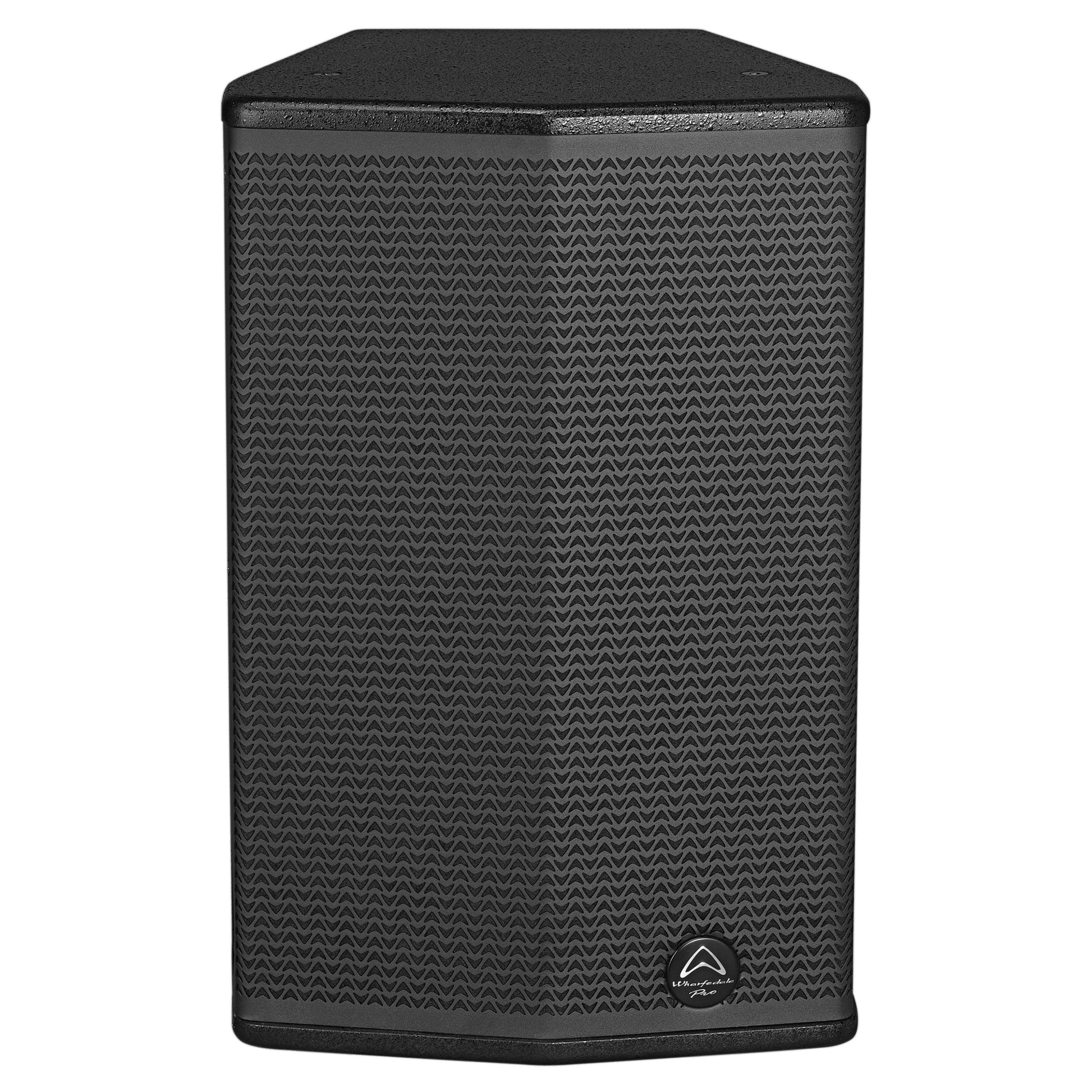

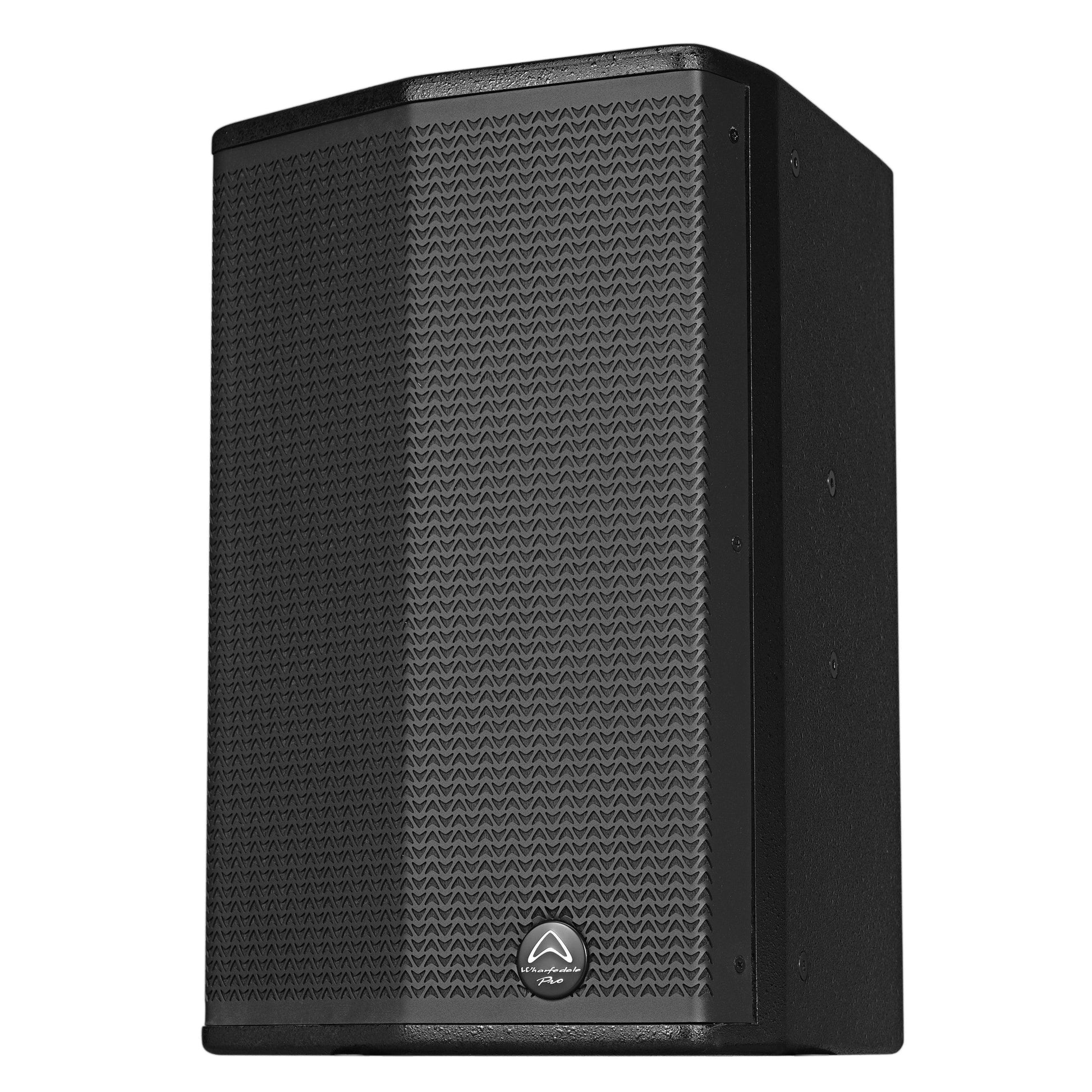

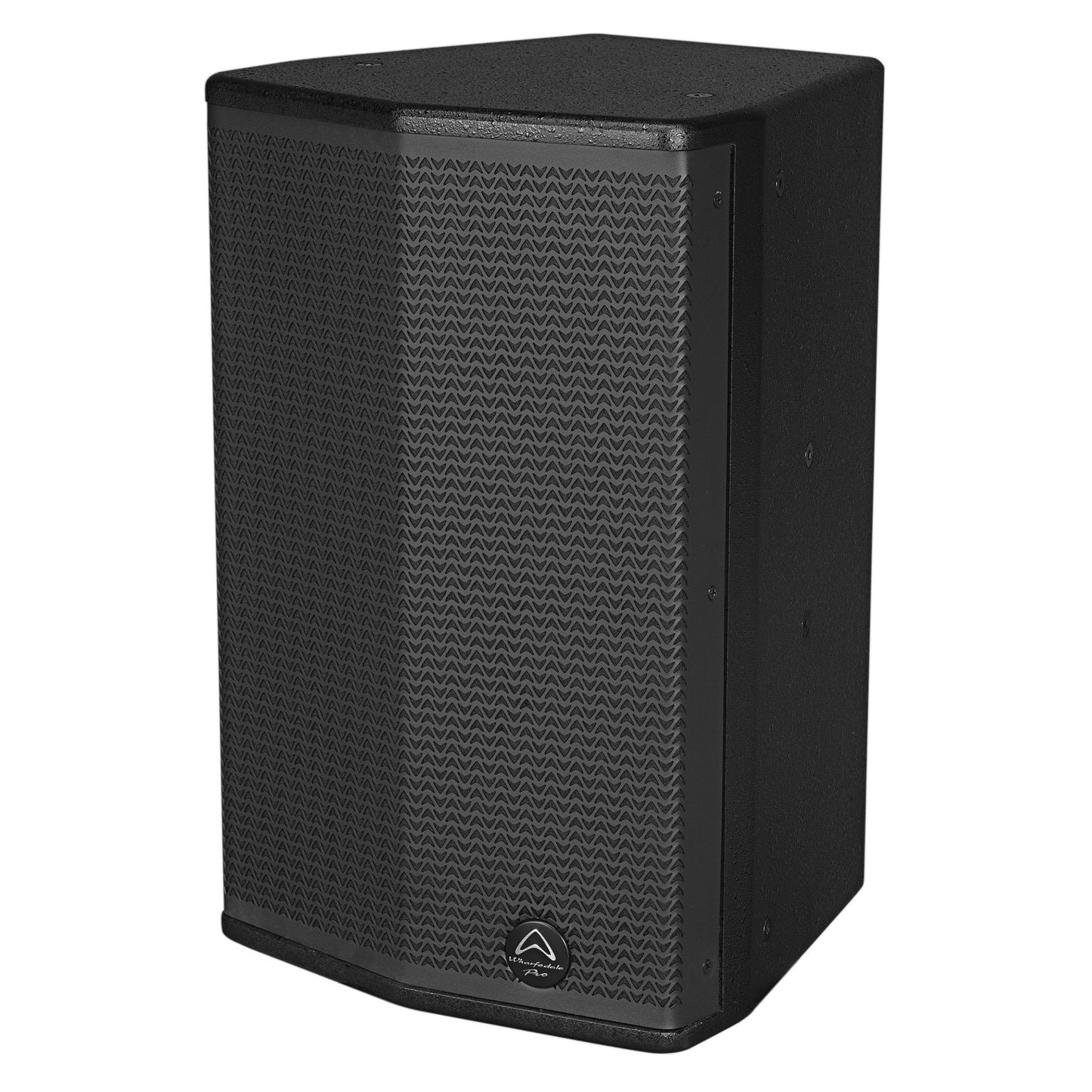

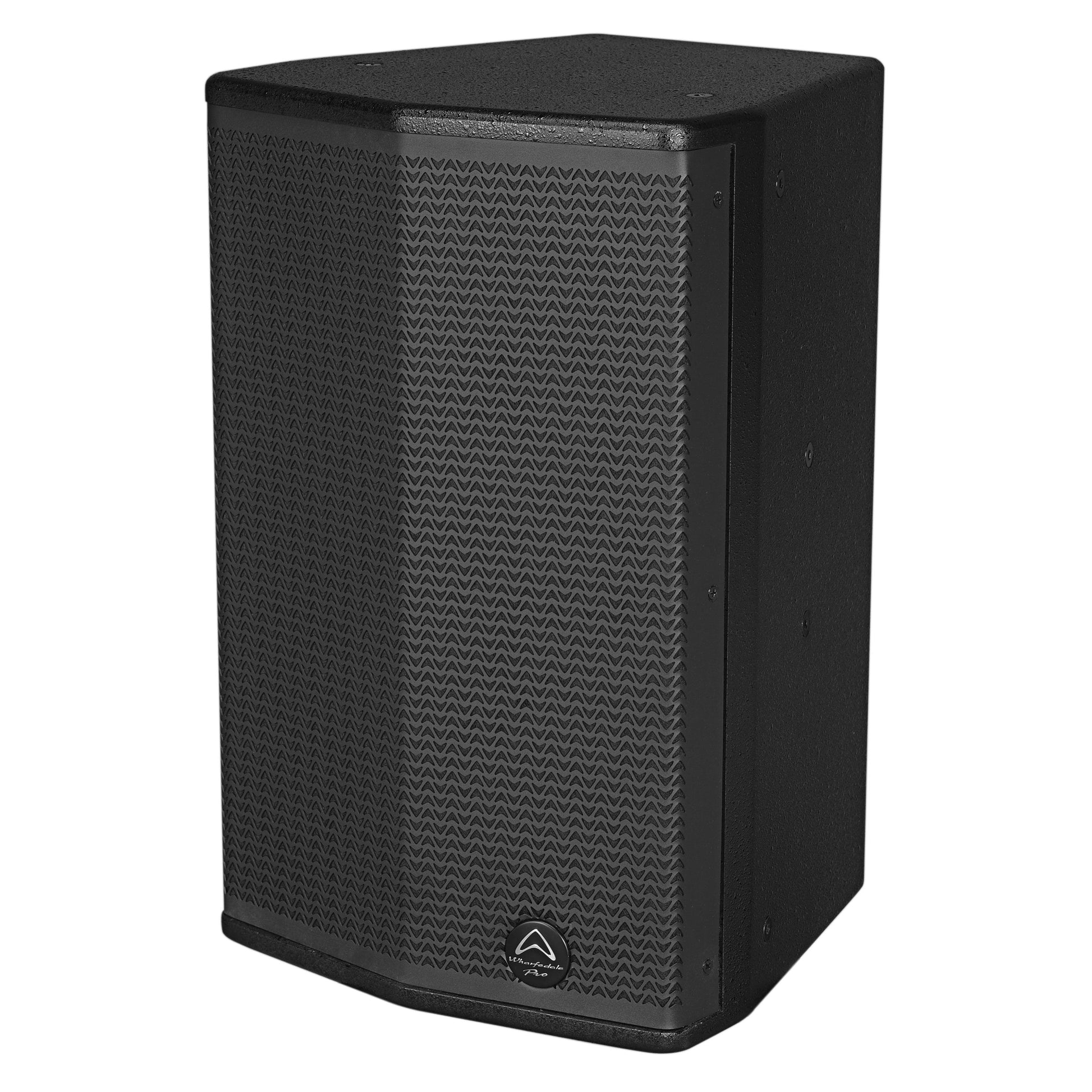

Wharfedale Pro SIGMA-X10 Installation Loudspeakers
Wharfedale Pro SIGMA-X10 Installation Loudspeakers
Couldn't load pickup availability
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
KEY FEATURES
- 200 W AES (Continuous)
- 400 W Programme
- 800 W Peak
- 126 dB Max SPL @ 1 m
DESCRIPTION
A complete re-design of the classic SIGMA series of Installation loudspeakers. 7 new models with a fresh new cosmetic for 2022.

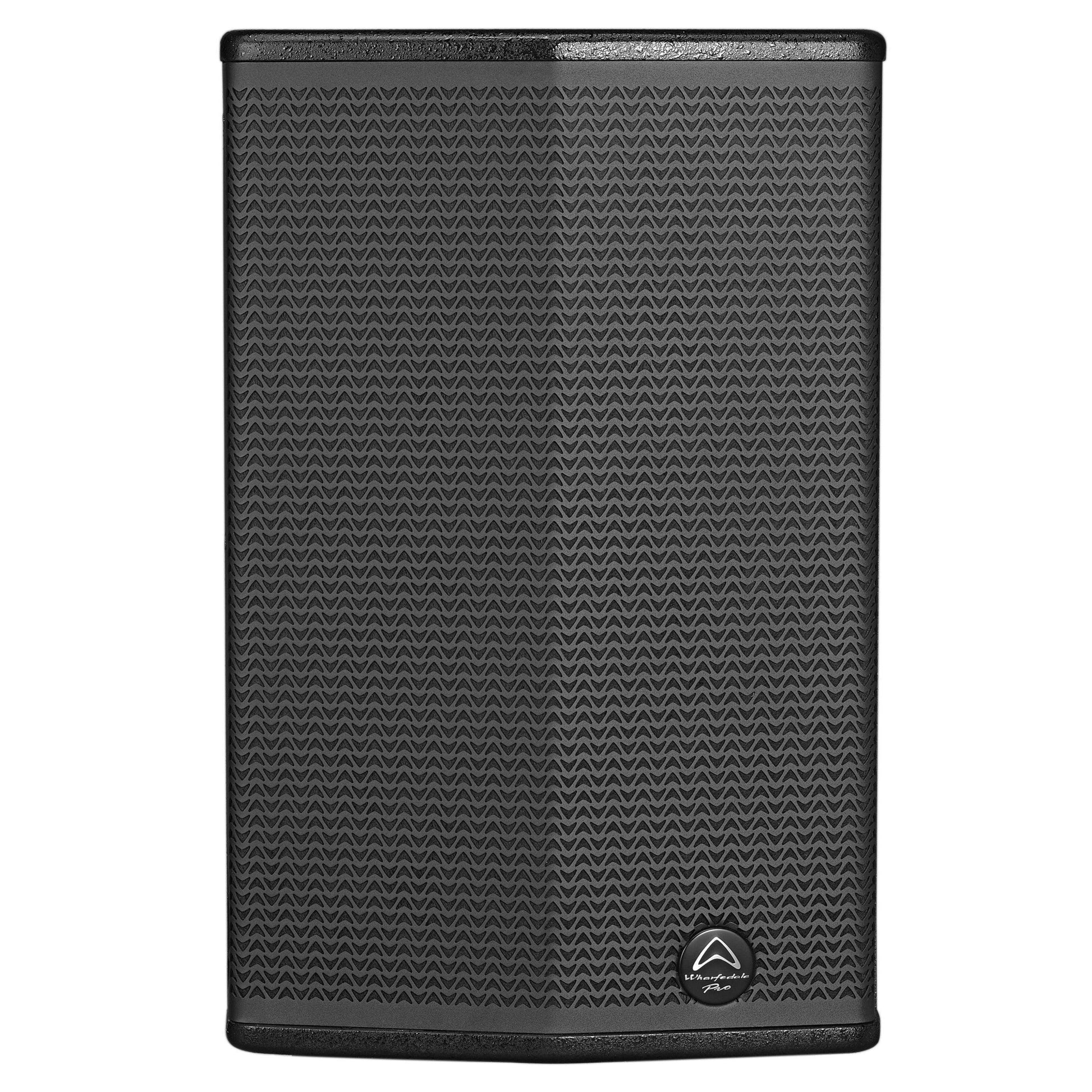

Building on the reliable performance of the established SIGMA series, the new SIGMA-X features newly designed front grilles and support materials to make the installation simply look and sound great. Available in black or white durable paint finishes, SIGMA-X models now also include both speakON and barrier strip connections, making installation easy!Improved mounting and rigging options make SIGMA-X simple to install into almost any location. The improved audio definition is also welcomed as SIGMA-X has been completely re-evaluated by the Wharfedale Pro International R&D team.
SPECIFICATIONS
| Model Name | SIGMA-X10 |
| System Type | Passive |
| Configuration | Two-Way |
| Frequency Response (+/-3 dB) | 65 Hz – 18 KHz |
| Frequency Range (-10 dB) | 60 Hz – 20 KHz |
| Sensitivity 2.83 V / 1 m | 97 dB |
| Calculated Maximum SPL @1 m | 126 dB |
| System Rated Impedance | 8 Ω |
| Low Frequency Transducer | |
| Size (mm / inches) | 254 mm / 10” |
| Voice Coil Size (mm / inches) | 38 mm / 1.5” |
| Rated Impedance | 8 Ω |
| LF Power re:AES2-2012 | 200 W |
| High Frequency Transducer | |
| HF Driver Type | Compression Driver |
| Coil Size (mm / inches) | 44 mm / 1.75” |
| Exit Size (mm / inches) | 1″ |
| Diaphragm Material | Titanium |
| Rated Impedance | 8 Ω |
| HF Power re:AES2-2012 | 40 W |
| Waveguide Type | Constant Directivity / |
| Rotatable | |
| Nominal Coverage (H x V) | 90˚ x 60˚ |
| LF Driver | 1 x 10″ |
| HF Driver | 1 x 1.75″ Titanium Compression Driver |
| Power | |
| System Continuous Power | 200 W |
| System Programme Power | 400 W |
| System Peak Power | 800 W |
| Crossover frequency | 2.4 KHz |
| Recommended HPF | 45 Hz |
| = BW 18 dB/oct. | |

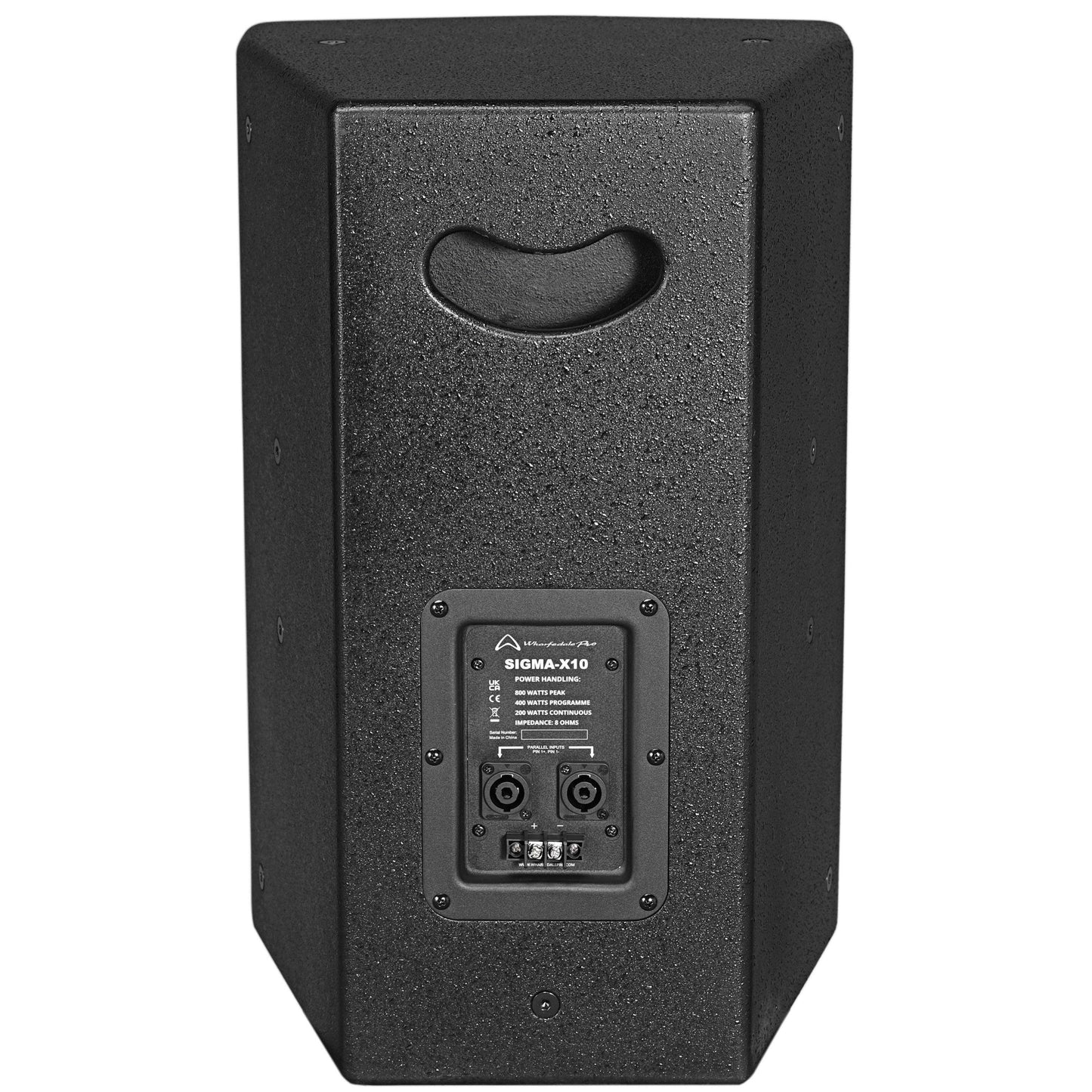

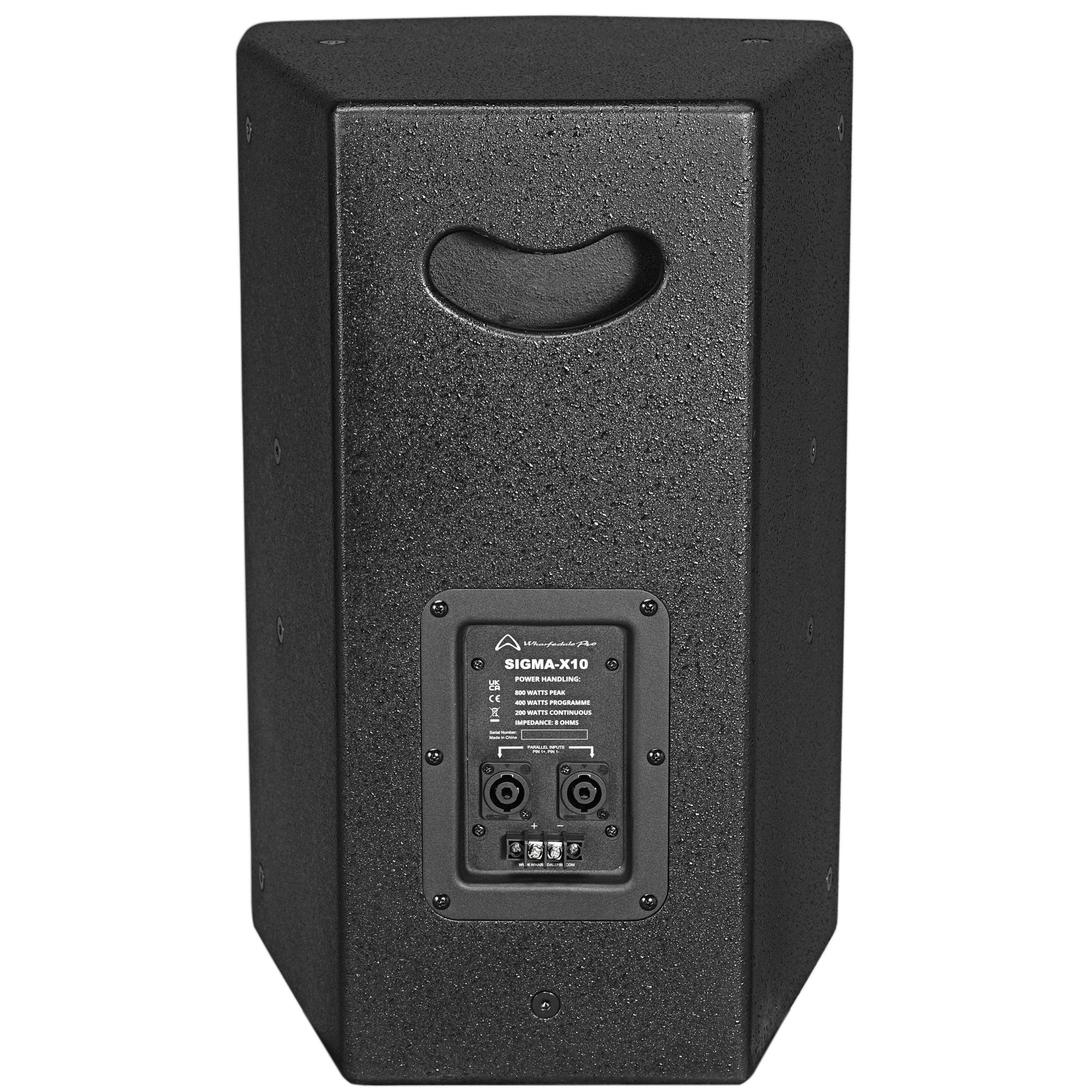

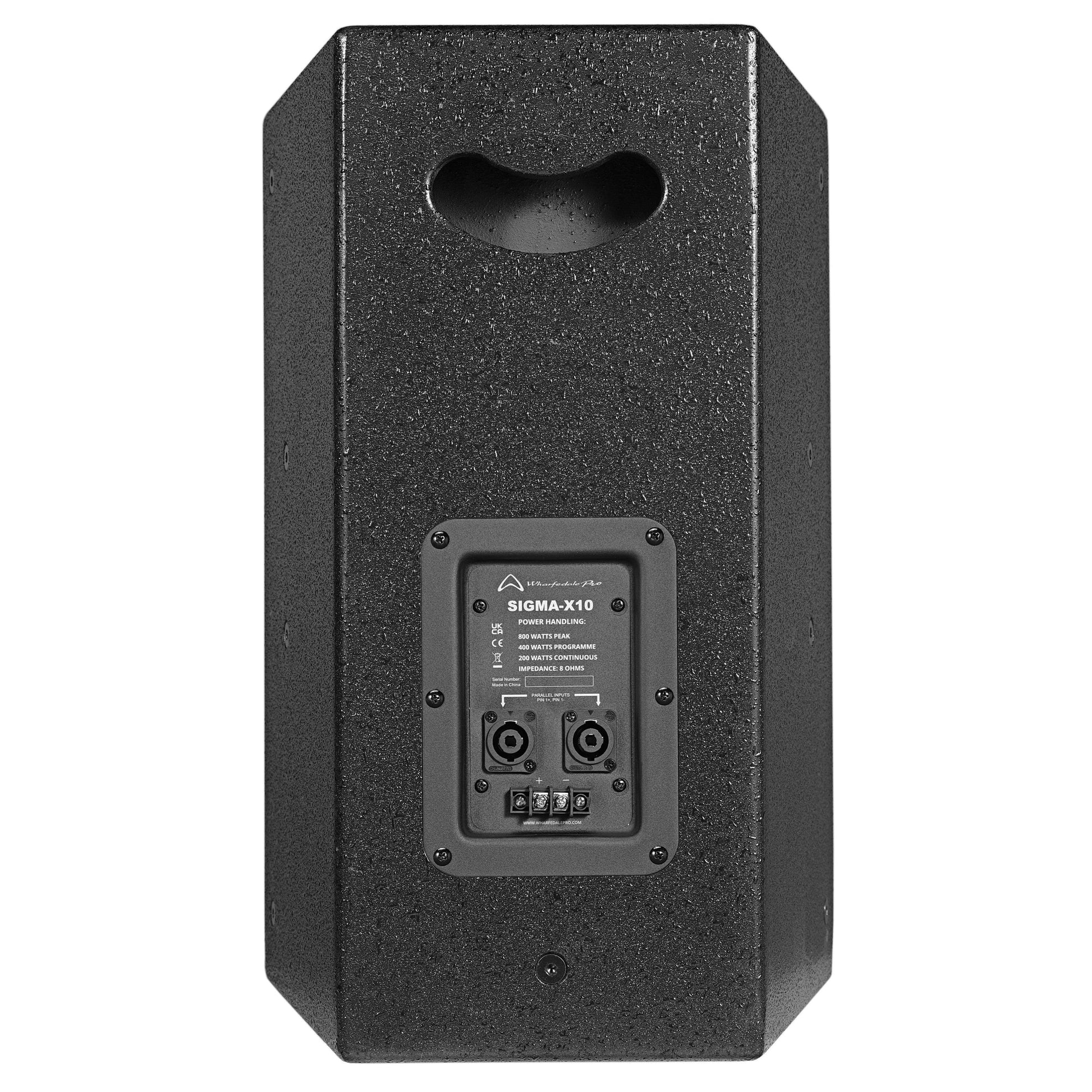

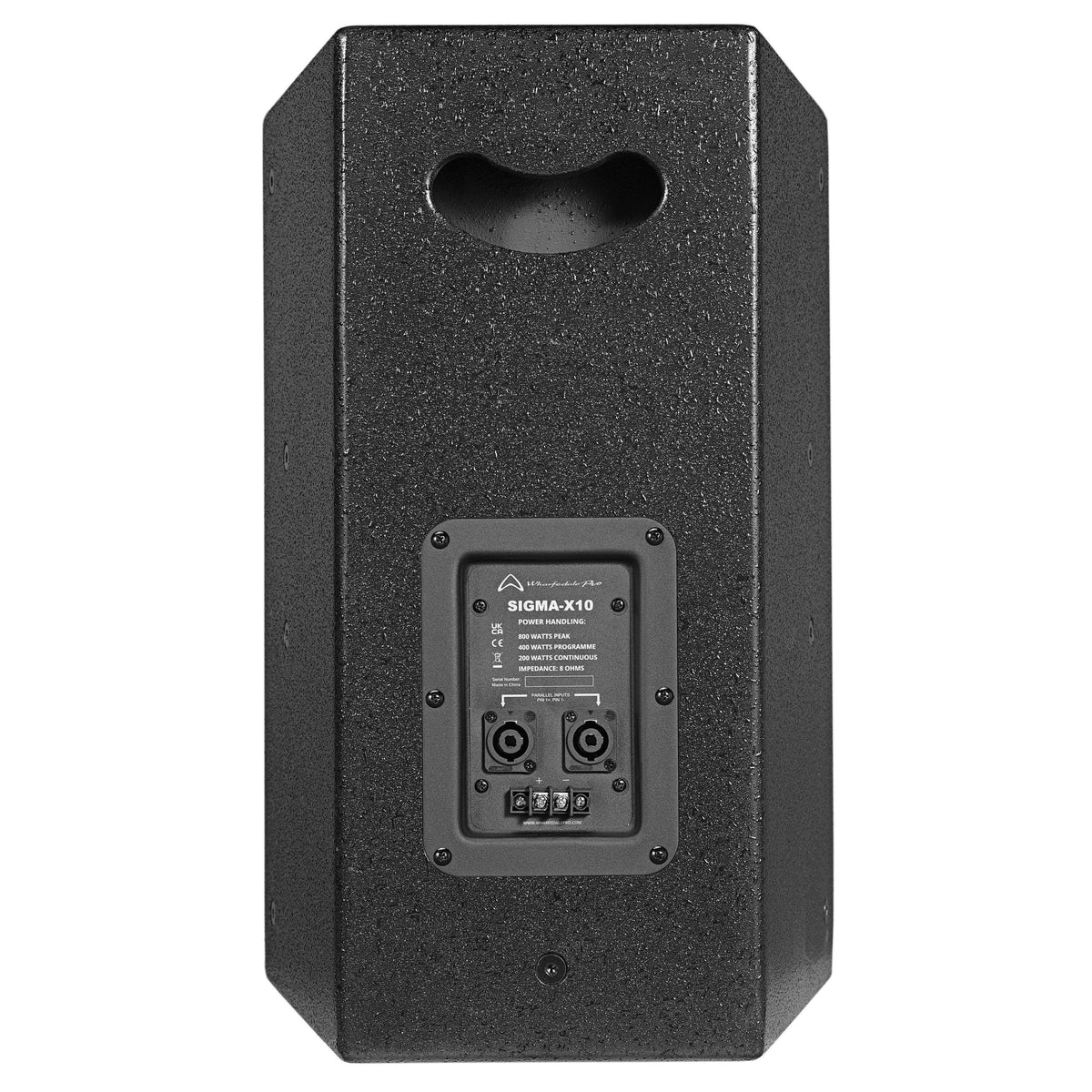

| Input Connector | 2 x speakON / 1x Barrier Strip |

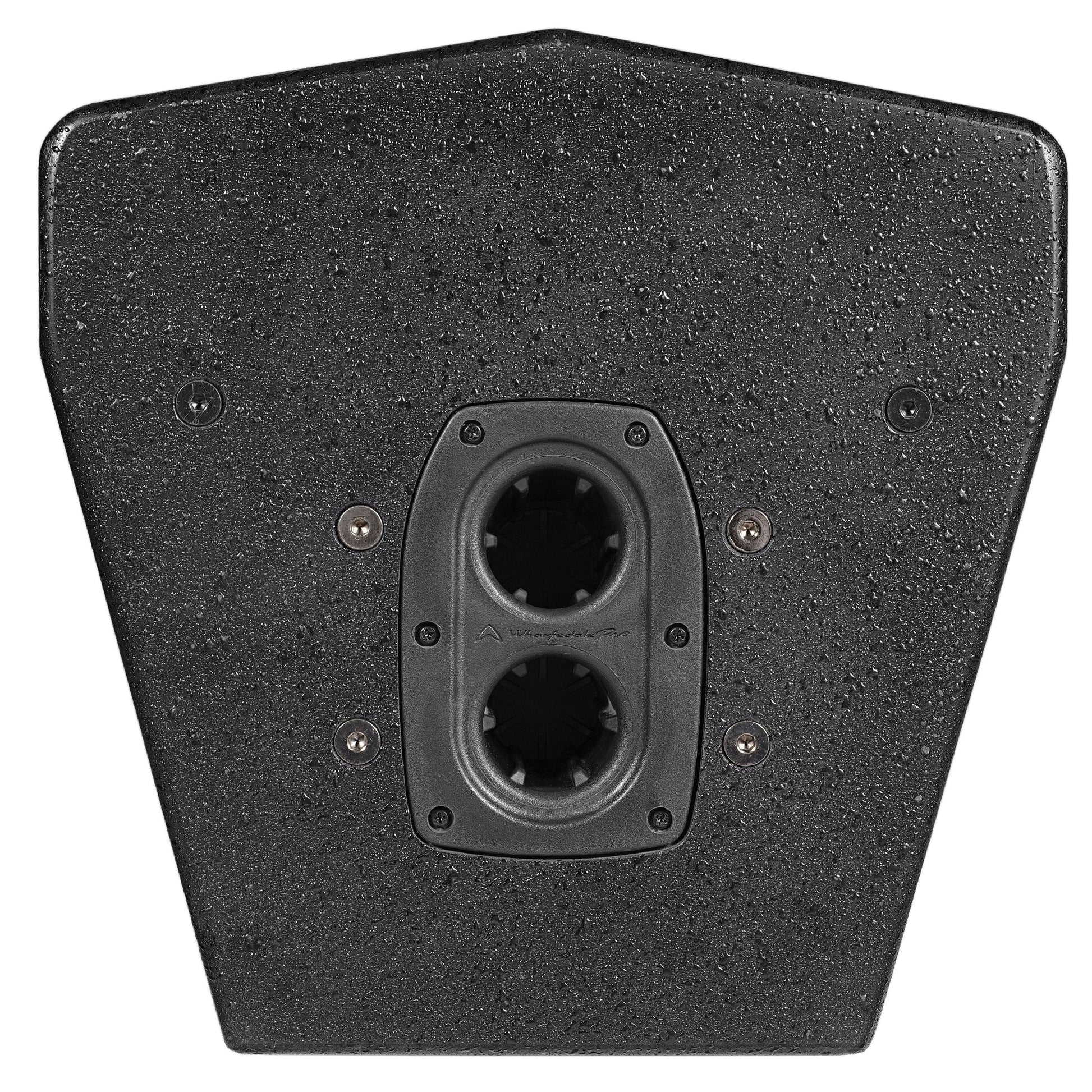

| Hardware | Dual-angle (0° /10°) 35 mm socket |
| M8 x 17 | |
| 1 handle on back | |
| Enclosure | |
| Enclosure Material | 15 mm MDF |
| Finish | Black Paint / White Paint |
| Grille Material & Finish | 1.2 mm steel, painted |
| Dimensions – Unpacked | |
| Height | 520 mm / 20.5″ |
| Width Front | 338 mm / 13.3″ |
| Width Rear | 213 mm / 8.4″ |
| Depth | 338.3 mm / 13.3″ |
| Dimensions – Packed | |
| Height | 585 mm / 23″ |
| Width Front | 441 mm / 17.3″ |
| Width Rear | 251 mm / 9.9″ |
| Depth | 389 mm / 15.3″ |
| Weight | |
| Net Weight | 17.1 kg / 37.62 lbs |
| Gross Weight | 18.8 kg / 41.4 lbs |
| Optional Wall-mount bracket | WPB-1 / WPB-2 |
