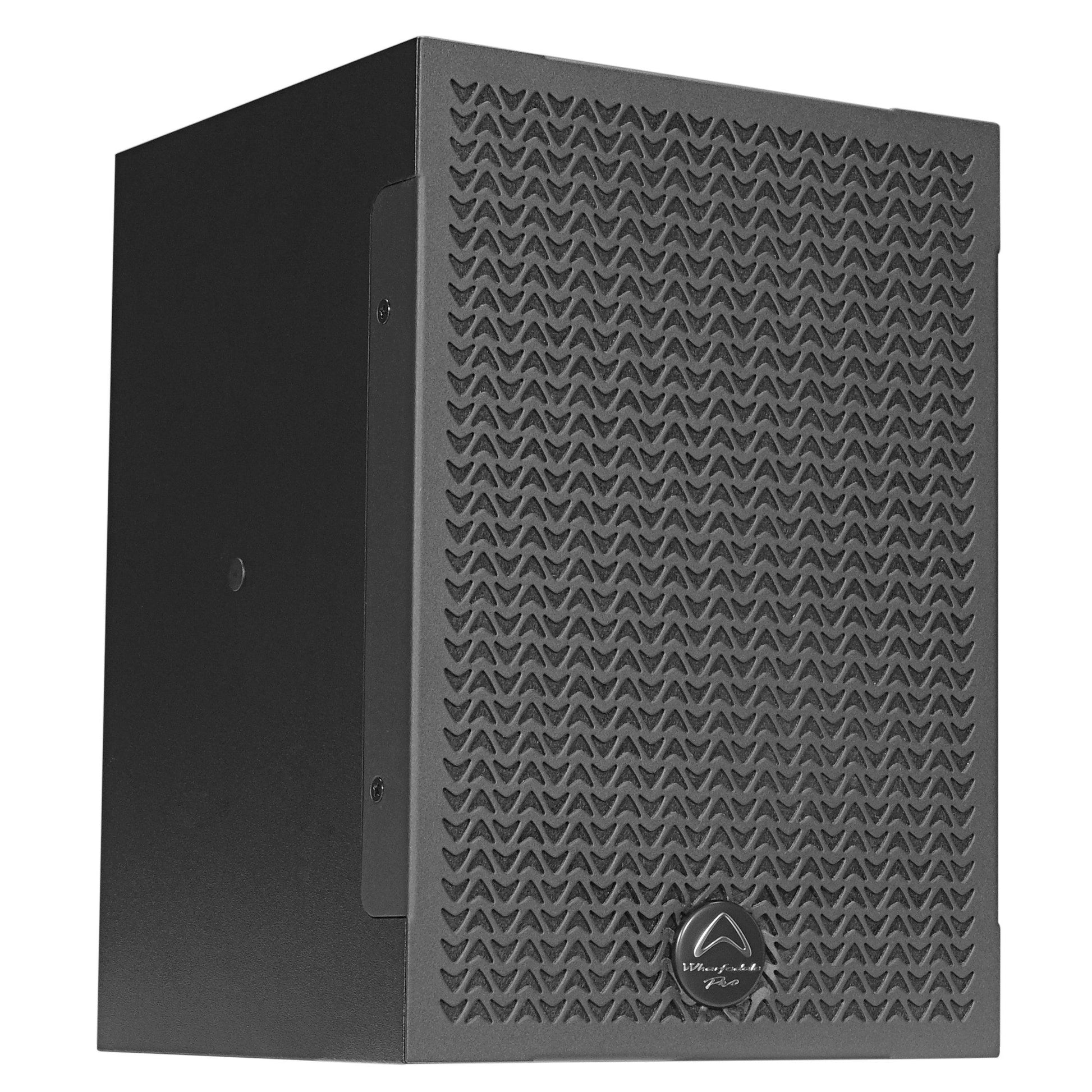

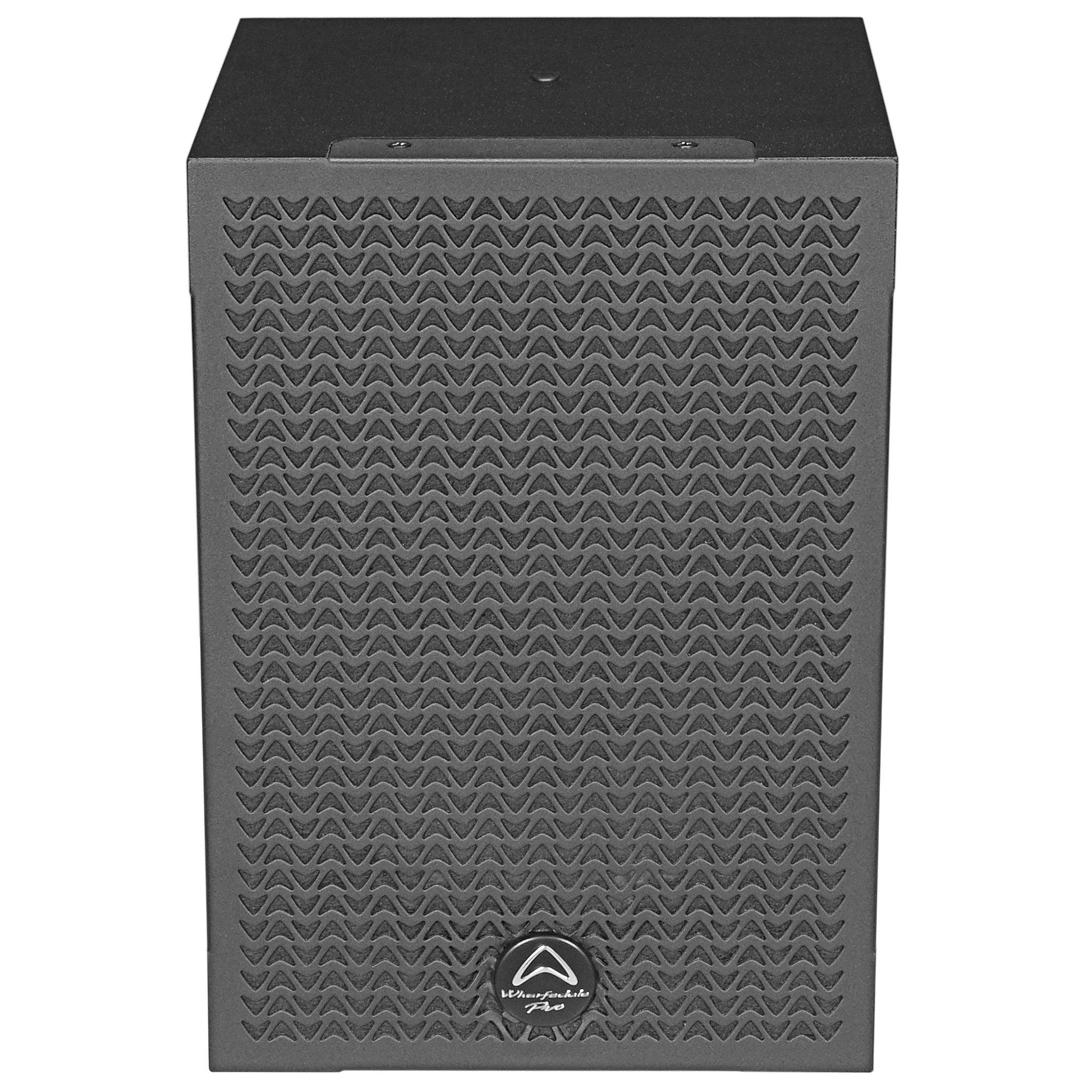

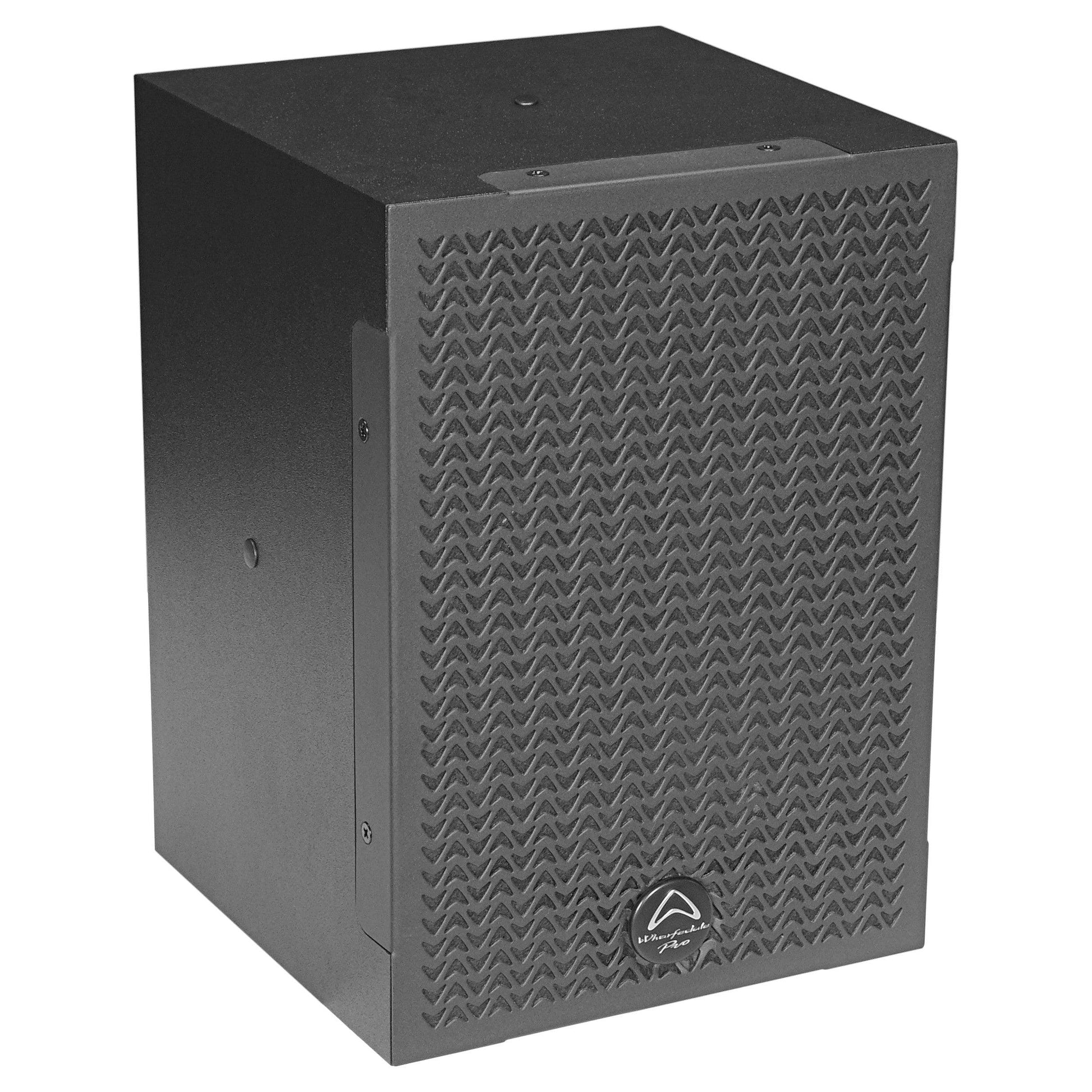

Wharfedale Pro PROGRAMMEX35ET Speaker Passive Wall Mount 1x6.5" 60W RMS Line/Ohm Wooden Paint Body Pairs
Wharfedale Pro PROGRAMMEX35ET Speaker Passive Wall Mount 1x6.5" 60W RMS Line/Ohm Wooden Paint Body Pairs
Couldn't load pickup availability
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
Features-
- 6.5″ Passive
- 60 Watts Continuous power
- 120 Watts Programme power
- 240 Watts Peak power
- T version – 70 V Taps 5/10/20/40 W
- T version – 100 V Taps 10/20/40 W
- 4 x M6 rigging points
- 70° x 70° dispersion
Description-
In a constant quest for performance improvements, our R&D Team have done it again.
The original Programme series have been a main-stay of installation business for over a decade, but….. it’s time for improvements.
The new Programme-X series brings increased SPL’s, new drivers, higher than normal quality 70 V / 100 V transformer options and new physical dimensions to aid any installation configuration. Every feature has been meticulously considered to suit the fixed installation market.
Five new models, plus with the improved high impedance 70 V / 100 V (T) options using specifically selected low distortion transformers. Available in black or white paint finish and supplied with U brackets to make the installation easy!
A Programme-X fits almost anywhere.
Specifications-
| Model Name | X35E / X35ET |
| System Type | 6.5″ Passive |
| Configuration | Two-way |
| Frequency Response (+/-3 dB) | 65 Hz – 20 KHz |
| Frequency Range (- 10 dB) | 60 Hz – 20 KHz |
| Sensitivity (2.83v/1m) | 88 dB |
| Calculated Maximum SPL @1 m | 112 dB |
| System Rated Impedance | 8 Ω |
| Low Frequency Transducer | |
| Size | 165.1 mm / 6.5″ |
| Voice Coil Size | 25.5 mm / 1″ |
| Rated Impedance | 8 Ω |
| LF Power (re:AES2-2012) | 60 w |
| High Frequency Transducer | |
| HF Driver Type | Dome Tweeter |
| Voice Coil Size | 25.4 mm / 1″ |
| Exit Size | 25.4 mm / 1″ |
| Diaphragm Material | silk Dome |
| Rated Impedance | 8 Ω |
| HF Power (re:AES2-2012) | 10 w |
| Nominal Coverage (H x V) | 70˚ x 70˚ |
| Power | |
| System Continuous Power | 60 w |
| System Programme Power | 120 w |
| System Peak Power | 240 w |
| Crossover frequency | 2.3 KHz |
| Recommended HPF = BW 18 dB/oct. | 43 Hz |
| Input Connector | Bare Wire Spring |

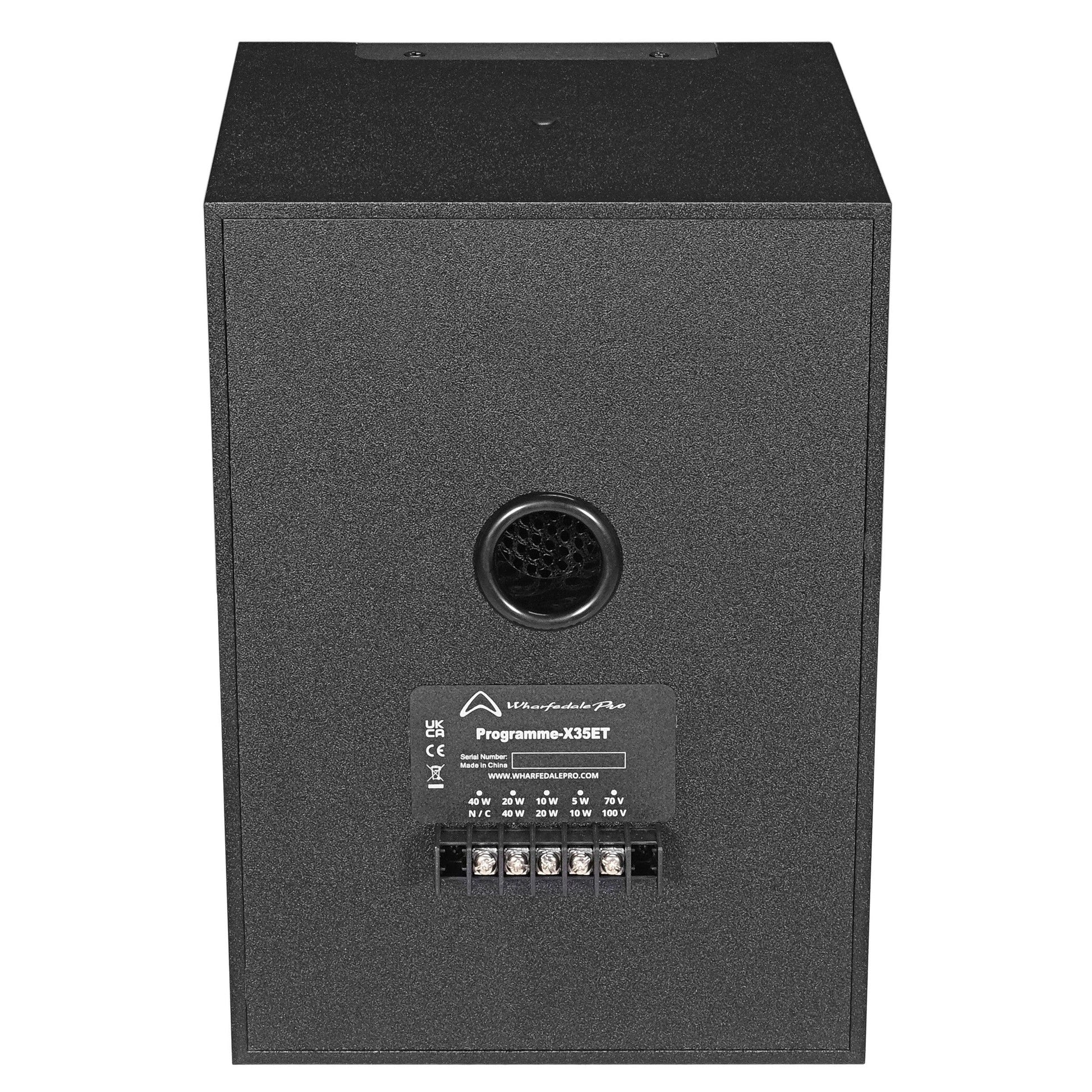

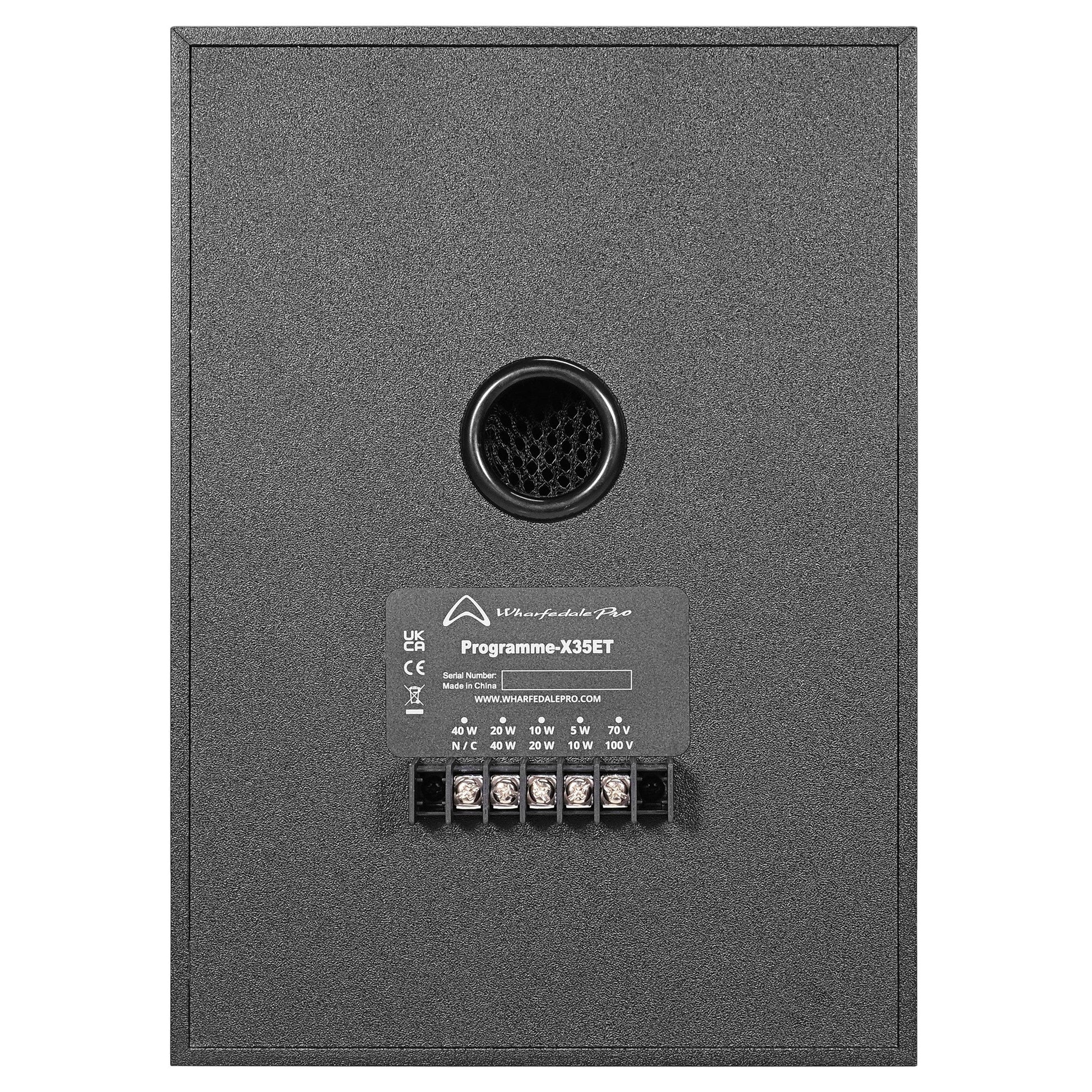

| Input Connectors (T) | Barrier Strip |
| Transformer (T) | 100 V / 70 V |
| Transformer Taps (70 V) | 5,10,20,40 W |
| Transformer Taps (100 V) | 10,20,40 W |
| Hardware | |
| Rigging | M6 x 4 |
| Pole Mount | N/A |
| Enclosure | |
| Enclosure Material | MDF |
| Finish | Black Paint |
| Grille Material & Finish | Black Full (Steel) |
| Dimensions – Unpacked | |
| Height | 275 mm / 10.83″ |
| Width Front | 196 mm / 7.72″ |
| Width Rear | 196 mm / 7.72″ |
| Depth | 192 mm / 7.56″ |
| Dimensions – Packed | |
| Height | 326 mm / 12.8″(pair) |
| Width Front | 488 mm / 19.2″(pair) |
| Width Rear | 488 mm / 19.2″(pair) |
| Depth | 256 mm / 10.1(pair) |
| Weight | |
| Net Weight : Regular / T-Version | 8.04 kg / 9.06 kg(pair) |
| Gross Weight : Regular / T-Version | 10.2 kg / 11.2 kg(pair) |
| Included accessory | black U bracket |
