Wharfedale Pro

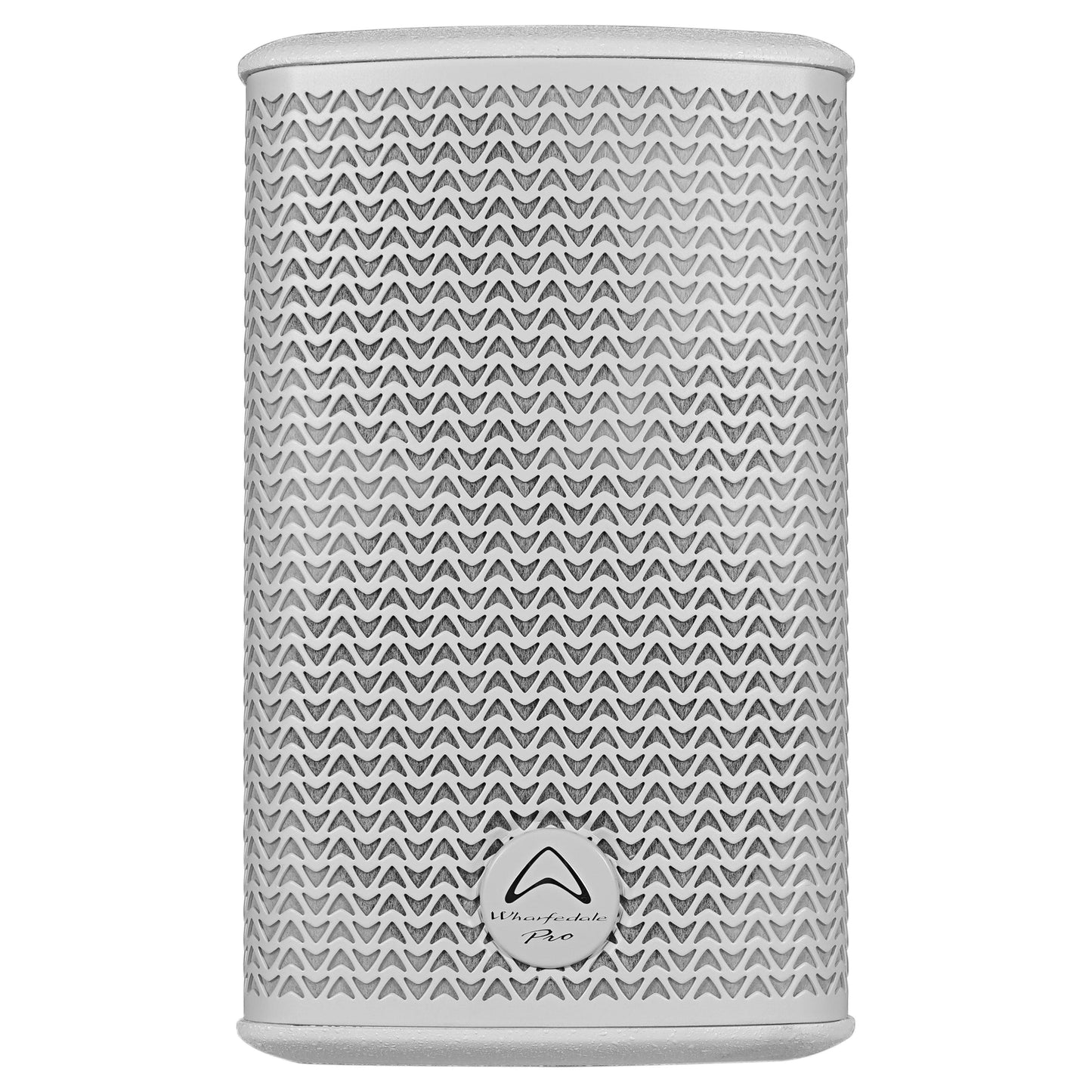

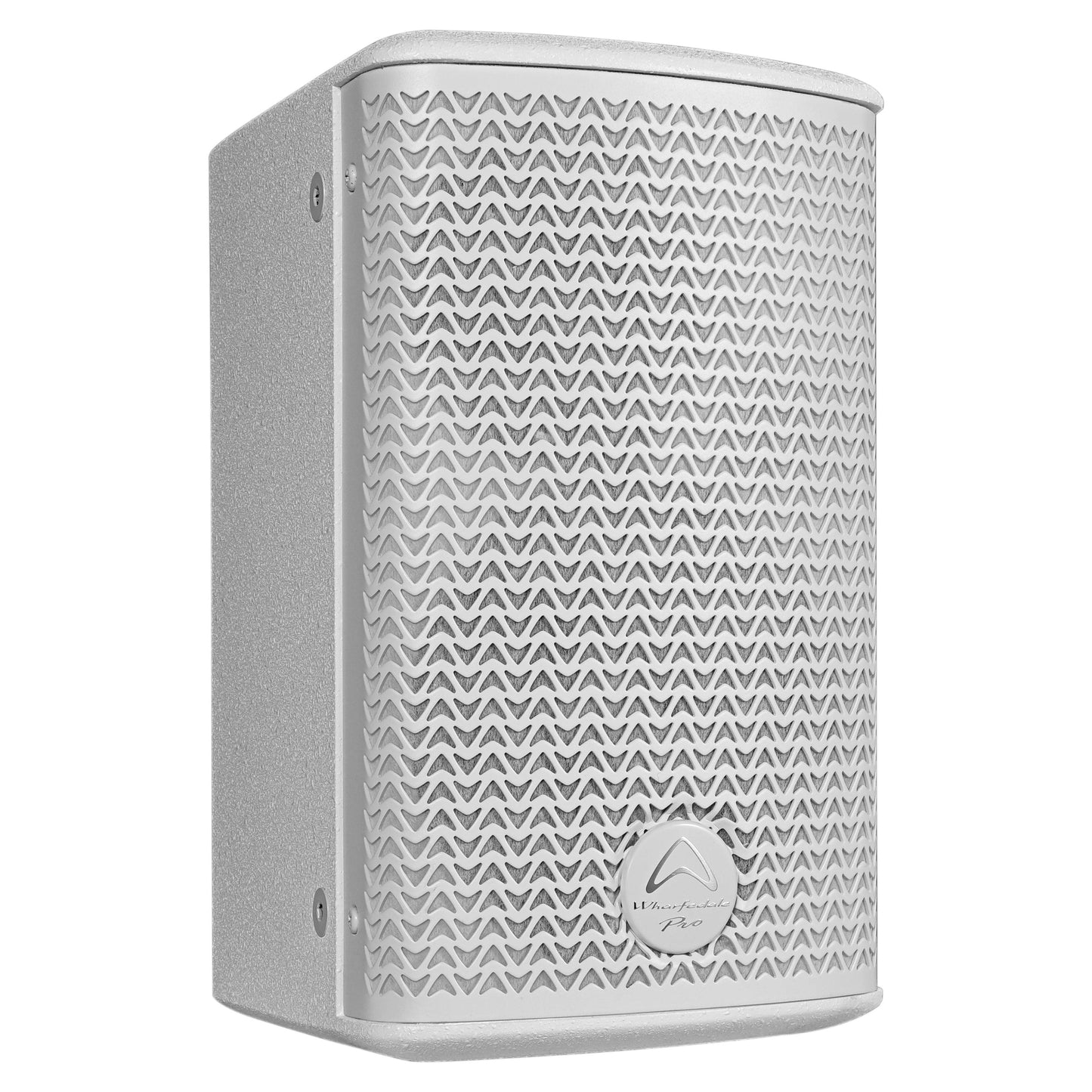

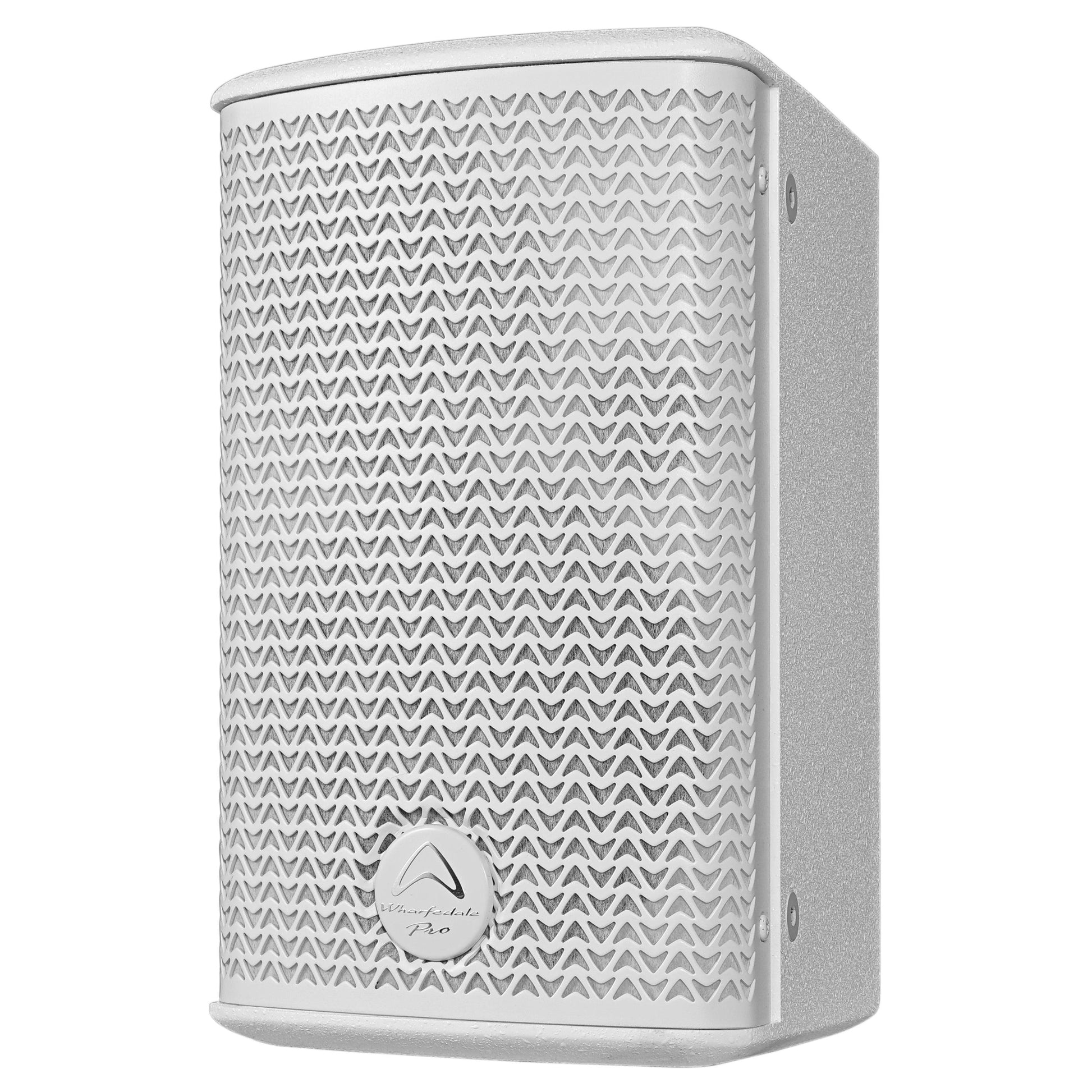

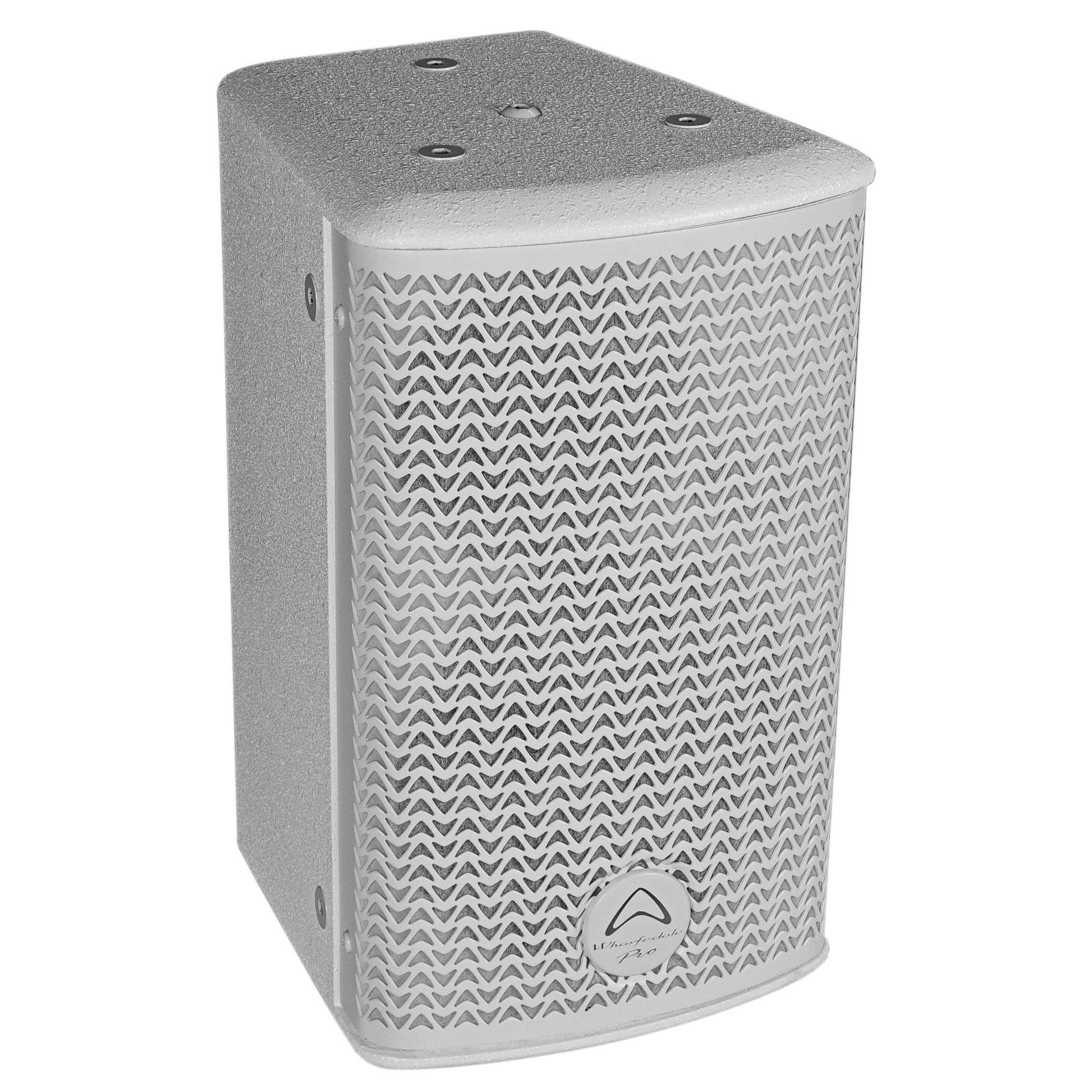

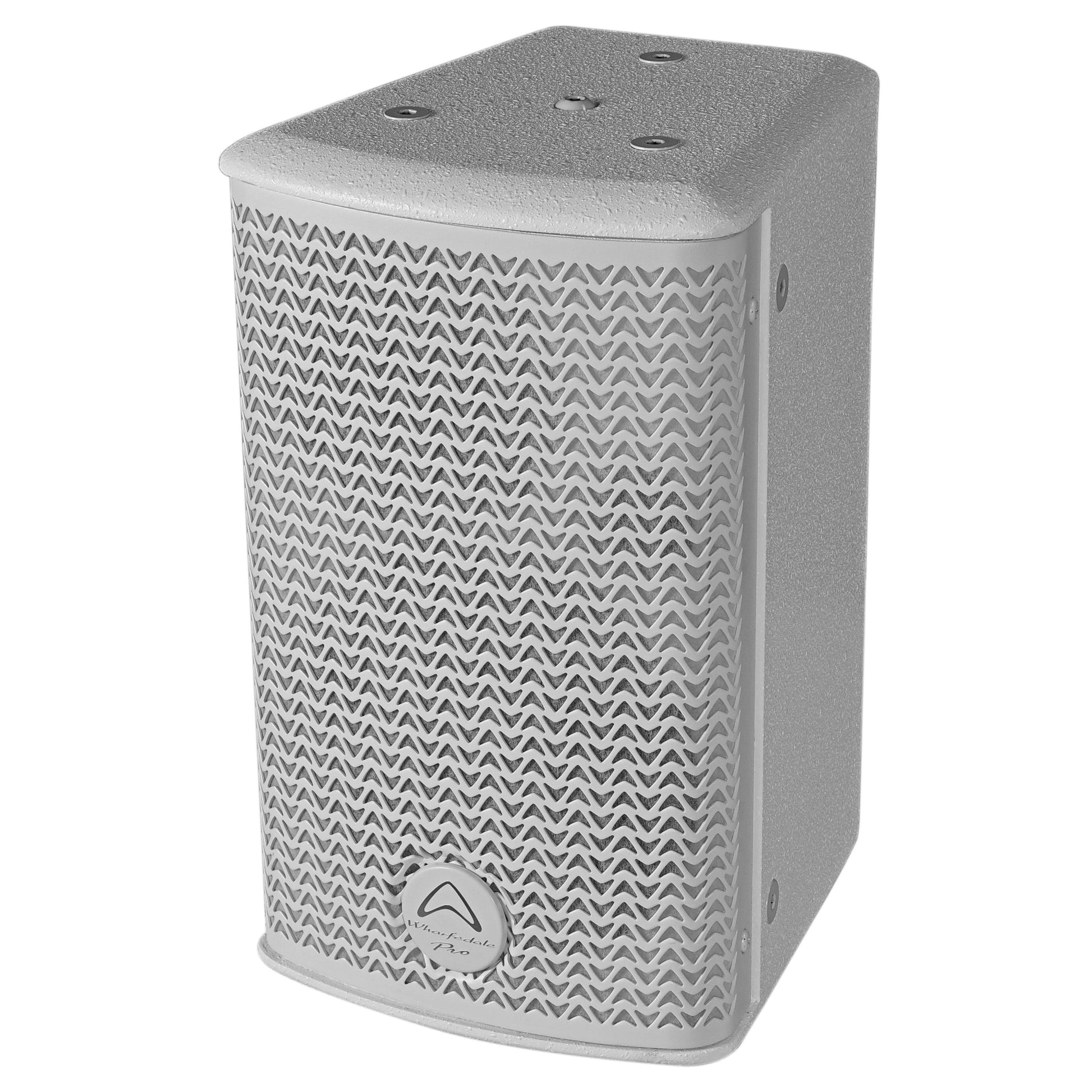

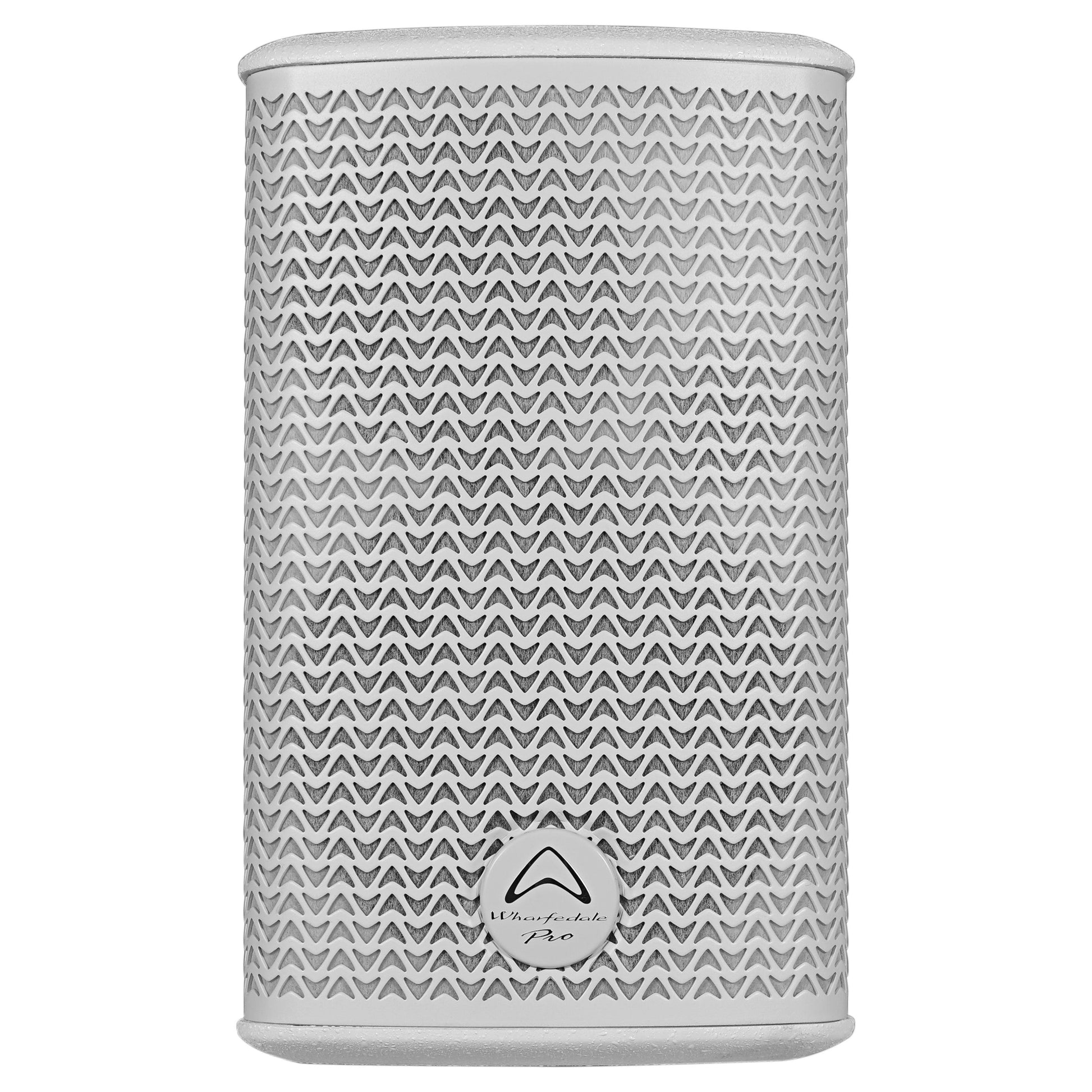

Wharfedale Pro PROGRAMMEX105WH Speaker Passive Wall Mount 1x5" 80W RMS 8Ohm Wooden Paint Body (White)
Wharfedale Pro PROGRAMMEX105WH Speaker Passive Wall Mount 1x5" 80W RMS 8Ohm Wooden Paint Body (White)
Regular price
Dhs.567.00 AED
Regular price
Dhs.0.00 AED
Sale price
Dhs.567.00 AED
Unit price
/
per
Couldn't load pickup availability
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
KEY FEATURES
- 5.0″ Passive
- 80 Watts Continuous power
- 160 Watts Programme power
- 320 Watts Peak power
- T version – 70 V Taps 7.5/15/30/60 W
- T version – 100 V Taps 15/30/60 W

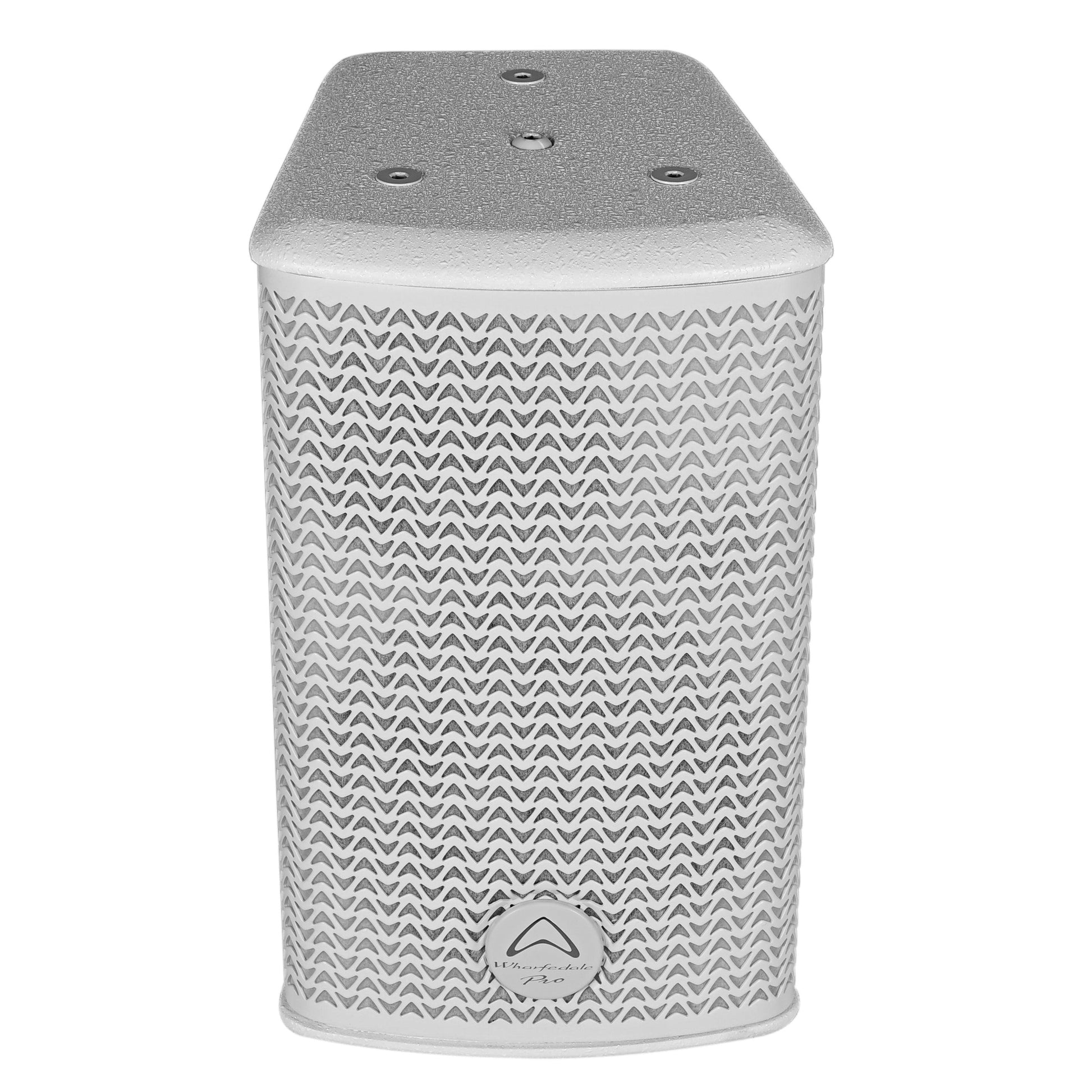

- 14 x M8 rigging points
- 60° x 60° dispersion
SPECIFICATIONS
| Model Name | Programme-X105 / X105T |
| System Type | 5″ Passive |
| Configuration | Two-way |
| Frequency Response (+/-3 dB) | 75 Hz – 20 KHz |
| Frequency Range | 70 Hz – 20 KHz |
| (- 10 dB) | |
| Sensitivity (2.83v/1m) | 91 dB |
| Calculated Maximum SPL @1 m | 116 dB |
| System Rated Impedance | 8 Ω |
| Low Frequency Transducer | |
| Size | 127 mm / 5″ |
| Voice Coil Size | 25.5 mm / 1″ |
| Rated Impedance | 8 Ω |
| LF Power | 65 W |
| (re:AES2-2012) | |
| High Frequency Transducer | |
| HF Driver Type | Dome Tweeter |
| Voice Coil Size | 25.4 mm / 1″ |
| Exit Size | 25.4 mm / 1″ |
| Diaphragm Material | Titanium |
| Rated Impedance | 8Ω |
| HF Power | 15 W |
| (re:AES2-2012) | |
| Nominal Coverage | 60˚ x 60˚ |
| (H x V) | |
| Power | |
| System Continuous Power | 80 W |
| System Programme Power | 160 W |
| System Peak Power | 320 W |
| Crossover frequency | 2.3 KHz |
| Recommended HPF = BW 18 dB/oct. | 58 Hz |

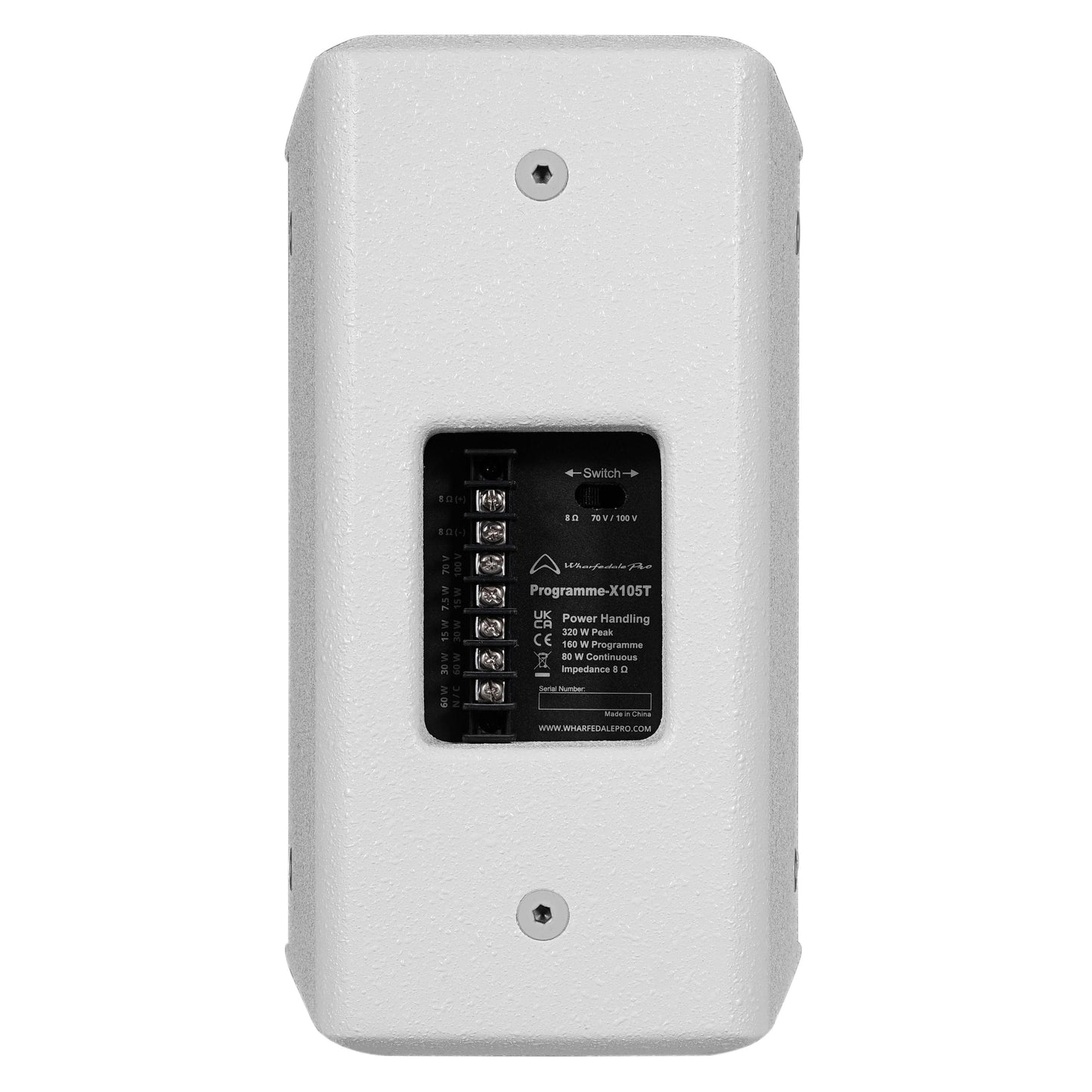

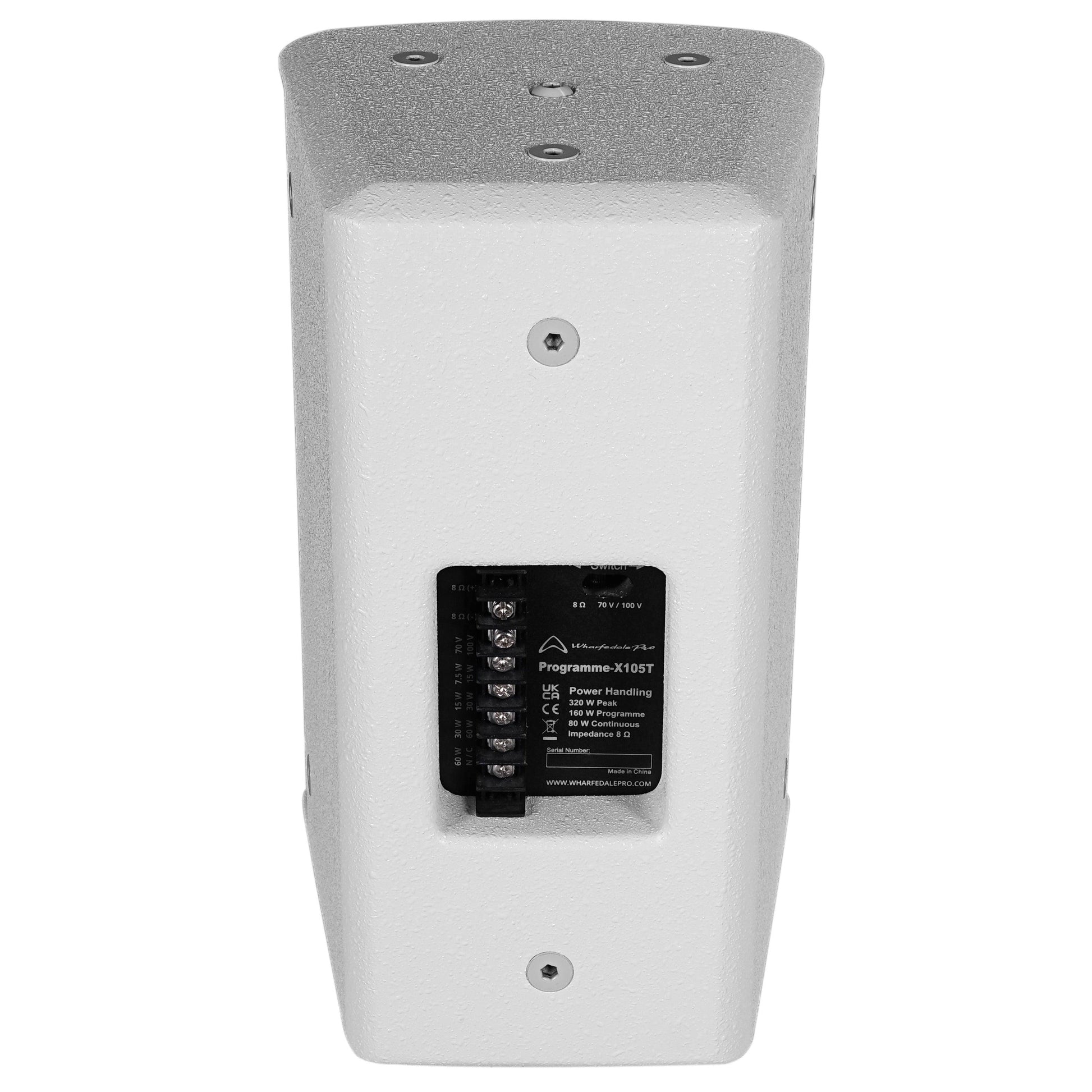

| Input Connector | Barrier Strip |
| Input Connectors (T) | Barrier Strip |
| Transformer (T) | 100 V / 70 V |
| Transformer Taps | 7.5,15,30,60 W |
| (70 V) | |
| Transformer Taps | 15,30,60 W |
| (100 V) | |
| Hardware | |
| Rigging | M8 x 14 |
| Pole Mount | N/A |
| Enclosure | |
| Enclosure Material | MDF |
| Finish | Black / White Paint |
| Grille Material & Finish | Black / White Full (Steel) |
| Dimensions – Unpacked | |
| Height | 304 mm / 11.97″ |
| Width Front | 184 mm / 7.24″ |
| Width Rear | 130 mm / 5.12″ |
| Depth | 205 mm / 8.07″ |
| Dimensions – Packed | |
| Height | 379 mm / 14.9″ |
| Width Front | 250 mm / 9.8″ |
| Width Rear | 250 mm / 9.8″ |
| Depth | 274 mm / 10.8″ |
| Weight | |
| Net Weight : Regular / T-Version | 5.22 Kg / 6.42 Kg |
| Gross Weight : Regular / T-Version | 6.59 Kg / 7.14 Kg |
| Included accessory | black/white U bracket |
