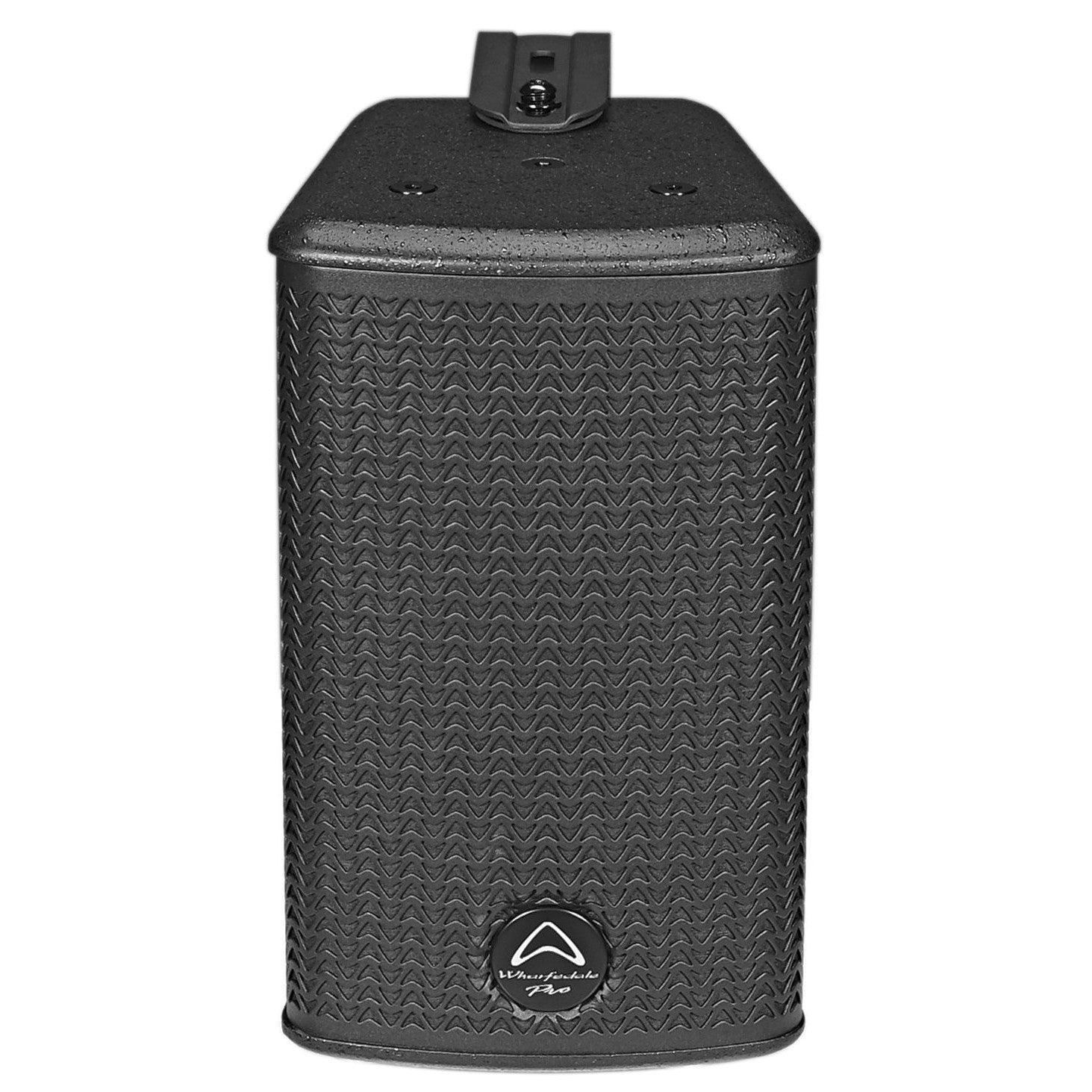

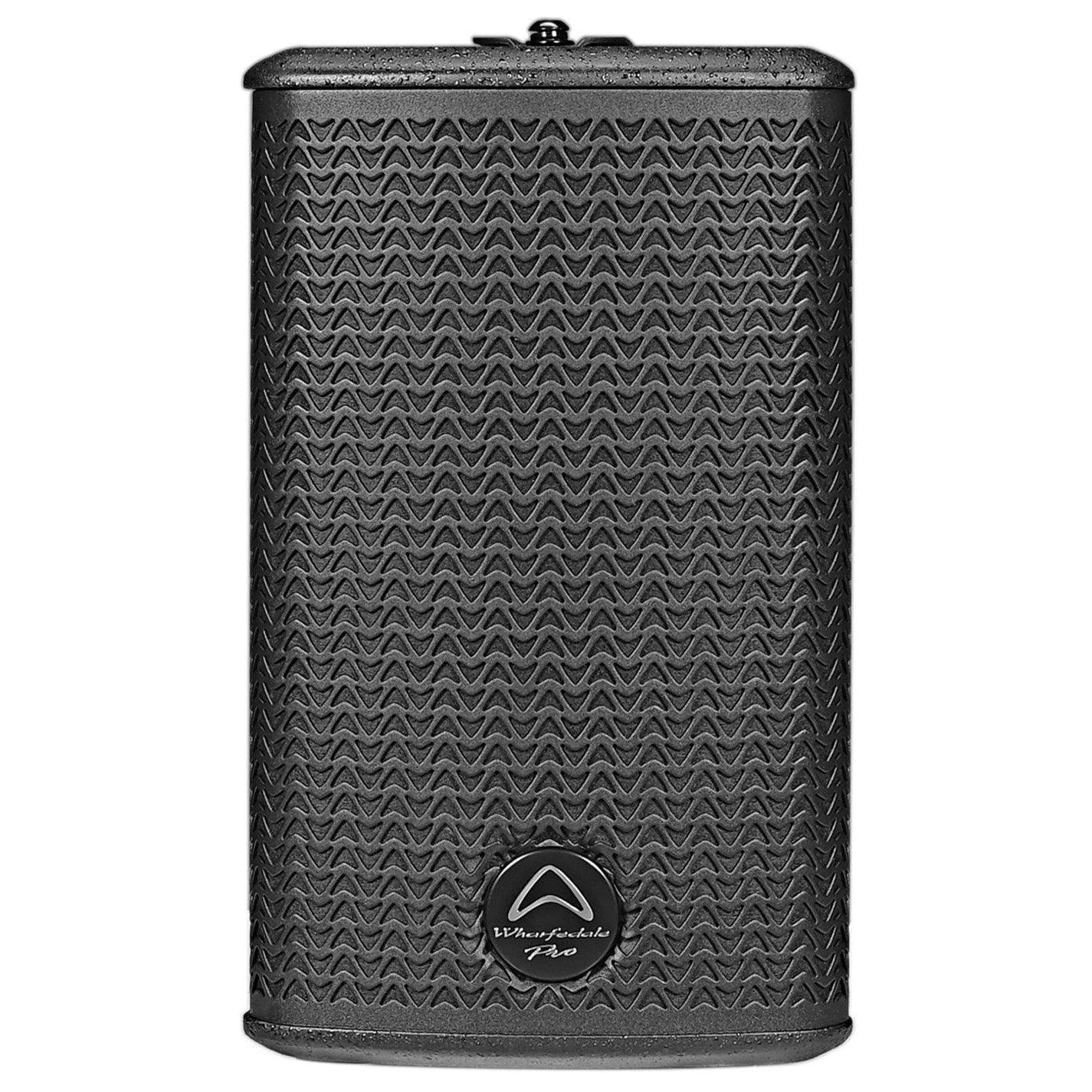

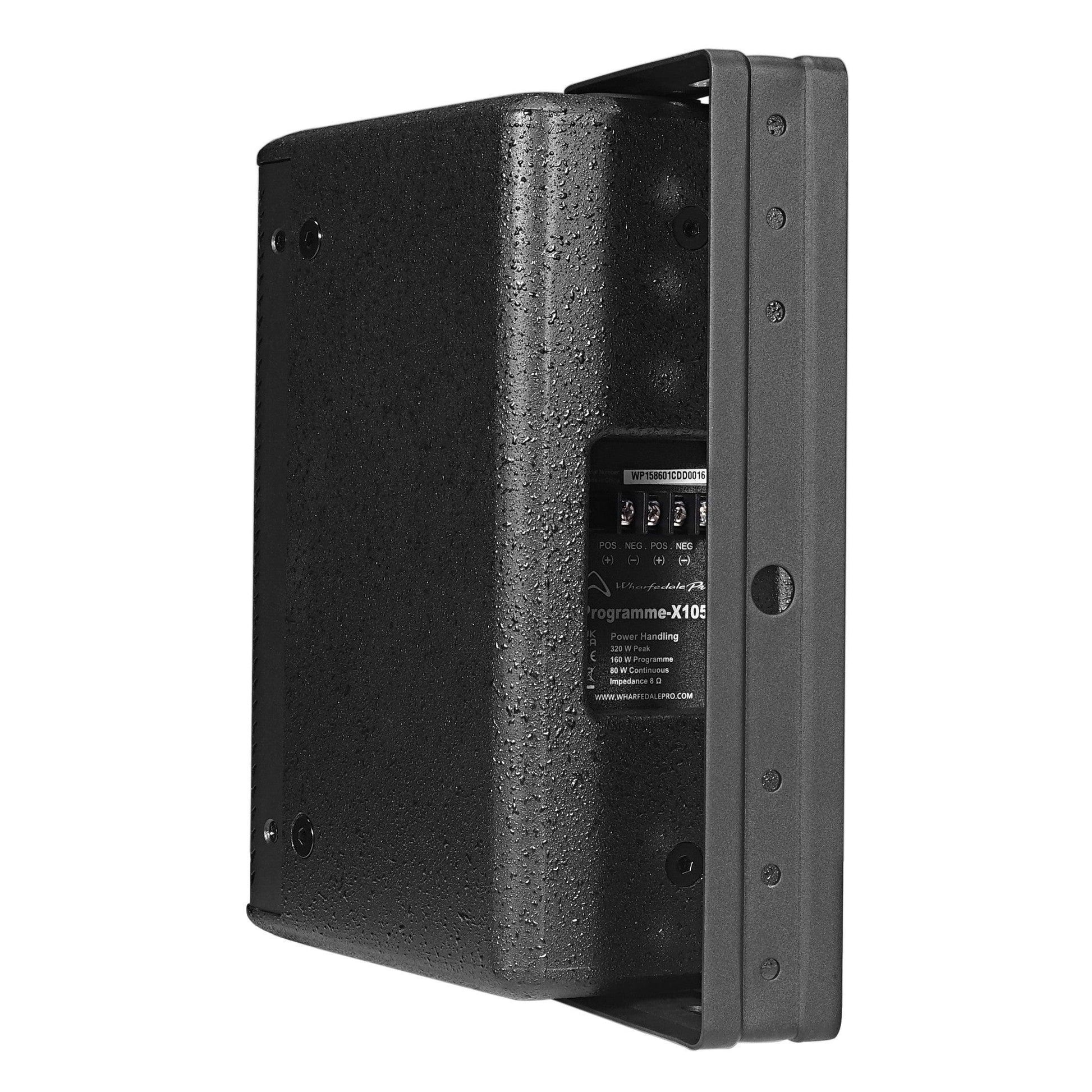

Wharfedale Pro PROGRAMMEX105T Speaker Passive Wall Mount 1x5" 80W RMS Line/Ohm Wooden Paint Body (Black)
Wharfedale Pro PROGRAMMEX105T Speaker Passive Wall Mount 1x5" 80W RMS Line/Ohm Wooden Paint Body (Black)
Couldn't load pickup availability
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
KEY FEATURES
- 5.0″ Passive
- 80 Watts Continuous power
- 160 Watts Programme power
- 320 Watts Peak power
- T version – 70 V Taps 7.5/15/30/60 W
- T version – 100 V Taps 15/30/60 W
- 14 x M8 rigging points
- 60° x 60° dispersion
DESCRIPTION
In a constant quest for performance improvements, our R&D Team have done it again.
The original Programme series have been a main-stay of installation business for over a decade, but….. it’s time for improvements.
The new Programme-X series brings increased SPL’s, new drivers, higher than normal quality 70 V / 100 V transformer options and new physical dimensions to aid any installation configuration. Every feature has been meticulously considered to suit the fixed installation market.

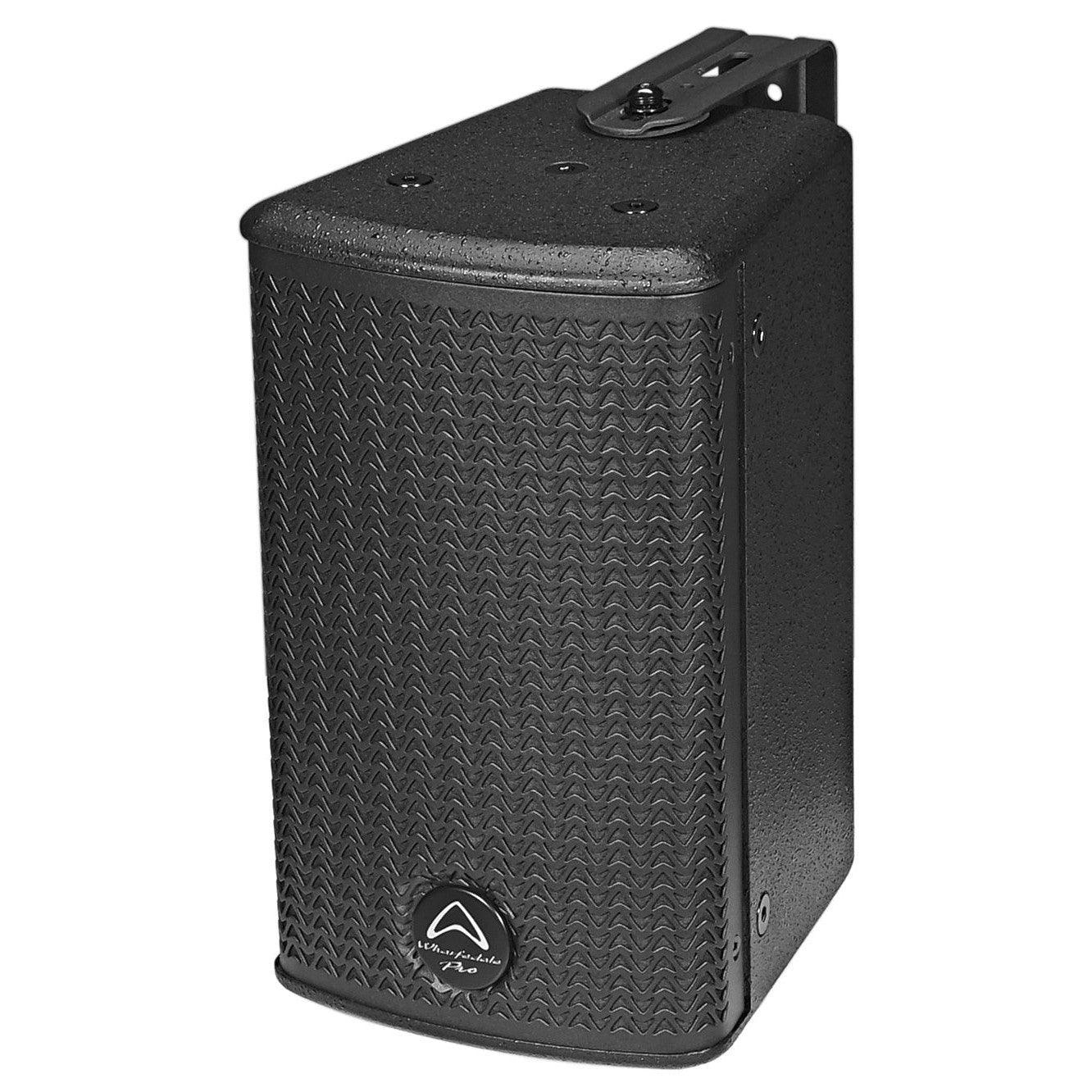

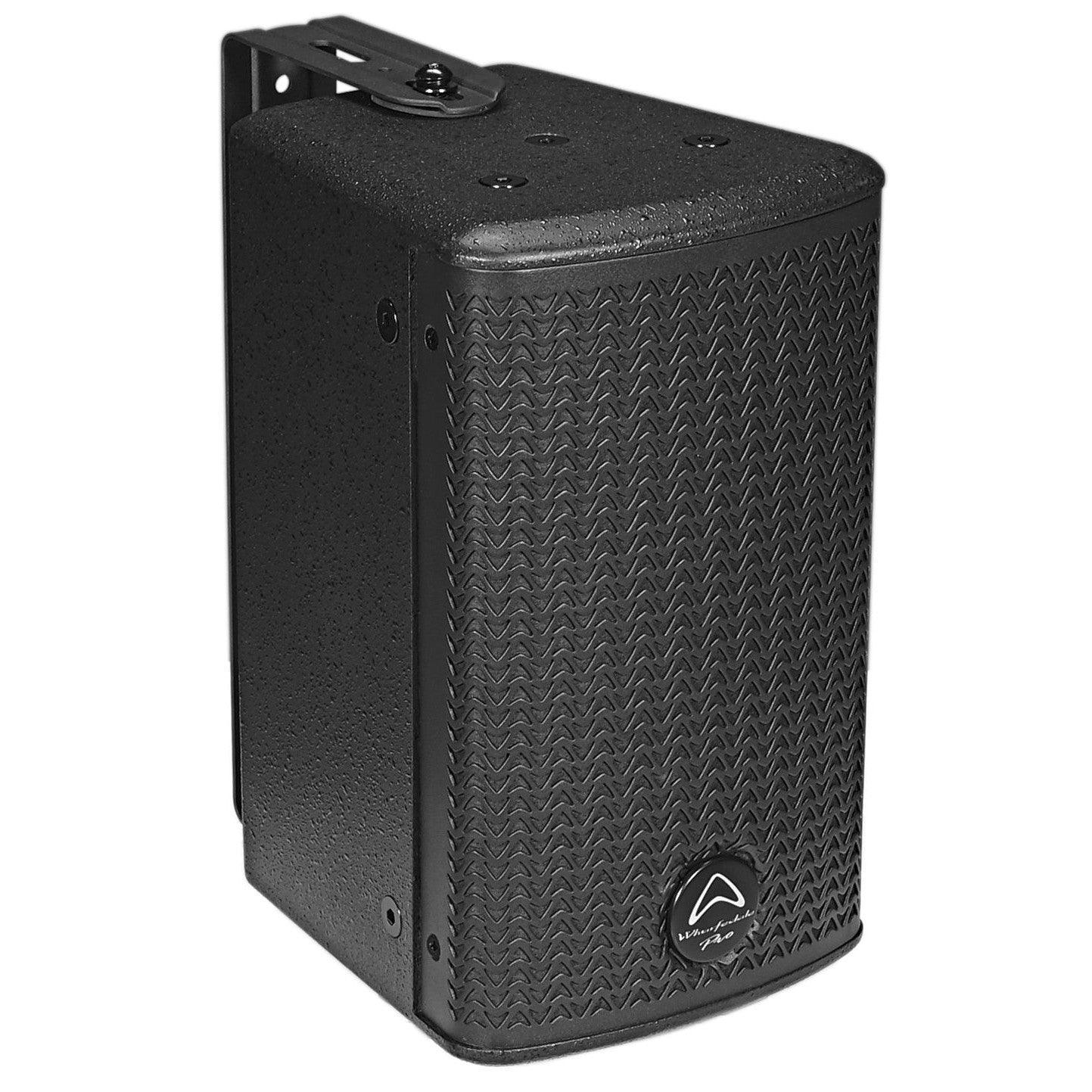

Five new models, plus with the improved high impedance 70 V / 100 V (T) options using specifically selected low distortion transformers. Available in black or white paint finish and supplied with U brackets to make the installation easy!
A Programme-X fits almost anywhere.
SPECIFICATIONS
| Model Name | X105 / X105T |
| System Type | 5″ Passive |
| Configuration | Two-way |
| Frequency Response (+/-3 dB) | 75 Hz – 20 KHz |
| Frequency Range (- 10 dB) | 70 Hz – 20 KHz |
| Sensitivity (2.83v/1m) | 91 dB |
| Calculated Maximum SPL @1 m | 116 dB |
| System Rated Impedance | 8 Ω |
| Low Frequency Transducer | |
| Size | 127 mm / 5″ |
| Voice Coil Size | 25.5 mm / 1″ |
| Rated Impedance | 8 Ω |
| LF Power (re:AES2-2012) | 65 W |
| High Frequency Transducer | |
| HF Driver Type | Dome Tweeter |
| Voice Coil Size | 25.4 mm / 1″ |
| Exit Size | 25.4 mm / 1″ |
| Diaphragm Material | Titanium |
| Rated Impedance | 8Ω |
| HF Power (re:AES2-2012) | 15 W |
| Nominal Coverage (H x V) | 60˚ x 60˚ |
| Power | |
| System Continuous Power | 80 W |
| System Programme Power | 160 W |
| System Peak Power | 320 W |
| Crossover frequency | 2.3 KHz |
| Recommended HPF = BW 18 dB/oct. | 58 Hz |

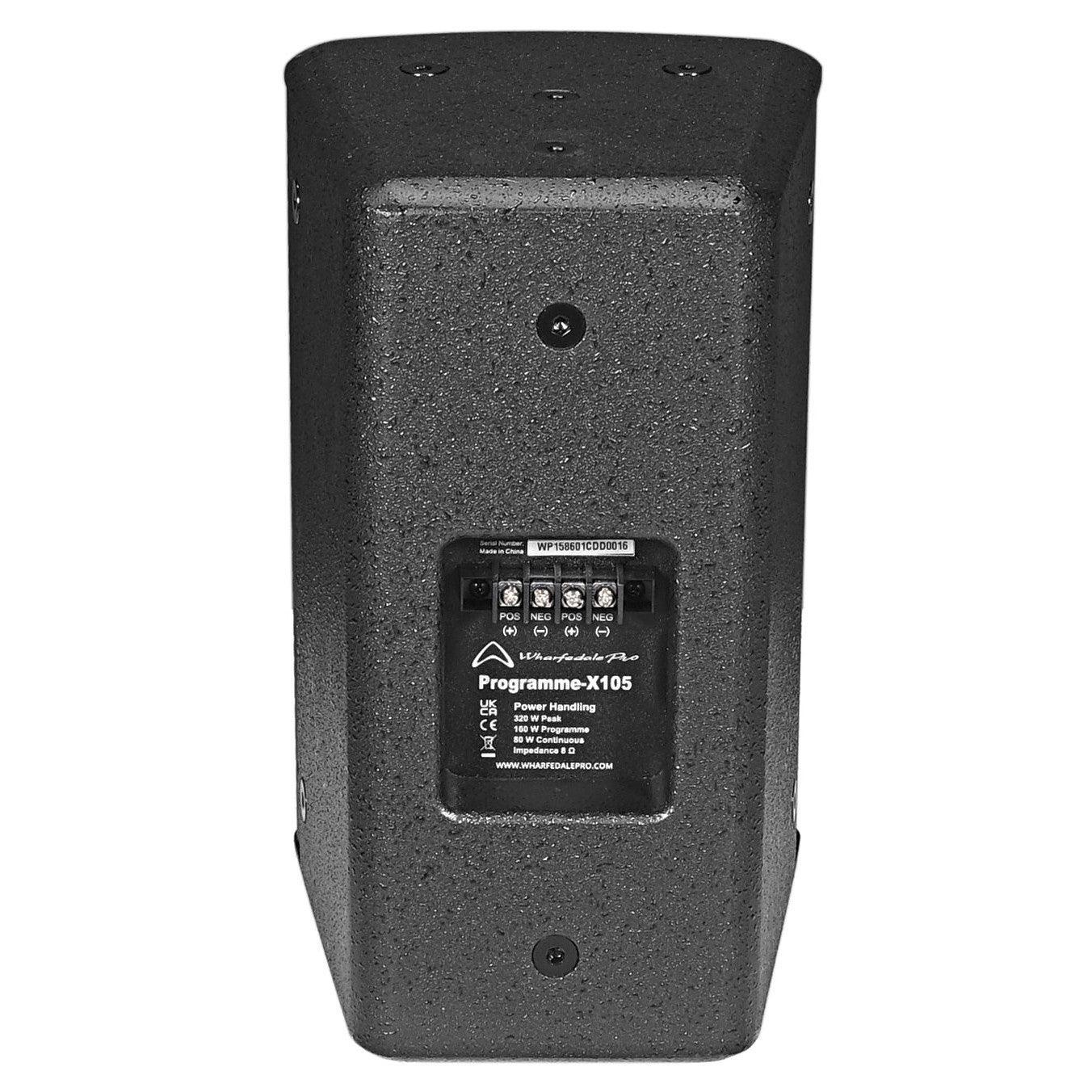

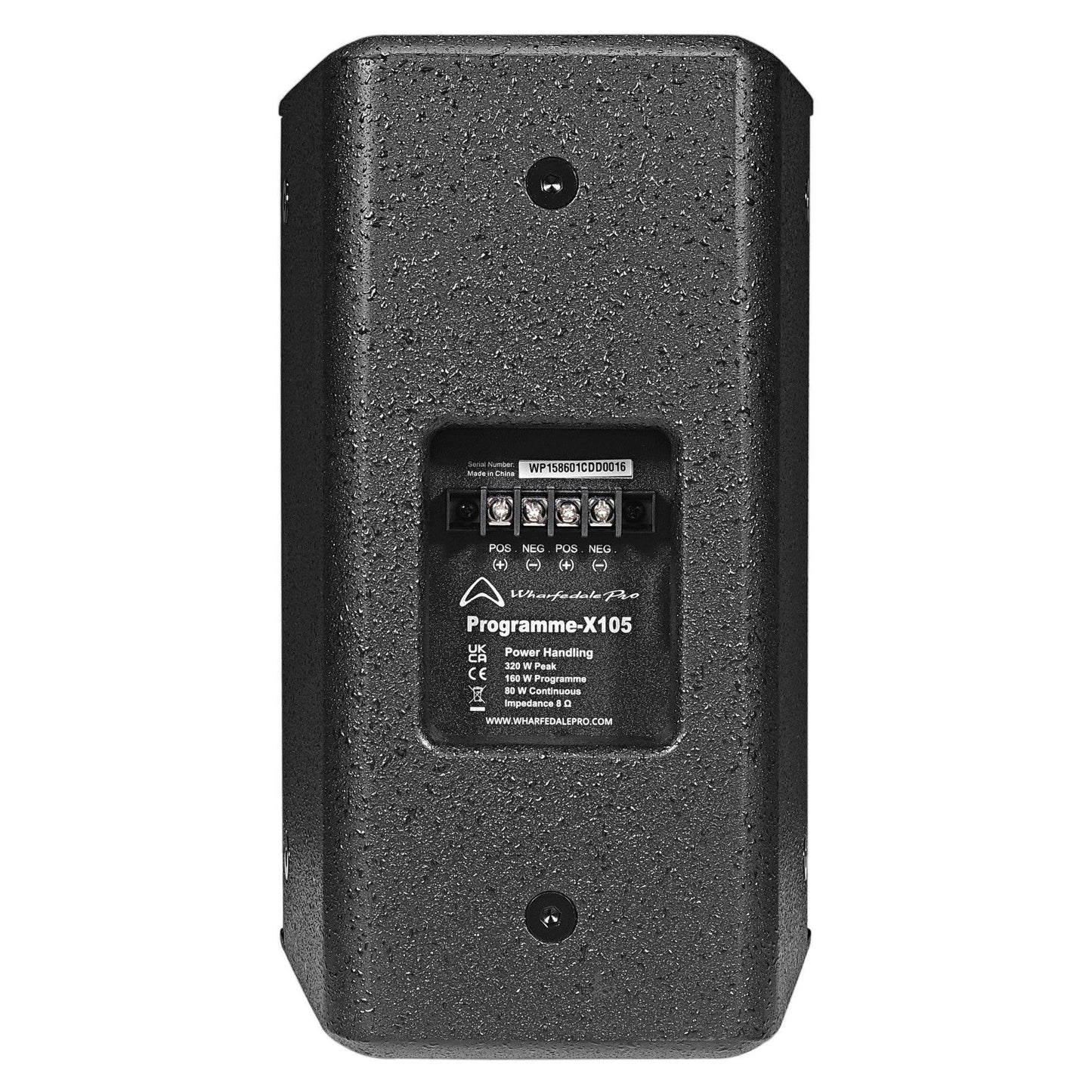

| Input Connector | Barrier Strip |
| Input Connectors (T) | Barrier Strip |
| Transformer (T) | 100 V / 70 V |
| Transformer Taps (70 V) | 7.5,15,30,60 W |
| Transformer Taps (100 V) | 15,30,60 W |
| Hardware | |
| Rigging | M8 x 14 |
| Pole Mount | N/A |
| Enclosure | |
| Enclosure Material | MDF |
| Finish | Black / White Paint |
| Grille Material & Finish | Black / White Full (Steel) |
| Dimensions – Unpacked | |
| Height | 304 mm / 11.97″ |
| Width Front | 184 mm / 7.24″ |
| Width Rear | 130 mm / 5.12″ |
| Depth | 205 mm / 8.07″ |
| Dimensions – Packed | |
| Height | 379 mm / 14.9″ |
| Width Front | 250 mm / 9.8″ |
| Width Rear | 250 mm / 9.8″ |
| Depth | 274 mm / 10.8″ |
| Weight | |
| Net Weight : Regular / T-Version | 5.22 Kg / 6.42 Kg |
| Gross Weight : Regular / T-Version | 6.59 Kg / 7.14 Kg |

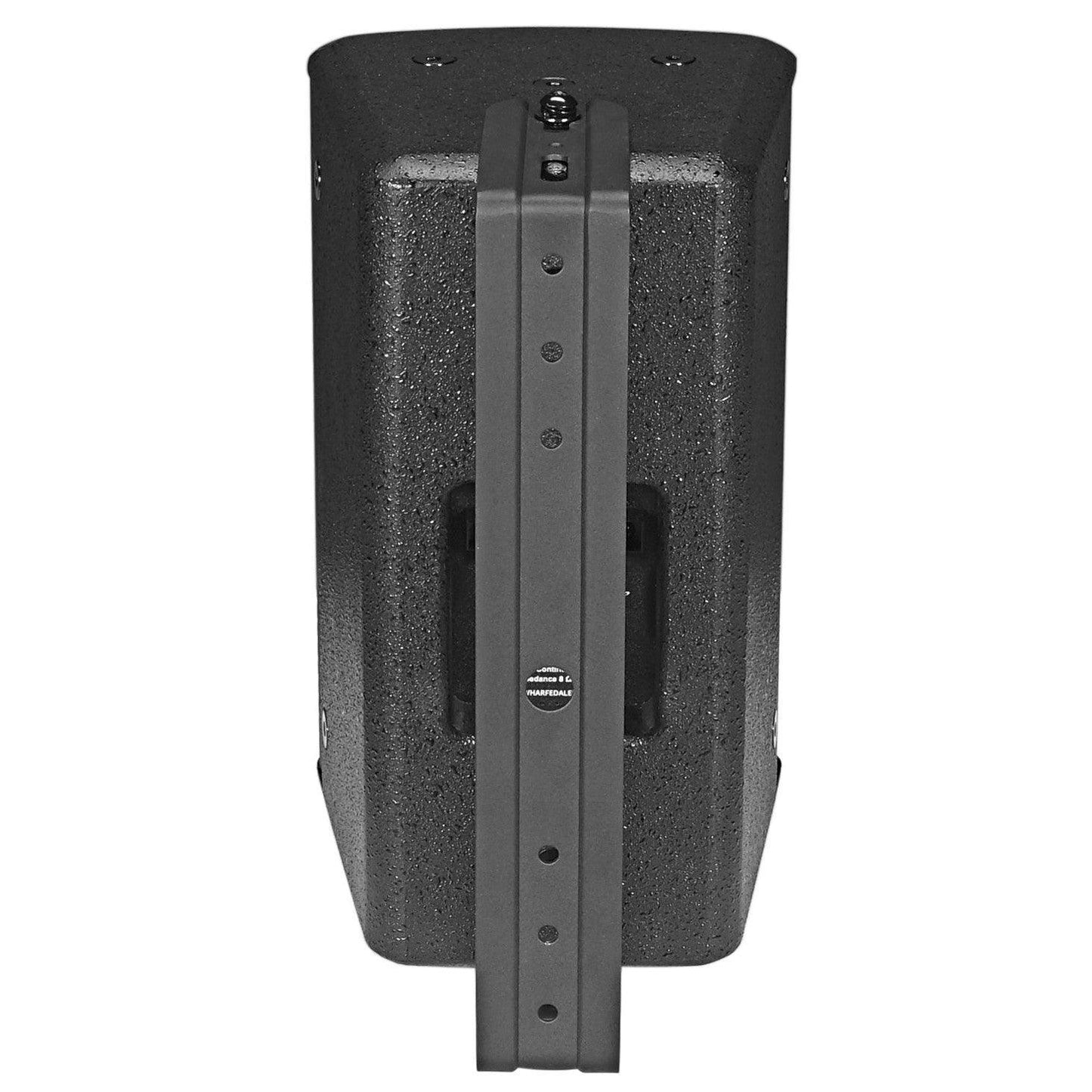

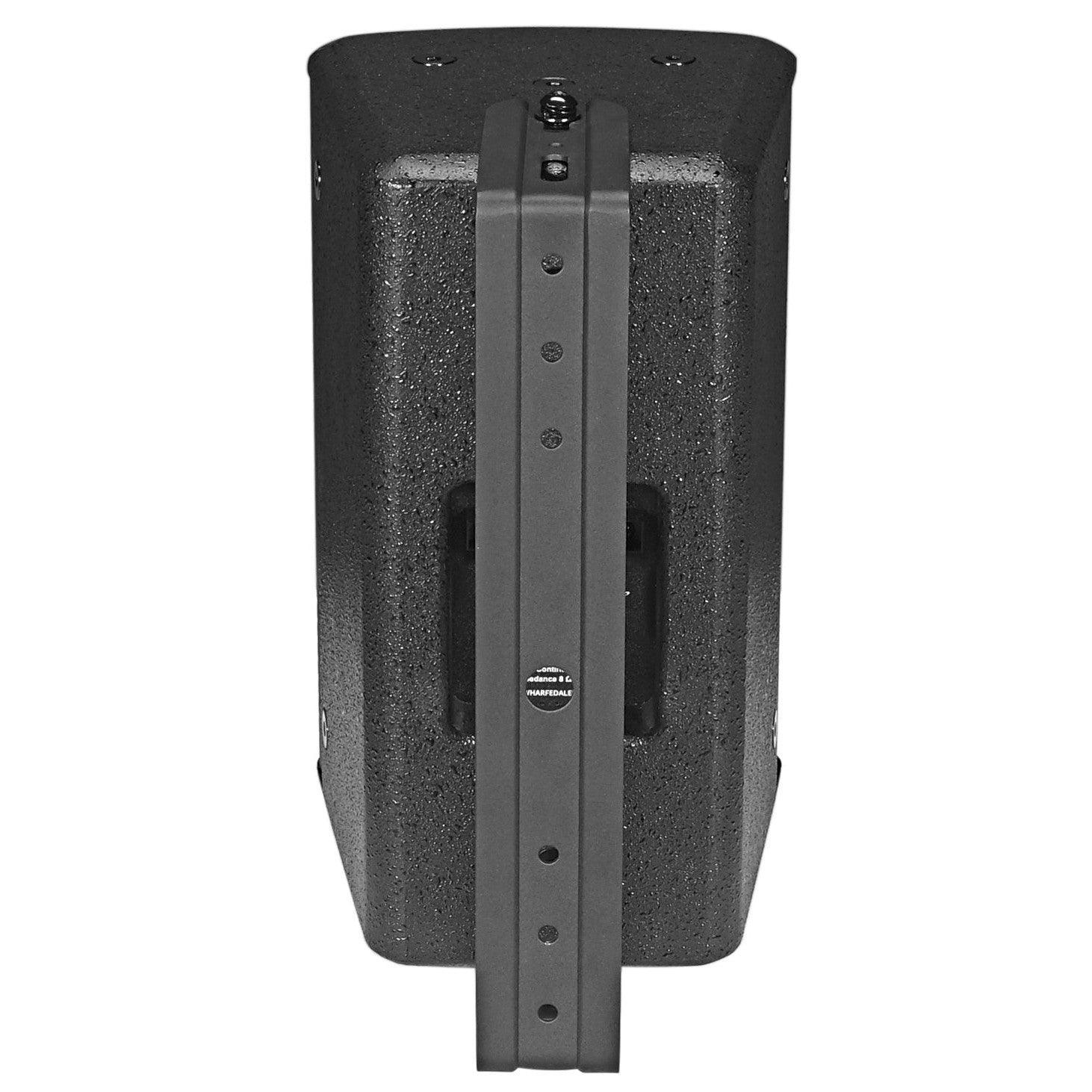

| Included accessory | black/white U bracket |
