Wharfedale Pro M16 Digital Mixing Console (Discontinued)
Wharfedale Pro M16 Digital Mixing Console (Discontinued)
Couldn't load pickup availability
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co

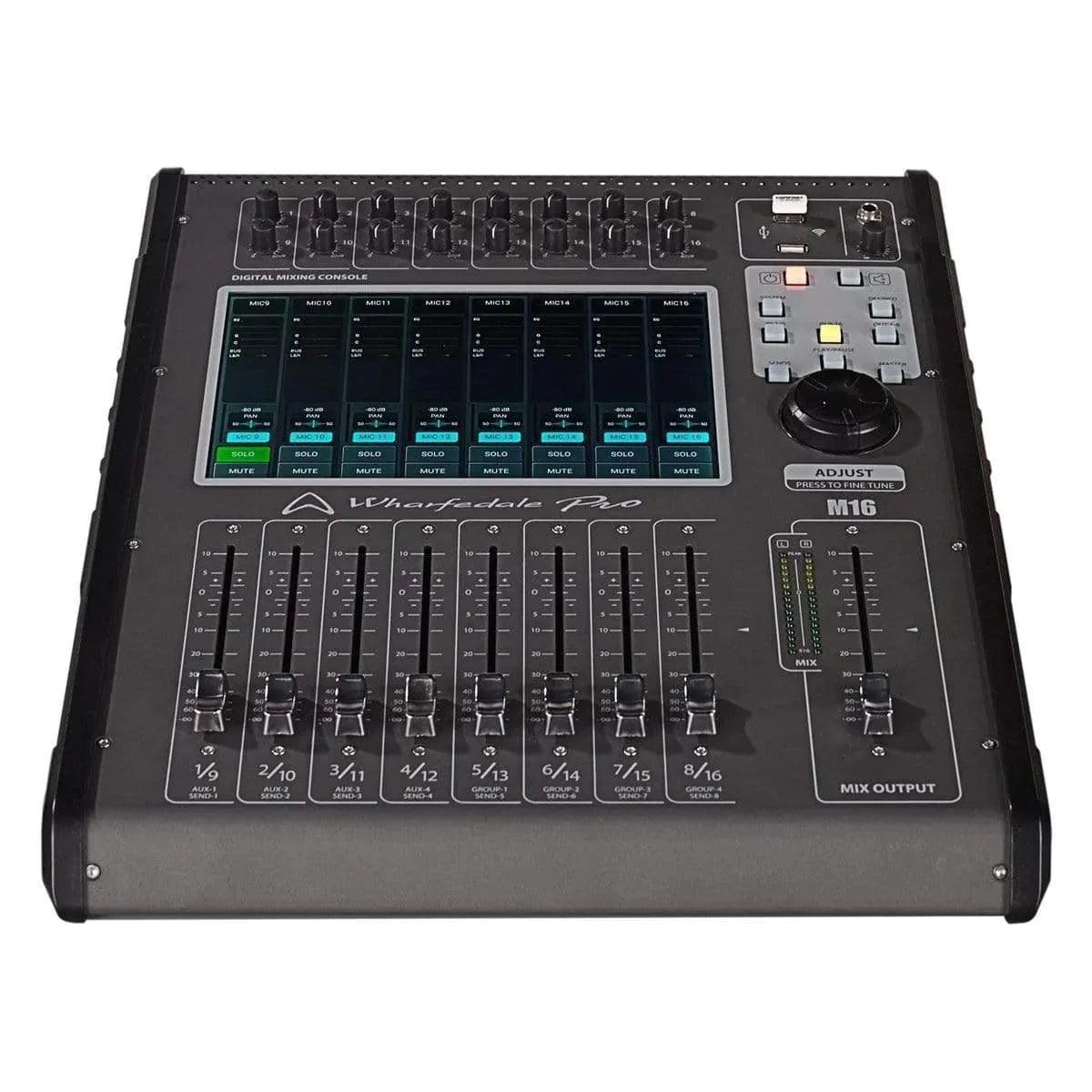

M16 is a unique and innovative multi-function digital mixing console, with many advantages such as its small size, lightweight construction, high-quality audio path, user-friendly interface and a ‘class-leading’ premium touch-sensitive 10.1” screen.
Using the 4th generation industrial floating-point SHARC processor and 24bit / 192kHz AD/DA conversion, M16 delivers high-quality audio with a responsive feel.
The custom layer, channel link and mute group modes make it ideal for live performances, conferences, schools, churches, cultural auditoriums, weddings, concerts, homes, bands, multi-purpose halls and other sound reinforcement systems.

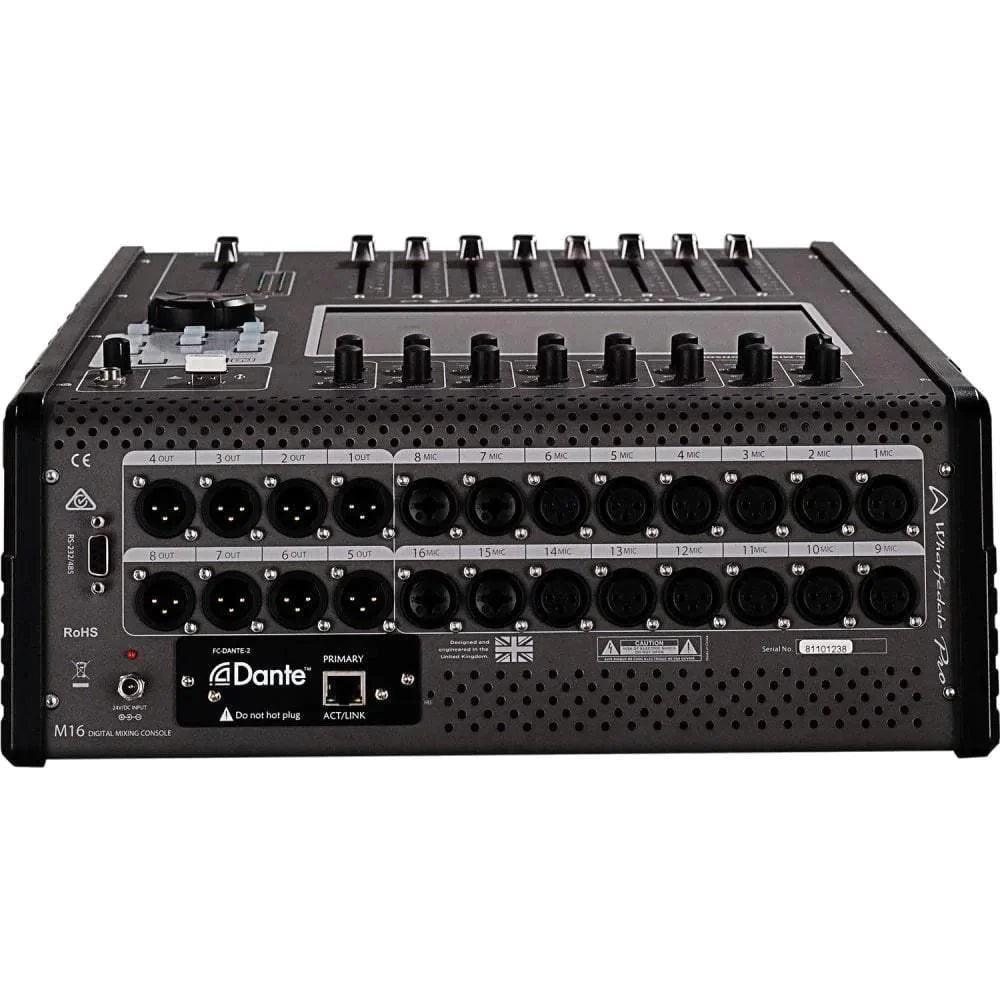

The system also includes WiFi interfacing allowing the mixer to be controlled remotely with mobile devices. A rear-panel expansion bay also allows for optional interface boards to be inserted. Currently, these include Dante, AES/EBU and USB protocols.
The 9 x 100mm motorised faders make control simple and custom layers can be created to make M16 easy to use for the most inexperienced operator.
Features
- 16 inputs (12 x XLR / 4 x combi-jack)
- 8 assignable balanced outputs

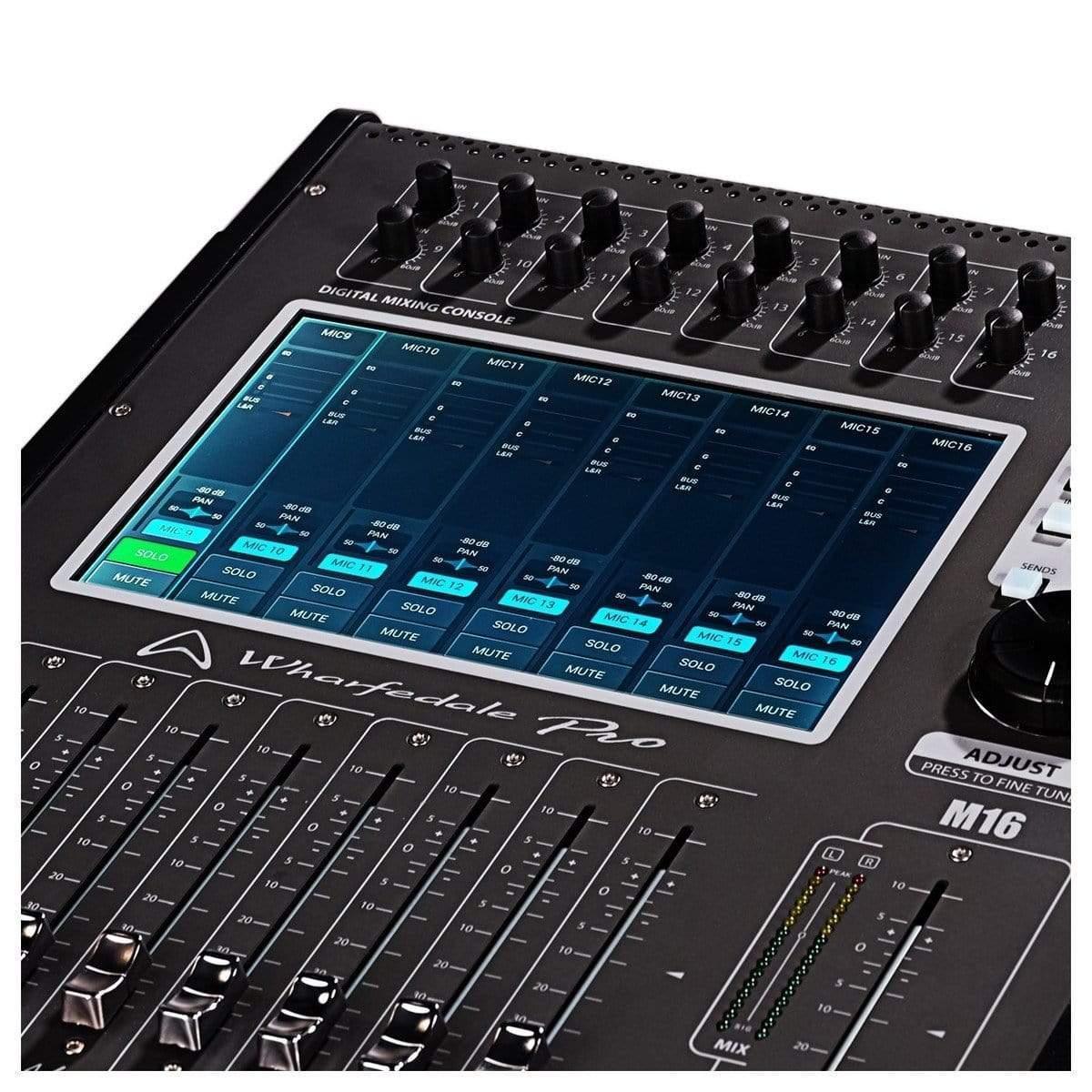

- 10.1” touch screen | 1280 x 800 resolution
- Expansion bay for optional interfacing
- 8 internal DSP processors
- 9 x 100mm motorised faders
- WiFi connectivity & control. Dongle included
- iPAD app for complete remote control
- Optional flight case also available
| Model Name M16 |
| Mic inputs 16 channel inputs (balanced) |
| Mic input connectors 12 x XLR + 4 combi connectors |
| Impedance 3kΩ |
| Frequency response 20Hz - 20kHz (+/-0.5dB) |
| Max input level +20dBu (balanced) |
| S/N ratio 105dB |
| Gain range 60dB |
| THD 0.005% |
| Phantom power +48v (Chan 1 to 16) |
| LIne inputs 4 x combo inputs |
| Input impedance 20kΩ |
| Max input level +30dBu (balanced) |
| Frequency response 20Hz - 20kHz (+/-0.5dB) |
| THD 0.008% |
| Gain range 60dB |
| S/N Ratio 105dB |
| Phase Normal / Reverse |
| Delay 0 -200msec |
| EQ 4-band |
| Frequency 20Hz - 20kHz +/-18dB |
| Q = 0.5 to 10.0 |
| HPF, Low, Mid/Low, Hi Mid, High |
| Mode Bypass, Flat, Library |
| GATE Threshold -80dB to 0dB |
| Attack 0.5ms to 100ms |
| Release 2ms to 2s |
| Hold 2ms to 2s |
| Depth -80dB to 0dB |
| Compressor Threshold -80dB to 0dB |
| Attack 0.5ms to 100ms |
| Release 2ms to 2s |
| Gain -12dB to +12dB |
| Ratio 1.0 to 20 |
| Outputs 8 assignable XLR |
| L/R + 4 Mono buss + 2 stereo buss |
| THD 0.005% (20Hz-20kHz) |
| Max output level +18dBu |
| Output impedance 470Ω |
| Digital IO USB stereo input and REC function |
| USB format 2.0 |
| USB Max Memory capacity 32GB |
| I/O latency <1.8ms |
| Recording format .wav |
| General |
| Dynamic range 106dBu analog in to analog out. |
| Crosstalk -85dB |
| AD/DA convertor Up to 24bit / 192kHz |
| Signal processing 40-bit floating point |
| FX processing Modulation x 2, Delay x 2, Reverb x 2 |
| GEQ 2 x 31bands |
| Screen resolution 10.1" touchscreen. 1280 x 800 |
| Faders 100m x 9. Motorised |
| System Wifi external USB adaptor included |
| Hardware |
| Power supply External 24V DC (AC 90-240V 50/60Hz) |
| Power consumption 50w |
| Dimensions (DxWxH) 504 x 379 x 136mm |
| Net weight 8.5kg |
| Gross weight 10.5kg |
| Included accessories WiFi USB adaptor |
| Power supply / power cord |
