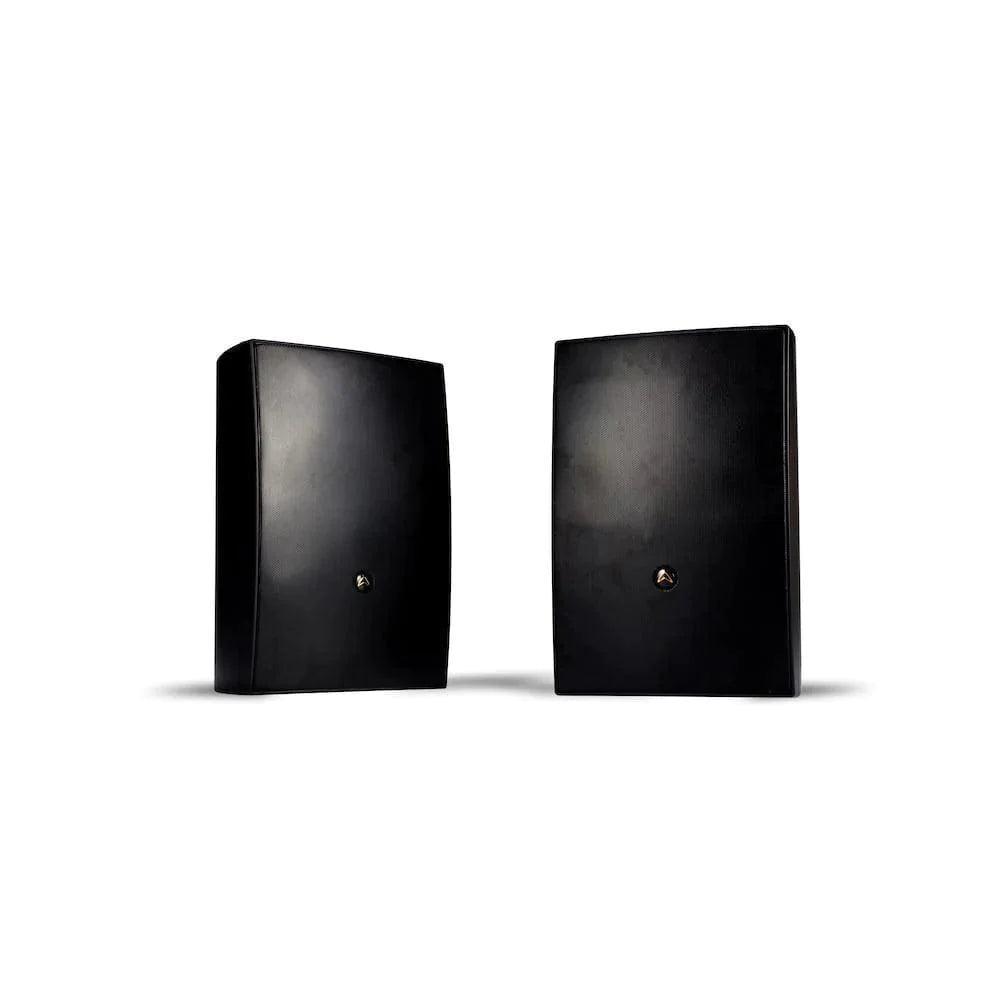

Wharfedale Pro i8 Two-way High Performance Loudspeaker
Wharfedale Pro i8 Two-way High Performance Loudspeaker
Couldn't load pickup availability
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
Needing a versatile loudspeaker for music, paging, or speeches? The WHARFEDALE i8 delivers high-performance audio in a durable ABS enclosure. This single unit offers both an 8" woofer for rich lows and a 1" dome tweeter for clear highs, ensuring a crisp and wide frequency response (70Hz - 20kHz) for any application. Choose the standard 8Ω model (i8) or the i8T for 70/100V lines in larger installations. Both come with a protective grille, an integral mounting bracket, and seismic tethers for a clean and secure setup. The WHARFEDALE i8 is your one-stop solution for clear and reliable sound.
FEATURES:
- Durable ABS construction with full face grille
- IP54 rated

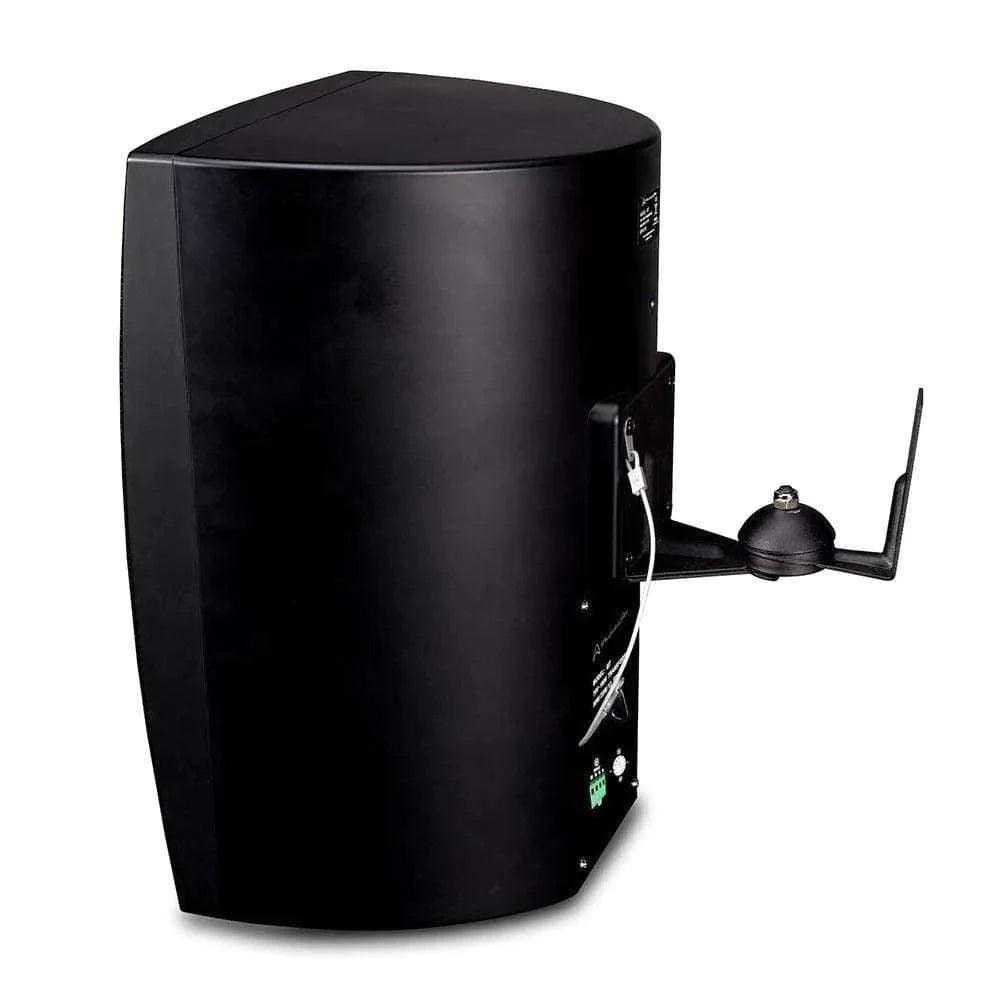

- Integral mounting bracket - included
- Seismic restraint tethers - included
- 8” LF driver with 1” dome HF tweeter
- Low impedance and transformer versions available

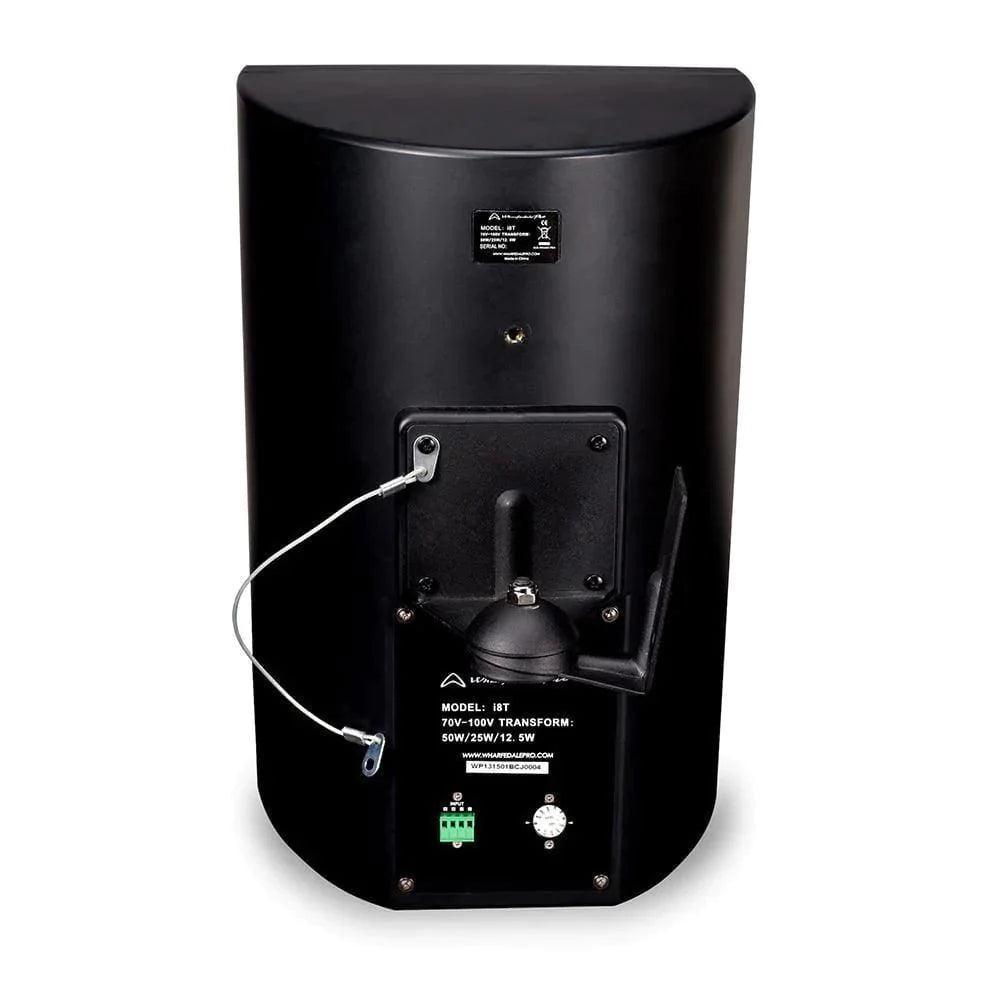

- i8T : 70v : 12.5w / 25w / 50w
- i8T : 100v : 25w / 50w

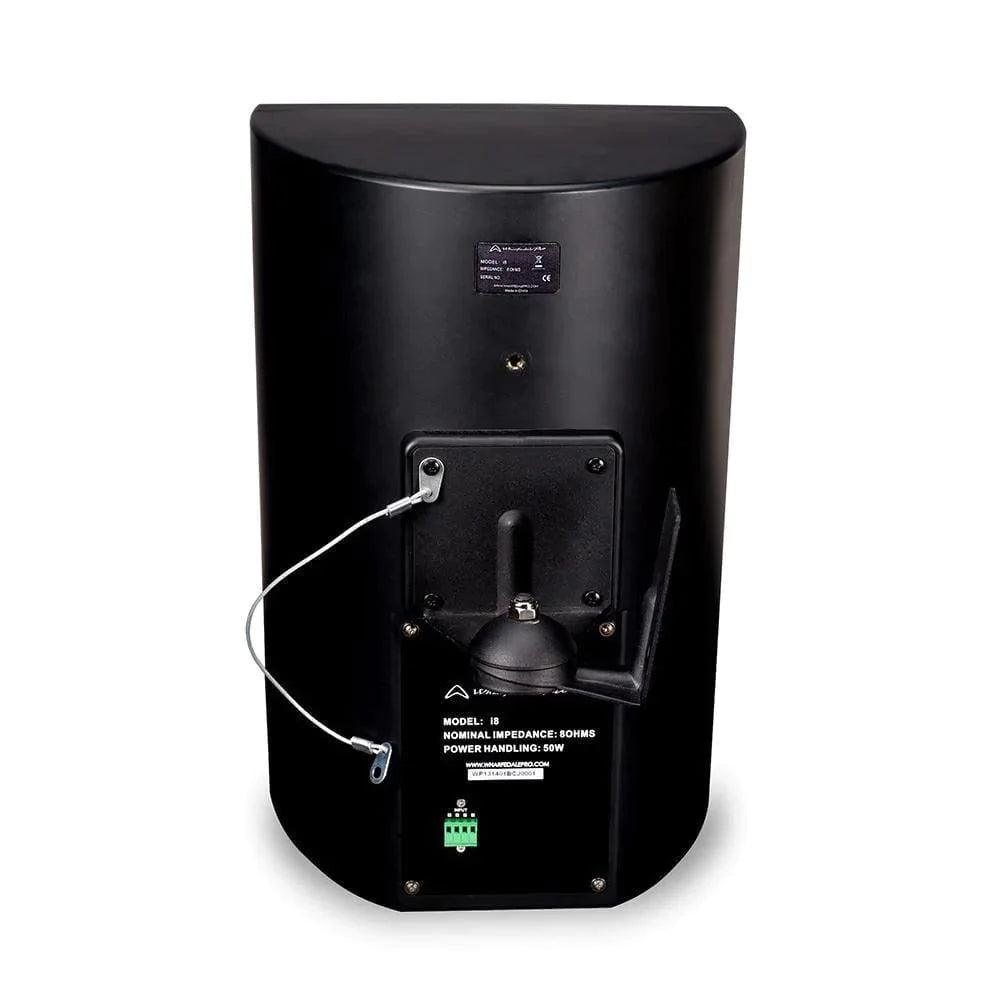

- i8 : 50w RMS, 100w Programme, 200w Peak
- i8 : 8Ω impedance
- For distributed music, paging and speech
SPECIFICATIONS:
| Model Names | i8 / i8T |
| System type | Passive |
| Configuration | 2-way |
| Frequency response | (+/-3dB) 70Hz - 20kHz |
| Frequency range | (-10dB) 50Hz - 20kHz |
| Sensitivity | (2.83v/1m) 87dB |
| Calculated Maximum SPL | @1m 110dB |
| System rated impedance | 8Ω |
| Low | frequency transducer |
| Size | 8.0" |
| Voice coil size | 1.0" |
| Rated impedance | 8Ω |
| LF Power | (re:AES2-2012) 50w |
| High frequency transducer | |
| HF driver type | Soft dome tweeter |
| Voice coil size | 1.0" |
| Diaphragm material | Silk |
| Rated impedance | 4Ω |
| HF Power | (re:AES2-2012) 10w |
| Nominal Coverage | (H x V) 130° x 180° |
| Power | |
| System continuous power | 50w |
| System programme power | 100w |
| System peak power | 200w |
| i8T : 70v : | 12.5w / 25w / 50w |
| i8T : 100v : | 25w / 50w |
| Crossover frequency | 2.0kHz |

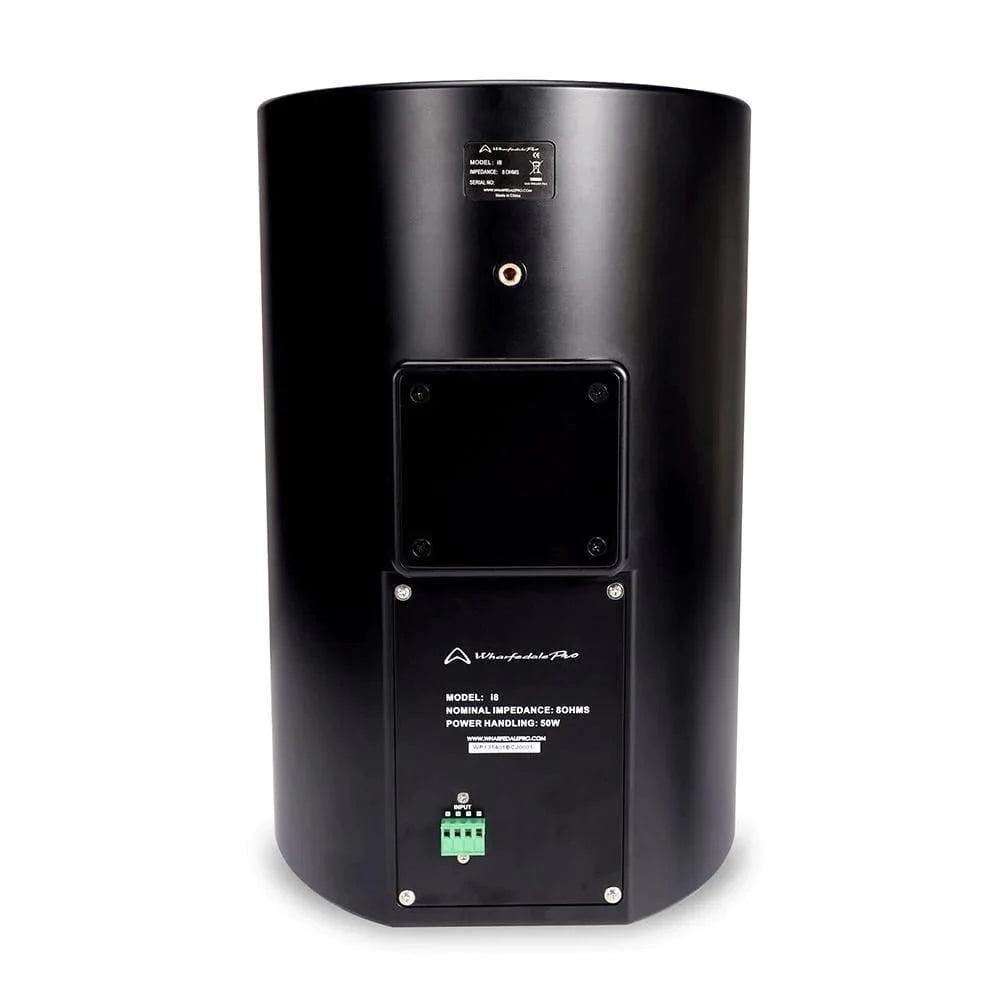

| Input connector Phoenix | terminals |
| Hardware | Wall mount brackets included |
| Enclosure | |
| Material and finish | Plastic (ABS) |
| Colour options | Black |
| Grille material | Aluminium |
| Dimensions - | unpacked |
| Height | 405mm / 15.8" |
| Width | 270mm / 10.6" |
| Depth | 234mm / 9.2" |
| Dimensions - | packed |
| Height | 602mm / 23.7" |
| Width | 363mm / 14.3" |
| Depth | 549mm / 21.6" |
| Weight | |
| Net weight (single speaker) | i8 : 4.7kg / 10.34lbs |
| i8T : 5.7kg / 12.54lbs | |
| Gross Weight (1PAIR inc brackets) | i8 : 12.7kg / 27.9lbs |
| i8T : | 14.7kg / 32.34lbs |
