Wharfedale Pro

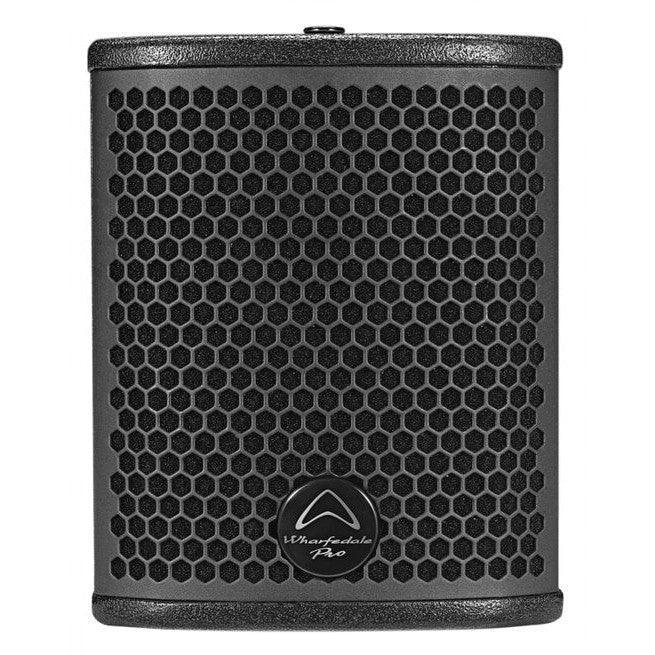

Wharfedale Pro GPL5T Speaker Passive 1x5" 800W Peak 70V/100V Transformer Wooden Paint Body
Wharfedale Pro GPL5T Speaker Passive 1x5" 800W Peak 70V/100V Transformer Wooden Paint Body
Regular price
Dhs.1,470.00 AED
Regular price
Dhs.0.00 AED
Sale price
Dhs.1,470.00 AED
Unit price
/
per
Couldn't load pickup availability
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
KEY FEATURES
- Compact birch plywood construction
- Beyma Coaxial design drivers

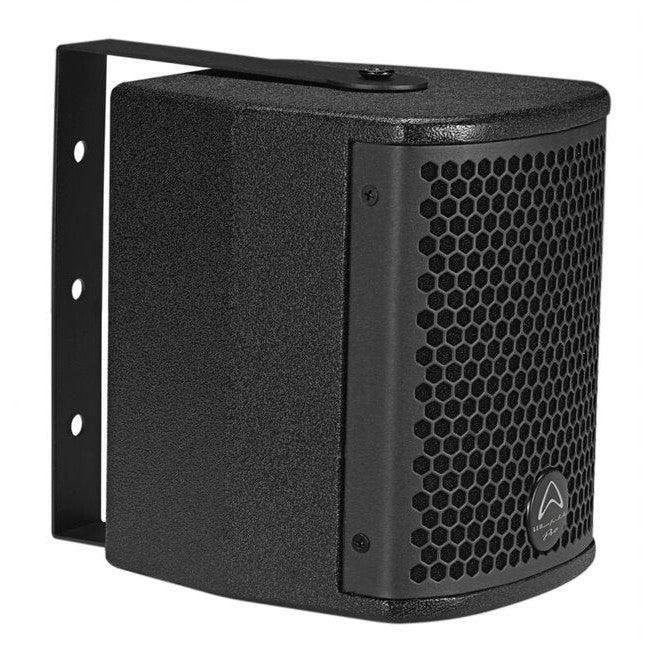

- Multiple mounting options (Yoke brackets included)
- Conical or 80° x 40° (HQ models) dispersion options
- Band-pass or Bass Reflex subwoofers
- speakON compatible and barrier strip connections
- FIR Preset libraries and EASE .gll files available for download
DESCRIPTION
All GPL models use premium Baltic birch plywood construction.
Not only does this create a solid and durable cabinet, but it also contributes to the overall sound and character.
Installations can be complicated enough, so Wharfedale Pro have made GPL series as easy as possible.
SPECIFICATIONS
| System Type | 5″ coaxial passive |
| Configuration | two-way |
| Frequency Response (+/-3 dB) | 80 Hz – 20 KHz |
| (DP-N preset) | |
| Frequency Range (- 10 dB) | 68 Hz – 25 KHz |
| (DP-N preset) | |
| Sensitivity 2.83 V/1 m | 96 dB |
| Sensitivity 2.83 V/1 m half space | / |
| Calculated Maximum SPL @1 m | 125 dB |
| System Peak SPL* | 131 dB |
| *level at 1 m using pink noise with crest factor 4, with dedicated preset. | |
| System Rated Impedance | 8 Ω |
| Low Frequency Transducer | |
| Size | 155 mm / 5” |
| Voice coil size | 38.1 mm / 1.5” |
| LF Frame Material | Aluminium |
| High Frequency Transducer | |
| HF Driver Type | Compression Driver |
| Coil Size (mm / inches) | 38.1 mm / 1.5″ |
| Exit Size (mm / inches) | 25.4 / 1″ |
| Diaphragm Material | PM4 |
| Waveguide Type | Spherical |
| Nominal Coverage (H x V) | 70° conical |
| Special Features | Shorting cap for extended response |
| Waterproof LF cone | |
| Driver brand | Beyma |
| POWER | |
| T Model | 70 V : 120 / 60 / 30 / 15 W |
| 100 V : 120 / 60 / 30 W | |
| System Continuous Power (W) | 200 |
| System Programme Power (W) | 400 |
| System Peak Power (W) | 800 |
| Crossover Frequency | 2.5 KHz |
| Recommended HPF = BW18dB/oct. | 63 Hz |

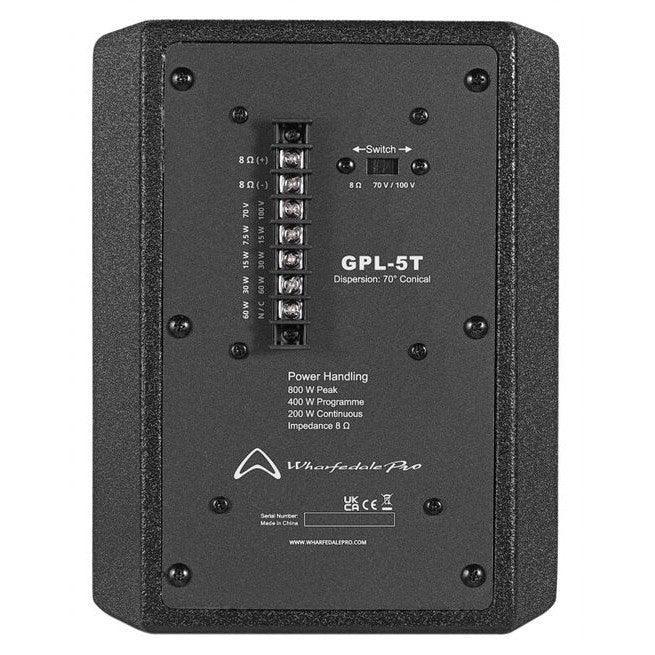

| Input Connector | 2 x speakON compatible / 1 x Barrier Strip |
| T Model barrier strip only | |
| Rigging & Hardware: | 2 x M10 threaded rigging points. |
| 4 x M8 threaded points for WPB-3 | |
| Included Accessories | GPL-5 horizontal flying yoke |
| Handle | NO |
| Enclosure | |
| Cabinet Type | Trapezoid |
| Enclosure Material and finish | 12 mm plywood |
| / Rhino Rock | |
| Colour Options | Black paint, White on request |
| Grille Material & Finish | Powder coated steel |
| Dimensions – Unpacked (mm / inches): | |
| Height | 235 mm / 9.25″ |
| Width Front | 190 mm / 7.5″ |
| Width Rear | 145 mm / 5.7″. |
| Depth | 205 mm / 8.1″ |
| Dimensions – Packed (mm / inches): | |
| Height | 275 mm / 10.8″ |
| Width Front | 250 mm / 9.8″ |
| Width Rear | 250 mm / 9.8″ |
| Depth | 265 mm / 10.4″ |
| Weight | |
| Net Weight | 5.12 kg / 11.30 lbs |
| Gross Weight | 5.70 kg / 12.5 lbs |
