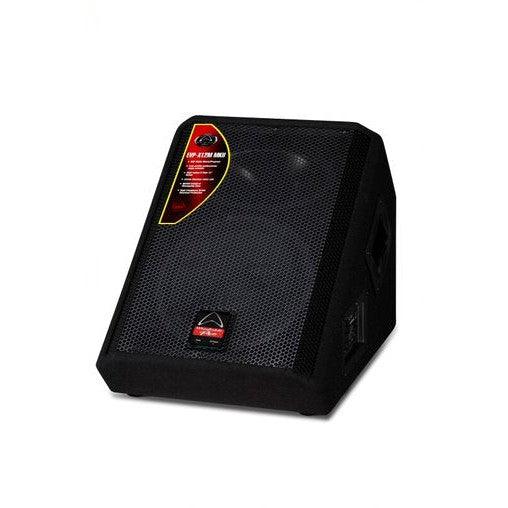

Wharfedale Pro EVP-X12M MKII Speaker Monitor Passive 1x12" 300W RMS 8Ohm Wooden Carpet Body
Wharfedale Pro EVP-X12M MKII Speaker Monitor Passive 1x12" 300W RMS 8Ohm Wooden Carpet Body
Couldn't load pickup availability
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
Note - It is imperative to use the Wharefedale Pro SC48FIR DSP with any Wharfedale Pro WLA Series Line Array. This is part of a system. We recommend contacting our sales team for a full system design.
KEY FEATURES
- Carpet covered hard working PA speakers
- 4-way rubberised handles
- Elliptical 90° x 60° dispersion
- Full series lineup consisting of 8 models
- NL4 (speakON compatible) and 1/4” connectors
- +3 dB HF Frequency boost switch
- Subwoofers feature internal crossover
DESCRIPTION
Each EVP-X MKII PA speaker and subwoofer is protected by a durable carpet covering and steel grille.
The MKII version features a 4-way carry handle and a dual angle pole mount making it both portable and versatile for varying installation applications, ensuring the HF sound is directed straight at your audience.
Full range models feature a 90° x 60° Elliptical Waveguide
In real-world terms this means that the higher frequencies can be heard with definition at 90° in the horizontal plane, and 60° in the vertical.
All full range models in the EVP-X MKII series use this same elliptical waveguide design which makes for controllable coverage when using multiple EVO-X series loudspeakers.
SPECIFICATIONS
| System Type | Passive |
| Configuration | Two-way Monitor |
| Frequency Response (+/-3 dB) | 60 Hz – 20 KHz |
| Frequency Range (-10 dB) | 55 Hz – 20 KHz |
| Sensitivity (2.83 v / 1 m) | 98 dB |
| Calculated Maximum SPL @1 m | 129 dB |
| System Rated Impedance | 8 Ω |
|
|
1200 w |
| Crossover frequency | 2.4 KHz |
| Input Connector | 2 x NL4 (speakON Compatible) |
| + 2 x 1/4” Jacks |
