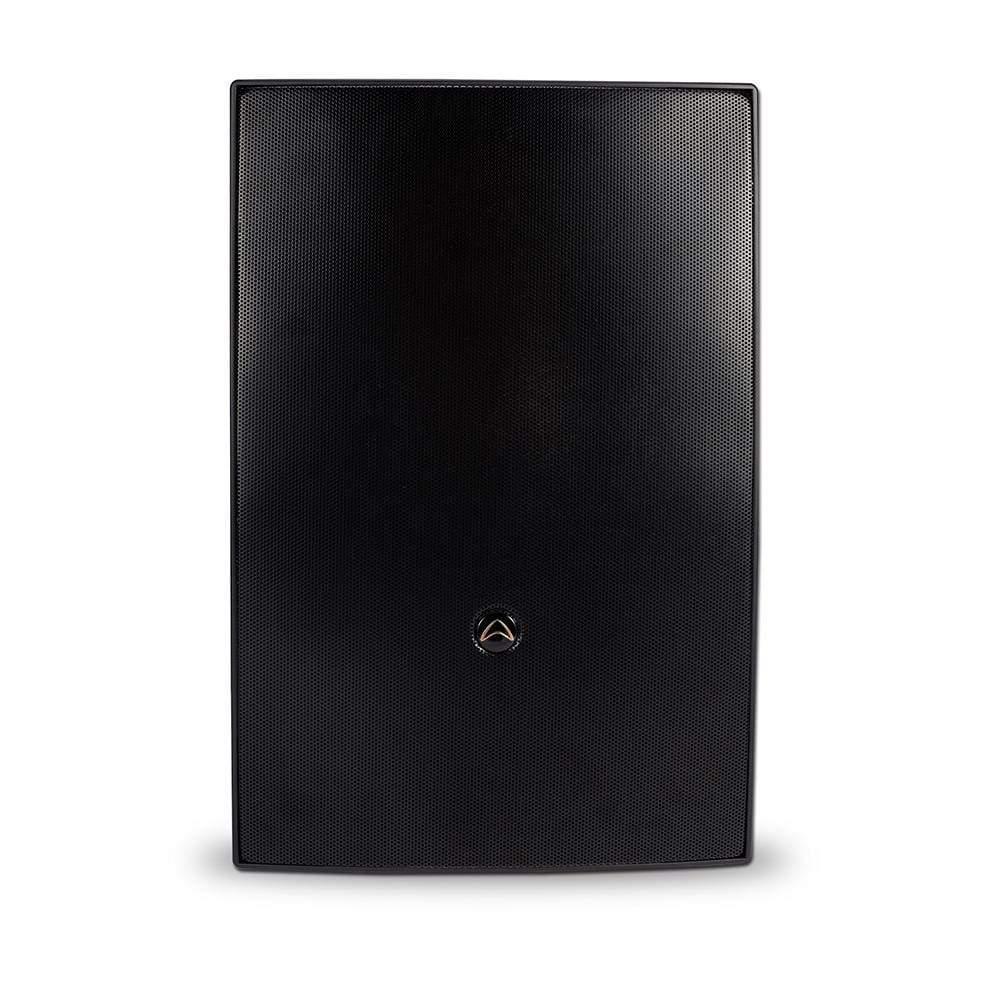

i8 and the transformer version - i8T, are two-way high-performance loudspeakers specifically designed for distributed music, paging and speech applications.
Each model features a quality 8" low-frequency transducer and 1" dome tweeter housed inside a durable ABS enclosure - with a full protective frontal grille.
Both models feature Phoenix (Euroblock) input connections for easy on-site wiring, and both models are supplied with a sturdy, adjustable wall mounting bracket.
i8 is a low-impedance 8Ω model and i8T features an internal transformer for use with 70/100V installations.
Features
- Durable ABS construction with full-face grille
- IP54 rated
- Integral mounting bracket - included
- Seismic restraint tethers - included
- 8” LF driver with 1” dome HF tweeter
- Low impedance and transformer versions available
- i8T : 70v : 12.5w / 25w / 50w
- i8T : 100v : 25w / 50w
- i8 : 50w RMS, 100w Programme, 200w Peak
- i8 : 8Ω impedance
- For distributed music, paging and speech
Tech Specs
| Model Names | i8 / i8T |
| System type | Passive |
| Configuration | 2-way |
| Frequency response | (+/-3dB) 70Hz - 20kHz |
| Frequency range | (-10dB) 50Hz - 20kHz |
| Sensitivity | (2.83v/1m) 87dB |
| Calculated Maximum SPL | @1m 110dB |
| System rated impedance | 8Ω |
| Low | frequency transducer |
| Size | 8.0" |
| Voice coil size | 1.0" |
| Rated impedance | 8Ω |
| LF Power | (re:AES2-2012) 50w |
| High frequency transducer | |
| HF driver type | Soft dome tweeter |
| Voice coil size | 1.0" |
| Diaphragm material | Silk |
| Rated impedance | 4Ω |
| HF Power | (re:AES2-2012) 10w |
| Nominal Coverage | (H x V) 130° x 180° |
| Power | |
| System continuous power | 50w |
| System programme power | 100w |
| System peak power | 200w |
| i8T : 70v : | 12.5w / 25w / 50w |
| i8T : 100v : | 25w / 50w |
| Crossover frequency | 2.0kHz |
| Input connector Phoenix | terminals |
| Hardware | Wall mount brackets included |
| Enclosure | |
| Material and finish | Plastic (ABS) |
| Colour options | Black |
| Grille material | Aluminium |
| Dimensions - | unpacked |
| Height | 405mm / 15.8" |
| Width | 270mm / 10.6" |
| Depth | 234mm / 9.2" |
| Dimensions - | packed |
| Height | 602mm / 23.7" |
| Width | 363mm / 14.3" |
| Depth | 549mm / 21.6" |
| Weight | |
| Net weight (single speaker) | i8 : 4.7kg / 10.34lbs |
| i8T : 5.7kg / 12.54lbs | |
| Gross Weight (1PAIR inc brackets) | i8 : 12.7kg / 27.9lbs |
| i8T : | 14.7kg / 32.34lbs |
