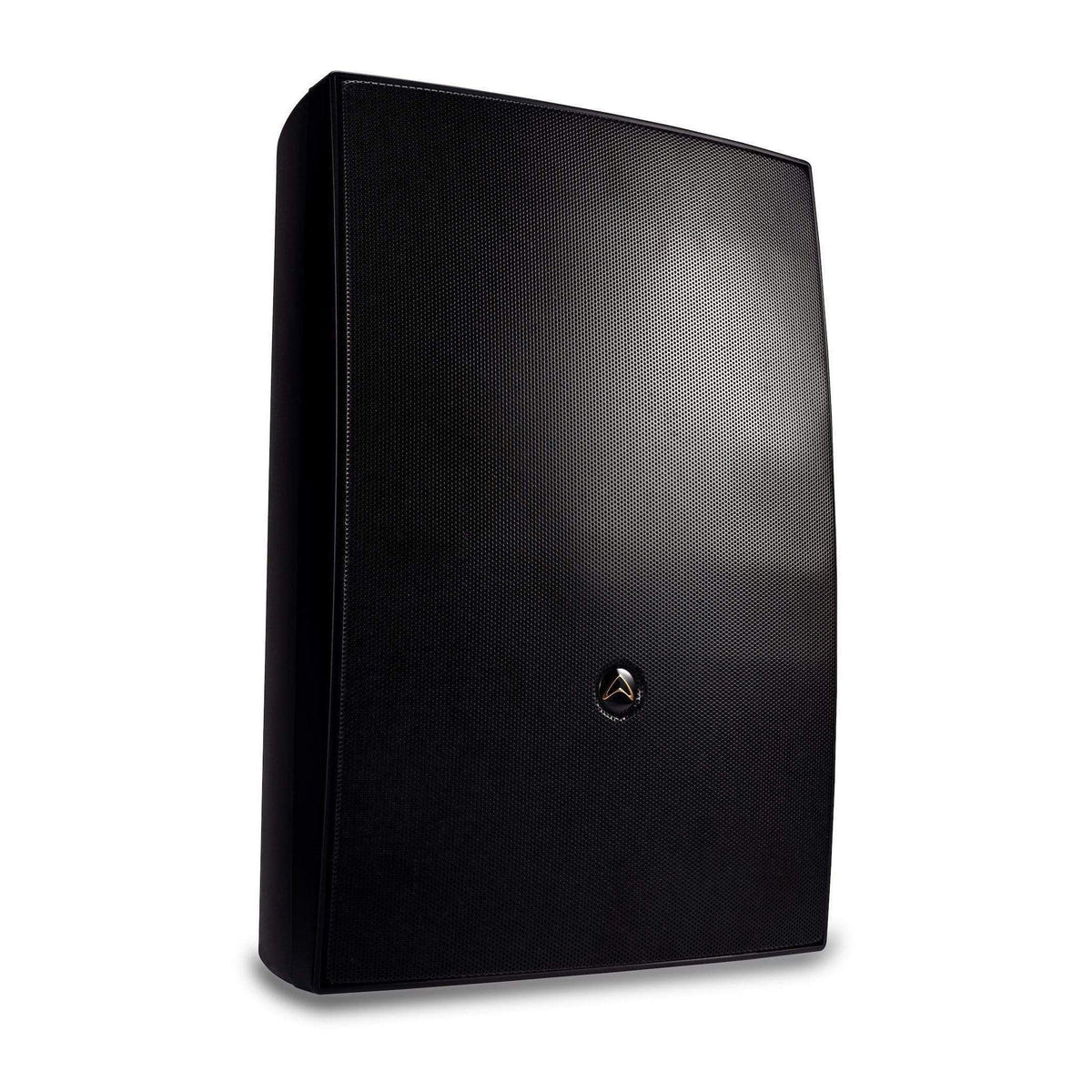

Wharfedale Pro i6 Installation Speakers
Wharfedale Pro i6 Installation Speakers
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
Building on the success of the i8 and i8T, the i6 and i6T installation speakers are two-way high-performance loudspeakers specifically designed for distributed music, paging and speech applications.
Each i6 model features a quality 6.5” low-frequency transducer and 1" dome tweeter housed inside a durable ABS enclosure - with a full protective IP54 rated frontal grille.
Both models feature Phoenix (Euroblock) input connections for easy on-site wiring, and both models are supplied with a sturdy, adjustable wall mounting bracket.
i6 is a low-impedance 8Ω model while the i6T features an internal transformer for use with 70/100V installations.
With both 8” (i8 / i8T) and 6.5” (i6 / i6T) models, the Wharfedale Pro i series installation loudspeakers are ideal for fixed commercial installations of any scale.
Features
- Durable ABS construction with full-face grille
- IP54 rated
- Integral mounting bracket - included
- Seismic restraint tethers - included
- 6.5” LF driver with 1” dome HF tweeter
- Low impedance and transformer versions available
- i6T : 70v : 12.5w / 25w / 50w
- i6T : 100v : 25w / 50w
- i6 : 50w RMS, 100w Programme, 200w Peak
- i6 : 8Ω impedance
- For distributed music, paging and speech
Tech Specs
System Type | Passive |
Configuration | Two-way |
Frequency Response | (+/-3dB) 70Hz - 20kHz |
Frequency Range | (-10dB) 50Hz - 20kHz |
Sensitivity | (2.83v/1m) 86dB |
Calculated Maximum | SPL @1m 109dB |
System Rated Impedance | 8Ω |
Size | 6.5" |
Voice Coil Size | 1" |
Rated Impedance | 8Ω |
LF Power | (re:AES2-2012) 50W |
HF Driver Type | Soft dome tweeter |
Voice Coil Size | 1" |
Diaphragm Material | Silk |
Rated Impedance | 8Ω |
HF Power | (re:AES2-2012) 10W |
Nominal Coverage (H x V) | 150° x 170° |
System Continuous Power | 50w |
System Programme Power | 100w |
System Peak Power | 200w |
Crossover frequency | 2.2kHz |
Input Connector | Phoenix terminal |
Height | 370mm/14.6" |
Width | 245mm/9.6" |
Depth | 216mm/8.5" |
