Wharfedale Pro

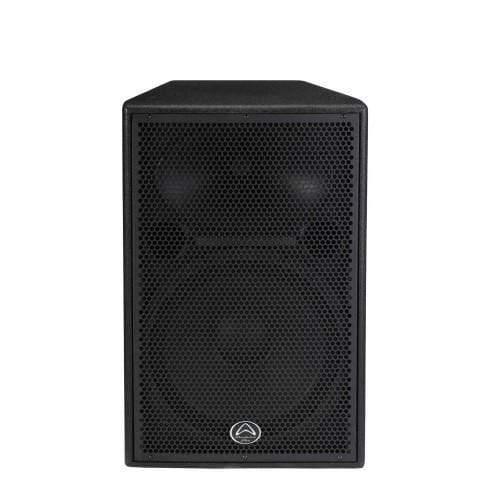

Wharfedale Pro Delta X15 Passive PA Speakers
Wharfedale Pro Delta X15 Passive PA Speakers
Regular price
Dhs.1,302.00 AED
Regular price
Dhs.0.00 AED
Sale price
Dhs.1,302.00 AED
Unit price
/
per
Couldn't load pickup availability
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
OVERVIEW:
Delta X builds on the global success of the Wharfedale Pro Delta series.
Constructed from 15mm plywood and covered in the highest quality Rhino Rock paint, the new Delta X15 is instantly recognisable by the engraved iconic Wharfedale Pro ‘boomerang’ logo on its cabinet. The fresh cosmetic design however is not the only improvement the engineering team have made.
Internally Delta X15 also has a new crossover design and construction. Using new component positioning and bracing, the sensitive crossover electronics have been re-engineered to improve long term performance and reliability – even at the highest of volumes.
With rear panel switching, Delta X15 can operate in either Bi-Amp or Passive modes. This routing flexibility allows for Delta X systems to be refined using multiple amplifiers and external crossovers.
Custom Wharfedale Pro transducers have also been selected. High output, low physical distortion cast frame woofers deliver unparalleled low frequency response. With the exception of the Delta X10, 2” titanium compression drivers are coupled to 90°x45° elliptical waveguides for impressive output level and smooth HF dispersion.
| System Type | Passive |
| Configuration | Two-way |
| Frequency Response (+/-3dB) | 50-20KHZ |
| Frequency Range (- 10 dB) | 45-20KHZ |
| Sensitivity (2.83v/1m) | 98dB |
| Calculated Maximum SPL @1m | 131dB |
| System Rated Impedance | 8Ω |
| Low Frequency Transducer | |
| Size | 404mm / 15" Paper |
| Voice-Coil Size | 77.1mm / 3" |
| Rated Impedance | 8Ω |
| LF Power (re:AES2-2012) | 500W |
| High Frequency Transducer | |
| HF Driver Type | Compression Driver |
| Voice-Coil Size | 50.8mm / 2" Titanium |
| Exit Size | 35.6mm / 1.4" |
| Diaphragm Material | Titanium |
| Rated Impedance | 8Ω |
| HF Power (re:AES2-2012) | 50W |
| Nominal Coverage (H x V) | 90⁰ x 45⁰ |
| Power | |
| System Continuous Power | 500W |
| System Programme Power | 1000W |
| System Peak Power | 2000W |
| Crossover frequency | 1.8kHz |
| Input Connector | 2 x NL4 (speakON Compatible) |
| Hardware | |
| Pole Mount | Dual Angle (0⁰ / 10⁰) 35mm Socket |
| Handles | 2 on Sides |
| Enclosure | |
| Enclosure Material | 15mm Plywood |
| Finish | black paint |
| Grille Material & Finish | 1.5 mm Steel Black |
| Dimensions - Unpacked | |
| Height | 700mm / 27.6" |
| Width Front | 446mm / 17.6" |
| Width Rear | 281.4mm / 11.1" |
| Depth | 406mm / 16.0" |
| Dimensions - Packed | |
| Height | 803mm / 31.6" |
| Width Front | 622mm / 24.5" |
| Width Rear | 622mm / 24.5" |
| Depth | 498mm / 19.6" |
| Weight | |
| Net Weight (kg / lbs) | 29.9kg / 65.9lbs |
| Gross Weight (kg / lbs) | 35.5kg / 78.1lbs |
