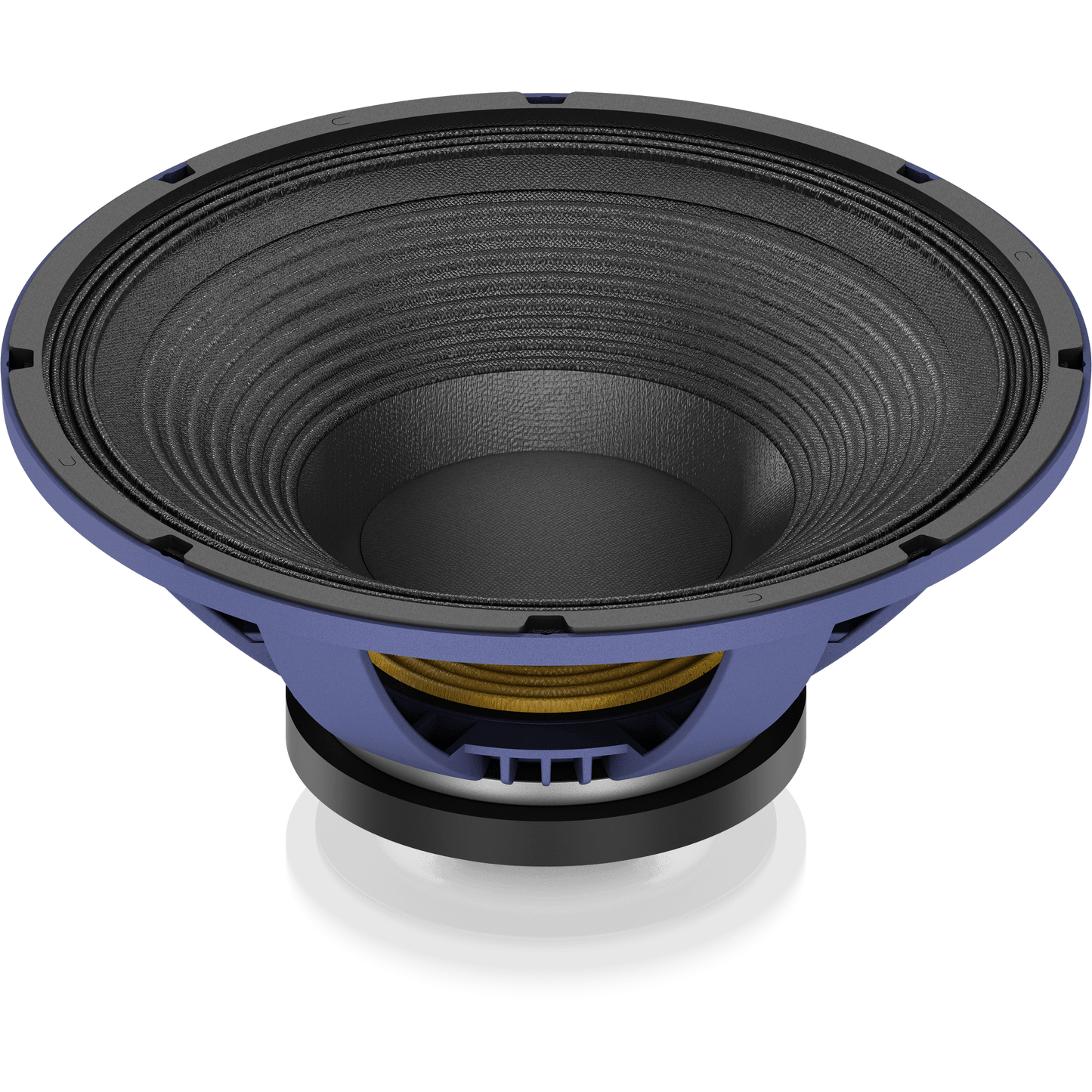

Turbosound TS-18SW700/8A 700W 18" Low-Frequency Loudspeaker for PA Applications
Turbosound TS-18SW700/8A 700W 18" Low-Frequency Loudspeaker for PA Applications
Couldn't load pickup availability
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
KEY FEATURES
-
18" high-power woofer for PA applications
-
Continuous?power: 700 Watts RMS
-
Maximum?power: 2,800 Watts
-
Impedance: 8 Ohms
-
Frequency Range: 35 Hz - 2 kHz
-
SPL: 96 dB (1 W / 1 m)
-
Rigid aluminum die-cast frame
-
Mounting hole diameter: 442 mm (17.4")
-
Shipment Weight: 16.5 kg (36.3 lbs) and Net Weight:12.8 kg (28.2 lbs)
-
Overall Diameter: 460 mm (18.11")
DESCRIPTION
Powerful PA speaker systems call for Turbosound drivers, which are designed to bring out the best audio performance no matter the genre or application. The 18” TS-18SW700/8A low frequency driver provides tight and punchy bass performance and handles up to 2,800 Watts of peak output (700 Watts RMS), with a frequency range that extends from 35 Hz to 2 kHz. The die-cast aluminium frame is extremely rigid and light in weight, making it ideal for use as a replacement driver – or for deployment in custom-engineered multi-way PA and subwoofer enclosures.
SPECIFICATIONS
General Specifications
|
Loudspeaker diameter |
460 mm / 18" |
|
Impedance |
8 Ω |
|
Continuous power rating1 |
700 W |
|
Peak power rating2 |
2800 W |
|
Sensitivity |
96 dB (±2.5 dB, 1 W / 1 m) |
|
Frequency range |
Fo ~3 kHz (-10 dB) |
|
Magnet size |
220 mm |
|
Voice coil diameter |
100.2 mm / 4" |
|
Bobbin material |
Glass black fiber |
|
Wire type |
Copper wire |
|
Winding height |
27 mm |
|
Layers |
2 |
|
Cone body |
Paper |
|
Cone surround |
Cloth |
|
Item part number |
H77-00002-31675 |
Thiele & Small Parameters
|
Resonance frequency (Fs) |
35 Hz |
|
DC resistance (Re) |
5.2 Ω |
|
Mechanical Q factor (Qms) |
25.9 |
|
Electrical Q factor (Qes) |
0.44 |
|
Total Q factor (Qts) |
0.43 |
|
Mechanical moving mass (Mms) |
185 g |
|
Mechanical compliance (Cms) |
0.11 mm/N |
|
Force factor (Bl) |
22 |
|
Equivalent acoustic volume (Vas) |
250 I |
|
Maximum linear displacement (Xmax) |
7.5 mm |
|
Diaphragm area (Sd) |
1288 sq cm |
|
Voice coil inductance @ 1 kHz (Le) |
1.03 mH |
Shipping Information
| Net weight | 12.8 kg (28.2 lbs) |
| Shipping weight | 16.5 kg (36.3 lbs) |
