TOA TU631M Driver Unit 30W 100V

TOA TU631M Driver Unit 30W 100V

Dhs.178.00 AED
Dhs.0.00 AED Dhs.178.00 AED
Sale Sold out

For Wholesale Enquiries Please Contact Us On WhatsApp

This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co

FEATURES

  • High-impedance (70 V / 100 V lines) model
  • Power rating: 30 W
  • Frequency Response: 150 Hz – 6 kHz
  • IInput impedance selector facilitates control from the outside.
  • IP65 certified weatherproof construction

 DESCRIPTION

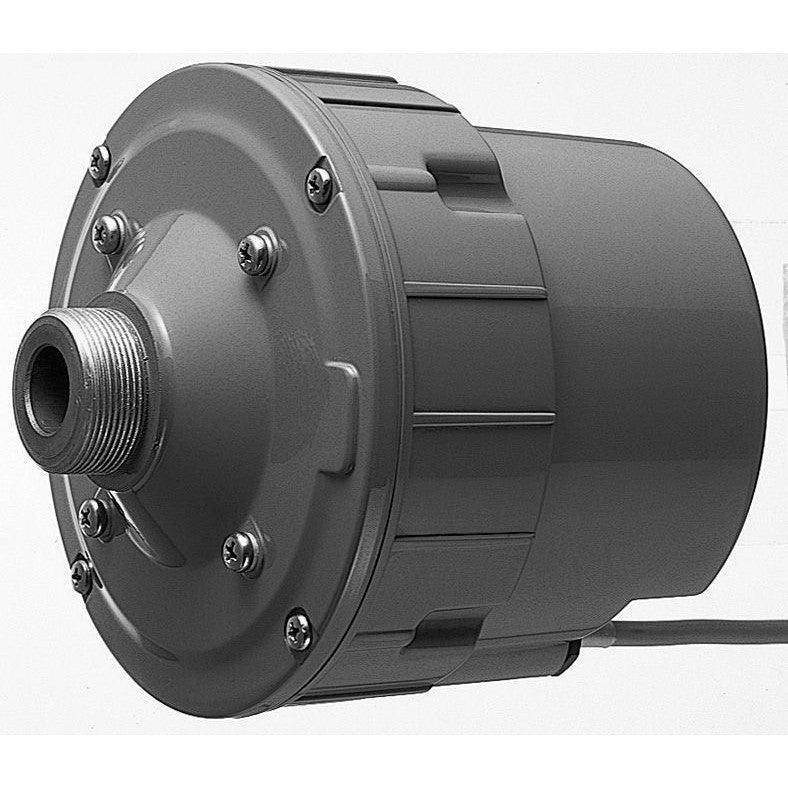

The TU-631M is a highly intelligible driver unit suited to public address announcement applications. Use the driver unit in combination with a suitable horn (optional). Its powder-coated finish and stainless steel screws ensure the unit's weatherproof capability.

SPECIFICATIONS

Frequency response

150 Hz - 6 kHz
Sensitivity (1 W, 1 m)

110 dB (with TH-650, TH-660)
Rated input (high impedance)

30 W
Tappings

100 V line: 330 Ω(30 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W)

70 V line: 170 Ω (30 W), 330 Ω (15W), 670 Ω (7.5 W), 1 kΩ (5 W), 2 kΩ (2.5 W)
Operating temperature.

-20°C to +60°C (-4°F to 140°F)
Dimensions.

139 x 149 mm (Ø x D)
Finish.

Aluminium, powder coating, grey, Rear cover: ABS resin, grey
