TC Helicon

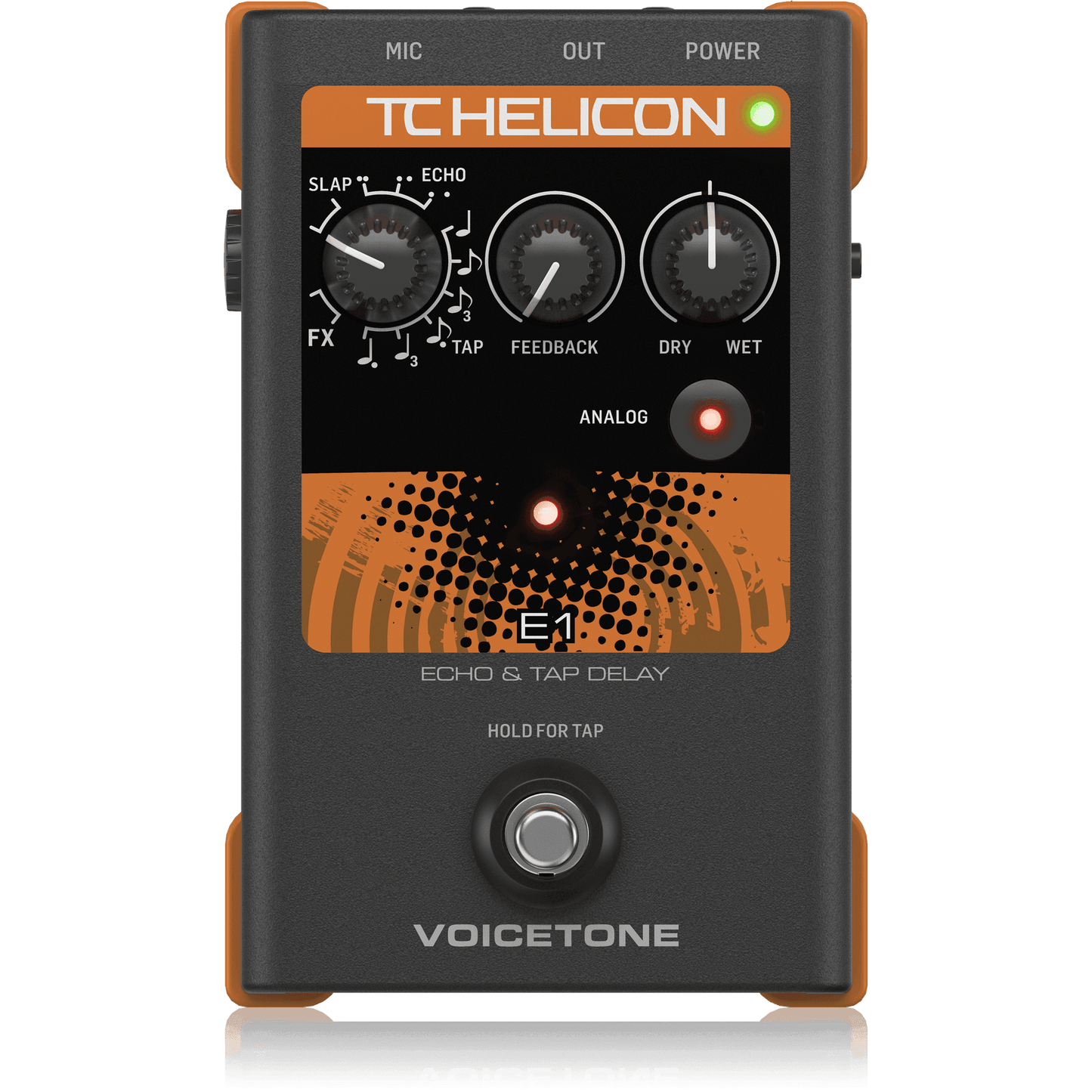

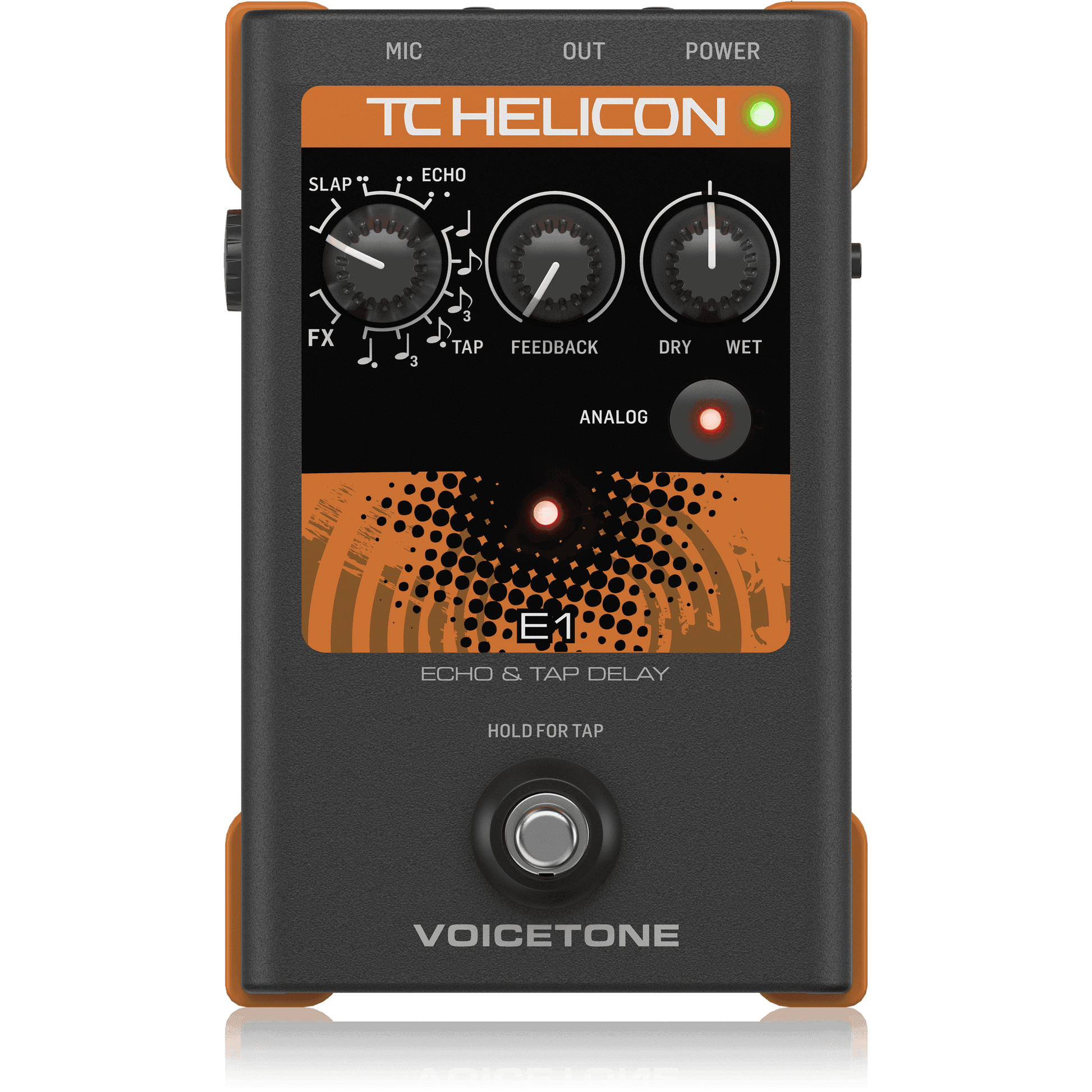

TC Helicon VOICETONE E1

TC Helicon VOICETONE E1

Regular price Dhs.882.00 AED
Regular price Dhs.0.00 AED Sale price Dhs.882.00 AED
Sale Sold out

For Wholesale Enquiries Please Contact Us On WhatsApp

This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co

Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information

KEY FEATURES

  • Single-button stompbox gives you a range of stage-ready vocal echo effects in vintage to modern flavors
  • Timed repeats of your vocal add interest at just the right moment
  • 13 wicked delay styles, including classic slap echo
  • Tap tempo control to keep your echoes right on the beat
  • Simple 3-knob interface gets you up and running in seconds
  • High-quality, low-noise mic preamp for pristine vocals
  • On/off foot switch for quick performance control
  • Analog button for an optional filtered echo sound from the days of tape recording
  • Allows chaining to other VOICETONE SINGLES vocal processors or DITTO MIC LOOPER to expand creative possibilities
  • Compatible with remote Mic Control using the TC Helicon MP-75 microphone
  • Rugged, road-worthy construction for years of dependable use
  • Power supply included



DESCRIPTION

VOICETONE E1 offers singers the signature echo and slapback effects that evoke classic songs, while putting effects control at their feet. High quality, immersive echo effects for the stage are no longer just for guitarists.



SPECIFICATIONS

Design



Size

Height: 5.4 inches (140 mm)
Width: 3.5 inches (90 mm)
Depth: 2.3 inches (60 mm)

Weight

Weight: 0.92 lb. (0.42 kg)

Construction

Two part dies cast metal
Rubberized base

Connections



Analog Inputs

Connectors, balanced: Mic.: XLR
Mic Input Level @ 0 dBFS: -42dBu to +1dBu
EIN @ Max Mic Gain Rg = 150 Ohm: -126 dBu
Mic input SNR: >104 dB
Phantom Power: 24V (always on)

Analog Outputs

Output Impedance, Bal./Unbal.: 200/100 Ohm
Output Full Scale: +1 dBu
Dynamic Range: >104 dB, 20 Hz to 20 kHz
Frequency Response: +0/-0.3 dB, 20 Hz to 20 kHz

Control

USB for firmware and control
Mic Control using TC Helicon MP-75

Safety And Regulations



Power

Power Supply (Supplied): 12V / 400mA
Power Consumption: 5.6W

Safety

EMC – Complies with EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B
Safety – certified to IEC 65, EN 60065, UL6500 and CSA IEC 65, EN 60065, UL6500 and CSA

Environment

Operating Temperature: 32°F to 122°F (0°C to 50°C)
Storage Temperature: -22°F to 167°F (-30°C to 70°C)
Humidity: Max. 90 % non-condensing

What's in the box?

Region specific power supply
USB cable
User guide
