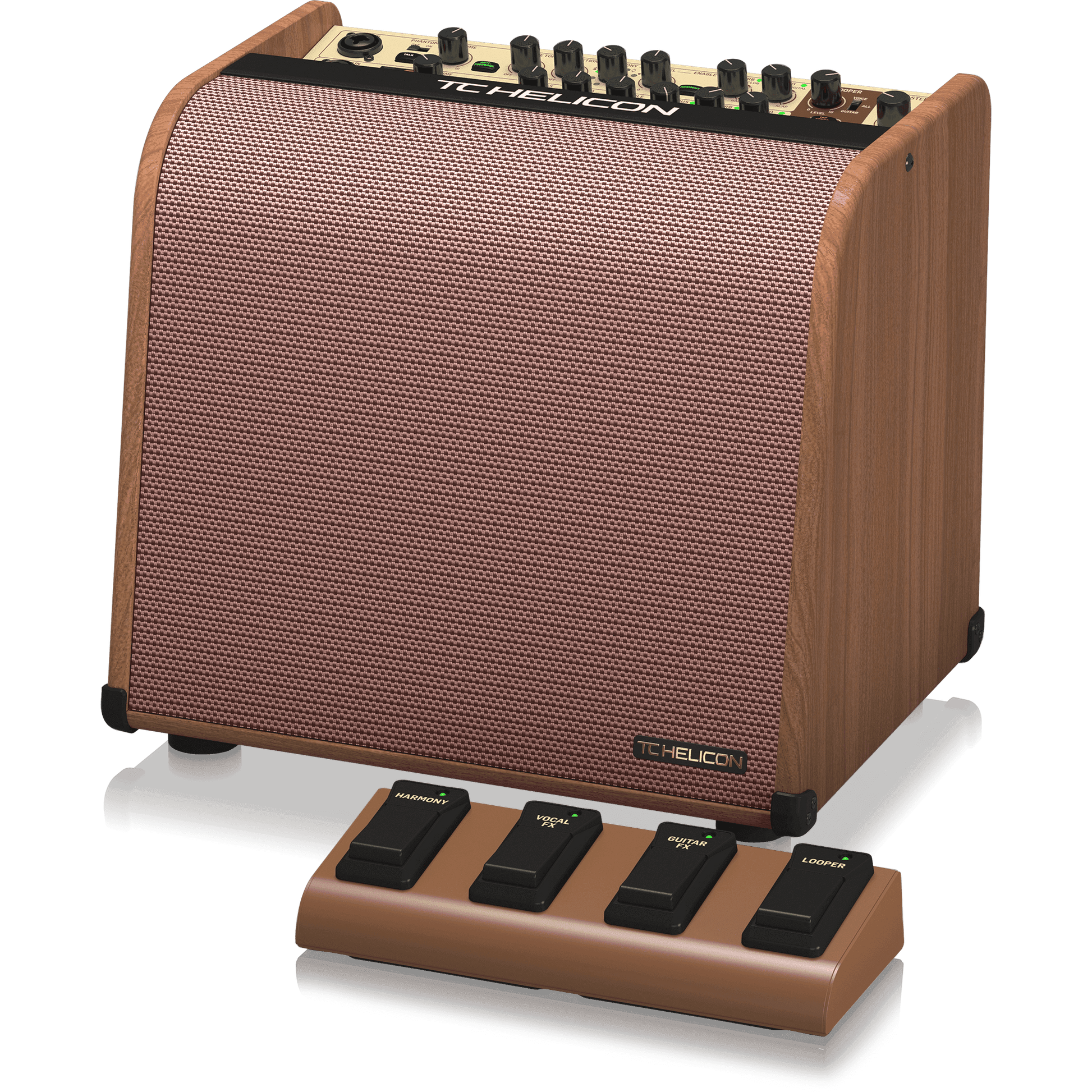

TC Helicon HARMONY V60 60W 2-Channel Acoustic Amplifier
TC Helicon HARMONY V60 60W 2-Channel Acoustic Amplifier
Couldn't load pickup availability
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
KEY FEATURES
- 60 Watt 2-channel acoustic amplifier with amazing vocal processing
- 8" Tannoy Dual-Concentric speaker and an exclusive Top-Firing tweeter provide massive crystal clear audio to you AND your audience
- 4-button customizable footswitch to control looper, harmony and effects included
- Voice channel with Adaptive Tone, Intelligent Anti-feedback, Pitch Correction, Harmony, Reverb and Delay
- Guitar channel with BodyRez, Intelligent Anti-feedback, Tuner, Reverb, Delay, Chorus and 3 band EQ
- Built-in looper for practicing, developing ideas and enhancing live performances
- Harmony function automatically creates up to 2 voices of smooth and accurate vocal harmonies
- BodyRez restores natural tone to acoustic guitars when using piezo under-saddle pickups
- Intelligent anti-feedback on each channel automatically stops feedback
- Accurate integrated chromatic tuner with mute function
- Dual XLR DI jacks with flexible routing for complete control of your sound
- USB output for direct recording to a computer allows easy capture
- Dedicated Aux input for playback of MP3 players, drum machines, etc
DESCRIPTION
The Harmony V60 Acoustic Amplifier is crammed full of features and innovations that can help you weave intricate, evolving sounds at home or in clubs and halls. Maximize your audio potential to capture attention and hold it with an array of fascinating vocal and guitar effects and looping in an easy-to-carry processor and amplifier system.
SPECIFICATIONS
Audio inputs
|
Guitar input |
¼" TRS balanced/XLR combo |
|
Input impedance |
2 MΩ balanced/1 MΩ unbalanced |
|
Microphone input |
¼ " TRS balanced/XLR combo |
|
Input impedance |
XLR: 2.9kΩ balanced; ¼" 10kΩ TRS balanced/5k TS unbalanced |
|
Aux input |
3.5 mm TRS stereo |
|
Input impedance |
Audio outputs
|
Guitar/right out and Mic/left out |
XLR balanced, female |
|
Output impedance |
400 Ω |
|
Max. output level |
0 dBu |
|
Switches |
DI, FX, Mix |
|
Headphones out |
3.5 mm TRS stereo |
|
Output impedance |
10 Ω |
|
Max. output leve |
8 dBu |
Vocal section controls
|
Knobs |
Volume (1 to 10) Adaptive tone (off to max) Correction (off to max) Harmony selector, 8 position Harmony level (0 to 10) Reverb (off, room, club, hall) Echo (off, tape, digital, slap) |
|
Switches |
Phantom on/off Talk on/off Anti-feedback on/off Harmony enable/disable |
|
LEDs |
Phantom (red), Reverb (green), Echo (green), Harmony voice (green, 8 selections) |
|
Backlit switches |
Talk (green), anti-feedback (green, or blue when operating), harmony (green) |
Guitar section controls
|
Knobs |
Volume (0 to 10) Bass, shelving (-12 to 12 dB) Mid, peaking (-12 to 12 dB) Treble, shelving (-12 to 12 dB) Chorus (detune, silk, corona) Reverb (off, room, club, hall) Echo (off, tape, digital, slap) |
|
Switches |
Echo (off, tape, digital, slap) Switches Mute on/off Anti-feedback on/off Bodyrez off, Bodyrez-1, Bodyrez-2 Bodyrez-3 Harmony enable/disable |
|
Display |
Tuner note 8-segment, red |
|
LEDs |
Chorus (green), reverb (green), echo (green) Tuner sharp/flat/in-tune (red) |
|
Backlit switches |
Mute (red), anti-feedback (green, or blue when operating), bodyrez (red, green, blue selections) |
Footswitchable controls
|
Microphone Section |
Talk on/off Harmony on/off at the current setting Reverb on/off Echo on/of |
|
Guitar section |
Mute on/off Chorus on/off Reverb on/off Echo on/off Harmony on/off at a selected setting |
|
Looper section |
Tap Tempo Play/record Stop |
|
LEDs |
Green when footswitch engaged, red when recording |
Looper controls
|
Knobs |
Level (0 to 10) |
|
Switches |
Voice/all/guitar Tap tempo Play/record Stop |
|
Backlit switches |
Tap tempo (flash red at tempo), play/record (green play, red record), stop (red) |
Rear panel section
|
Connections |
AC input IEC, USB B type Foot switch, 5-pin DIN (for FST4 only) Guitar/right out, XLR male Mic/left out, XLR male Aux in, 3.5 mm |
|
Switches |
AC power on/off toggle Top tweeter on/off Guitar/right out, DI/FX/MIX selector Mic/left out, DI/FX/MIX selector Ground lift, XLR audio |
|
Knobs |
Aux input level (0-10) |
USB
|
Type |
Class compliant USB 2.0, type B |
|
Supported Operating Systems |
Windows 7 or higher Mac OS X 10.6.8 or higher |
|
Windows driver |
Required driver is supplied |
|
Audio input and output |
2 channels, 24 bit, 48kHz |
Amplifier
|
Output power |
80 W |
|
Type |
Class- D |
|
Protection |
Short circuit, thermal |
Loudspeakers
|
Type |
8" dual-concentric, Tannoy |
|
Impedance |
4 Ω |
|
Power handling |
240 W |
|
Top tweeter (switchable on/off) |
1" |
|
Impedance |
4 Ω |
|
Overall frequency response |
90 Hz - 20 kHz (+/- 3 dB) 60 Hz - 24 kHz (- 10 dB) |
|
Maximum SPL |
115 dbSPL |
Footswitch (supplied) (any switch can operate any footswitchable control)
|
Type |
FST4 |
|
Switches |
Harmony on/off (with LED) Vocal FX on/off (with LED) Guitar FX on/off (with LED) Looper on/off (with LED) |
Power Supply
|
Mains Voltage |
100-240 V~ 50/60 Hz |
|
Power consumption |
35 W |
|
Mains connection |
Standard IEC receptacle |
|
Power Switch |
Rocker, rear pane |
Dimensions/Weight
|
Dimensions (H x W x D) |
333 x 383 x 287 mm (13.1 x 15.1 x 11.3") |
|
Weight |
11.2 kg (24.6 lbs) |
