• TC Electronic Monitor Pilot
1 1

TC Electronic

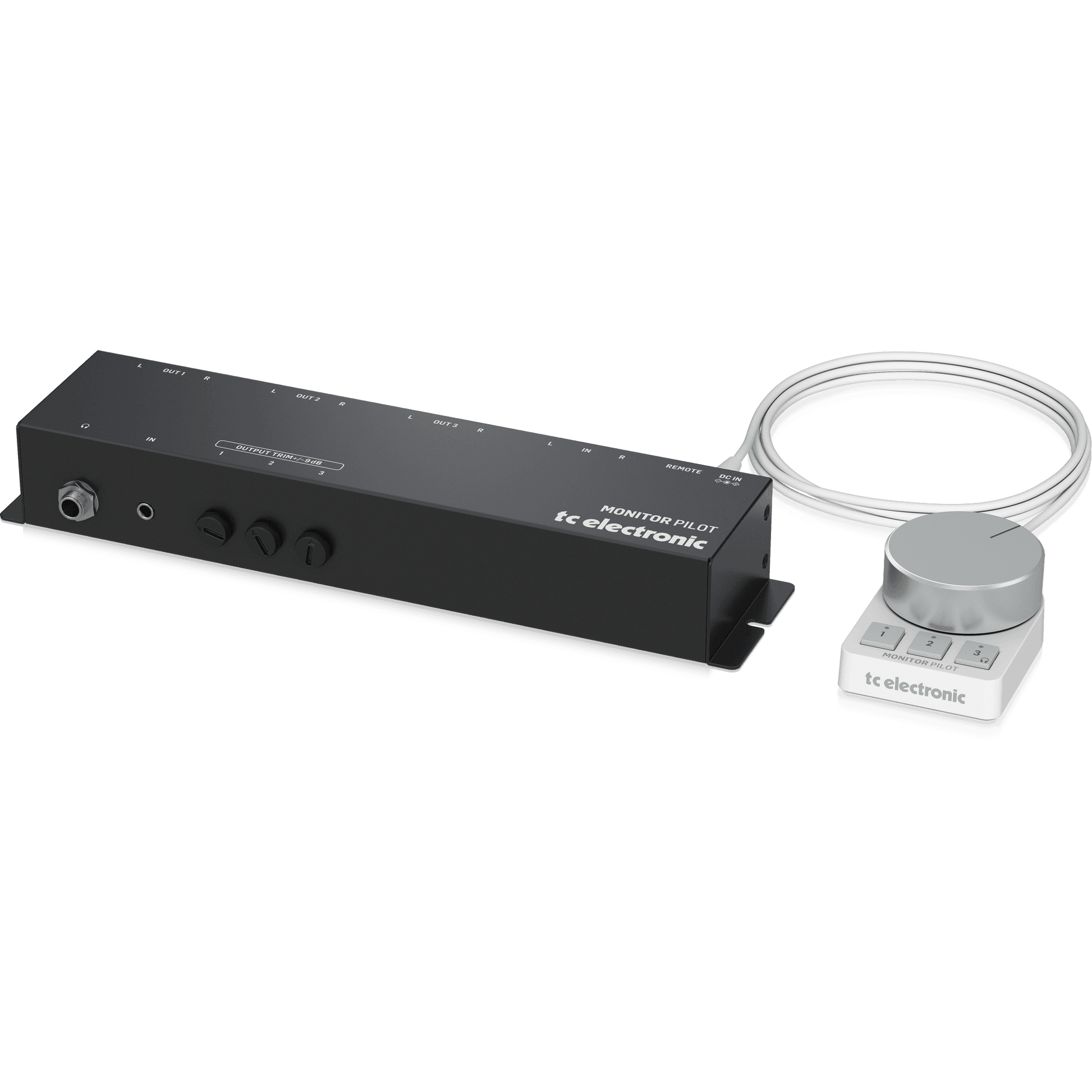

TC Electronic Monitor Pilot

TC Electronic Monitor Pilot

Dhs.619.00 AED
Dhs.0.00 AED Dhs.619.00 AED
Sale Sold out

For Wholesale Enquiries Please Contact Us On WhatsApp

This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co

Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information

KEY FEATURES

  • Multi-monitor switching control station for up to three sets of studio monitors and one set of headphones

  • Easy access master volume control in elegant design with monitor switching controls

  • Separated I/O housing and control panel for tidy cable runs and sleek aesthetic

  • High-quality main studio stereo XLR inputs and 1/8" TRS jack input for use with external media devices

  • All stereo outputs include independent precision trim pots for calibrated listening

  • High-quality passive switching to A/B between monitor sets

  • All-analog signal path retains original audio quality

  • High-grade aluminum desktop control housing with visual feedback of active speaker set

  • Extremely easy to setup and use

  • Universal wall wart included




DESCRIPTION



Literally thousands of world-leading recording and mastering studios, as well as film, post and broadcast facilities, have relied on our tried-and-true high-end monitor controllers like CLARITY X, SYSTEM 6000, BMC2 and LEVEL PILOT over several decades. Yes, we know monitor control, which is your guarantee that when you are flying with the MONITOR PILOT, you can have absolute peace of mind that you’re in for a smooth and safe flight!

We even got you a seat in First Class with a delicious and complementary three-course menu of unparalleled flexibility, transparent connectivity and direct access to volume level and stereo speaker selection right at your fingertips.



SPECIFICATIONS



Analog Inputs

Main input

2 x XLR, balanced

Input impedance: 10 kΩ balanced, 5 kΩ unbalanced

Max input level: +22 dBu
Aux input

1/8 " TRS, stereo unbalanced

Input impedance: 500 Ω

Max input level: +5 dBu

Analog Inputs

Monitor out 1-3

2 x XLR, balanced

Output impedance: 100 Ω balanced, 50 Ω unbalanced

Max output level: +22 dBu
Phones

1/4 " TRS, stereo

Output impedance: 50 Ω

Max output level: +22 dBu

System (XLR in to XLR out)

Frequency response

+0/-0.2 dB, 20 Hz to 20 kHz
Dynamic range

> 105 dB, (0 dB gain) unweighted, BW 20 Hz - 20 kHz
Crosstalk

< -90 dB @ 1 kHz
Max gain

+6 dB
Trim gain per output pair

-18 to 0 dB

Power Supply / Voltage

Mains voltage

100-240 VAC, 50/60 Hz
Power consumption

12 W max
Power supply

12 V DC, 1000 mA (included)

Main Unit Dimensions / Weight

Dimensions (H xWx D)

39 x 261 x 70 mm (1.5 x 10.3 x 2.8")
Weight

0.6 kg (1.2 lbs)
Finish

Powder coated black steel plate

Remote Dimensions / Weight

Dimensions (H x W x D)

37 x 53 x 78 mm (1.5 x 2.1 x 3.1")
Weight

0.2 kg (0.4 lbs)
Finish

Aluminum anodized knob, plastic body with metal foot
View full details
