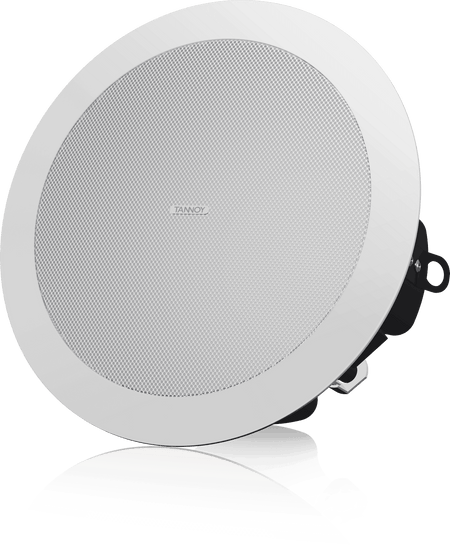

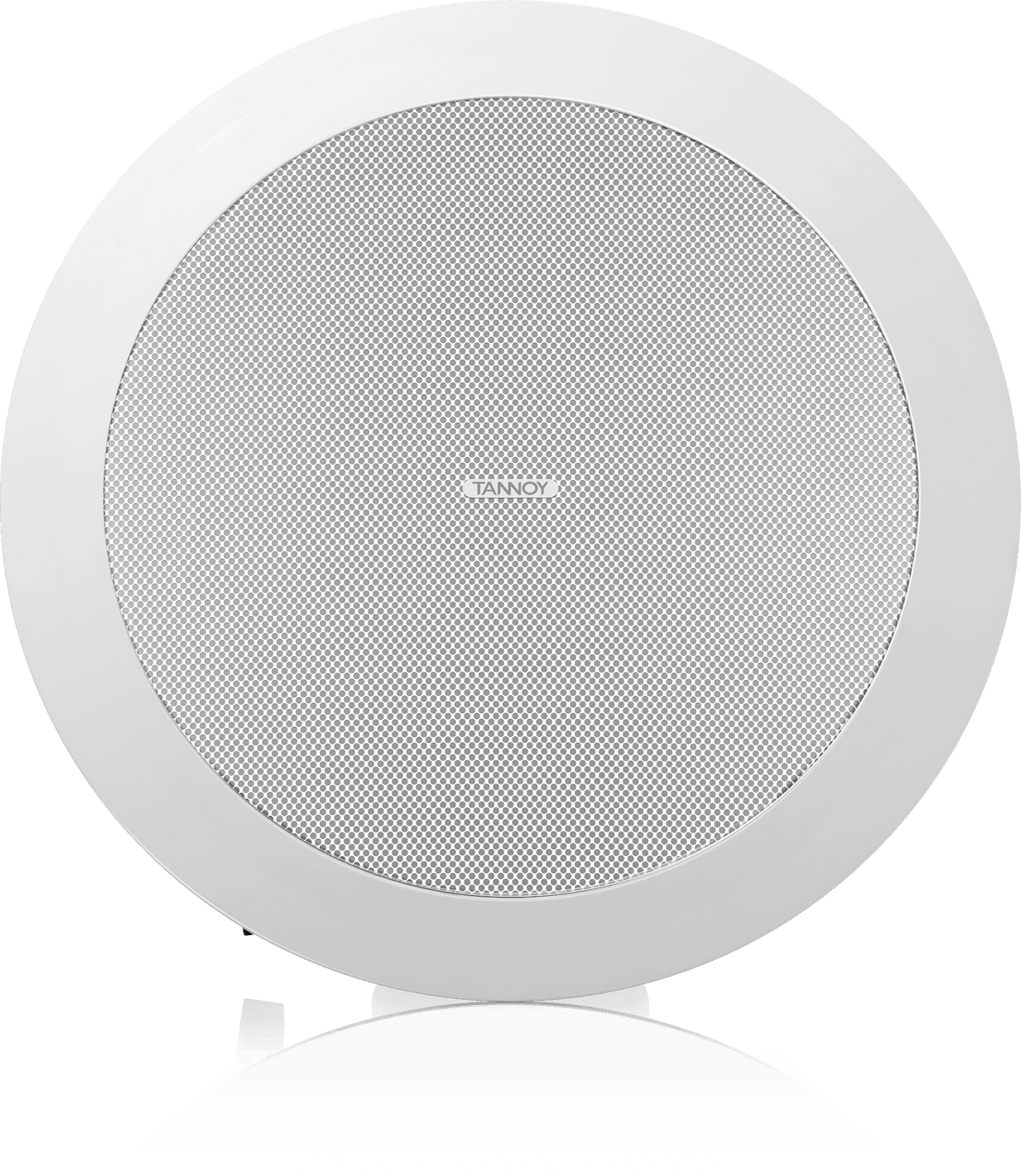

Tannoy CVS 4 MICRO (EN 54) 4 Coaxial In-Ceiling Loudspeaker with Shallow Back Can EN54-Certified
Tannoy CVS 4 MICRO (EN 54) 4 Coaxial In-Ceiling Loudspeaker with Shallow Back Can EN54-Certified
Couldn't load pickup availability
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
KEY FEATURES
-
Coaxial full range low profile ceiling loudspeaker for installation applications
-
40 Watts continuous, 160 Watts peak power
-
Shallow back can for limited cavity space
-
4" mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
-
0.75" ferrofluid cooled soft dome neodymium high frequency driver
-
Wide constant directivity dispersion for optimum coverage
-
EN 54-24 certified for fire detection and fire alarm systems
-
UV and weather resistant UL 94 V-0 ABS front with plated steel fire can enclosure
-
Multiple transformer taps for 70 V and 100 V line systems or 6 Ohm direct input
-
Low insertion loss 15 W line transformer with easily accessible tapping switch
-
Semi matt white finish fits unobtrusively in any environment
-

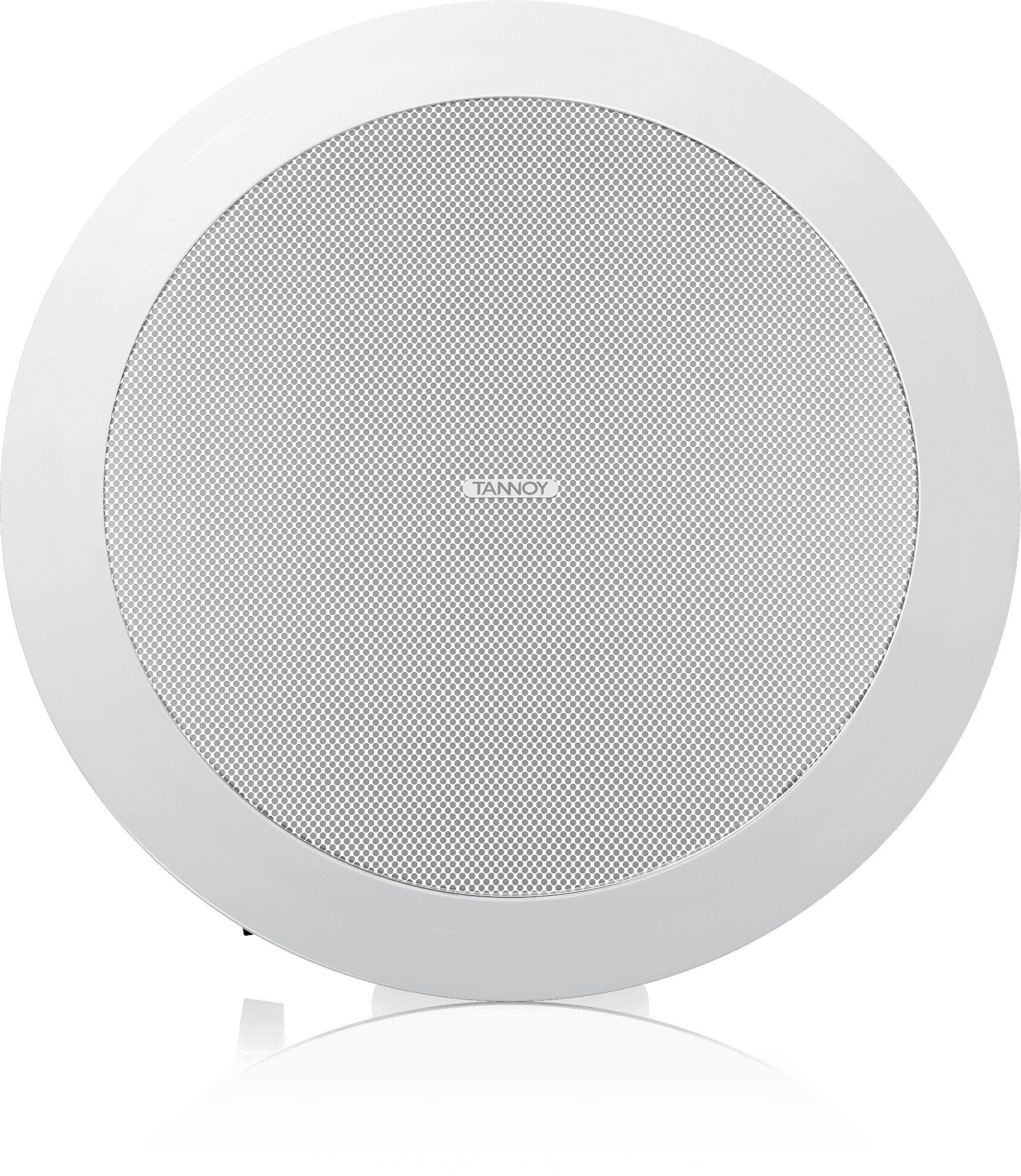

Powder coated perforated steel mesh grille with dust protection
-
Mounting C-ring and ceiling tile rails included
-
Phoenix* connector with steel cover and EN 54 compliant strain relief clamping mechanism for fire rated cable
DESCRIPTION
CVS 4 MICRO (EN 54)
The CVS 4 MICRO (EN 54) is a compact 160-Watt shallow back can ceiling loudspeaker engineered to provide superb audio performance in both background and foreground music sound systems. Ideally suited for a wide variety of applications, from restaurants and hotels to houses of worship and businesses of all types, the CVS 4 MICRO (EN 54) offers the power handling, wide frequency response and low distortion more typically found in a studio reference monitor than a ceiling loudspeaker. The resulting sound is warm, with a nuanced and pristine clarity that envelopes the listener – without intruding. EN 54-24 certification for fire detection and fire alarm systems makes the CVS 4 MICRO (EN 54) the perfect choice where safety is a top priority.
Exceptional Sound and Reliability

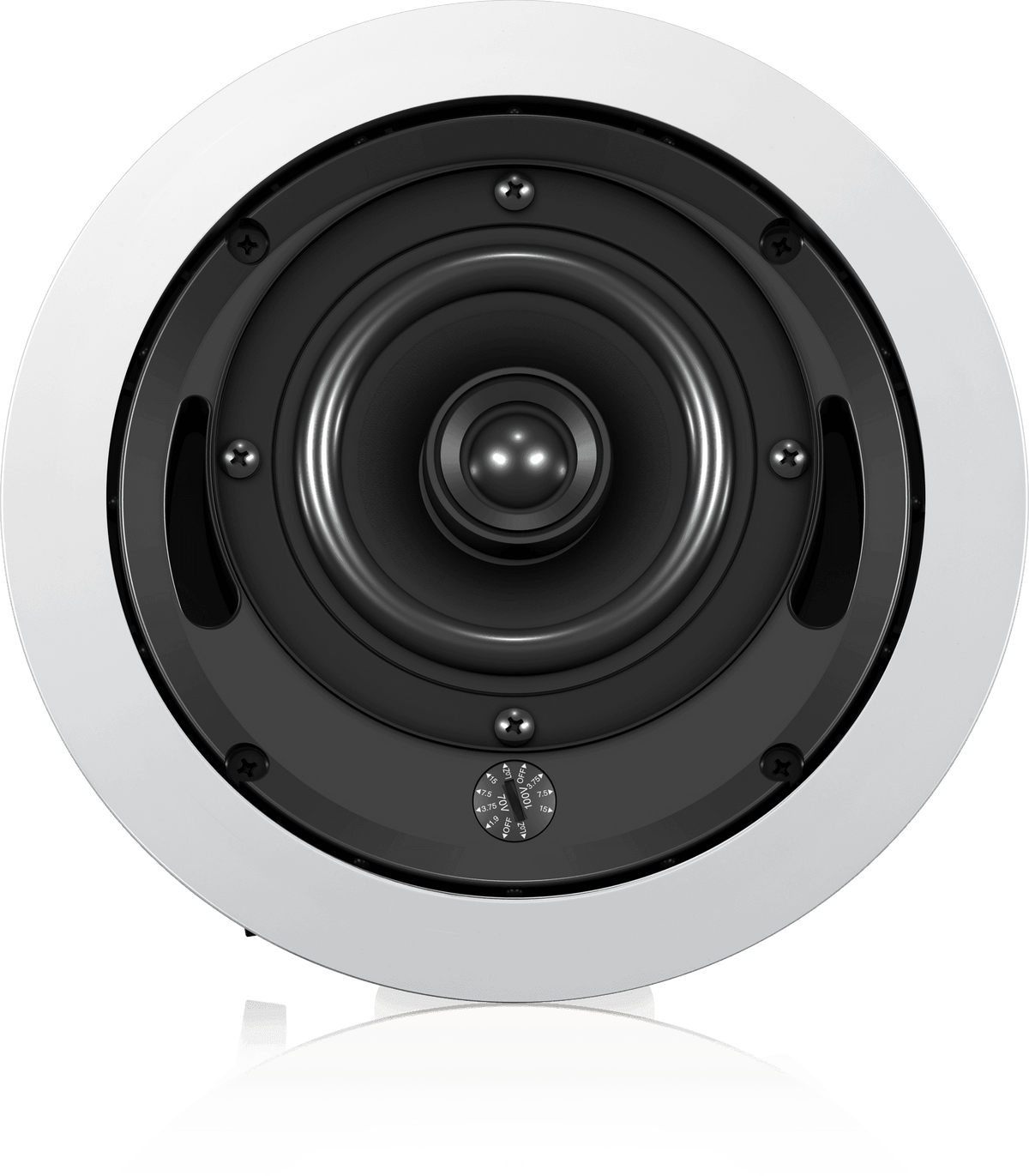

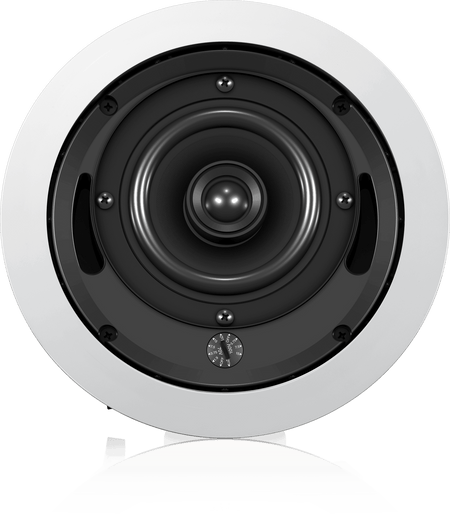

The design comprises a 100 mm (4.00") mid bass driver with a coaxially mounted 19 mm (0.75") high frequency section mounted in an injection moulded semi matt white front baffle made of UV/weather resistant UL 94 V-0 ABS material that fits unobtrusively into any environment. The mineral loaded polypropylene cone material and nitrile rubber surround enhance durability and long-term reliability. Thanks to the shallow back can depth of less than 4" (98.3 mm), CVS 4 MICRO (EN 54) is perfect for applications where above-ceiling space is limited, but exceptional sonic quality and reliability are a requirement.
Comprehensive Installation Package

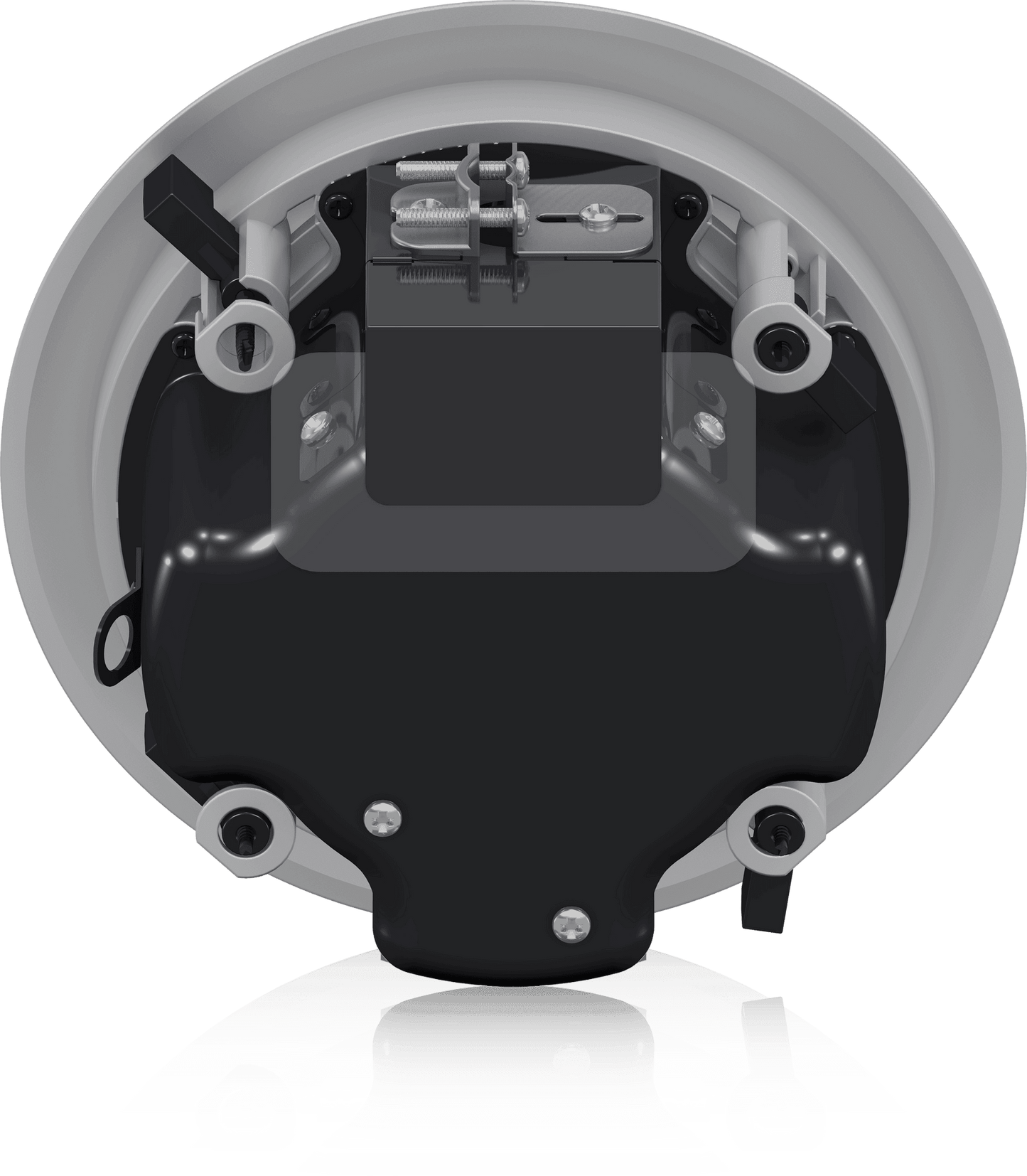

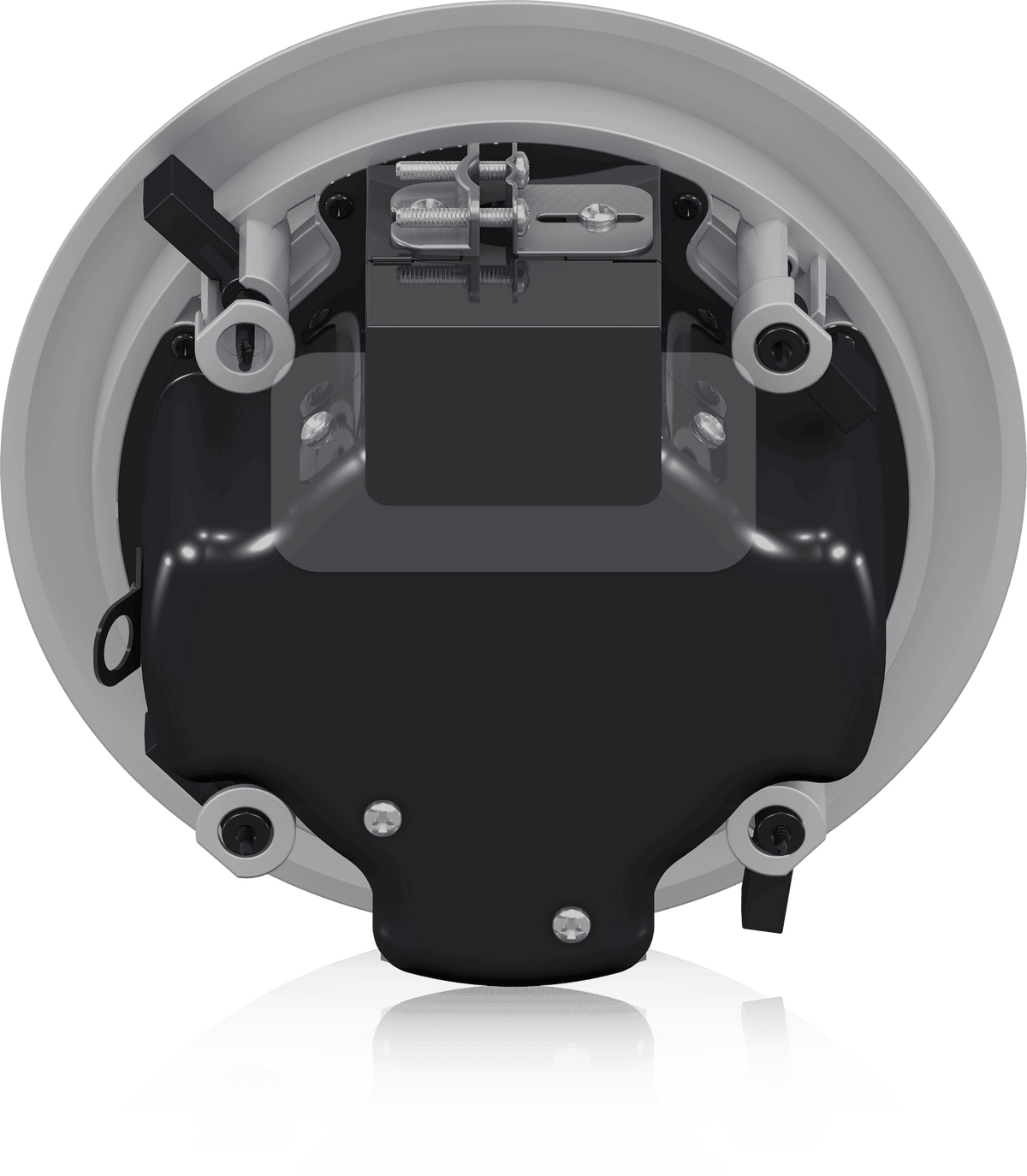

Supplied with an integral plated steel shallow back can, Phoenix* connector with steel cover, and an EN 54 compliant strain relief clamping mechanism for fire rated cable, the CVS 4 MICRO (EN 54) satisfies the vast majority of installation application requirements. Input is via a low insertion loss 15 W line transformer with multiple taps for 70 V and 100 V line systems or 6 Ohm direct input. Installation is quick and easy with two tile support rails and one C-ring included in the package. A plaster (mud) ring is available as an optional accessory.
SPECIFICATIONS
| Frequency Response (-3 dB) | 110 Hz - 19 kHz |
| Frequency Response (-10 dB) | 90 Hz - 22 kHz |
| System Sensitivity |
Rated Sensitivity: 87 dB Sensitivity as per EN54-24: 74.1 dB |
| Maximum SPL |
As per EN54-24: 85 dB, 13.1' (4m), through transducer Average: 103 dB (3.3' (1m), Lo Z) Peak: 109 dB (3.3' (1m), Lo Z) |
| Dimensions |
Hole Cutout Diameter: 7.1" (18.0cm) Bezel Diameter: 8.4" (21.3cm) Front of Ceiling to Rear of Back Can: 3.9" (9.8cm) |
| Weight | 6.2 lb (2.8kg) |
