Midas

Midas DN4816I Bus-Powered StageConnect Interface with 16 Analogue Inputs and Dual Ultranet Outputs

Midas DN4816I Bus-Powered StageConnect Interface with 16 Analogue Inputs and Dual Ultranet Outputs

Dhs.2,100.00 AED
Dhs.2,100.00 AED
Sale Sold out

For Wholesale Enquiries Please Contact Us On WhatsApp

This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co

Features:

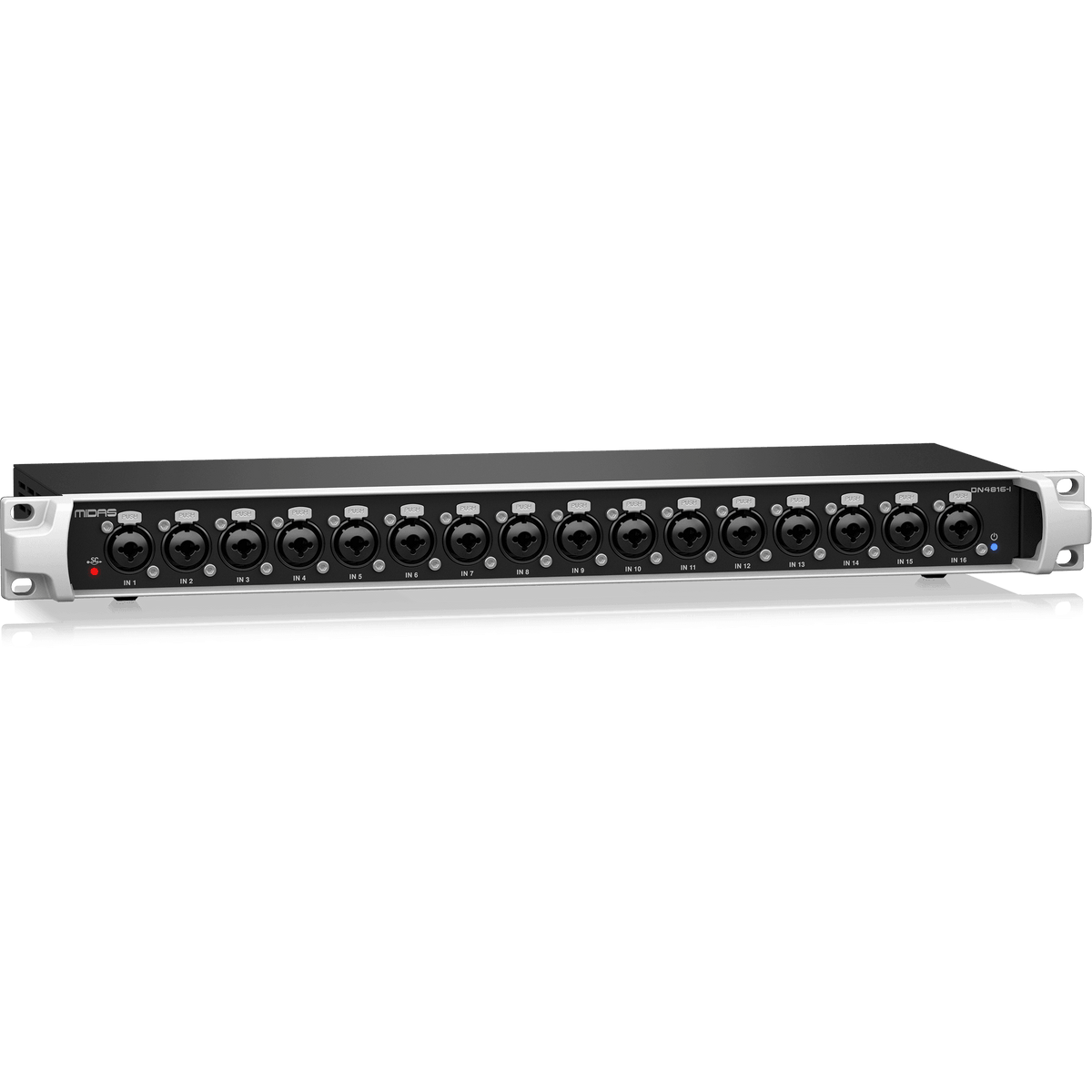

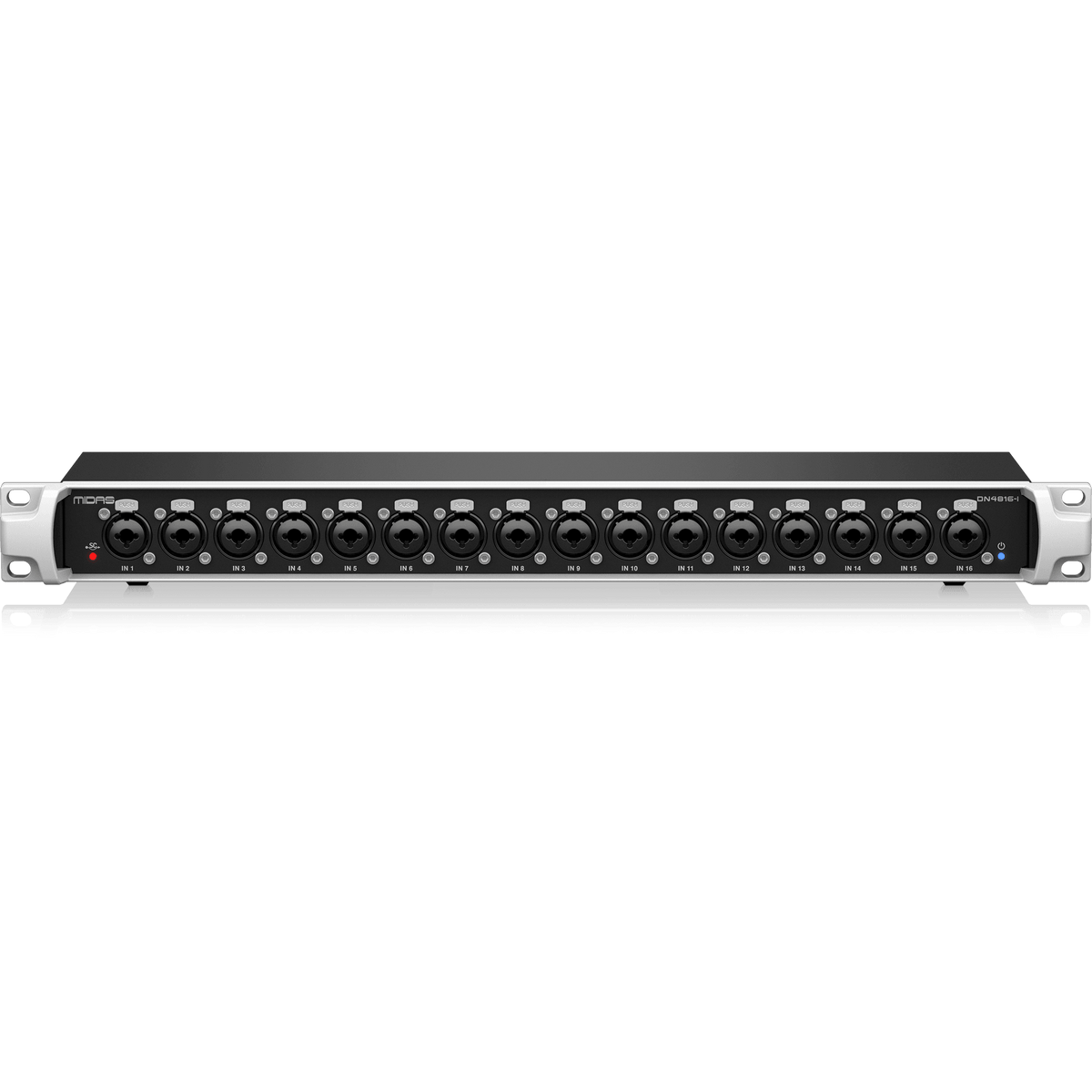

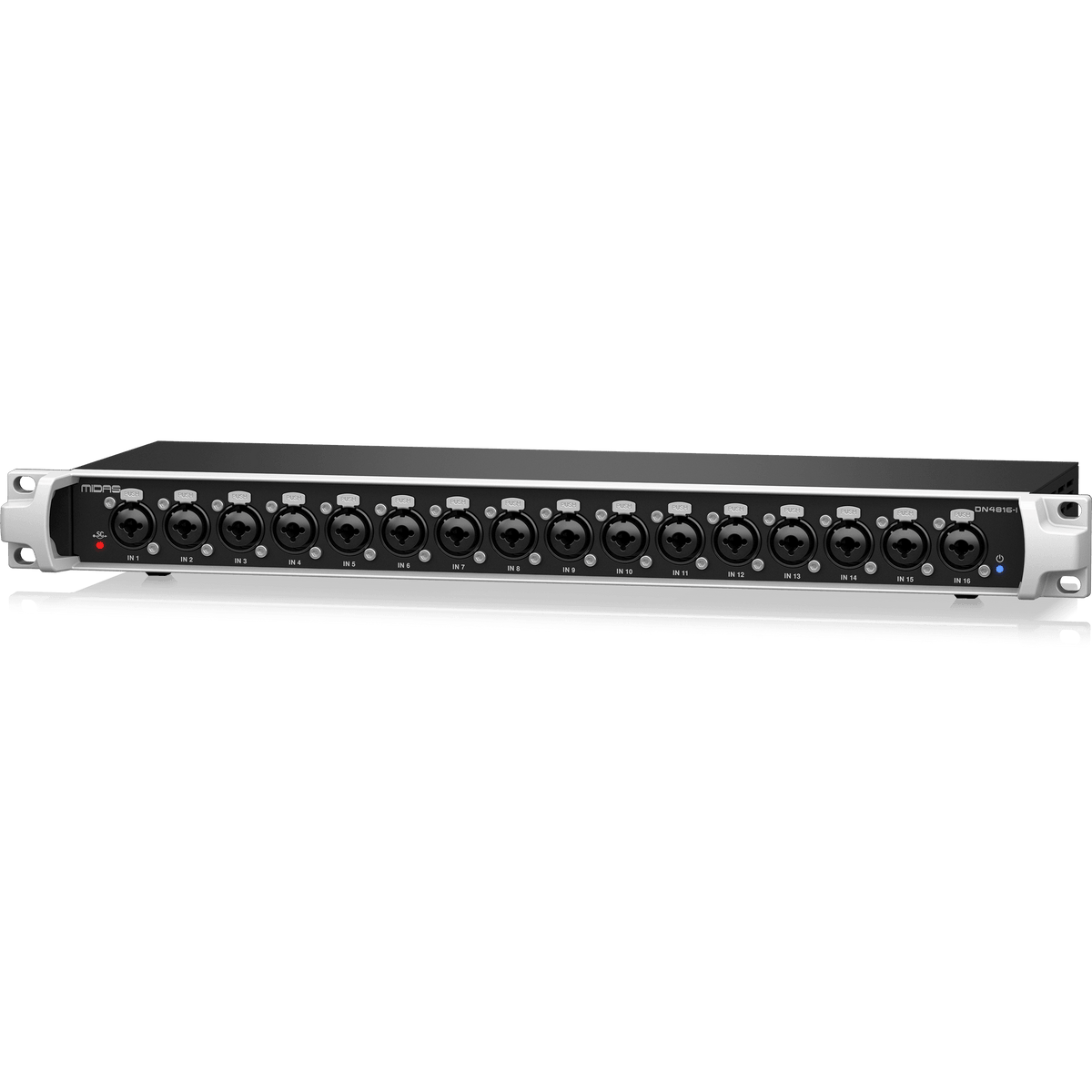

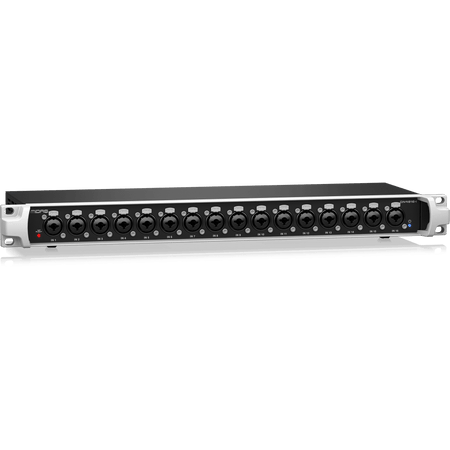

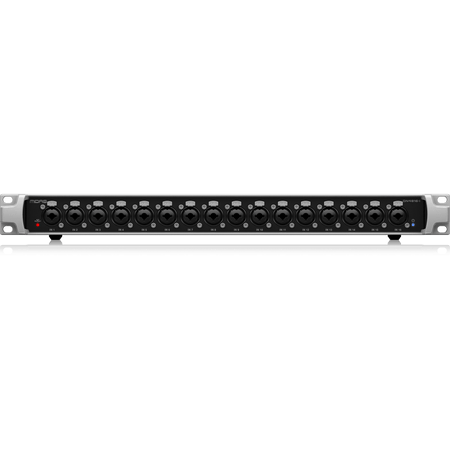

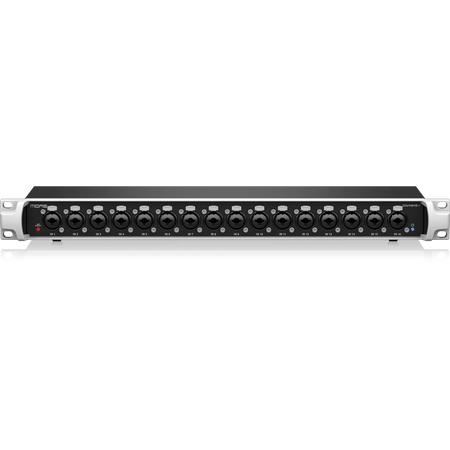

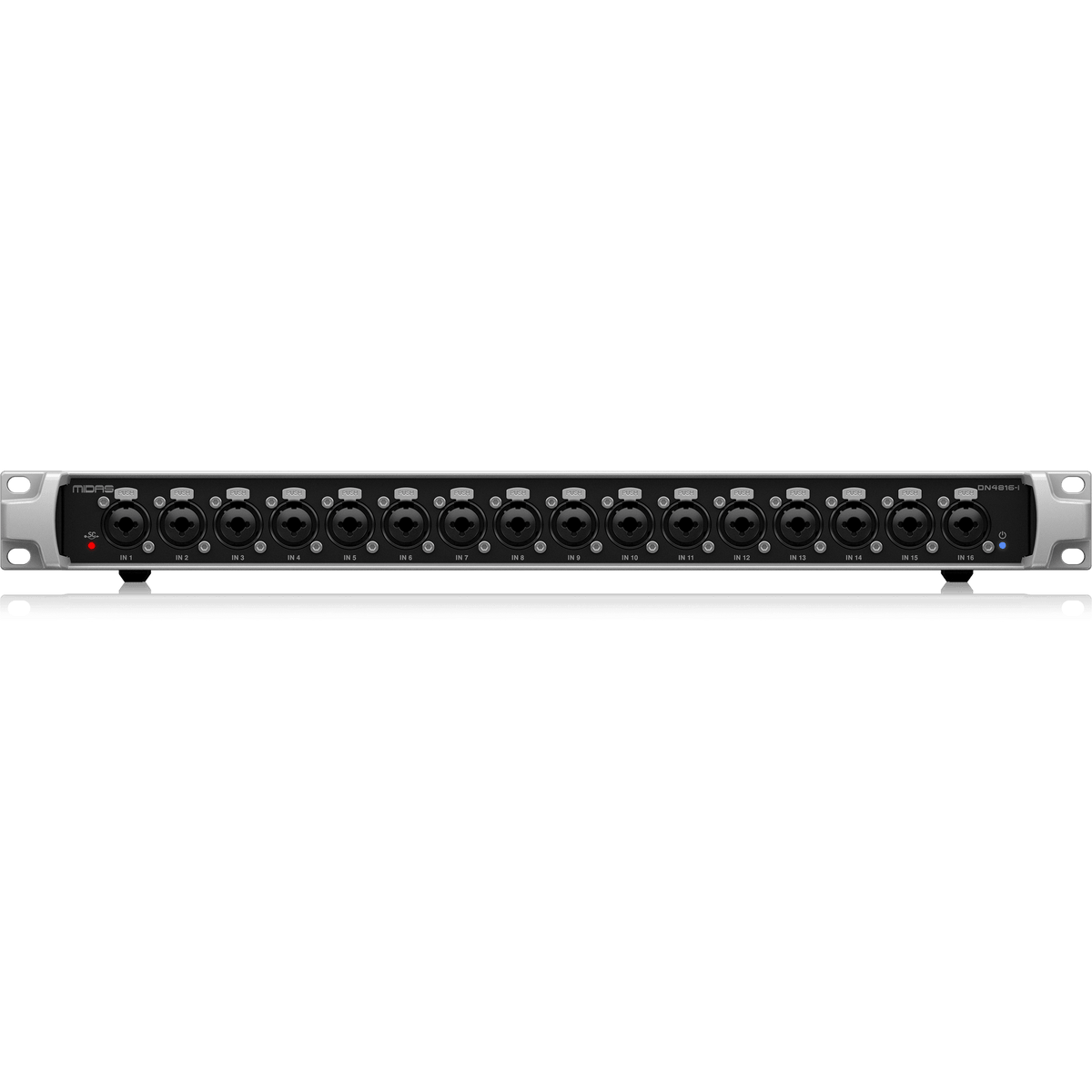

  • Breakout box with 16 balanced XLR line inputs for StageConnect and Behringer Ultranet systems

  • Can be used as analogue input box for other StageConnect devices, Turbosound iQ speakers or Behringer WING and Ultranet receivers such as P16 personal monitoring mixers

  • StageConnect 32-channel audio transmission at sub-millisecond latency, 24-Bit uncompressed PCM, 44.1/48 kHz using standard XLR microphone or DMX cable

  • Two units can be cascaded for a total of 32 low-latency analogue line inputs feeding the StageConnect bus

  • Flexible connectivity on stage and between side racks using any balanced microphone cable

  • Supports bi-directional audio configurations, with control data and 12 VDC / 18 W remote power

Description:

The DN4816-I is the perfect solution for connecting additional line inputs to your monitor or FOH console. It provides 16 analogue inputs to connect wireless receivers or other external audio players.

The StageConnect interface can be connected to other StageConnect devices using a single XLR cable for multi-channel audio transmission. There are various I/O options available providing easily scalable connectivity in your side rack. The devices of the DN48XX Series can be daisy-chained and will negotiate the channels for their respective connectivity automatically.

StageConnect – The Future of XLR

What if any standard XLR or DMX cable could be used to transmit more than one channel of audio?
What if that cable could transmit signals not only one way, but bi-directionally?
What if that cable would allow the passage of control data or even MIDI at the same time?
What if a connected StageConnect device could receive up to 18 W of power through that same cable?

Well, these capabilities are exactly what StageConnect delivers – a new interface standard to be released by Music Tribe after two years of development. The Midas DN48XX Series is one of the first available I/O-Interfaces based on the StageConnect-Standard. This new standard comes with outstanding technical specs: 32 channels of uncompressed PCM audio in various I/O configurations, 24-bit at 48 kHz, below 0.05 ms of latency.

For optimum performance and long cable runs 110 Ohm DMX-Cable is required.

Ecosystem and Beyond
Ecosystem and Beyond

The DN48XX Series is the first generation of I/O Interfaces for the new StageConnect ecosystem. StageConnect was introduced with the Behringer WING mixing console. Even though the DN48XX Series was designed with the WING console in mind the devices can be used with all StageConnect devices like HUB4. The StageConnect ecosystem opens a wide field of audio devices. May it be several I/O devices spread over the stage or equipment in the siderack - the use cases for the DN48XX Series StageConnect Interfaces are virtually endless.

Specifications:

Category Specification
Processing
A/D conversion 24-Bit, 48/44.1 kHz, 114 dB
StageConnect bus capacity 32 ch, 24-Bit PCM audio
I/O latency <0.05 ms
Connectors
Analog Inputs 16 x XLR female jacks, balanced
Impedance 20 kΩ unbalanced / 40 kΩ balanced
Max. input level +21 dBu

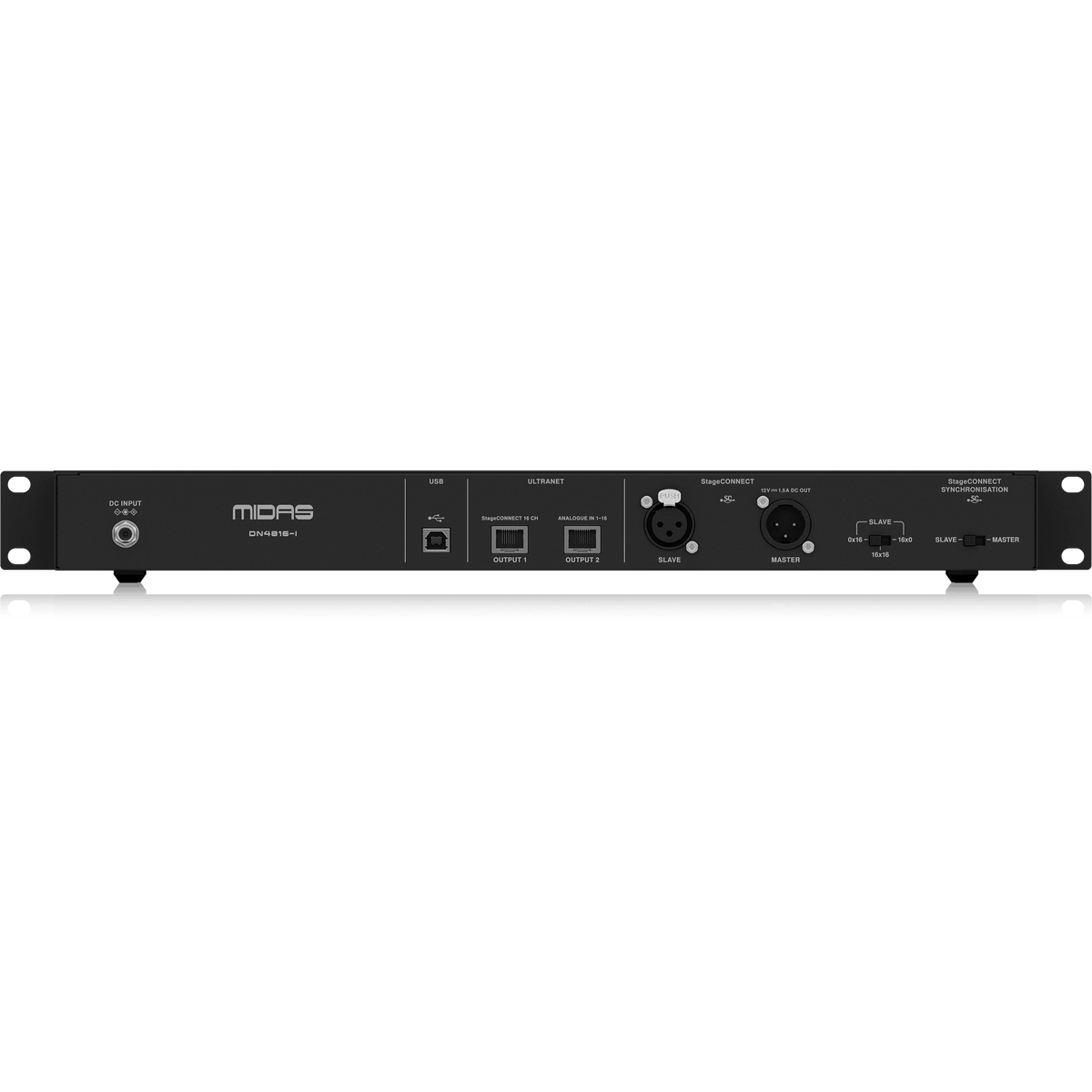

Ultranet 2 x RJ45
Shielded CAT5e cable max. length 75 m
StageConnect 1 XLR male, 1 XLR female
Shielded bal. 110-Ohm DMX cable max. 40 m
USB Type B
System
Frequency response 20 Hz - 20 kHz ±0.2 dB
Dynamic range 106 dB
Cross talk rejection @ 1 kHz, adjacent channel 106 dB
Noise (20 Hz - 20 kHz bandwidth) -106 dBFS
Distortion 0.004% / 1 kHz / 0 dBu in
Power
Power supply 12 VDC / 2.5 A (30 W) adapter included, remote power input via SLAVE XLR (female), remote power output via MASTER XLR (male) 12 VDC / 1.5 A (18 W)
Power consumption 8.5 W
Physical
Standard operating temperature range 5° - 45° C (41° - 113° F)
Dimensions 49 x 483 x 169 mm (1.9 x 19.0 x 6.7")
Weight 2.2 kg (4.9 lbs)
