Midas

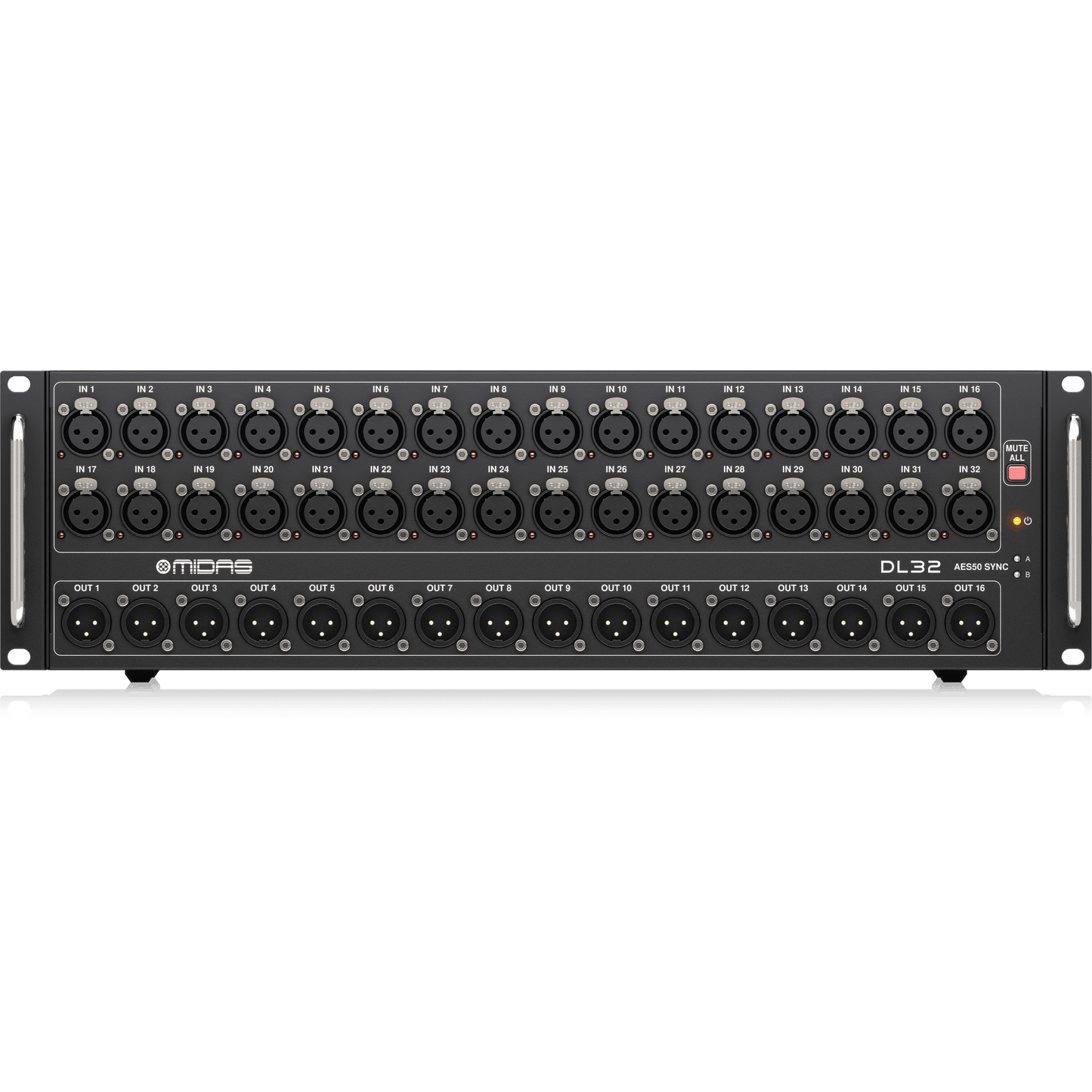

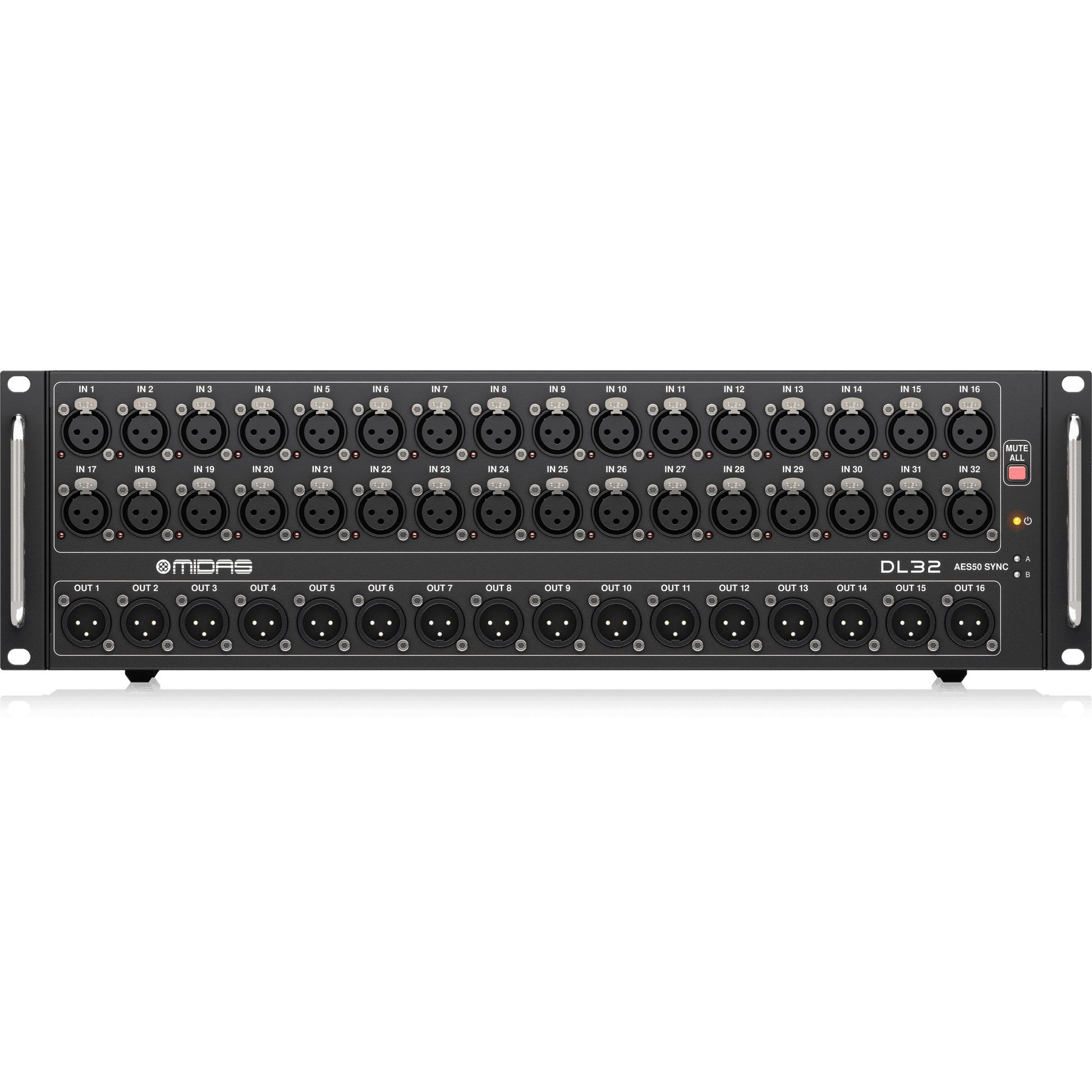

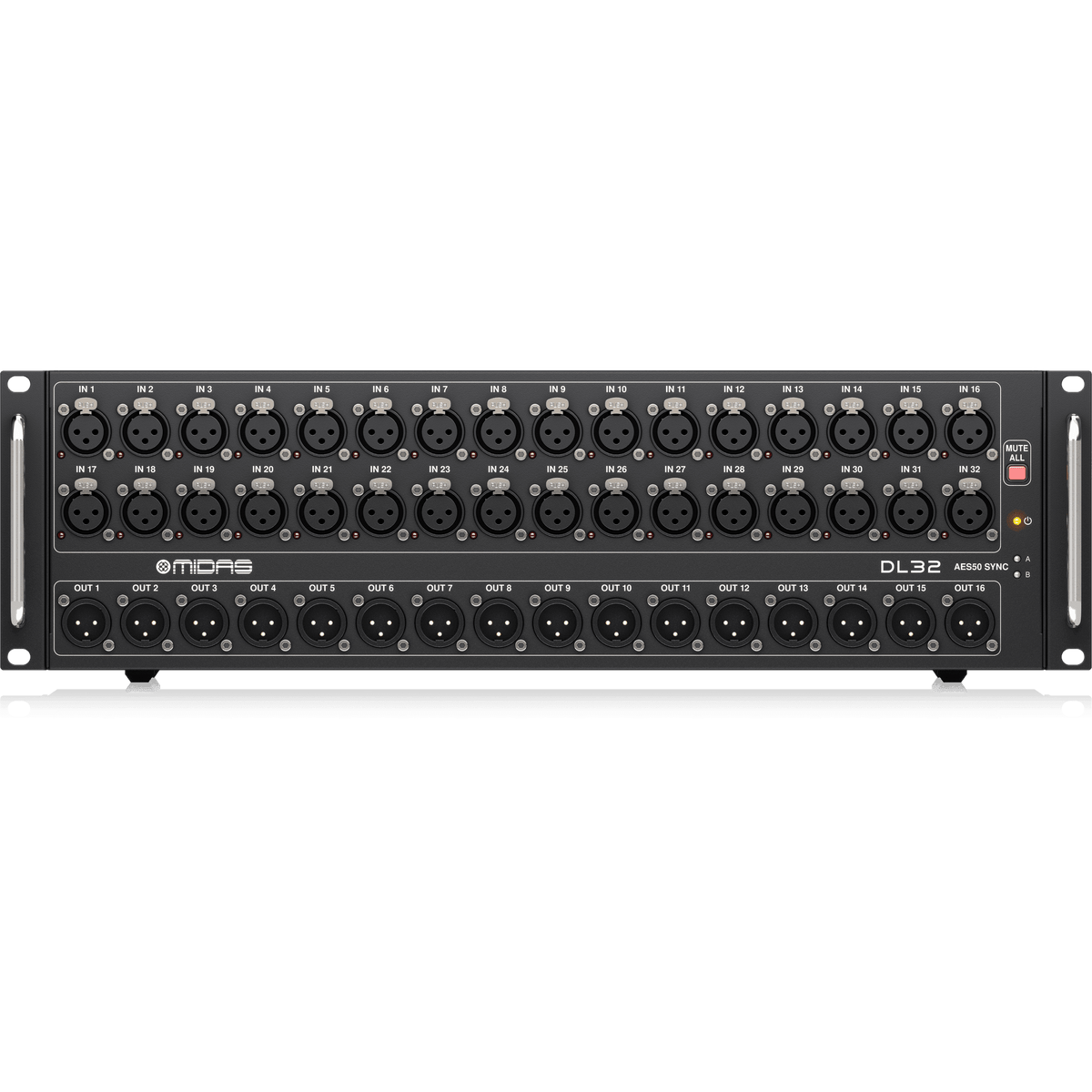

Midas DL32 32-input / 16-output Stage Box

Midas DL32 32-input / 16-output Stage Box

Regular price Dhs.8,295.00 AED
Regular price Dhs.0.00 AED Sale price Dhs.8,295.00 AED
Sale Sold out

KEY FEATURES

  • Flexible professional digital stage box that works with Powerplay monitor systems and AES50-ready digital consoles
  • 32 x fully programmable and remote-controllable Midas Pro mic preamps give you exceptional sound, right from the stage
  • 16 x analog, servo-balanced XLR outputs let you send complete monitor mixes to the stage
  • Dual AES50 ports let you cascade up to 2 DL32 units together for an up to 64-in/32-out system
  • Precise LED metering plus 7-segment displays let you keep a close eye on your levels
  • Headphones output assignable to any of the inputs/outputs for on-stage monitoring
  • Durable yet compact, all-steel 3U rack-mount chassis provides flexible mounting



DESCRIPTION

The Midas DL32 stage box represents a serious upgrade of your mixing console and in-ear monitoring rig with the sound of Midas Pro preamps. This 32-in/16-out AES50-networkable device makes adding a digital snake to your rig as easy as running a single Cat 5 cable, and you can daisy chain up to two DL32s together, so you can comfortably set 64 remote-controllable Midas Pro preamps onstage with plenty of returns to spare for monitor mixing.

The Midas DL32 stage box puts 32 of these highly esteemed microphone preamplifiers in a 3U rack, so you can put them onstage, as close to the performers as possible so you can cut down on long cable runs. And thanks to its high headroom, low noise, and ADAT optical digital outputs, the DL32 also servers as an excellent studio preamp.

When you add a Midas DL32 stage box to your PA rig, you're not just getting a great set of remote-controllable preamps in a digital snake that lets you ditch tons of bulky cable, you're ready to add an advanced personal monitoring system directly inline with the rig you already have. That's because your DL32 comes equipped with Ultranet connectivity, which provides your Powerplay P16-M monitor controllers with a digital split straight from the stage.

SPECIFICATIONS

Type Digital Stage Box
Compatibility AES50/Ultranet systems
Channels 32 x 16
Inputs - Mic Preamps 32 x XLR
Outputs - Main 16 x XLR (line)
Inputs - Digital 2 x EtherCon (AES50)
Outputs - Digital

2 x EtherCon (AES50)

2 x XLR (AES/EBU)

2 x Optical Toslink (ADAT)

Data I / O 1 x Ethernet (Ultranet monitoring)
USB 1 x Type B
Computer Connectivity USB, Ethernet
MIDI I / O In/Out

Dimensions
(Depth x Width)

9.5" x 19"
