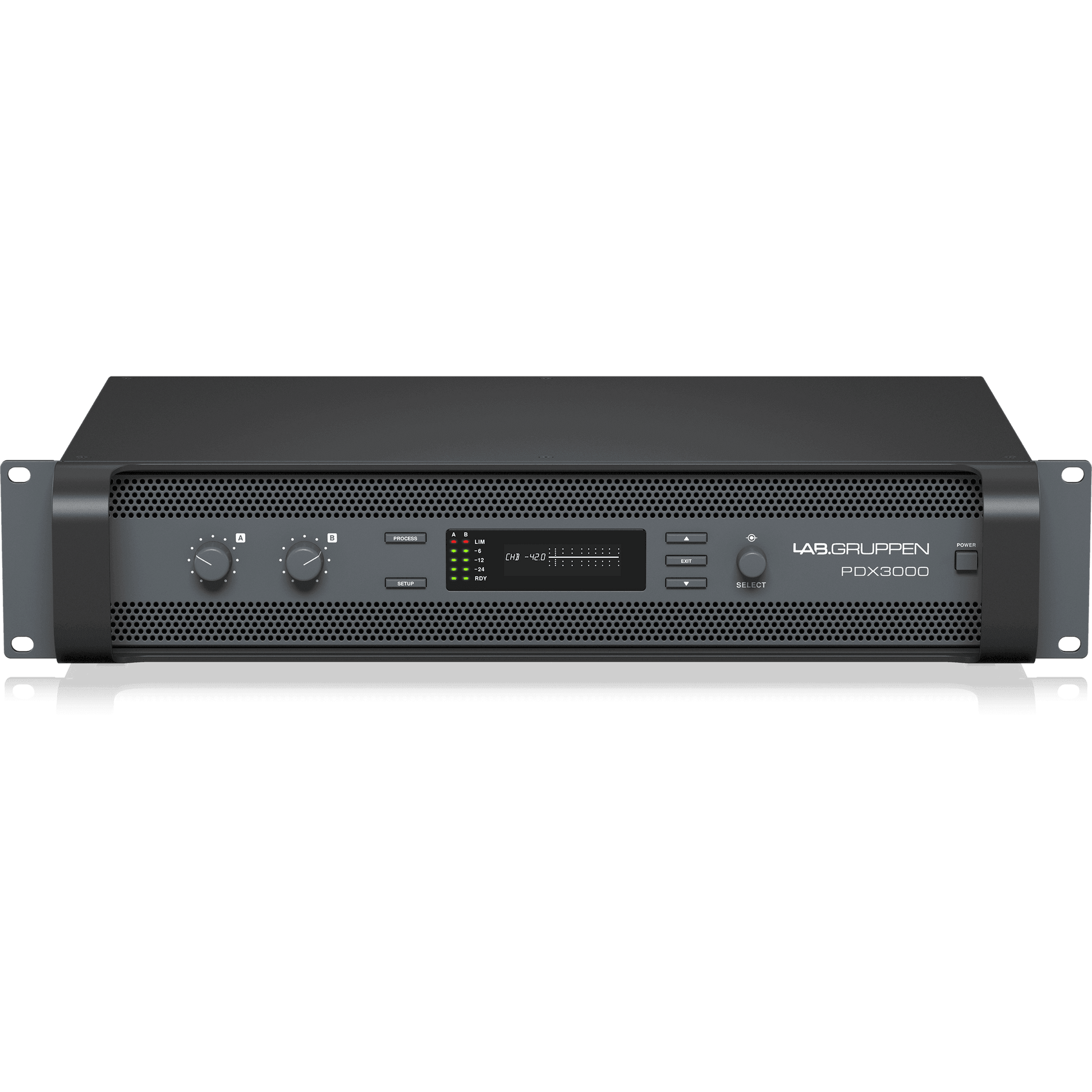

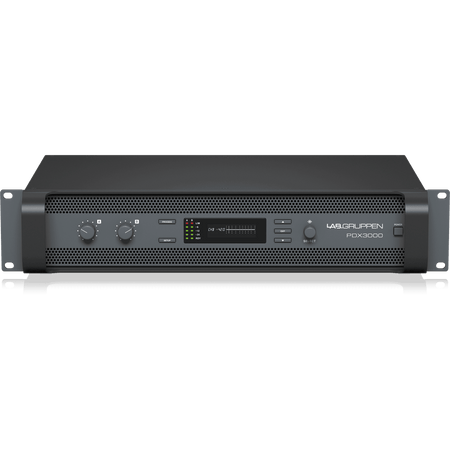

Lab Gruppen PDX3000 3000W Two-Channel Amplifier with DSP Control
Lab Gruppen PDX3000 3000W Two-Channel Amplifier with DSP Control
Couldn't load pickup availability
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
KEY FEATURES-
Two channel amplifier delivering 2 x 1,500 Watts
-
Full DSP feature set for speaker processing
-
Proven and reliable Class-D amplifier stage
-
Highly efficient Switch Mode Power Supply (SMPS)
-
Comprehensive configuration and monitoring software through USB connection
-
Intuitive front panel user interface for easy setup and monitoring
-
Precise power management guarantees performance and efficiency
-
Comprehensive circuit protection against short circuits, DC and thermal overload
-
User configurable gain, delay, crossover, EQ, limiter and dynamic EQ
-
Speaker Protect Limiter for maximum level output and reliable driver protection
-
Pre-configured crossover settings for speaker configuration
-
Balanced XLR and TRS input connectors with optimised sensitivities
-
Professional speakON* output connectors
-
Front panel locking functionality for ultimate security
-
Efficient cooling with temperature-controlled fan
-
Rugged and lightweight rack mount chassis for maximum durability
DESCRIPTION
The PDX3000 is a two-channel amplifier with DSP Control and delivers 2 X 1500W of power for entry/mid-level live sound applications. PDX Series amplifiers employ our unique IDEEA Class D output stage that is ideally matched to the rated power output. To provide flexibility, each channel offers sufficient voltage swing and current capacity to drive loads in any impedance without any additional configuration. In order to have low thermal losses as well as a high voltage swing, the design is based on a permanently bridged output.
SPECIFICATIONS
|
General |
|
|
Number of amplifier channels |
2 |
|
Number of processing channels |
2 |
|
Peak total output all channels driven |
3000 W |
|
Peak output voltage per channel |
115 V |
|
Peak output current per channel |
32 A |
|
Bridge mode |
No |
|
Output circuit type |
Class-D |
|
Amplifier Outputs |
|
|
Max Output Power |
|
|
All channels driven |
|
|
2 Ω per channel |
1000 W |
|
4 Ω per channel |
1500 W |
|
8 Ω per channel |
800 W |
|
Audio Performance |
|
|
THD+N 20 Hz - 20 kHz @ 1 W |
< 0.1% |
|
THD+N @ 1kHz, 1 dB below clip |
< 0.1% |
|
Signal-to-noise |
>90 dB |
|
Channel separation (Crosstalk) @ 1 kHz |
>75 dB |
|
Frequency response |
10 Hz to 20 kHz, +0.5/ -1 dB |
|
Input impedance |
10 kΩ unbalanced, 20 kΩ balanced |
|
Internal Sample rate |
96 kHz |
|
Product propagation delay |
0.6 ms |
|
Distortion,1/8 rated power |
< 0.1% |
|
System |
|
|
Controls |
|
|
Front |
Power switch Gain controls (channels A and B) DSP section rotary push-encoder Buttons for Process, Setup, Up/Down, Exit |
|
Remote |
Via USB for PDX Controller software running on computer |
|
Indicators |
|
|
Display |
LCD 128 x 32, White text on black Background |
|
Power |
RDY LEDs lit green |
|
Limit, per channel |
LIM LEDs lit red |
|
Signal, per channel |
-24 dB, -12 dB, -6 dB LEDs lit green |
|
Thermal Warning, per channel |
RDY LED blink orange |
|
Thermal Warning 90%, PSU |
Both RDY LEDs blink orange |
|
Thermal fault, per channel |
RDY LED blink red |
|
Thermal fault 100%, PSU |
Both RDY LEDs blink red |
|
Fault, channel |
RDY LED lit constantly red |
|
Fault, device |
Both RDY LEDs constantly lit red |
|
System |
|
|
Integrated DSP features |
|
|
Delay |
0 – 300 ms |
|
Crossover function |
3 fi lter types, up to 48 dB/oct. |
|
EQ function |
8-band parametric, 2-band dynamic equalizer |
|
Limiter |
Zero attack limiter (peak) |
|
Presets |
20 total presets, 19 user-defi nable |
|
Connectors |
|
|
Inputs / link |
2 x XLR 2 x 1/4" TRS |
|
Outputs |
Neutrik speakON (2 x NLT4) |
|
USB connector |
Rear panel USB connector type B for remote control of DSP section with PDX Controller Software |
|
Mains connector |
Locking IEC appliance inlet, C14 |
|
Protection Features |
|
|
Cooling |
Two fans front-to-rear air fl ow, temperature controller speed |
|
Amplifi er protection |
Thermal and DC protection, Rail sensing and peak current limiting. |
|
Load protection |
Controlled start and shutdown behavior, DC-fault protection, Short-circuit protection |
|
Power Supply |
|
|
Voltage |
Separate 230 V and 115 V versions available. Not selectable on the product. |
|
USA / Canada / Japan |
100-120 V, 50/60 Hz |
|
UK / Australia / Europ. / Korea / China |
220-240 V, 50/60 Hz |
|
Power consumption @ 4 ohms, rated power |
1050 W |
|
Dimensions / Weight |
|
|
Dimensions (H x W x D) |
93 x 483 x 326 mm (3.7 x 19 x 12.8") |
|
Weight |
6.5 kg (14.3 lbs) |
|
Finish |
Black painted aluminium chassis and grey front |
|
Approvals |
CE, UL (ANSI/UL, CAN/CSA), PSE, RCM, CCC, FCC |
