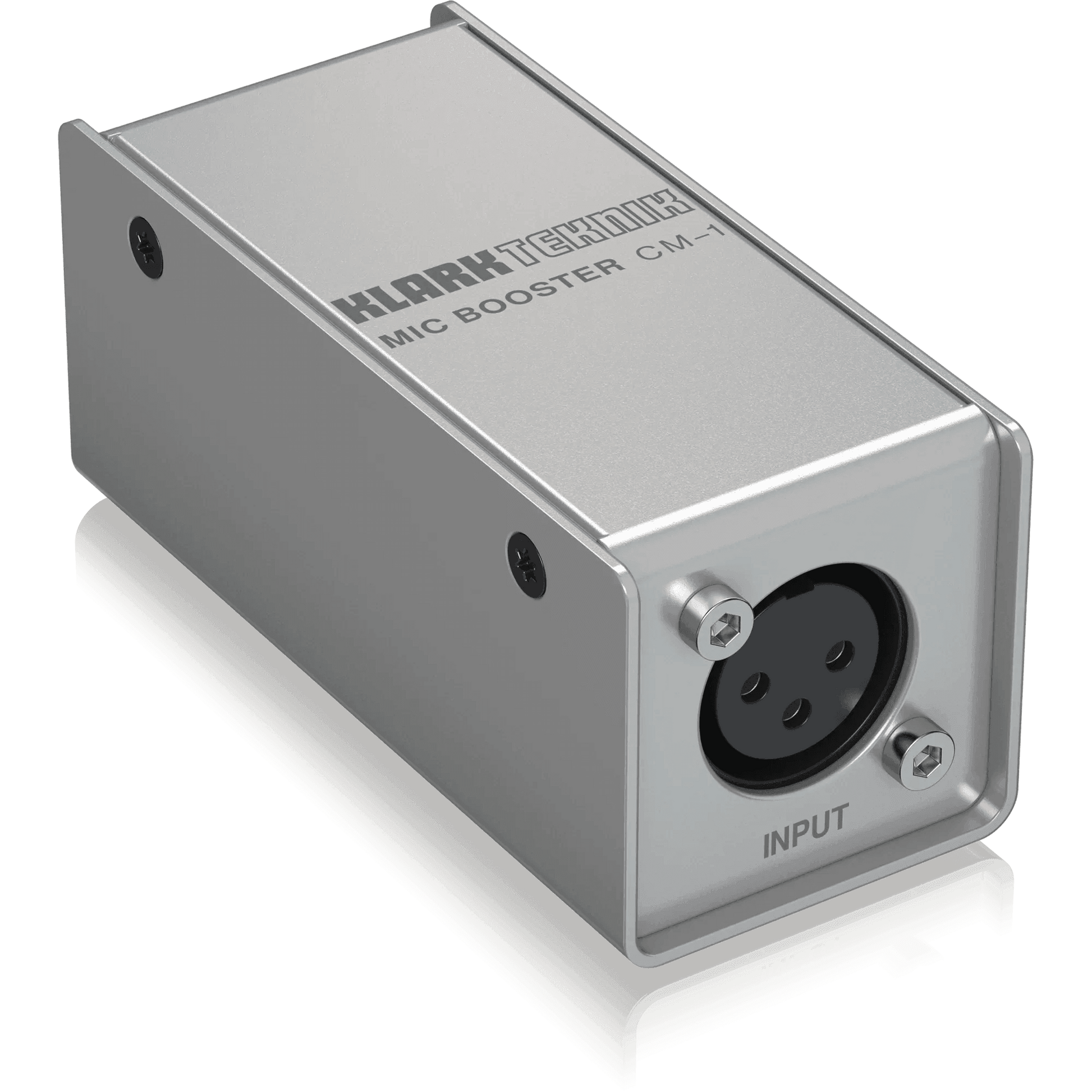

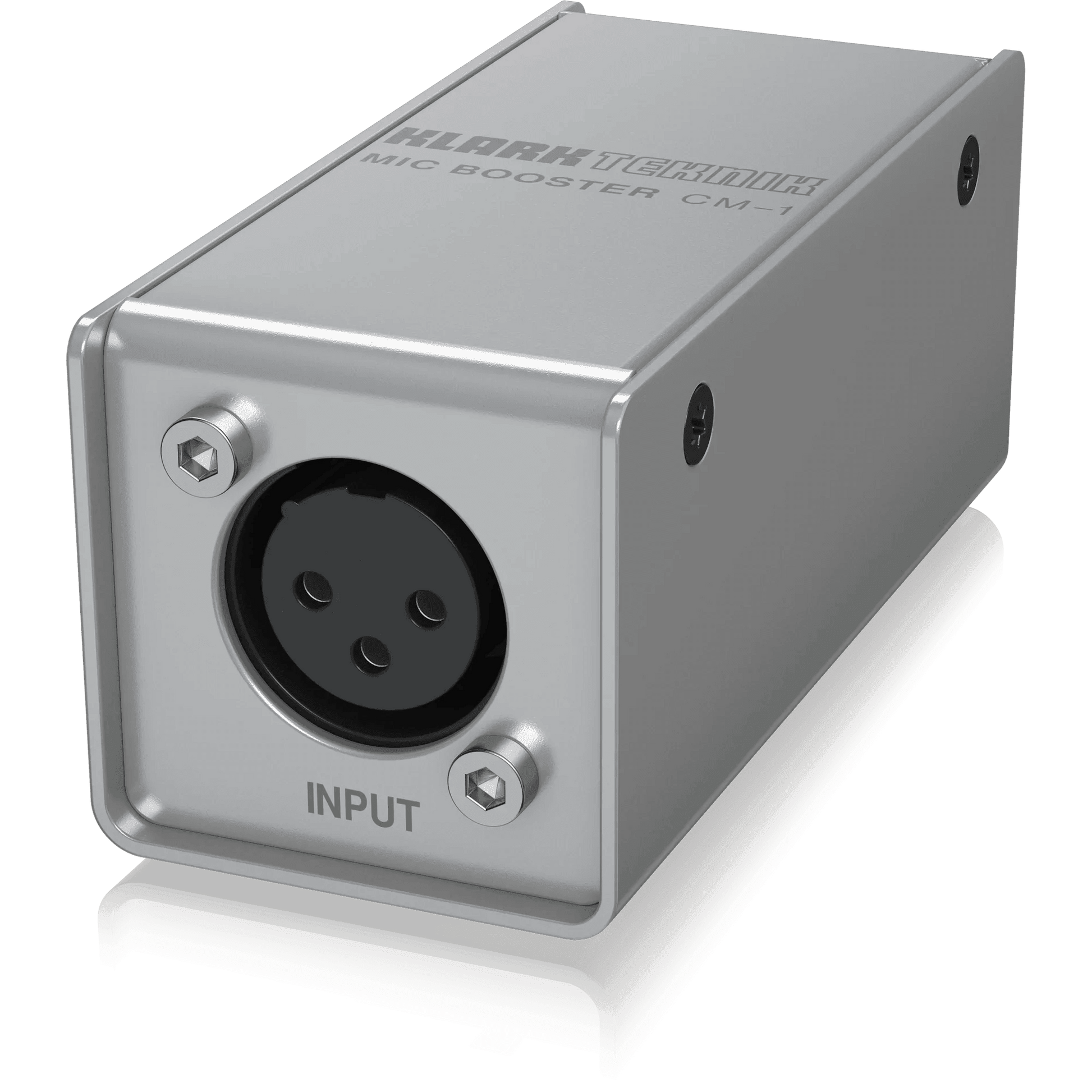

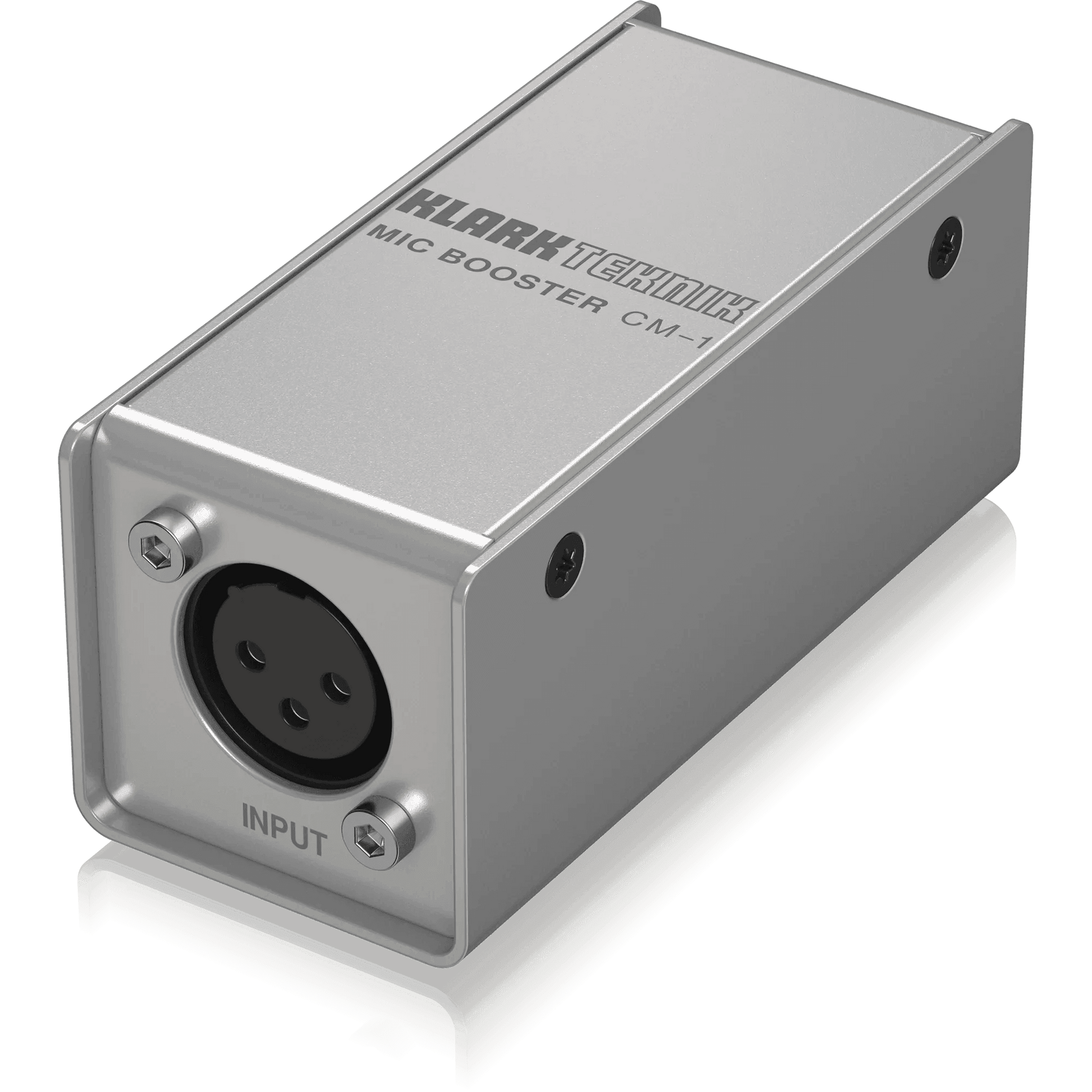

Klark Teknik MIC BOOSTER CM-1 Dynamic Microphone Booster with High-Quality Preamp
Klark Teknik MIC BOOSTER CM-1 Dynamic Microphone Booster with High-Quality Preamp
Couldn't load pickup availability
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
KEY FEATURES-
Dynamic mic booster adds extra gain to your sound
-
High-quality preamp provides up to +25 dB of gain
-
Phantom powered with no need for external power supply
-
Works with almost any dynamic or passive ribbon microphone
-
Rugged, road-worthy construction for years of dependable use
DESCRIPTION
Whenever you need more headroom for any microphone in your podcast, recording studio or stage setup, the MIC BOOSTER CM-1 is exactly the tool you need to get a crisp and clean microphone signal in a robust and simple to use package.
SPECIFICATIONS
|
|
CT 1 |
CM-1 |
CM-2 |
|

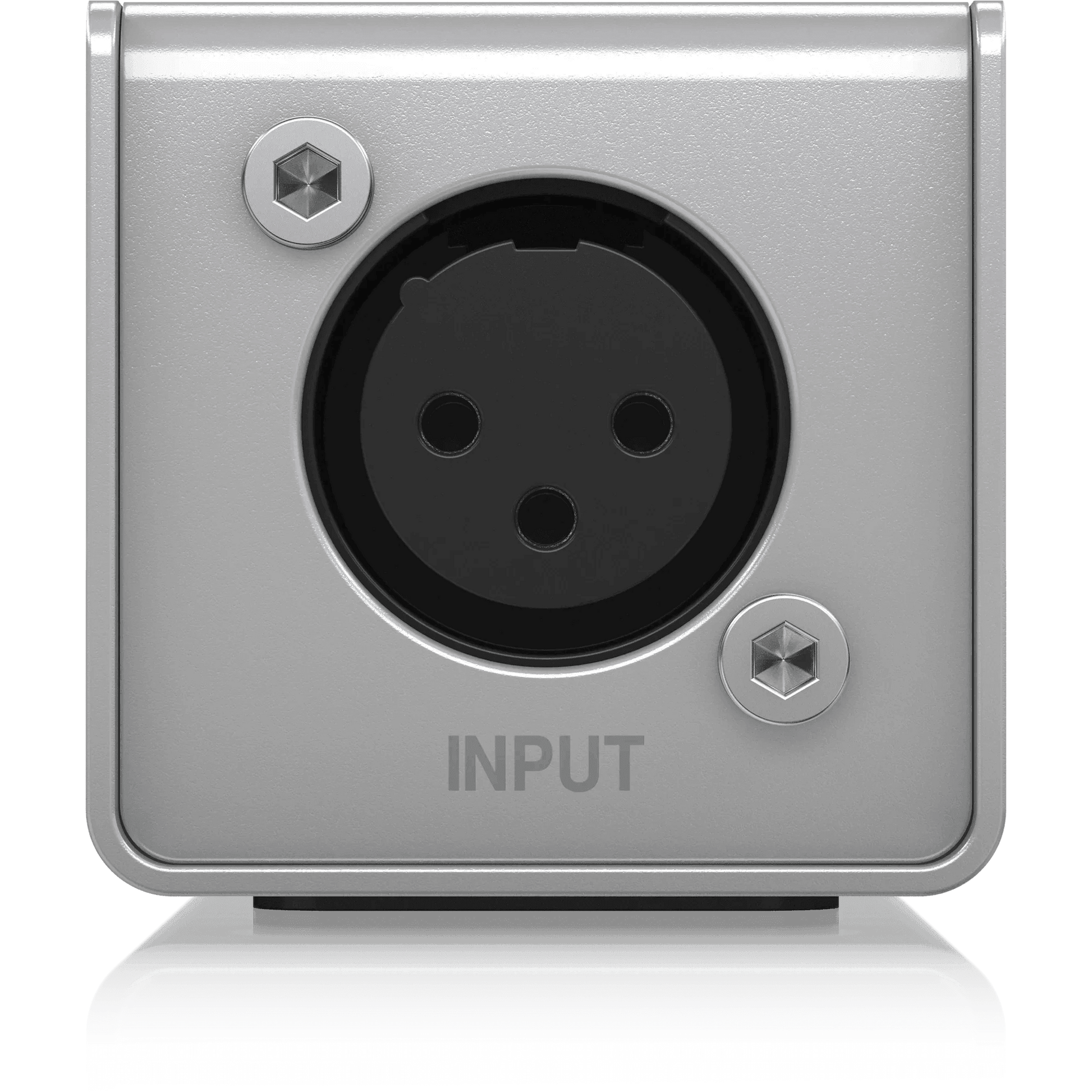

Input |
|||
|
Connector |
1 x XLR, balanced |
1 x XLR, balanced |
2 x XLR, balanced |
|
Impedance |
7 kΩ |
||
|
Maximum input level |
-15 dBu |
||
|

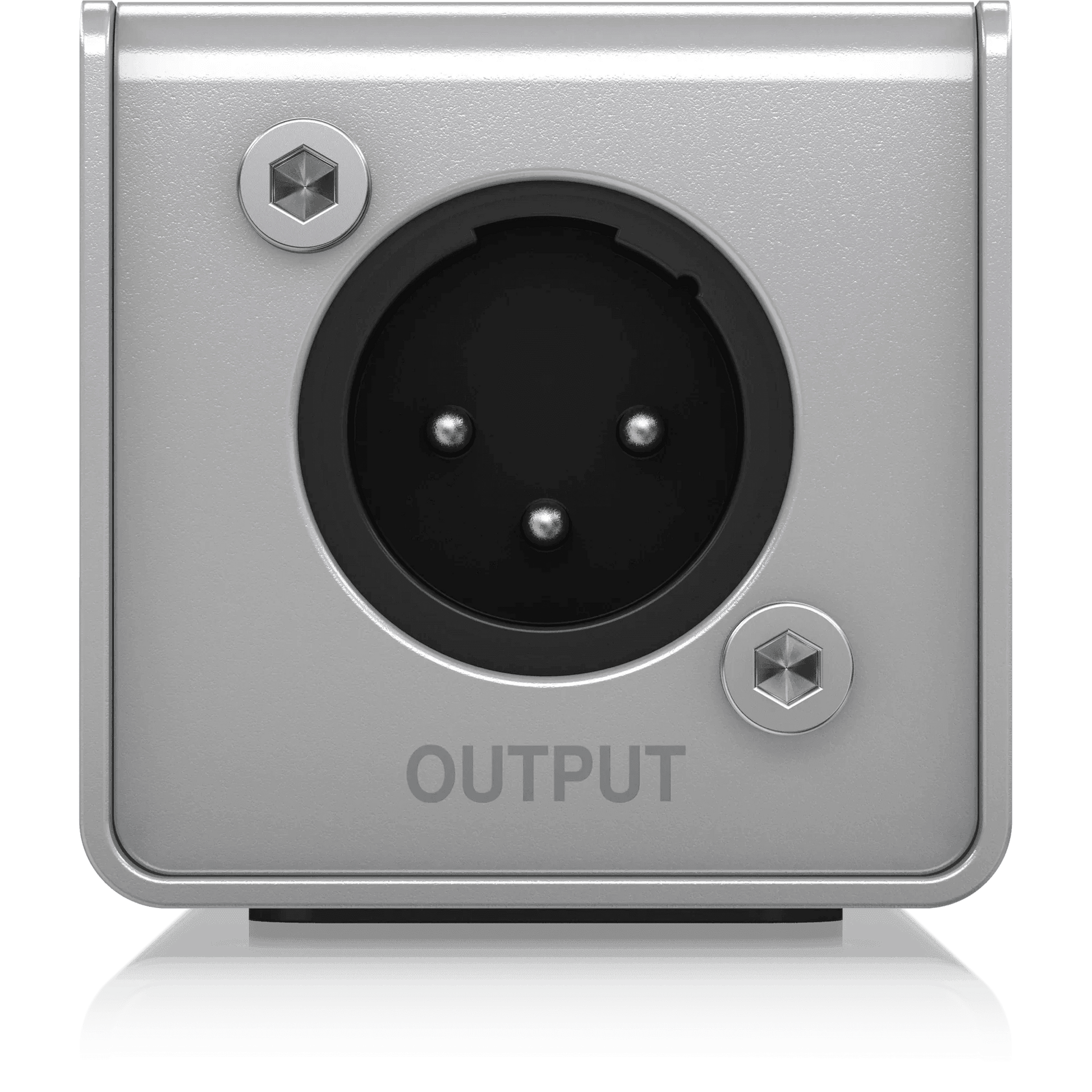

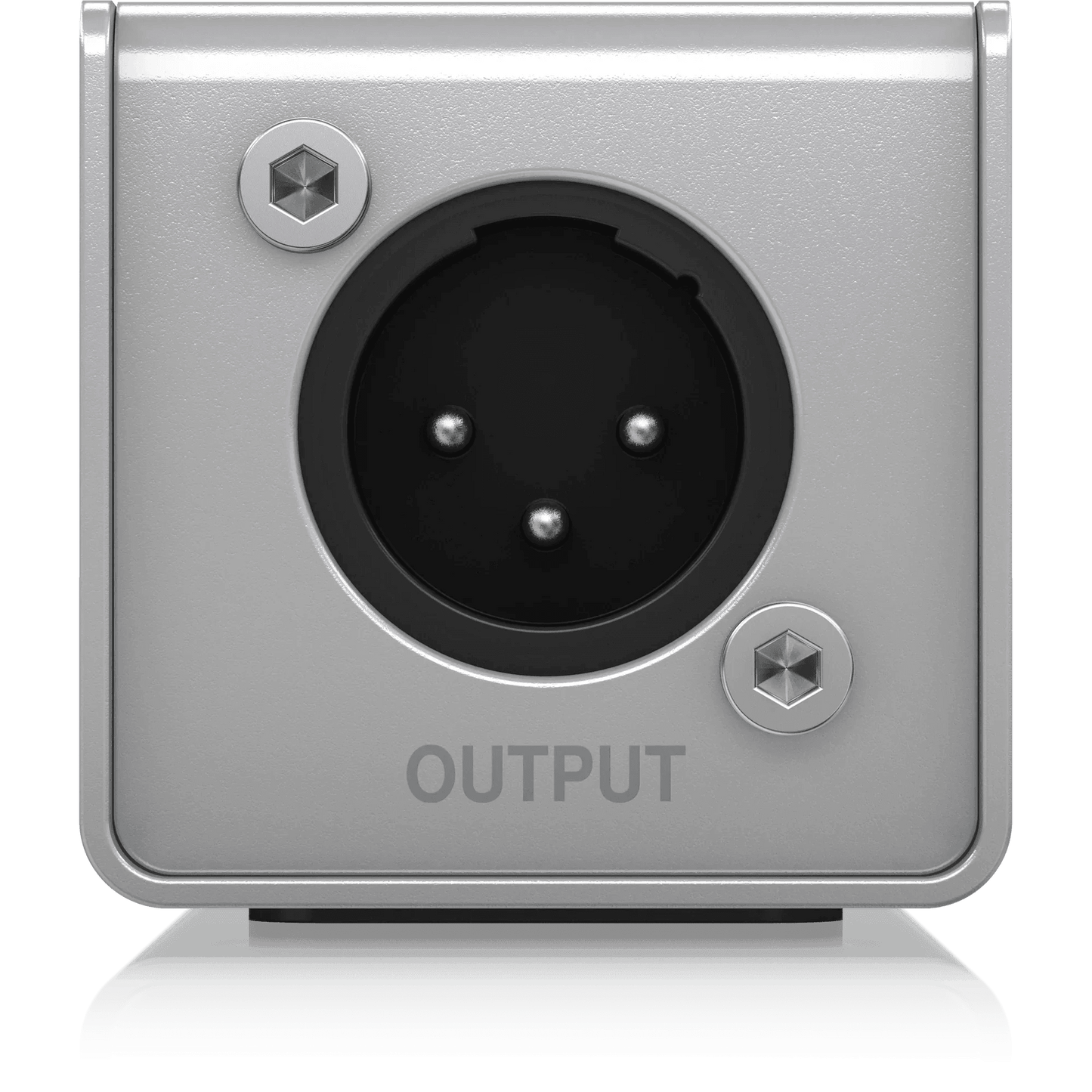

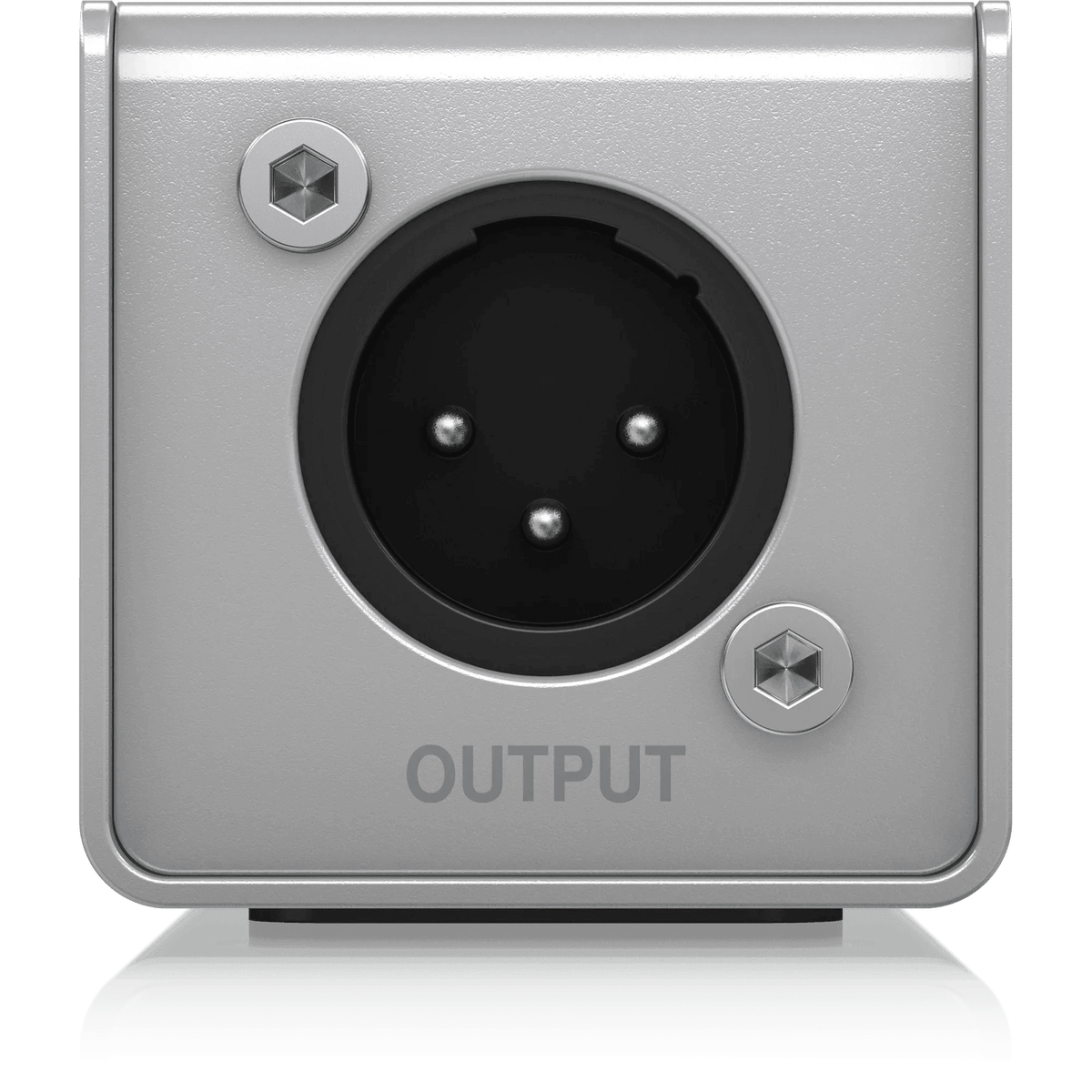

Output |
|||
|
Connector |
1 x XLR, balanced |
1 x XLR, balanced |
2 x XLR, balanced |
|
Impedance |
2 kΩ |
||
|
Maximum gain |
+25 dB, 10 kΩ load |
||
|
Maximum output level |
+10 dBu, 10 kΩ load |
||
|
System |
|||
|
Frequency response |
10 Hz to 20 kHz (± 1 dB) |
||
|
THD + N |
<0.02% @ 1 kHz, 0 dBu |
||
|
EIN noise @ +25 dB gain |
>120 dB, 22 Hz-22 kHz, unweighted |
||
|
Power requirements |
48 V phantom power |
||
|
Physical |
|||
|
Dimensions |
24 x 25 x 78 mm (0.9 x 1.0 x 3.1") |
38 x 39 x 85 mm (1.5 x 1.5 x 3.3") |
65 x 39 x 85 mm (2.6 x 1.5 x 3.3") |
|
Weight |
0.1 kg (0.22 lbs) |
0.17 kg (0.40 lbs) |
0.25 kg (0.55 lbs) |
