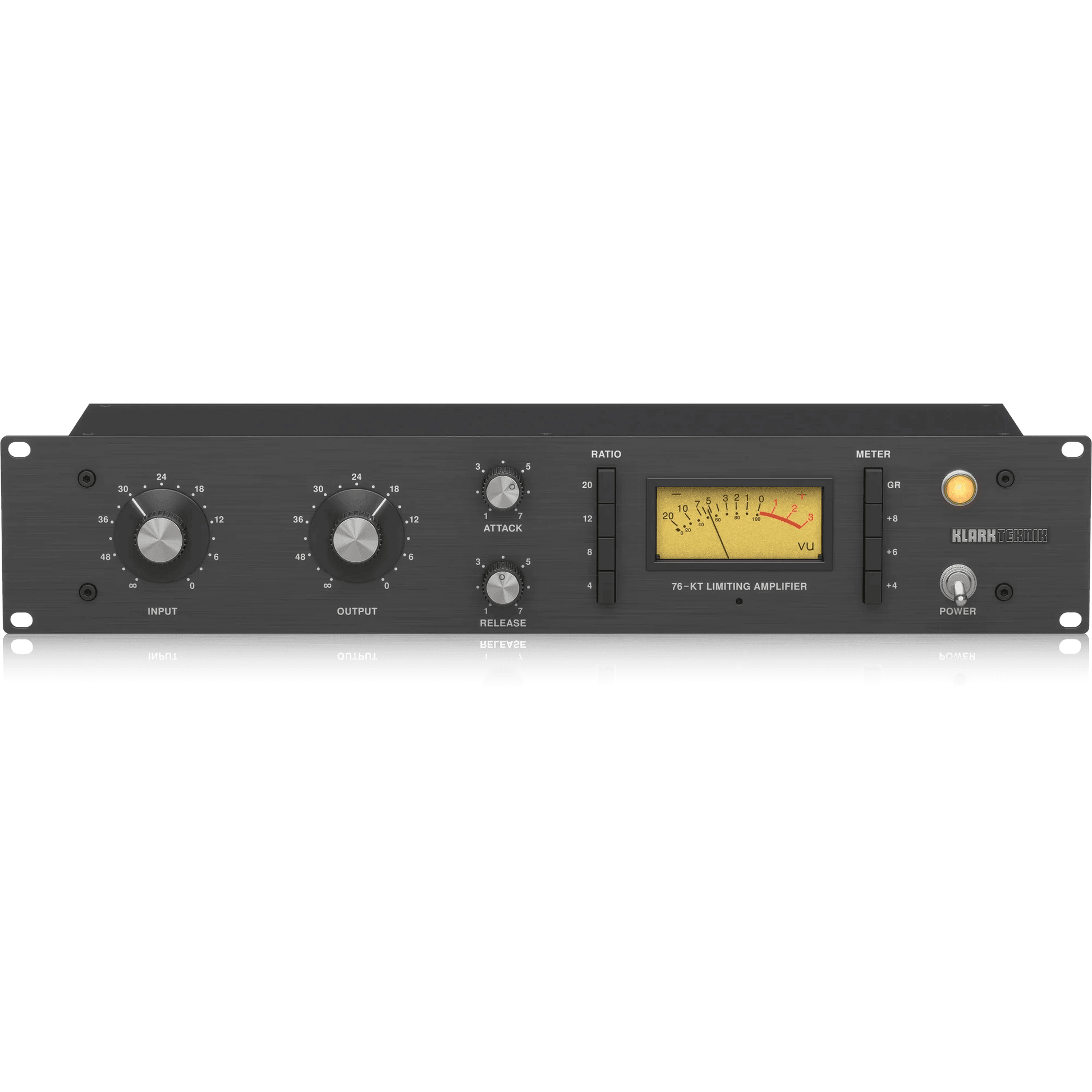

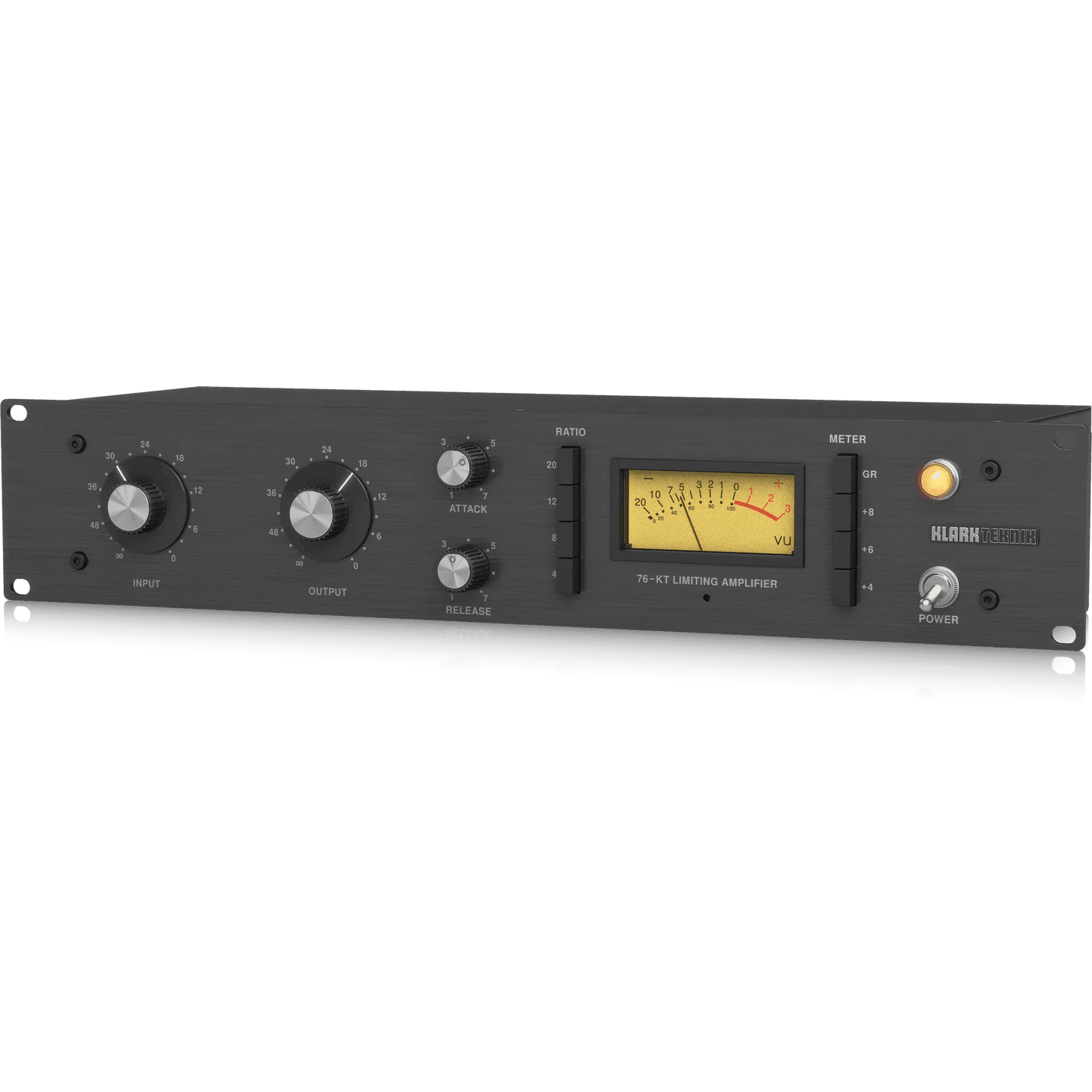

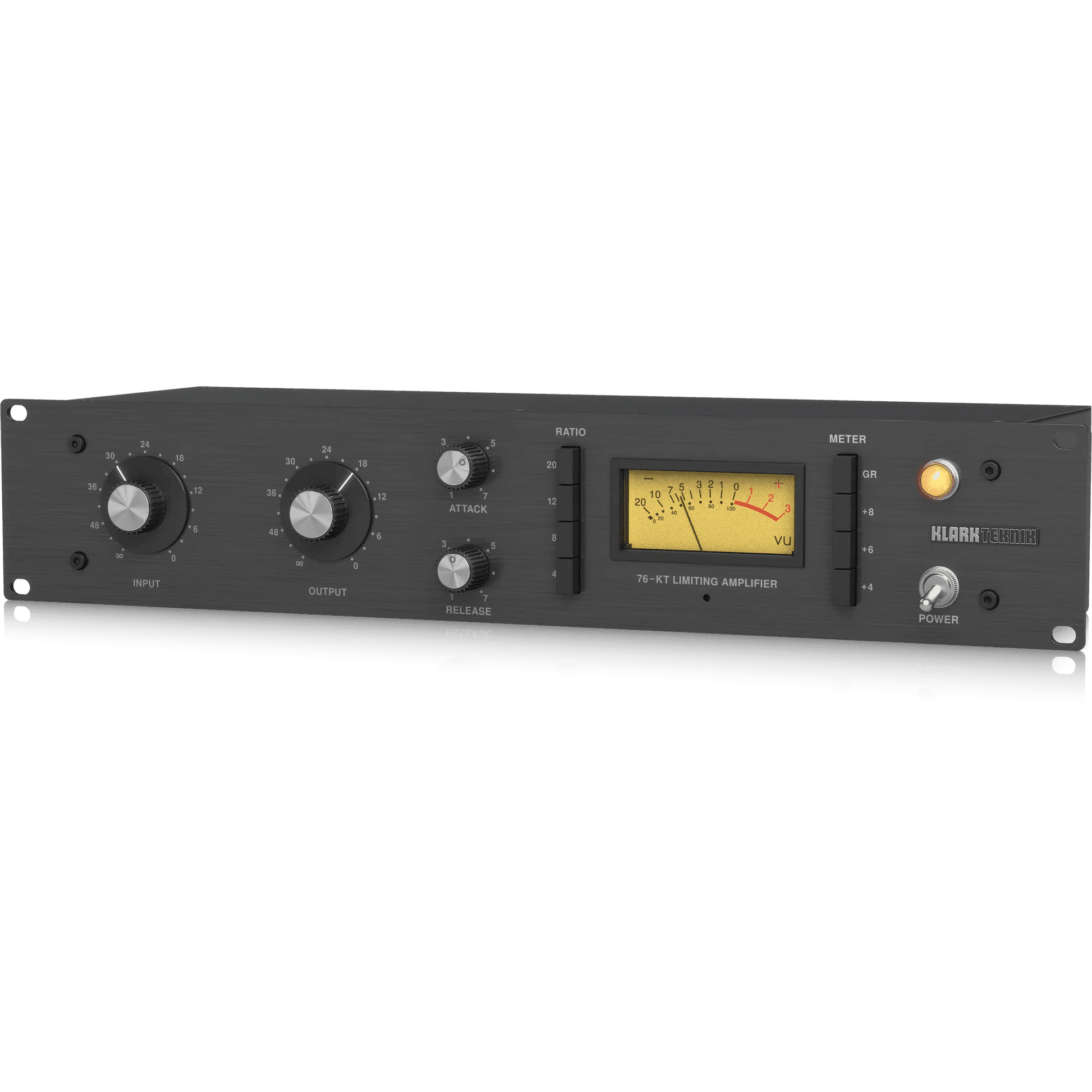

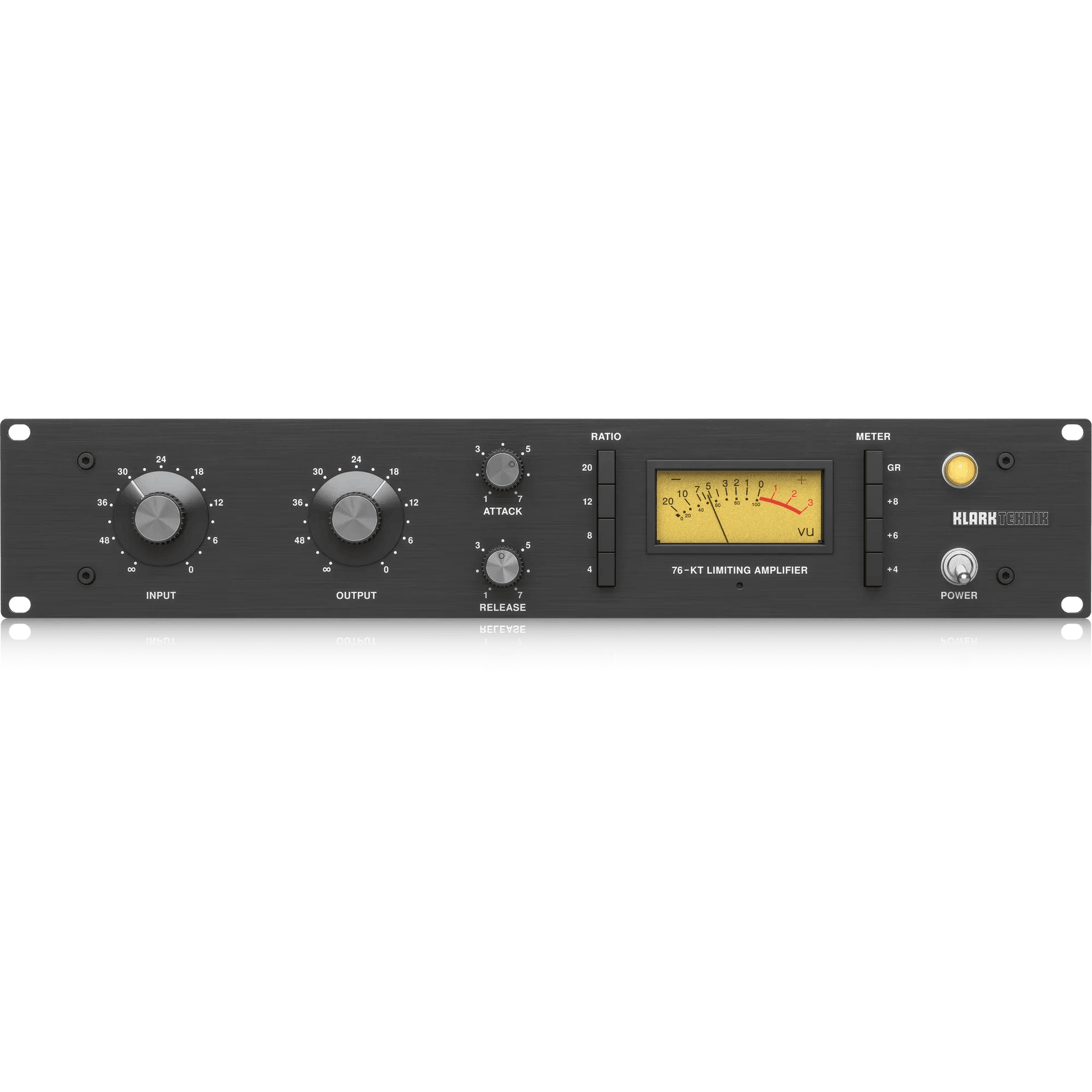

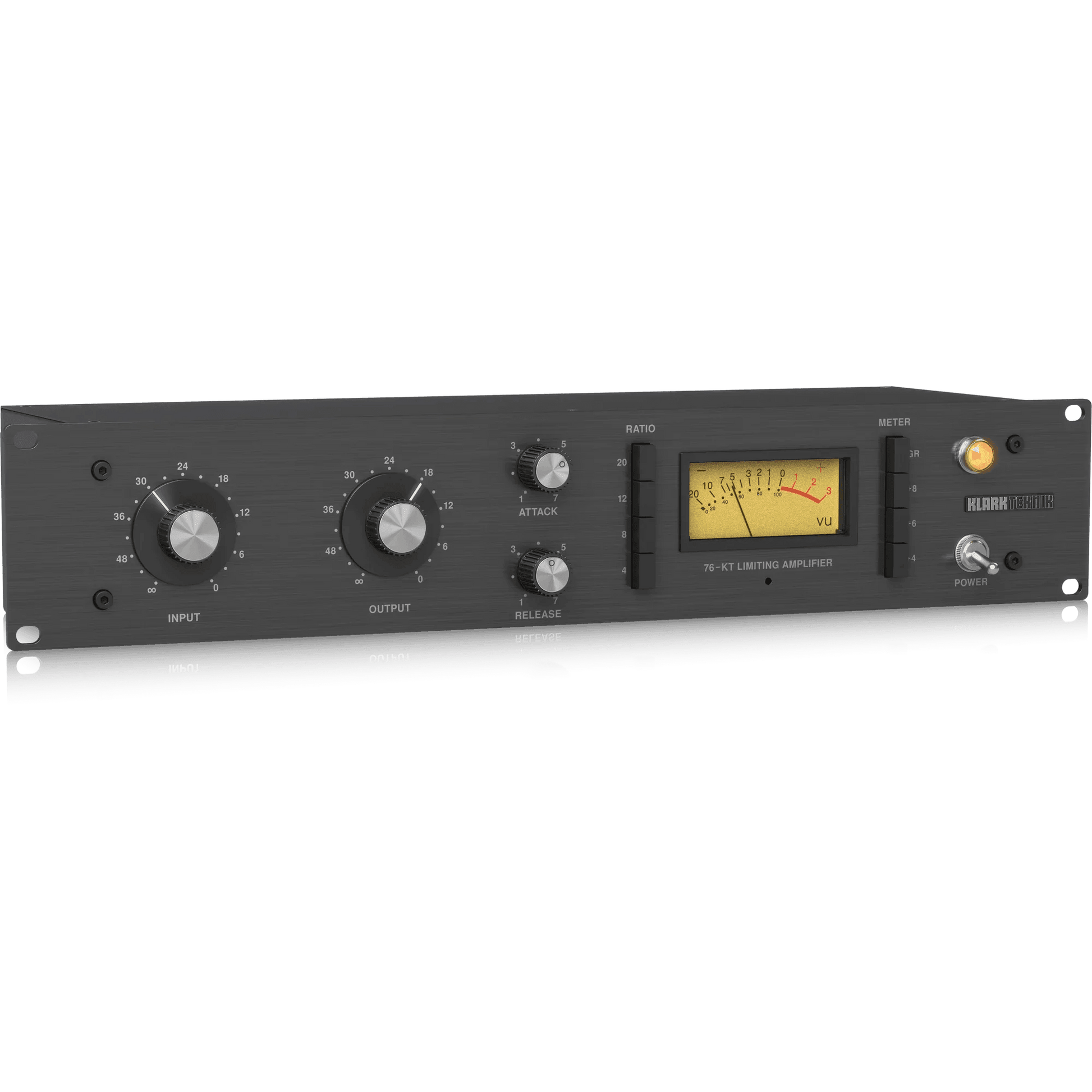

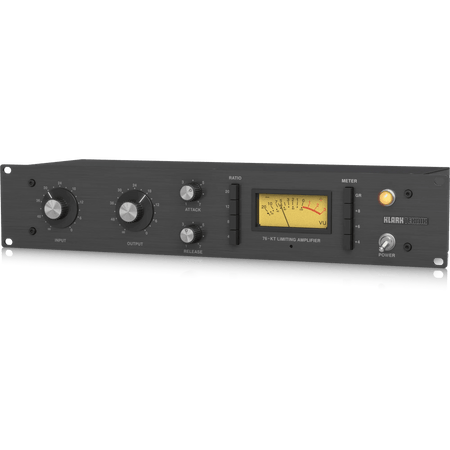

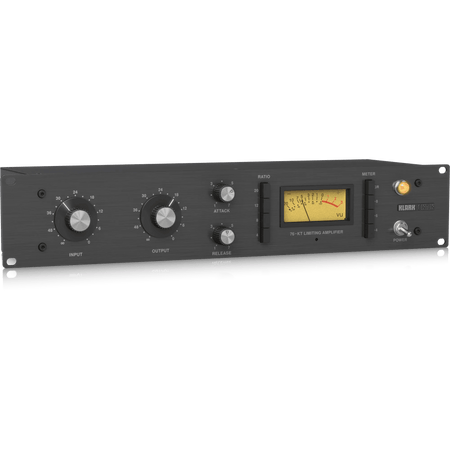

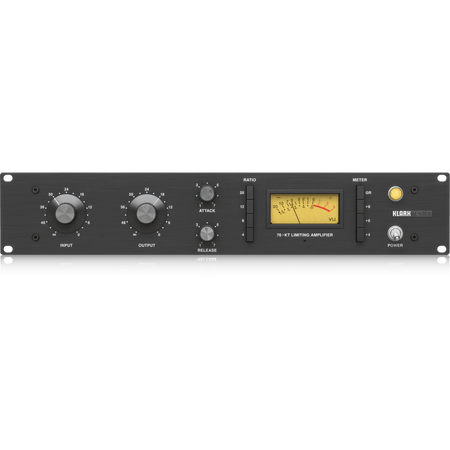

Klark Teknik 76-KT Classic FET-Style Compressor

Klark Teknik 76-KT Classic FET-Style Compressor

Dhs.1,531.00 AED
Dhs.0.00 AED Dhs.1,531.00 AED
Sale Sold out

For Wholesale Enquiries Please Contact Us On WhatsApp

This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co

Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information

KEY FEATURES

  • Classic FET-style compressor modeled after iconic 1176LN*, D and E Revisions

  • Completely discrete signal path

  • Class-A line-level output amplifier

  • Custom-built, Midas input and output transformers

  • Push button selection of compression ratios: 4:1, 8:1, 12:1, 20:1

  • Ultra-fast attack time: 20 to 800 microseconds

  • Adjustable release time: 80 to 700 milliseconds

  • Vintage-style meter features gain reduction and output

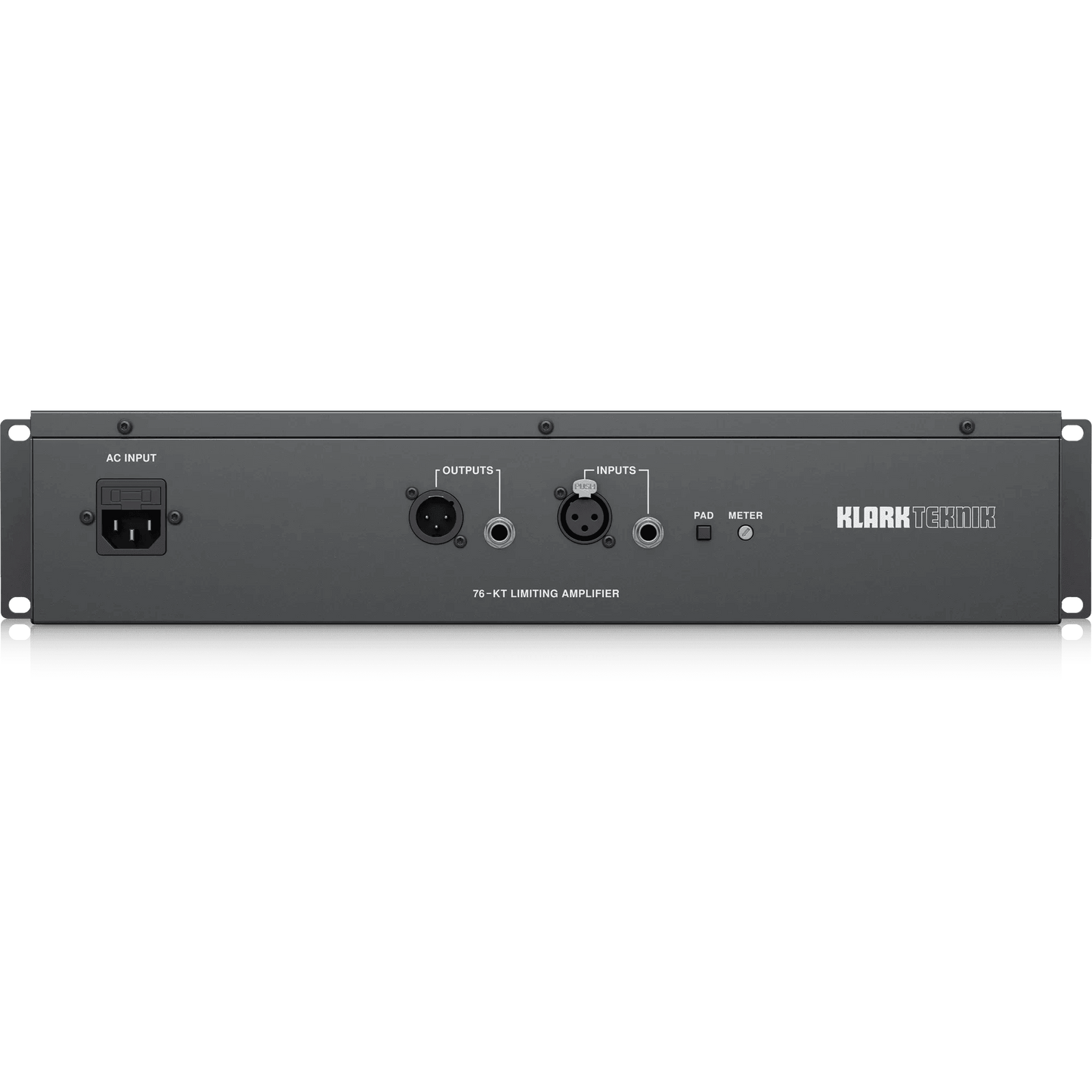

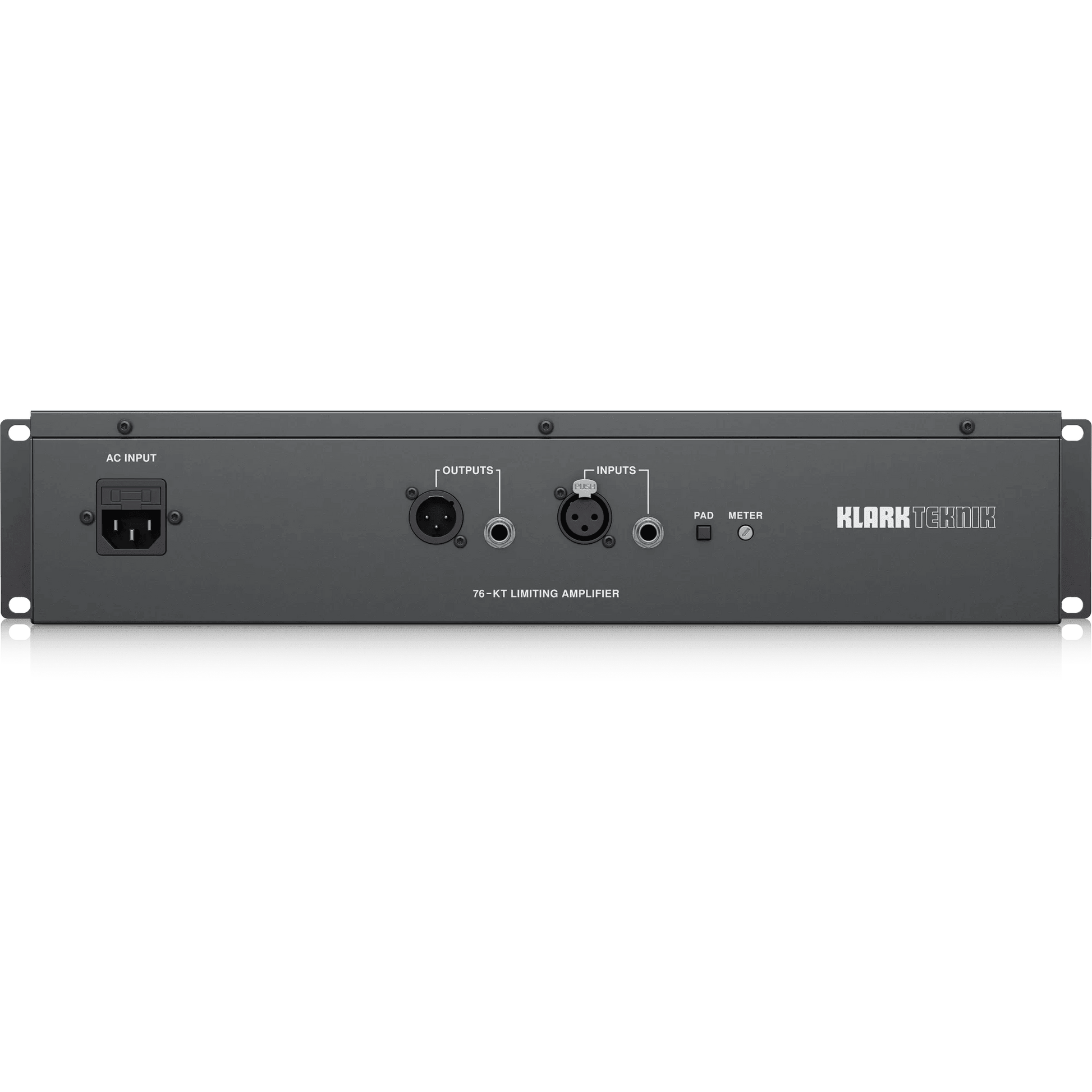

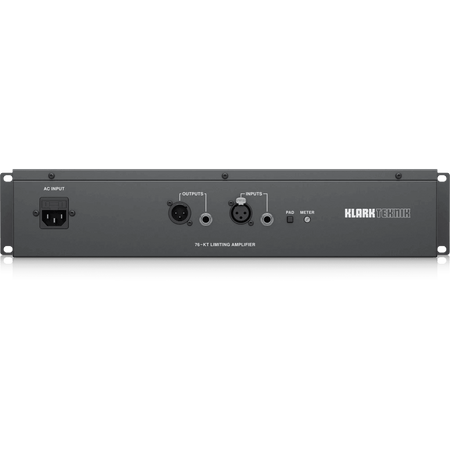

  • Transformer balanced inputs and outputs on Neutrik* XLR connectors

  • Rugged 2U rackmount chassis for durability in portable applications

  • Auto-ranging universal switch-mode power supply



DESCRIPTION

Designed as an homage to the classic 1176LN, every effort was made to keep the 76-KT FET-Style Compressor true to the original D and E versions of the iconic signal processor. At the same time, we modernised the completely discrete signal path using hand-selected components and custom-engineered MIDAS input and output transformers – for the ultimate in pristine sonic performance.

SPECIFICATIONS

Audio Input

Type

XLR, 1/4" TRS, transformer balanced
Impedance  >600 Ω, balanced and unbalanced
Max. input level  +30 dBu
Pad switch  -20 dB typical
Audio Output

Type

XLR, 1/4" TRS, transformer balanced
Impedance  105 Ω, balanced and unbalanced
Max. output level  +25 dBu

System Specifications

Frequency response

20 Hz to 20 kHz, ±1 dB
S/N ratio  80 dB @ +4 dBu In
Distortion (THD+N)  0.15% typical
Compressor

Attack time

25 to 760 μs, adjustable
Release time  80 to 670 ms, adjustable
Ratio settings  20:1, 12:1, 8:1, 4:1
Meter settings  Gain reduction, +8/6/4 dBu
Power Supply

Mains voltage

100 – 240 V~, 50/60 Hz
Power consumption  10 W
Fuse  T1AH 250V
Mains connection  Standard IEC receptacle
Physical

Dimensions (H x W x D)

88 x 483 x 159 mm
Weight  2.8 kg (6.2 lbs)
