Eminence

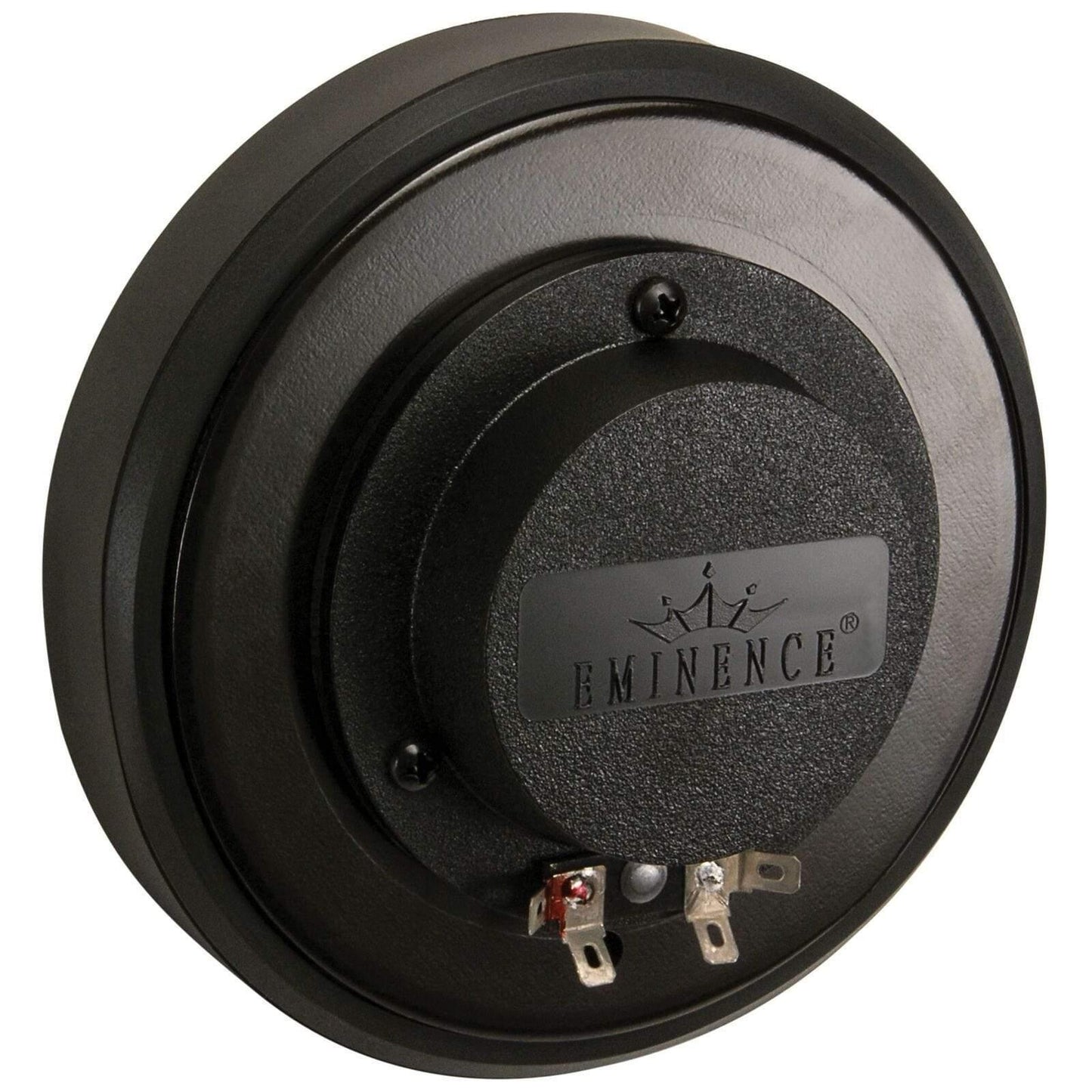

Eminence PSD2002-8S 1 screw Compression Driver

Eminence PSD2002-8S 1 screw Compression Driver

Regular price Dhs.315.00 AED
Regular price Dhs.0.00 AED Sale price Dhs.315.00 AED
Sale Sold out

Are you looking for an efficient and reliable 1" compression driver? Look no further than the Eminence PSD2002-8S 1 Screw Compression Driver! This driver features a Polyimide former and titanium diaphragm, making it a powerful and durable choice. Plus, it is compatible with 2-bolt and 3-bolt horn lenses. With a frequency range of 1,200-20,000 Hz, this 8-ohm driver can handle up to 80 watts of power.

SPECIFICATIONS:

Throat Size 1", 25.4mm
Nominal Impedance*
Minimum Impedance 7.6 ohm @ 3.7 kHz
Power Rating** 80 W (AES)
Resonance 0.54kHz
Usable Frequency Range 1200Hz-20kHz
Recommended Crossover 1.2 kHz / 12 dBkHz
Sensitivity*** 106.1
Magnet Material Ferrite
Magnet Weight 34oz, 0.96kg
Voice Coil Diameter 2" / 50.8mm
Voice Coil Former Polyimide
Diaphragm Material Titanium
DC Resistance (Re) 6.1Ω
MOUNTING INFORMATION
Overall Diameter 5.25", 133.4mm
Driver Volume Displaced 0.01 cu.ft., 0.5 liters
Depth 2.2", 55.9mm
Weight 4.7 lbs, 2.1 kg
Mounting Thread N/A
Mounting Holes Diameter 2X 1/4-20 or 3x M6
Mounting Holes B.C.D. 3 in. 76.2 mm or 2.25 in. 57



HOW IT WORKS:

The Eminence PSD2002-8S 1 Screw Compression Driver works by converting electrical energy into sound energy. The electrical energy is sent to the driver's voice coil, which is connected to the diaphragm. The diaphragm vibrates, creating sound waves. The sound waves are then sent to the horn lens, which amplifies the sound.

PRODUCT FAQ:

Q: What is the frequency range of this driver?

A: The frequency range of the Eminence PSD2002-8S 1 Screw Compression Driver is 1,200-20,000 Hz.

Q: How much power can this driver handle?

A: This 8-ohm driver can handle up to 80 watts of power.
