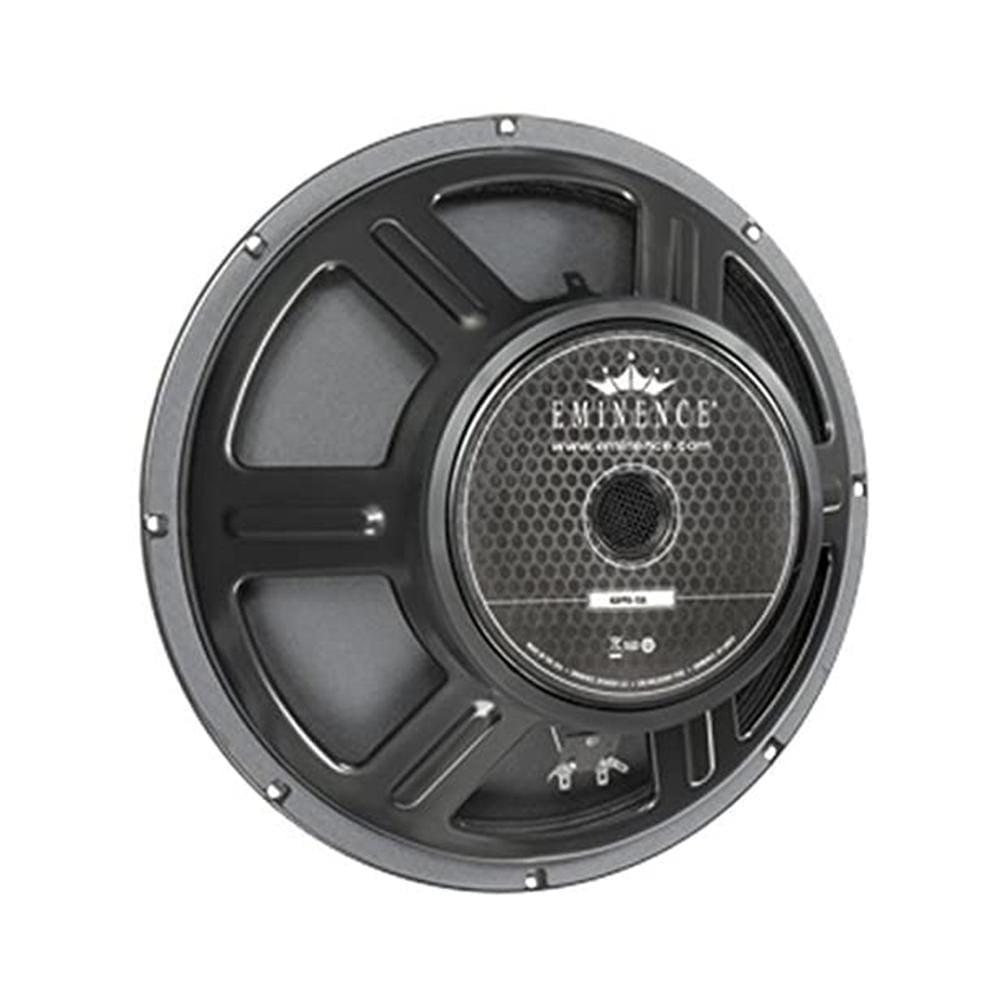

Eminence Kappa-15C 15" 450 W Loudspeaker
Eminence Kappa-15C 15" 450 W Loudspeaker
Regular price
Dhs.630.00 AED
Regular price
Dhs.0.00 AED
Sale price
Dhs.630.00 AED
Unit price
/
per
Couldn't load pickup availability
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
Recommended for professional audio in a vented mid-bass or bass enclosure. Also suitable for bass guitar and monitors.
Features
- Composition Solid composition paper dust cap
- Nominal Basket Diameter 15", 381mm
- Nominal Impedance 4 ohms
Tech Specs
| Nominal Basket Diameter: | 15", 381mm |
| Nominal Impedance*: | 4 ohms |
| Power Rating** | |
| Watts: | 450W |
| Music Program: | 900W |
| Resonance: | 31Hz |
| Usable Frequency Range: | 63Hz - 2.8kHz |
| Sensitivity***: | 98.1dB |
| Magnet | 80 oz. |
| Gap Height: | 0.37", 9.53mm |
| Voice Coil Diameter: | 3", 76.2mm |
| THIELE & SMALL PARAMETERS | |
| Resonant Frequency (fs): | 31Hz |
| DC Resistance (Re): | 3.68 |
| Coil Inductance (Le): | 0.88mH |
| Mechanical Q (Qms): | 10.14 |
| Electromagnetic Q (Qes): | 0.25 |
| Total Q (Qts): | 0.25 |
| Compliance Equivalent Volume (Vas): | 329.9 liters / 11.7 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd): | 206cc |
| Mechanical Compliance of Suspension (Cms): | 0.35mm/N |
| BL Product (BL): | 14.7 T-M |
| Diaphragm Mass Inc. Airload (MMs): | 77 grams |
| Efficiency Bandwidth Product (EBP): | 124 |
| Maximum Linear Excursion (Xmax): | 2.4mm |
| Surface Area of Cone (Sd): | 856.3 cm2 |
| Maximum Mechanical Limit (Xlim): | 11.6mm |
