Eminence Impero 18A 18" High Power Driver Speaker
Eminence Impero 18A 18" High Power Driver Speaker
Couldn't load pickup availability
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
The Eminence Impero 18A 18" high power pro audio speaker is optimized for use in vented enclosures. Its 1,200-watt continuous power rating is a result of Eminence's extensive experience designing and manufacturing loudspeaker drivers for serious professional use.

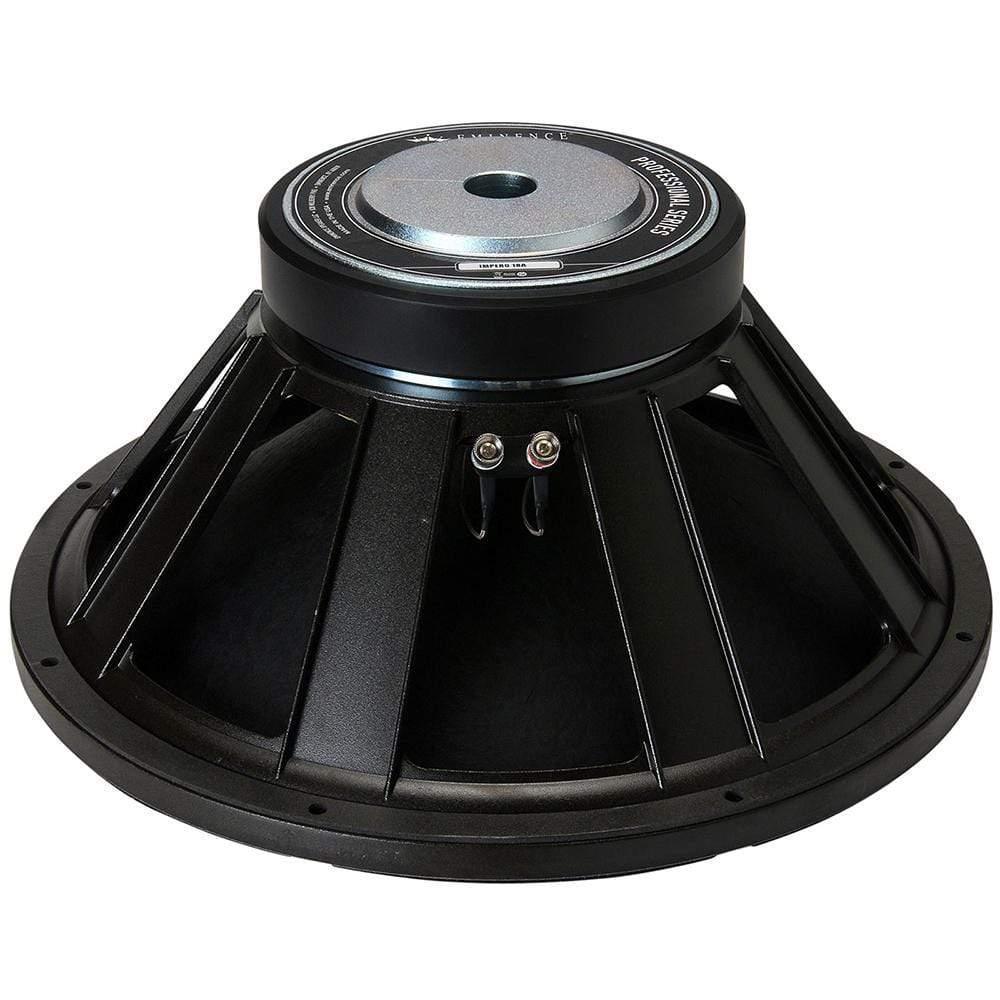

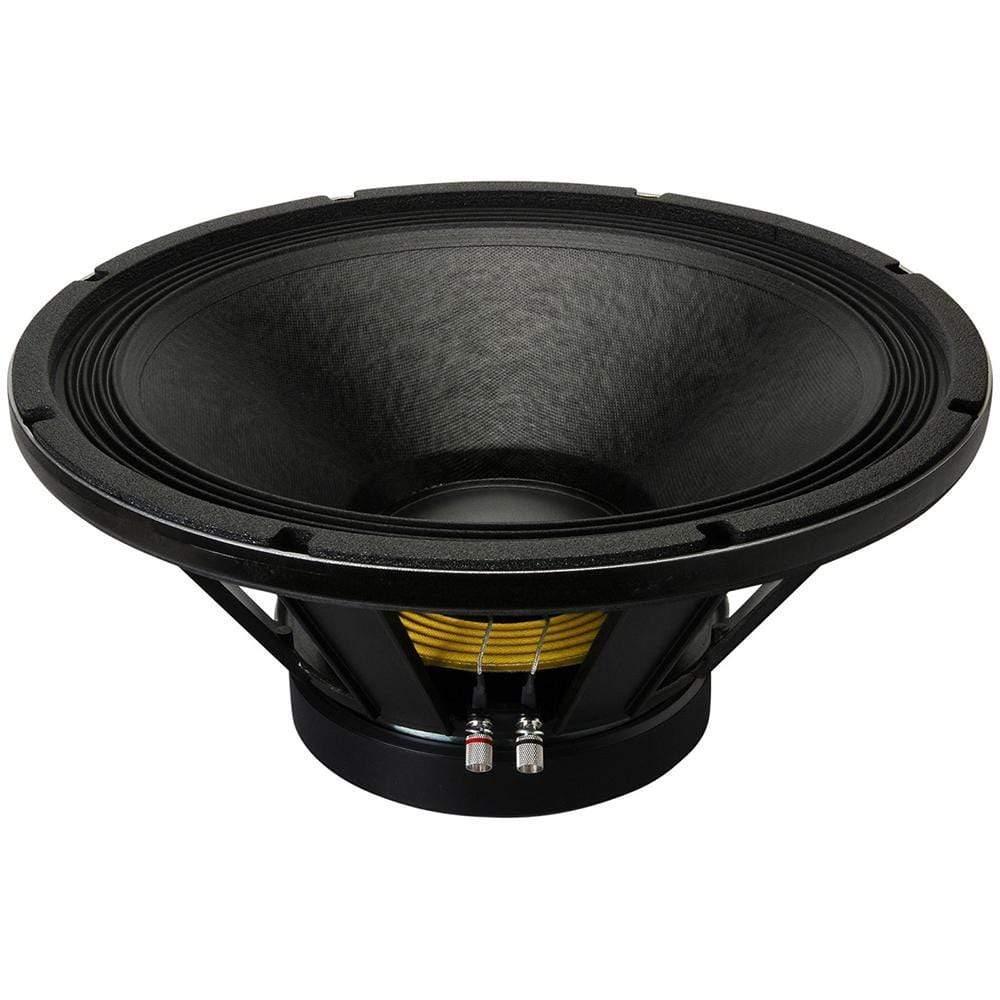

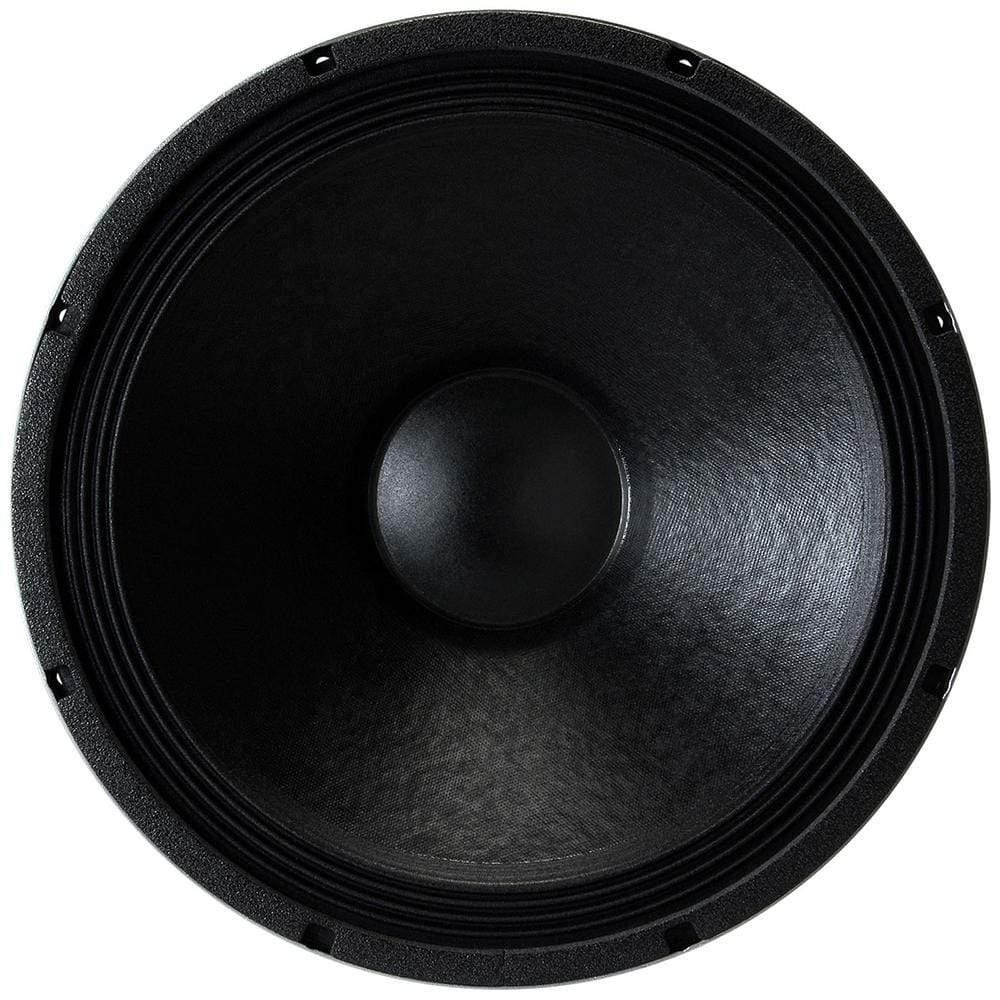

This 18" cast frame transducer features a 4" diameter copper voice coil that is wound on a fibreglass former. A large magnet, extended and vented pole piece, bumped backplate, and 1/2" thick x 7-1/2" diameter top plate ensure substantial motor strength, resulting in tremendous bass output.
The Impero 18A's performance is ideal for full-range 3-way boxes, bass guitar boxes and compact to medium-sized subwoofer speaker systems. Recommended enclosure volume: Vented: 113.2 ~ 277.5 liters / 4 ~ 9.8 cu. ft.
Features
- Ultra-high power handling capacity guarantees long-term durability
- 4" diameter copper voice coil on fibreglass former
- Weather-resistant paper cone and dust cap, treated cloth edge
- Die cast basket is light yet strong, ready to handle rough travel
- Massive, optimized motor structure helps move serious volumes of air
- Capable of sustaining thunderous levels of sub-bass
- Hand built in the USA
Tech Specs
| Nominal Basket Diameter: | 18", 457.2mm |
| Nominal Impedance*: | 8 ohms |
| Power Rating** | |
| Watts: | 1200W |
| Music Program: | 2400W |
| Resonance: | 33.17Hz |
| Usable Frequency Range: | 39Hz - 0.82kHz |
| Sensitivity***: | 95.9dB |
| Magnet Weight: | 109 oz. |
| Gap Height: | 0.5", 12.7mm |
| Voice Coil Diameter: | 4", 101.6mm |
| THIELE & SMALL PARAMETERS | |
| Resonant Frequency (fs): | 33.17Hz |
| DC Resistance (Re): | 5.41 |
| Coil Inductance (Le): | 1.47mH |
| Mechanical Q (Qms): | 14.02 |
| Electromagnetic Q (Qes): | 0.44 |
| Total Q (Qts): | 0.43 |
| Compliance Equivalent Volume (Vas): | 317.02 liters / 11.19 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd): | 927.2cc |
| Mechanical Compliance of Suspension (Cms): | 0.17mm/N |
| BL Product (BL): | 18.9 T-M |
| Diaphragm Mass Inc. Airload (MMs): | 139.52 grams |
| Efficiency Bandwidth Product (EBP): | 75.37 |
| Maximum Linear Excursion (Xmax): | 8mm |
| Surface Area of Cone (Sd): | 1159 cm2 |
| Maximum Mechanical Limit (Xlim): | 20.1mm |
