Biamp P30DT Pendant Loudspeaker 1x4.5" 70-100V / 30W, 16 ohms / 50W
Biamp P30DT Pendant Loudspeaker 1x4.5" 70-100V / 30W, 16 ohms / 50W
Couldn't load pickup availability
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
Note: This is a B2B Product
-Prices are indicative and discounts available based on quantities
-Design services available for these systems. Please contact our team for support on WhatsApp, Call Us or Email Us.
KEY FEATURES
- Zoom Certified • Installer-friendly end cap with cut-out slot and integrated magnetic closure; hides the tap selector and all cable connections
- Two too less Gripple® cable fasteners are provided for a safe, secure, and fast installation • Euroblock connector with permanent pass-through
- Tap switch allows for 70V/100V or 16 ohm low impedance operation
- Tuned bass reflex port for optimized low frequency performance
- Loudspeaker overload protection for 24/7 failsafe operation
- ETL listed to conform with UL Std 1480A; Certified to CSA C22.2#62368-1
DESCRIPTION

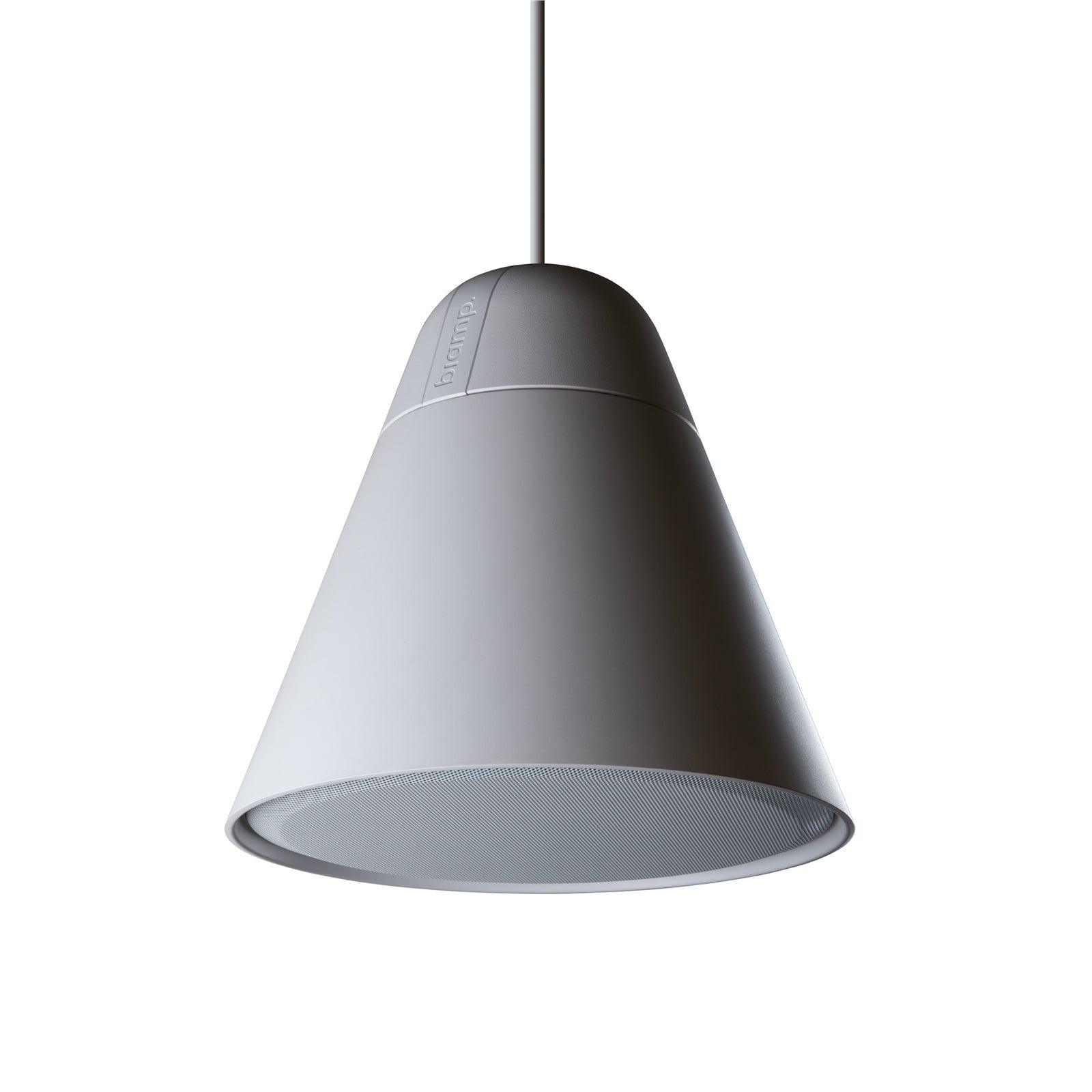

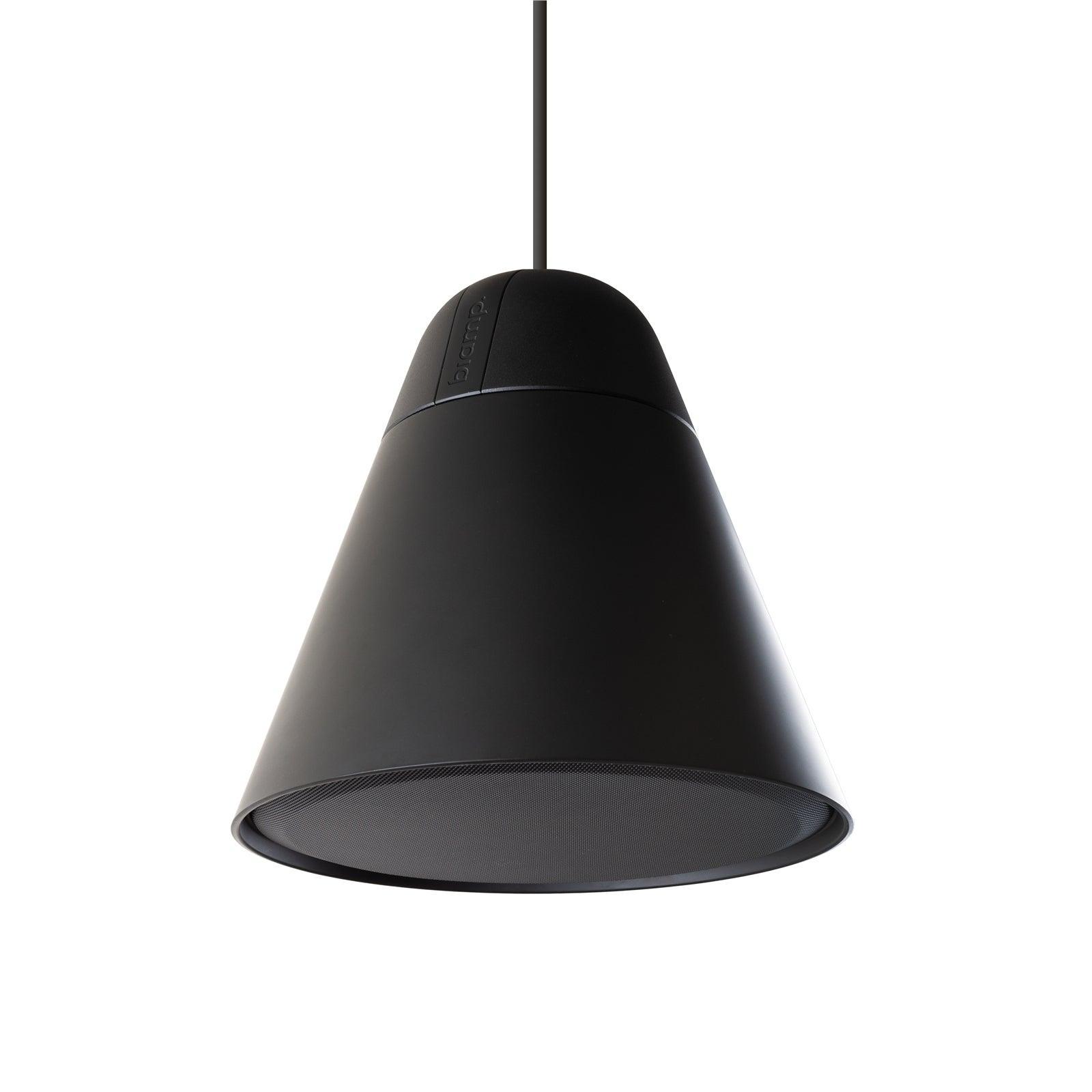

The P30DT two-way, 4.25" pendant loudspeaker brings exceptional dispersion to areas with open ceilings, while offering clear speech and musical purity. Available in black or white, the P30DT is suitable for a wide range of background and foreground audio applications. The Gripple cable fasteners, Euroblock connector, and 70V/100V tap switch can be hidden after installation by the innovatively designed end cap. The attractive aesthetics and ease-of-installation make this product an industry standard.
SPECIFICATIONS
| Operating Mode | Passive | ||
| Operating Environment | Indoor | ||
| Operating Range (-10dB) | 75 Hz to 20 kHz | ||
| Nominal Beamwidth (H x V) | 120°, conical | ||
| Transducers | LF 1 x 4.25" (108 mm) coated paper cone HF 1 x 1" (25 mm) soft dome |
||
| Continuous Power Handling @ Nominal Impedance | Passive | 28V | 50W @ 16 ohms (200W peak) |
| Nominal Sensitivity @ 1m | Passive | @ 1W 87 dB |
@ 2.83V 84 dB |
| Nominal Maximum SPL @ 1m | Passive | Peak 110 dB |
Continuous 104 dB |
| Transformer | 70V: 30W, 15W, 7.5W, 3.75W, 1.75W 100V: 30W, 15W, 7.5W, 3.75W |
||
| Protection | Self-resetting loudspeaker protection | ||
| Recommended Accessories | 75 Hz, 12dB/Oct High Pass | ||
| Recommended Amplifiers | 50W - 100W @ 16 ohms, (28V - 40V) | ||
| PHYSICAL | |||
| Input Connection | 4-way Euroblock connector with permanent pass-through | ||
| Controls | Power tap / low impedance selector switch | ||
| Mounting Provisions | Two 5m (16.4 ft) wire suspension cables (one as primary support, one as a safety cable), of high tensile galvanized steel wire rope with integrated spring clips for attaching the cable to the bracket and Gripple cable fasteners. | ||
| Compliance | ETL listed to comply with UL Std 1480A, Certified to CSA C22.2#62368-1 Suspension system and Gripple cable fasteners listed per UL1598 and UL2239, TUV and CSA Class 3426-01 and Class 3426-81. |
||
| Dimensions H x W | 223 mm x 233 mm (8.78" x 9.17") | ||
| Weight | 2.6 kg (5.7 lbs) | ||
| Finish | Refer to the Technical Drawings (page 2) | ||
| Accessories (included) | Two wire suspension cables; Two Gripple cable fasteners; End cap and cable cover | ||
| Accessory (optional) | MC-PHK16-12PK: Pendant Hanging Kit with twelve (12) 5m (16ft) lengths of Magic Cable and the connectors to suspend snap-hook-mounted pendant loudspeakers. Available in White or Black. | ||
