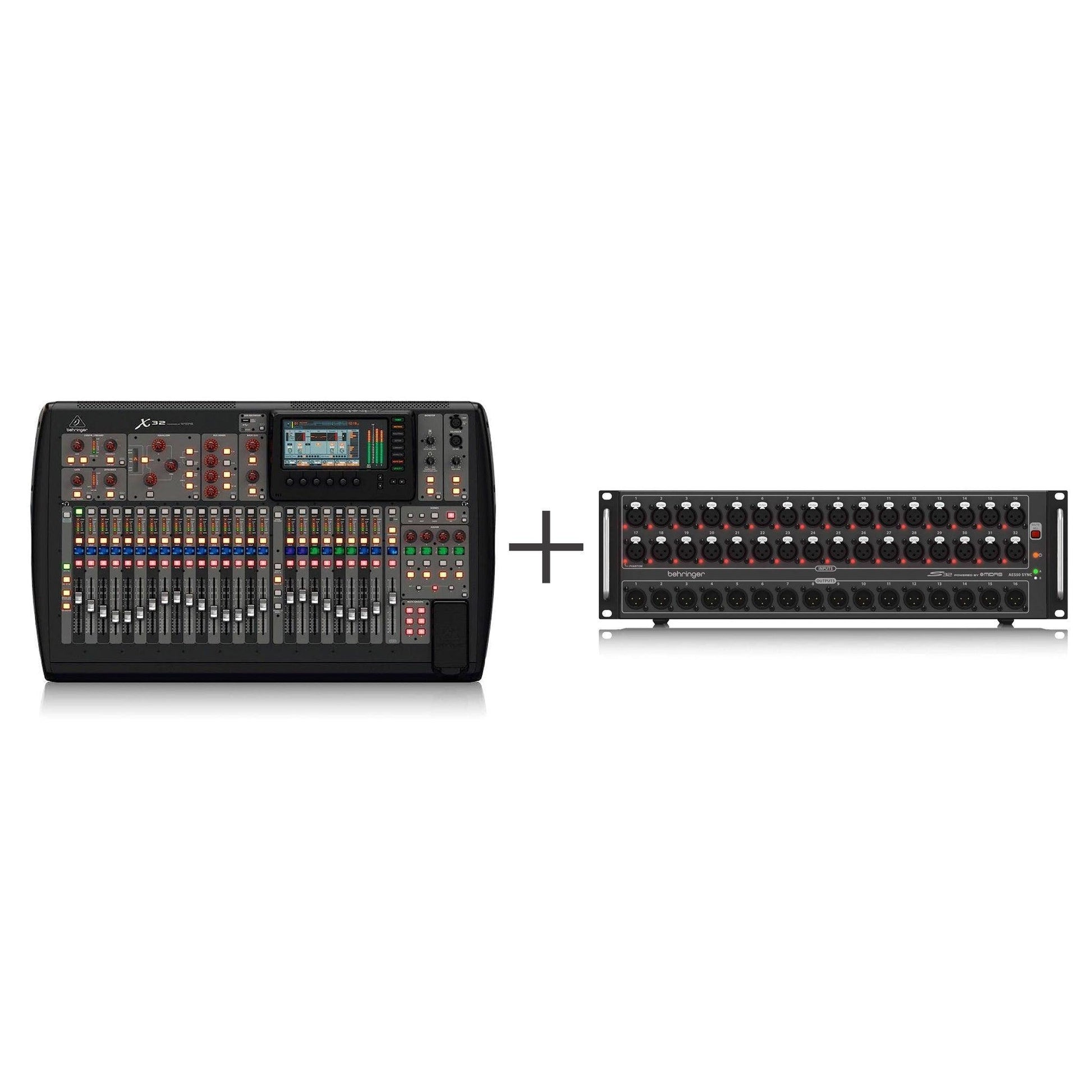

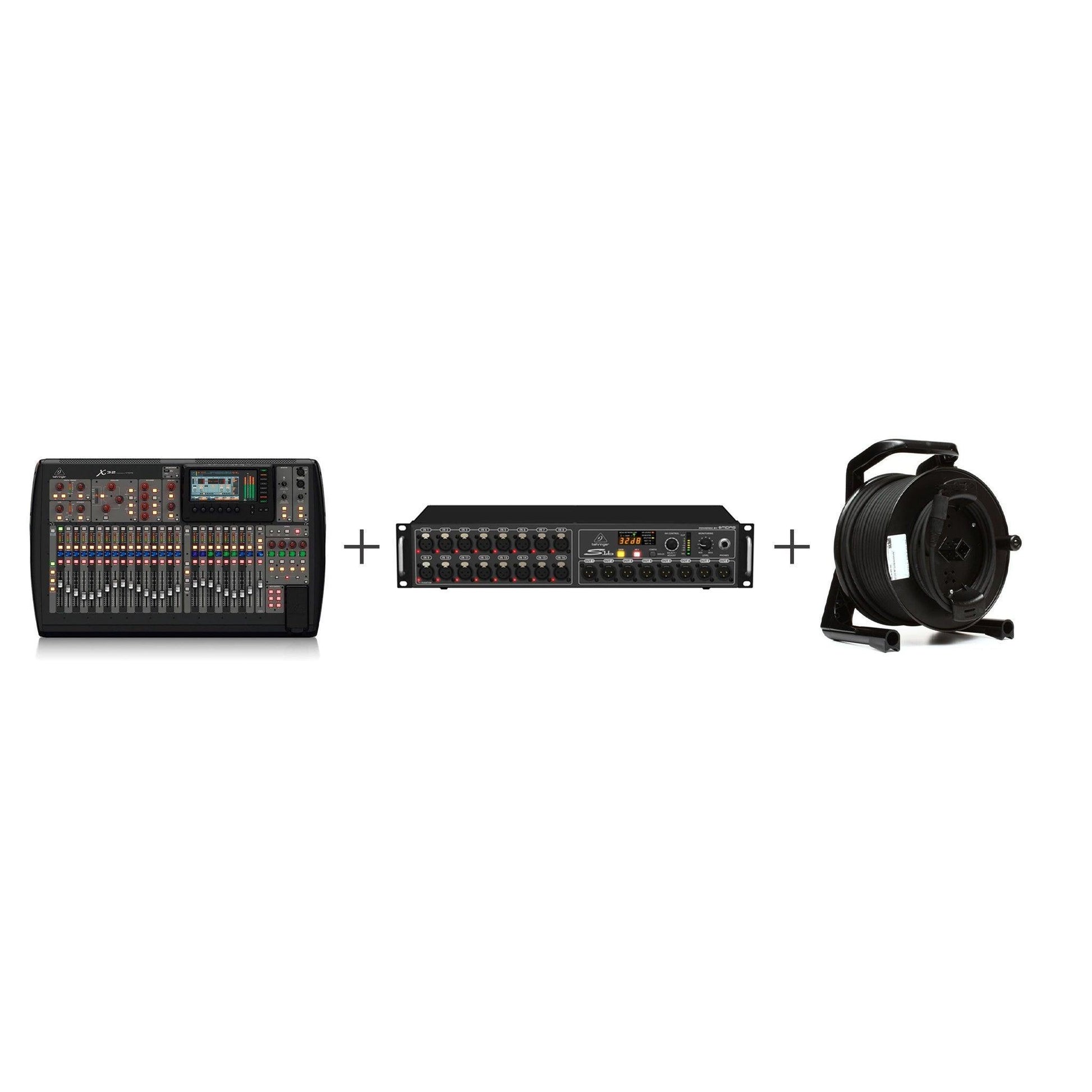

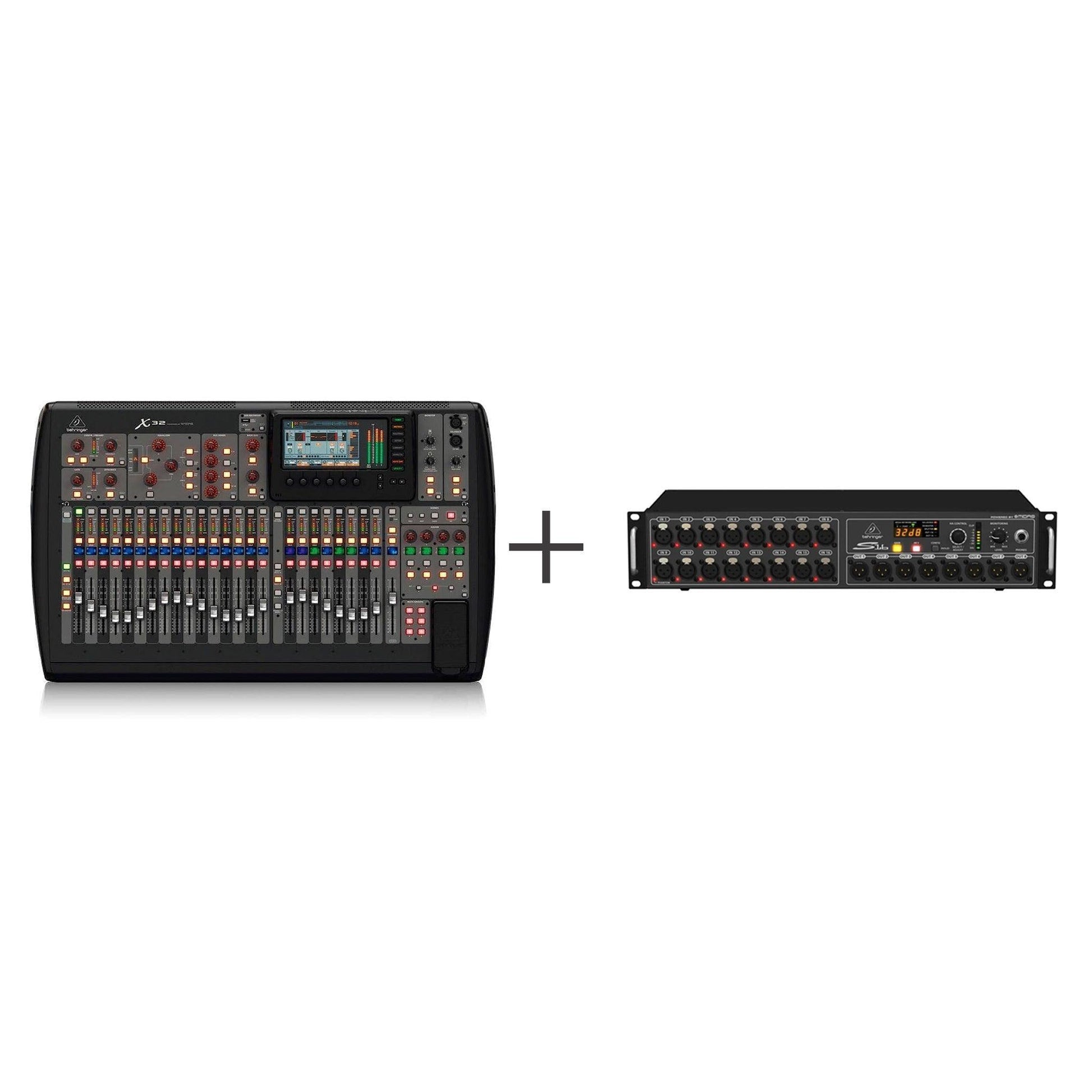

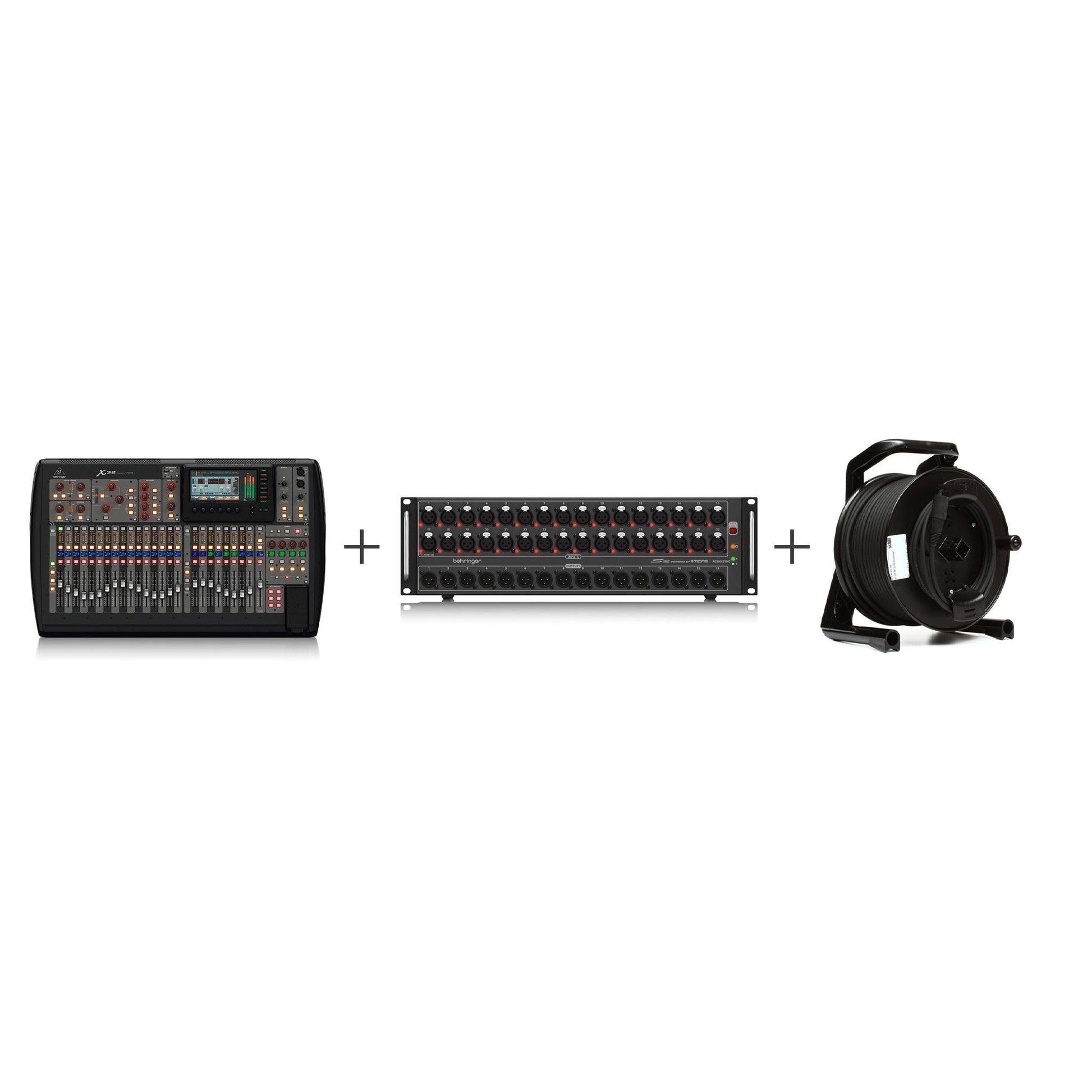

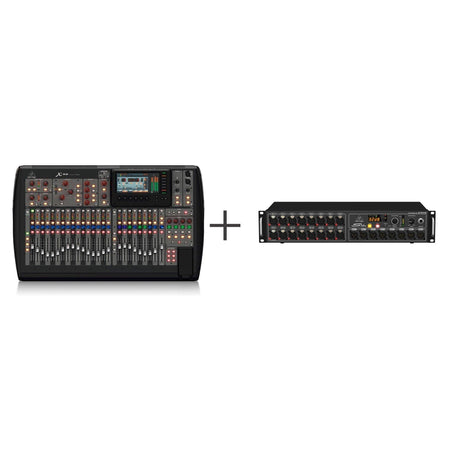

Behringer X32 Bundle

X32

 The BEHRINGER X32 has changed the game by completely rethinking what is possible from a digital mixer and hundreds of thousands of users are enjoying the results. A fluid workflow coupled with a fully interactive user interface ensures immediate familiarity and instils confidence. Advanced engineering and meticulous design deliver stellar sonic performance at an extremely affordable price changing the game entirely. Three companies shared a common vision to engineer and build the very best-sounding, technically-advanced audio products for discerning professionals. The X32 Digital Mixer family is the result of the engineering, manufacturing and application expertise of legendary console manufacturer MIDAS, the iconic signal processing genius of KLARK TEKNIK and BEHRINGER's unique ability to deliver a superior value proposition.

• 40-input channel, 25-bus digital mixing console for Studio and Live application
• 32 Midas-designed, fully programmable mic preamps for audiophile sound quality
• 25 Fully automated motorized 100 mm faders allow for instant overview, powerful scene management and DAW control
• 16 XLR outputs plus 6 additional line in/outputs, 2 phones connectors and a talkback section with integrated or external mic
• Individual and dynamic LCD Scribble Strips on all channels and buses creating easy assignment and intuitive channel distinction
• 32 x 32 channel USB 2.0 audio interface, with DAW remote control emulating HUI* and Mackie Control*
• iPad* and iPhone* apps for professional remote operation available free of charge?no host PC required
• High-resolution 7" day-viewable Color TFT for easy viewing of workflow components and parameters
• Main LCR, 6 matrix buses and 16 mix buses each featuring inserts, 6-band parametric EQ's and full dynamics processing, plus 8 DCA and 6 mute groups
• Virtual FX rack featuring 8 true-stereo FX slots include high-end simulations such as Lexicon 480L* and PCM70*, EMT250* and Quantec QRS* etc.
• 40-Bit floating-point DSP features "unlimited" dynamic range with no internal overload and near-zero overall latency (0.8 msec)
• Powerful scene management for convenient handling of complex productions
• 48-channel Digital Snake ready* via AES50 ports, featuring Klark Teknik?s SuperMAC networking capability for ultra-low jitter and latency
• USB type-A connector providing file storage and uncompressed stereo recordings plus show presets and system updates
• Dedicated and easy-to-use channel strip section with direct access controls and graphic user interface for intuitive workflow
• Additional user-definable control section allows for on-the-fly adjustments of your favorite parameters
• ULTRANET connectivity for Behringer's P-16 Personal Monitoring System* plus AES/EBU stereo digital output and MIDI
• Networked remote control for show setups with on-screen software editor via Ethernet
• Built-in expansion port for audio interface cards or digital networking bridges
• Future firmware updates, incl. new FX ?Plug Ins?, downloadable from behringer.com free of charge
• Designed and engineered in Germany

 S16

 Digital mixing has revolutionized virtually everything in the live- entertainment production workflow. Now we've come up with the perfect solution for connecting the onstage talent with your Front of House (FOH) console, and the rest of the world the ultra-cool and ultra-affordable SD16 Stage Box! The SD16 provides 16 MIDAS-designed remote-controllable mic preamps, 8 balanced analog XLR returns at the stage end, plus an integrated 4-port ULTRANET distribution hub for direct connection to our P16-M personal monitor mixers without any additional hardware required. Plus, the SD16 is extremely compact and comes with rugged protective bumpers, so you can toss them directly on stage wherever you need them.

• 16 Midas-designed, fully programmable mic preamps for audiophile sound quality
• 8 analogue, servo-balanced XLR outputs
• AES50 network ports featuring Klark Teknik?s SuperMAC networking capability for ultra-low jitter and latency
• ULTRANET connectivity for Behringer's P16 personal monitoring system
• Digital audio and control connectivity for Turbosound speaker systems with ULTRANET networking capability
• Dual AES50 ports for cascading additional S16, SD16 or SD8 stageboxes?no merger or router required
• Precise LED metering plus 7-segment displays for signal control on stage
• Dual ADAT outputs providing 16-channel digital output on two optical TOSLINK* connectors
• Phones output assignable to any of the inputs/outputs for on-stage monitoring
• MIDI In/Out for bi-directional communication between Behringer X32 Series console and on-stage MIDI devices
• Remote operation via shielded CAT5e cable up to 330 ft / 100 m length
• USB connector for system updates via PC
• "Planet Earth" switching power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving
• "Built like a tank" yet compact, all-steel 2U rack-mount chassis
• Conceived and designed by Behringer Germany

S32

 The S32 provides 32 MIDAS-designed remote-controllable mic preamps, plus 16 balanced analog XLR returns at the stage end and all it takes is a single Cat 5e cable (up to 328 ft / 100 m). While KLARK TEKNIK, the industry-leader in high-end digital audio processing, invented the AES50 SuperMAC technology that made it all possible our superb scale of production makes the S32 so very affordable.

• 32 Midas-designed, fully programmable mic preamps for audiophile sound quality
• 16 analog, servo-balanced XLR outputs
• AES50 network ports featuring Klark Teknik?s SuperMAC networking capability for ultra-low jitter and latency
• ULTRANET Connectivity for Behringer's P16 personal monitoring system for in-ear applications
• Digital audio and control connectivity for Turbosound speaker systems with ULTRANET networking capability
• Automatic AES50 stage-split mode when connected between Behringer X32 Series FOH and monitor consoles
• Dual AES50 ports for cascading additional S16, SD16 or SD8 stageboxes?no merger or router required
• 2 AES-3 ports (AES/EBU), for directly connecting PA system controllers with digital inputs
• Dual ADAT outputs providing 16-channel digital output on two optical TOSLINK* connectors
• Mute All function for quietly patching any inputs on stage
• MIDI In/Out for bi-directional communication between Behringer X32 Series console and on-stage MIDI devices
• Remote operation via shielded CAT5e cable up to 330 ft / 100 m length
• USB connector for system updates via PC
• "Planet Earth" switching power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving
• "Built like a tank" yet compact, all-steel 3U rack-mount chassis
• Designed and engineered in Germany

NCAT5E50M

 Built from highly-flexible Neutrik etherFLEX and utilizing ultra-rugged etherCON connectors, NCAT5E-50M cable lends itself well to medium and long runs of AES50, Dante, EtherSound, CobraNet, AVB audio networking, or general-purpose Ethernet. Dual-shielded and dual-jacketed, NCAT5E-50M cable protects you against EMI and ESD interference as well as damage and breakage.

• Ultra-rugged and highly-flexible Neutrik etherFLEX Cat 5e cable
• Tested for both AES50 and EtherSound audio networking
• Dual-shielded for protection against EMI and ESD interference
• Dual-jacketed with PUR and FRNC layers for enhanced cable resilience
• Shielded Hirose RJ45 protected by Neutrik etherCON connectors on both ends
