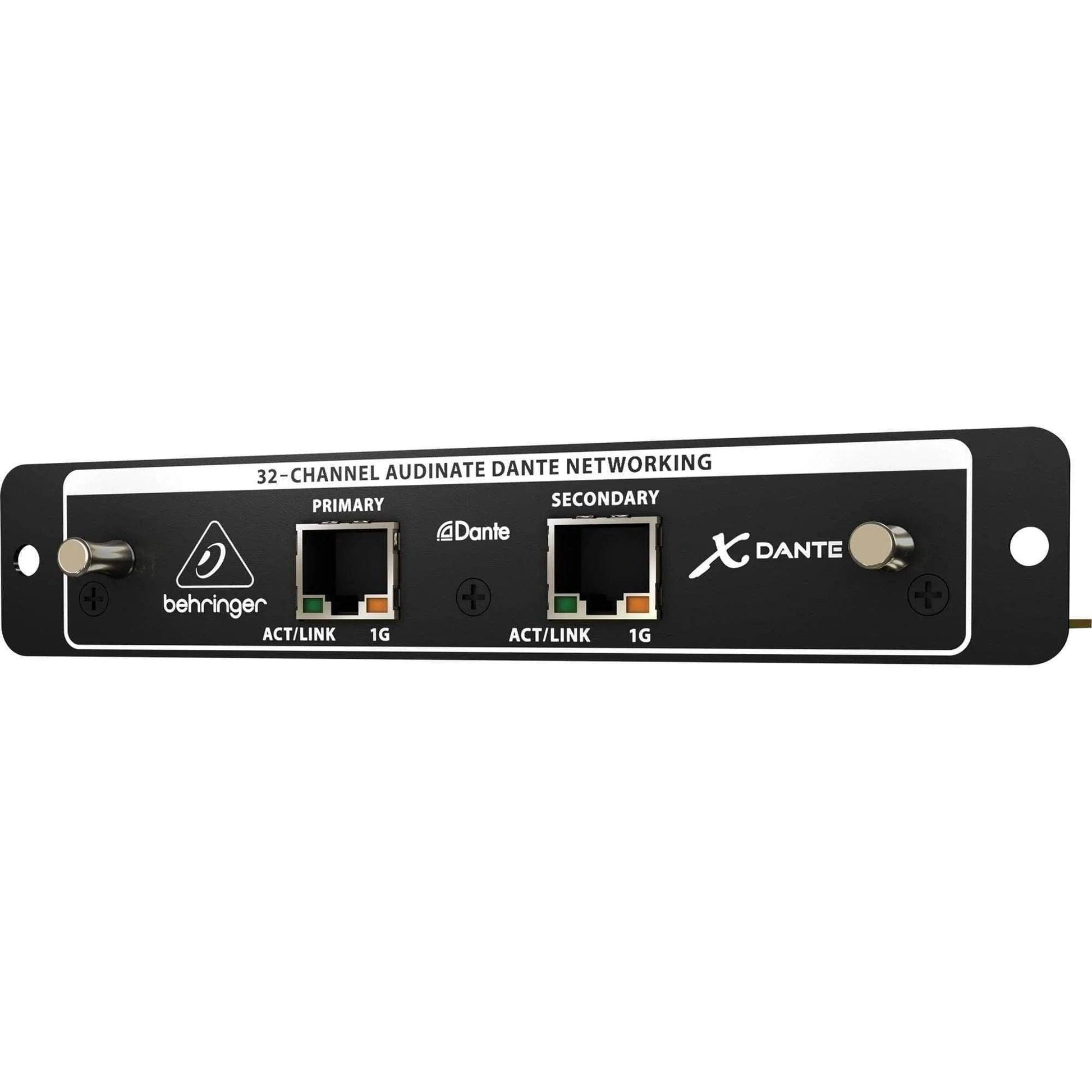

Behringer X-Dante 32-Channel Expansion Card For X32 Digital Mixing Console

Features:

• 32-channel 48 kHz, bi-directional audio interface for Dante * IP networks

• High-speed 24-bit signal transmission with sample-accurate synchronization and low latency

• Allows interfacing with standard 100 MBit/s or Gigabit network infrastructure with DSCP-based QoS

• Mixed sample and bit rates can coexist on the same network

• Full remote control of X32 possible using the integrated Ethernet switch

• Audinate * Dante Controller application with full control over configuration and signal routing among all Dante-enabled devices

• Dante Virtual Soundcard allows employing your PC or Mac * for IP-based multitrack recording and playback of up to 64 channels

• Secondary connection can be configured for seamless redundant audio networking

Description:

The Behringer X-Dante 32-Channel Expansion Card For X32 Digital Mixing Console is designed to expand the recording and routing capabilities of the mixer with Dante Audio over Ethernet systems. The card plugs into the expansion port on the back of the mixer and provides 32 simultaneous channels of low-latency sample-accurate bi-directional audio to 100 MBit/s or Gigabit network infrastructures with DSCP-based QoS.

The card can transfer the signal at 24-bit 48 kHz resolution and allows for audio with mixed bit and sample rates to simultaneously coexist on the network. The secondary Ethernet port connection can be set up for redundant audio networking.

Behringer XDANTE Spec:-
