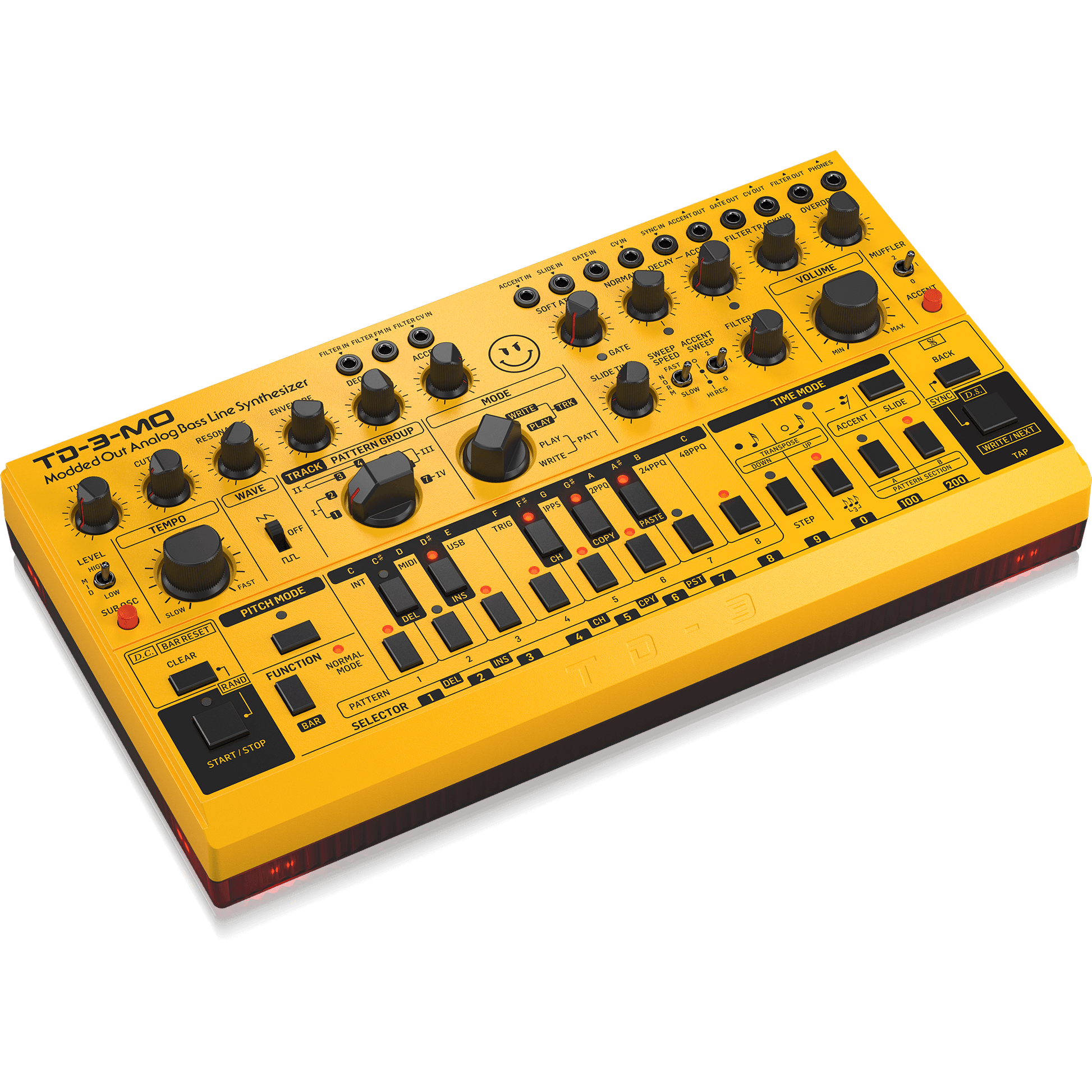

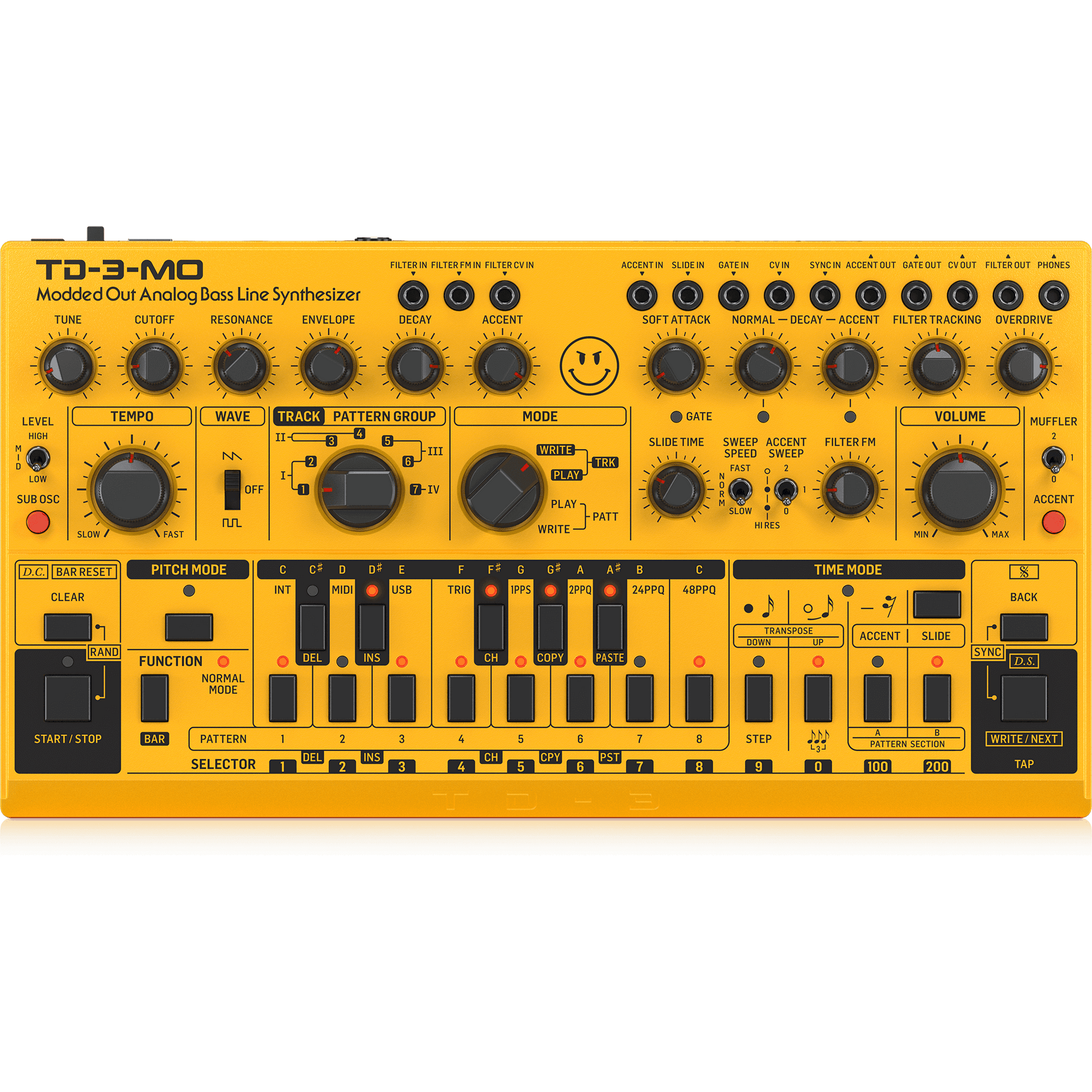

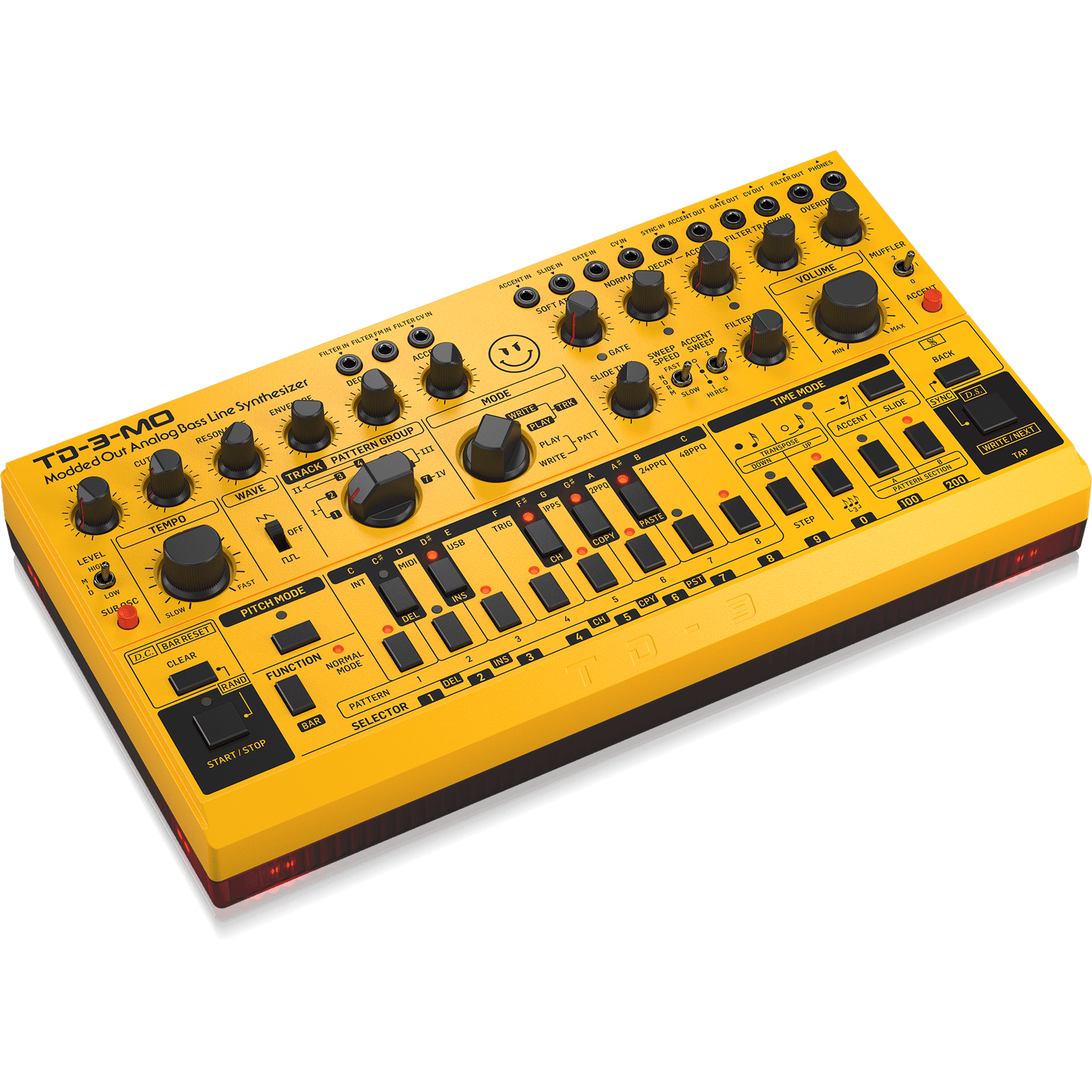

Behringer TD3MOAM “Modded Out” Analog Bass Line Synthesizer with VCO, MIDI-Controllable VCF and Sub-Harmonics Oscillator

Behringer TD3MOAM “Modded Out” Analog Bass Line Synthesizer with VCO, MIDI-Controllable VCF and Sub-Harmonics Oscillator

Regular price Dhs.861.00 AED
Regular price Sale price Dhs.861.00 AED
Sale Sold out

For Wholesale Enquiries Please Contact Us On WhatsApp

This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co

KEY FEATURES

  • “Modded Out” Bass Line synthesizer featuring the most legendary modifications

  • Pure analog signal path based on legendary VCO, VCF and VCA designs

  • Sawtooth and square waveform VCO with transistor wave-shaping circuitry

  • Amazing 4-pole low-pass resonant filter with cut-off, resonance, envelope, decay and accent controls

  • Easy-to-use 16-step sequencer with 7 tracks, each with 250 user patterns

  • Filter frequency fully controllable via MIDI C/C

  • Earth-shattering sub-harmonics oscillator with switchable output level

  • Authentic analog slide circuitry with external slide control

  • Slide Time control allows for variable slide time (up to 6 times longer)

  • Sweep Speed switch features 3 accent speed modes (slow, norm, fast)

  • Accent Sweep switch features 3 sweep combinations with high resonance mode

  • Filter FM control modulates frequency of the filter from the audio output of the VCA

  • Muffler circuitry features post VCA distortion with full bass response

  • Dedicated Accent push button to manually activate the accent

  • Soft Attack control for wide range of attack times for non-accented notes

  • Normal control for wide range of decay time for non-accented notes

  • Accent control for wide range of decay time for accented notes

  • Filter Tracking control for filter frequency tracking of the current note

  • Overdrive control adds insane spice and edge to your sounds

  • Massive amount of CV and Gate in/outs for extreme creativity

  • 16-voice Poly Chain allows combining multiple synthesizers for up to 16-voice polyphony

  • Premium quality VRs featuring high resolution and metal shafts for long lifecycle

  • 15 controls and 33 switches to give you direct and real-time access to all important parameters

  • MIDI and USB implementation with MIDI channel and Voice Priority selection

    DESCRIPTION

    Sometime after the release of the original TB-303, creative users realized that there was more to squeeze out of an already amazing bass machine, to produce sounds that were unique to themselves. As word started spreading about third-party mods adding more functions and many more ways to shape sounds, synth-heads around the world wanted to get their hands on a modded TB-303. Now it’s a lot easier to get that awesome “modded-out” sound with the Behringer TD-3-MO-AM, an ultra-affordable and faithful homage to the iconic synthesizer that’s capable of creating some fiery basslines and much more.

    With its pure analog signal path, 16-step sequencer and authentic VCO, VCF and VCA filters, the TD-3-MO-AM is sure to become one of your favorite synthesizers.

    SPECIFICATIONS

    Category Specification
    Synthesizer Architecture
    Number of Voices Monophonic
    Type Analog
    Oscillators 1
    VCF 1 Low Pass
    Envelopes 1

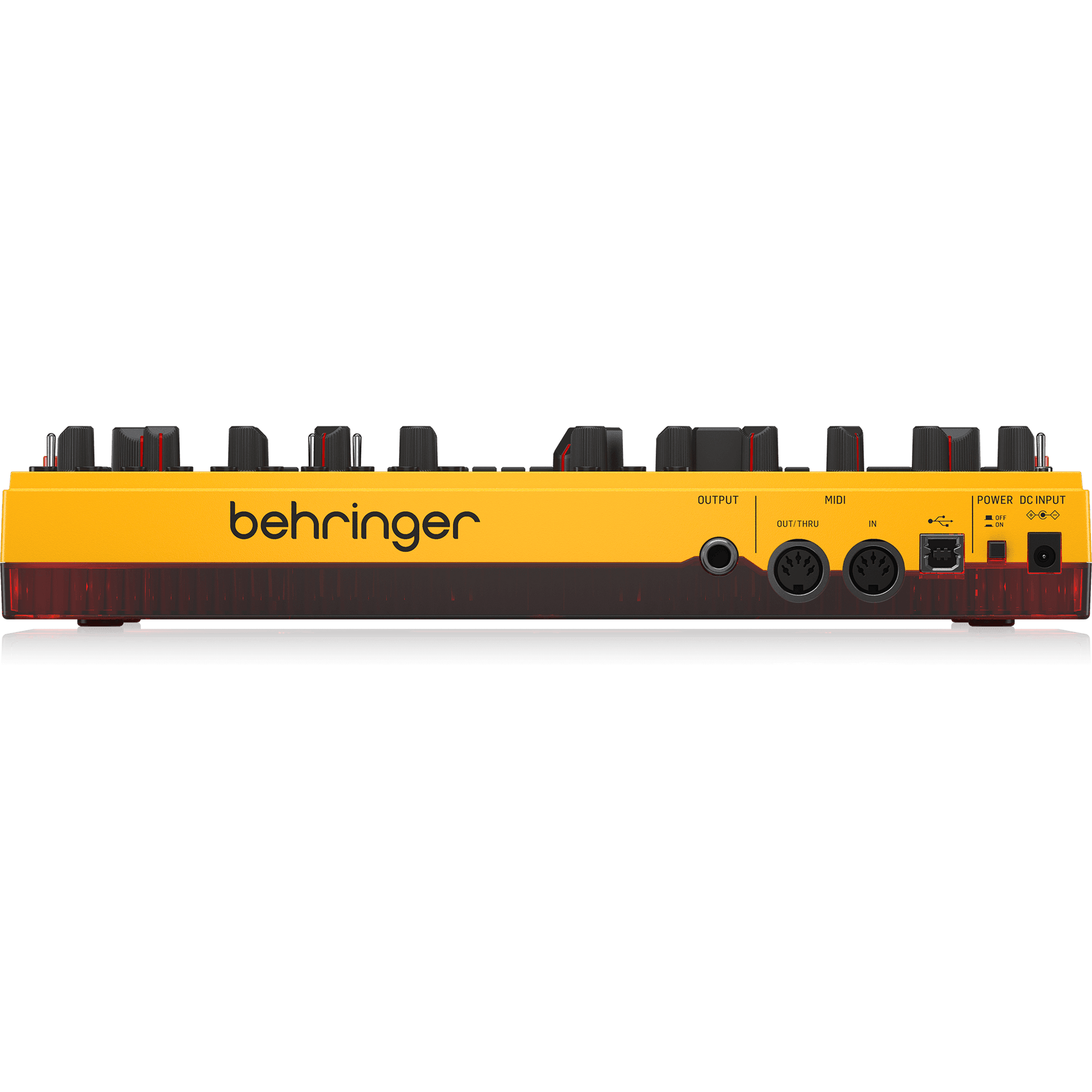

    Connectivity
    Power Input DC input connector
    Power Switch Push button on/off
    MIDI MIDI In and Thru, 5-pin DIN
    USB (MIDI) USB 2.0, Type B
    Line Output 1/4" TRS, unbalanced, max. +8 dBu
    Output Impedance 1.5 kΩ
    Headphones
    Connector 3.5 mm TRS
    Output Power Max. 50 mW @ 32 Ω (1 kHz, 1% THD)
    Output Impedance 15 Ω
    USB
    Type Class compliant USB 2.0, Type B
    Supported OS Windows 7 or higher, macOS X 10.6.8 or higher
