Behringer System 35
Behringer System 35
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
KEY FEATURES

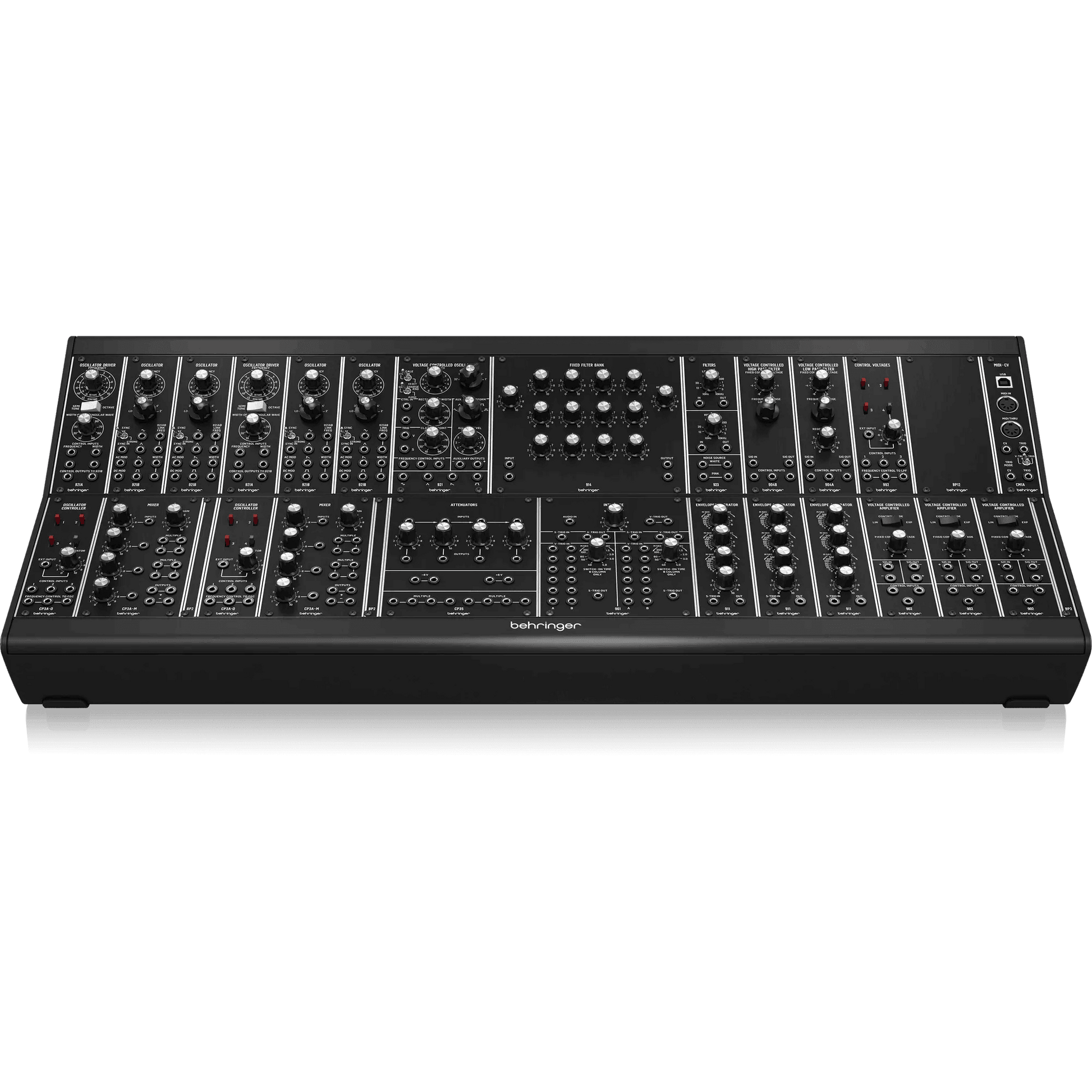

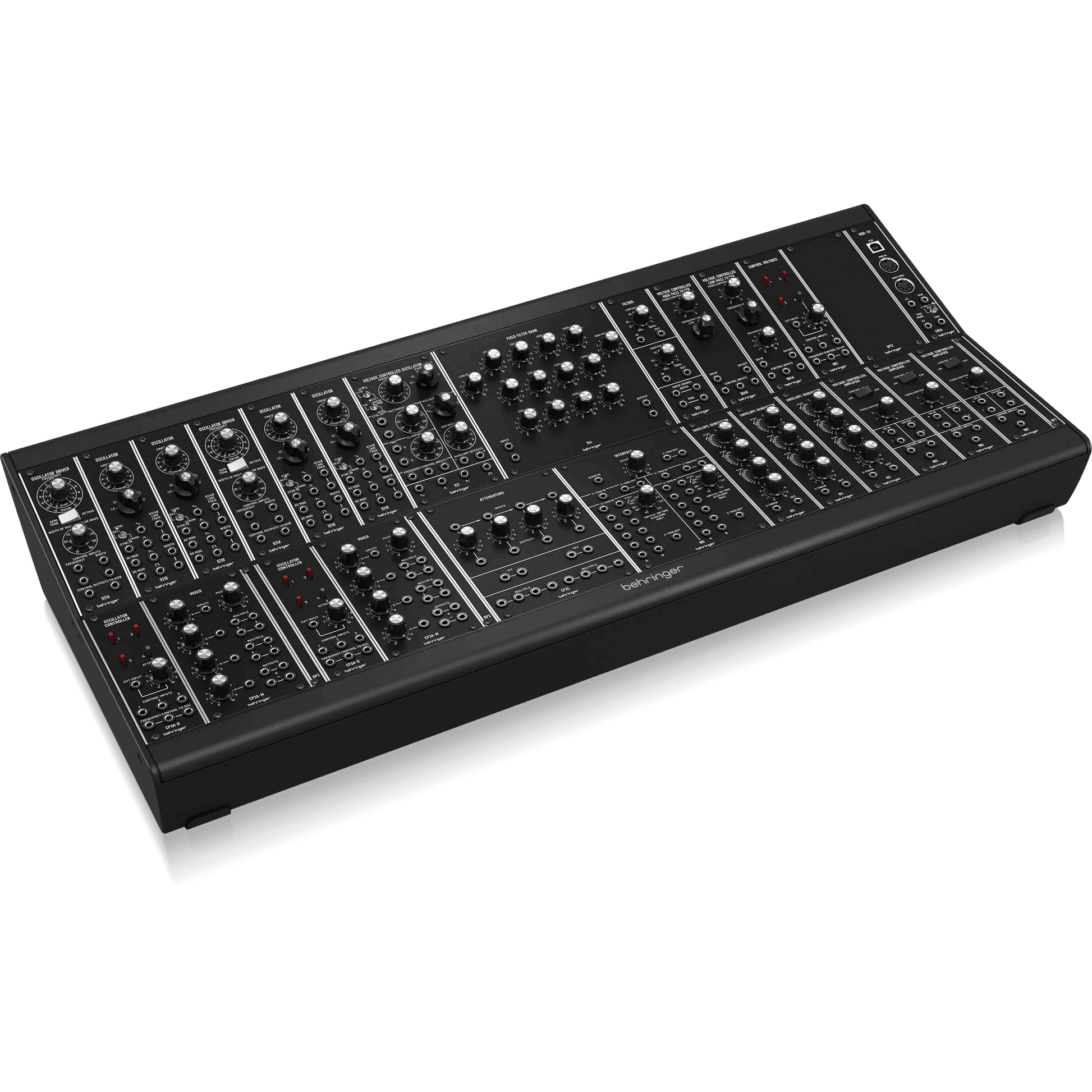

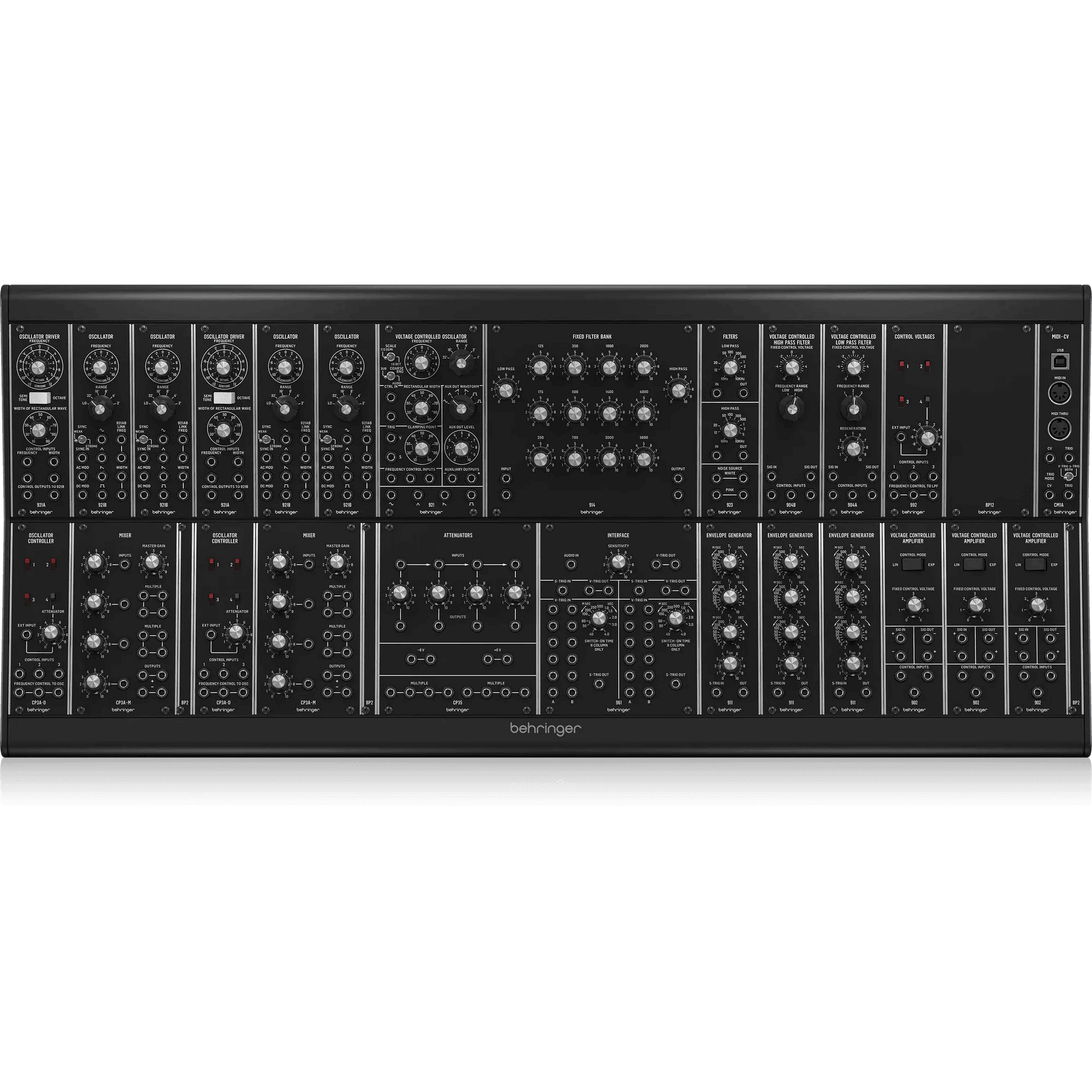

- Pre-assembled ”System 35“ modular synthesizer with 25 vintage-sounding modules from the ’70s
- 2x 921A OSCILLATOR DRIVER with 4x 921B VCOs and 1x 921 VCO provide you with 5 fully featured voices
- 1x 914 FIXED FILTER BANK with 12 active bandpass filters ranging from 125 Hz - 5.6 kHz and LP/HP filters
- 1x 923 FILTERS modules with 6 dB low and high pass filters and white/pink noise sources
DESCRIPTION
The SYSTEM 35 is an amazing tool for those who are just starting down the psychedelic, neon-bathed road of modular synthesis. This whole setup comes equipped with two 921A OSCILLATOR DRIVERS, four 921B VCOs and a 921 VCO all of which provide five fully featured voices that you can adjust and tweak any way you want! The two CP3A-M MIXER modules allow you to mix up to four inputs each which you can then patch out to other modules. Want a nice pad to your song? Have one signal go to a delay module and have another go into a step sequencer or other modules in the SYSTEM 35 for more intricate patches and hours and hours of fun! The SYSTEM 35 also includes the CP35 ATTENUATOR module with 4 linked attenuators and two sets of 4 multiples and reference voltages. Connecting a single signal to the CP35’s first input will allow it to pass to all 4 outputs. This allows you to have up to 4 variable outputs of a single signal source. Also included are two banks of 4-point multiple circuits for you to be able to route multiple copies of input signals to other modules.
SPECIFICATIONS
Source |
Destination |
External MIDI Keyboard – MIDI Out |
CM1A MIDI Interface MIDI In |
CM1A CV Output |
921A Oscillator Controller Frequency Input |
921A Frequency Output |
921B Frequency Link (in series) |
Source |
Destination |
921B Waveform outs (three of four) |
CP3A-M Inputs |
CP3A-M Output |
904A Signal Input |
904A Signal Output |
902 Signal Input |
902 Signal Output |
Your mixer/amplifier/DAW |
Source |
Destination |
CM1A s-trigger Output |
Multiple |
Multiple Output (three of) |
3 x 911 s-trigger Input |
1st 911 Output |
1st 902 Control Input |
Source |
Destination |
2nd 911 Output |
904A Control Input |
921 Aux Sine Output |
2nd 902 Signal Input |
2nd 902 Signal Output |
CP3A-O Input 4 |
CP3A-O Outputs |
921B DC Mod Input (three of) |
3rd 911 Output |
2nd 902 Control Input |
2nd 902 Signal Output |
921B DC Mod Inputs via Multiple |
2nd 911 Output |
2nd 902 Control Input |
