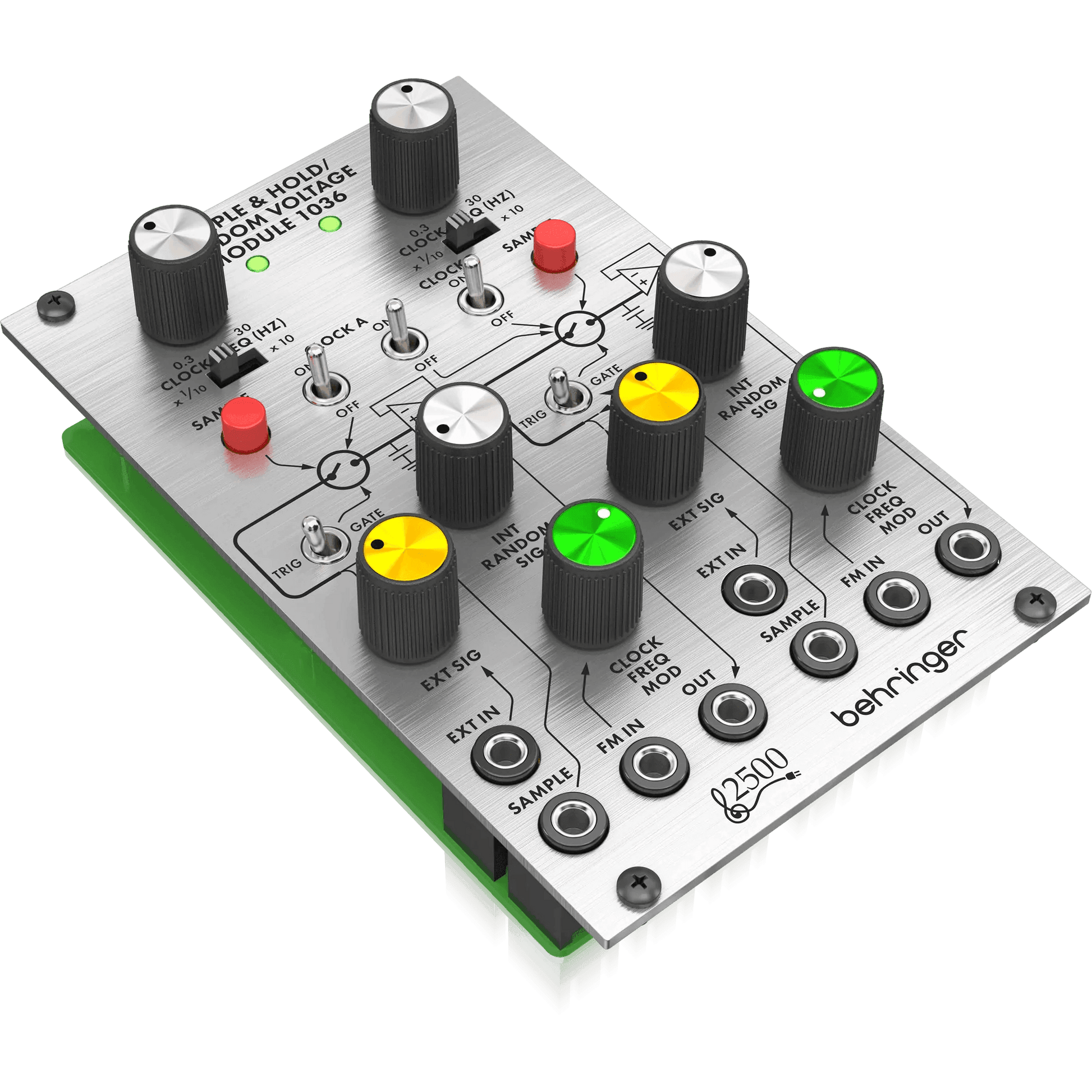

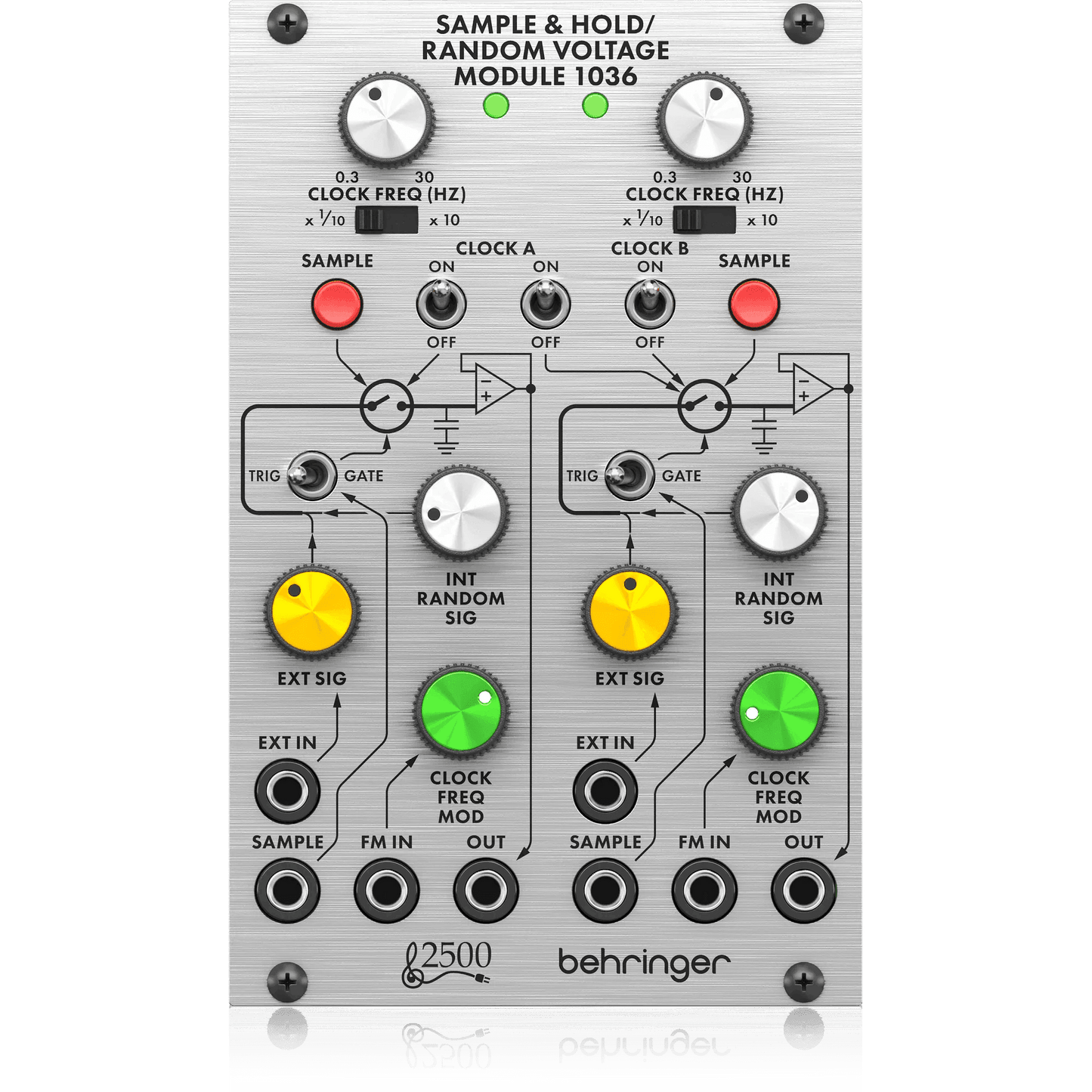

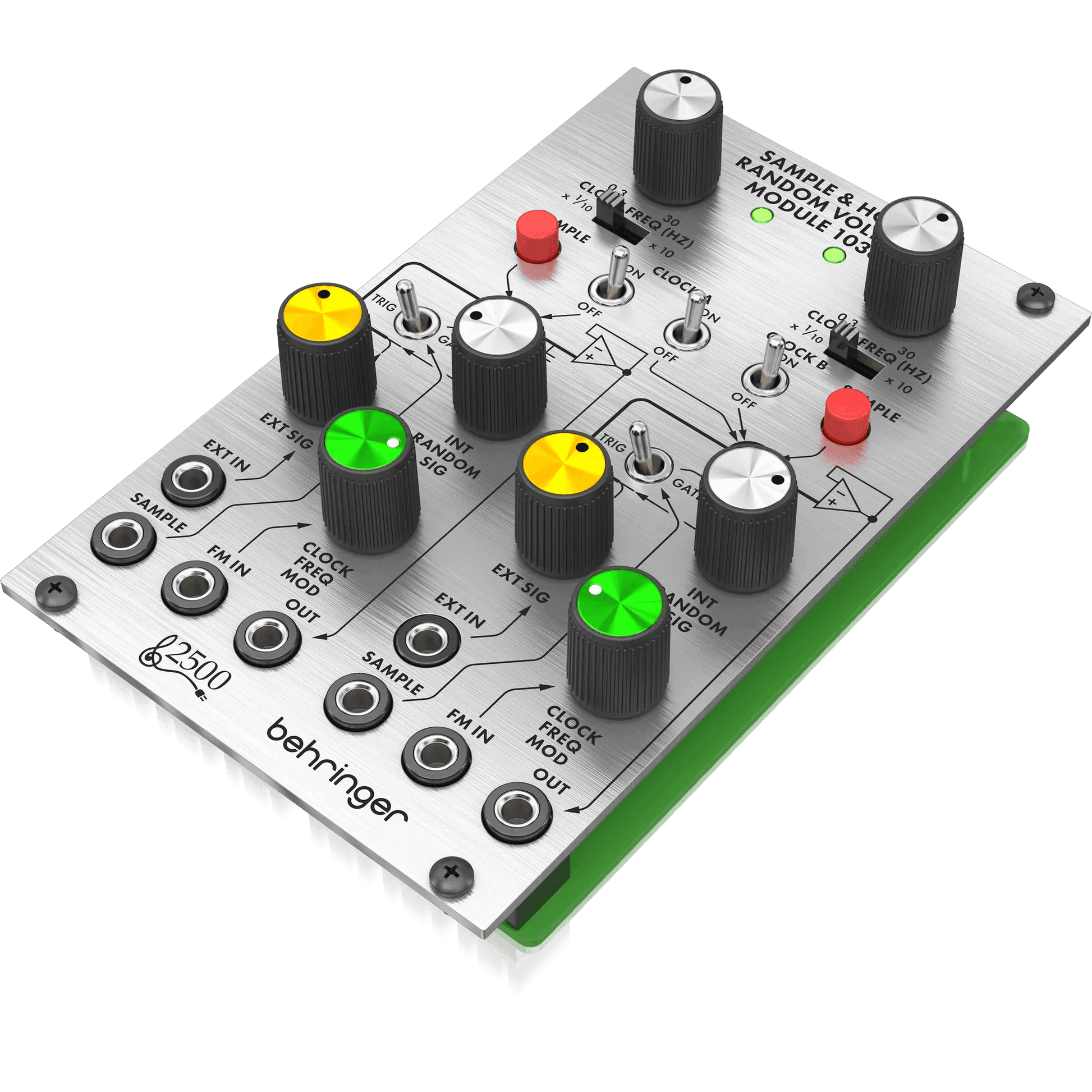

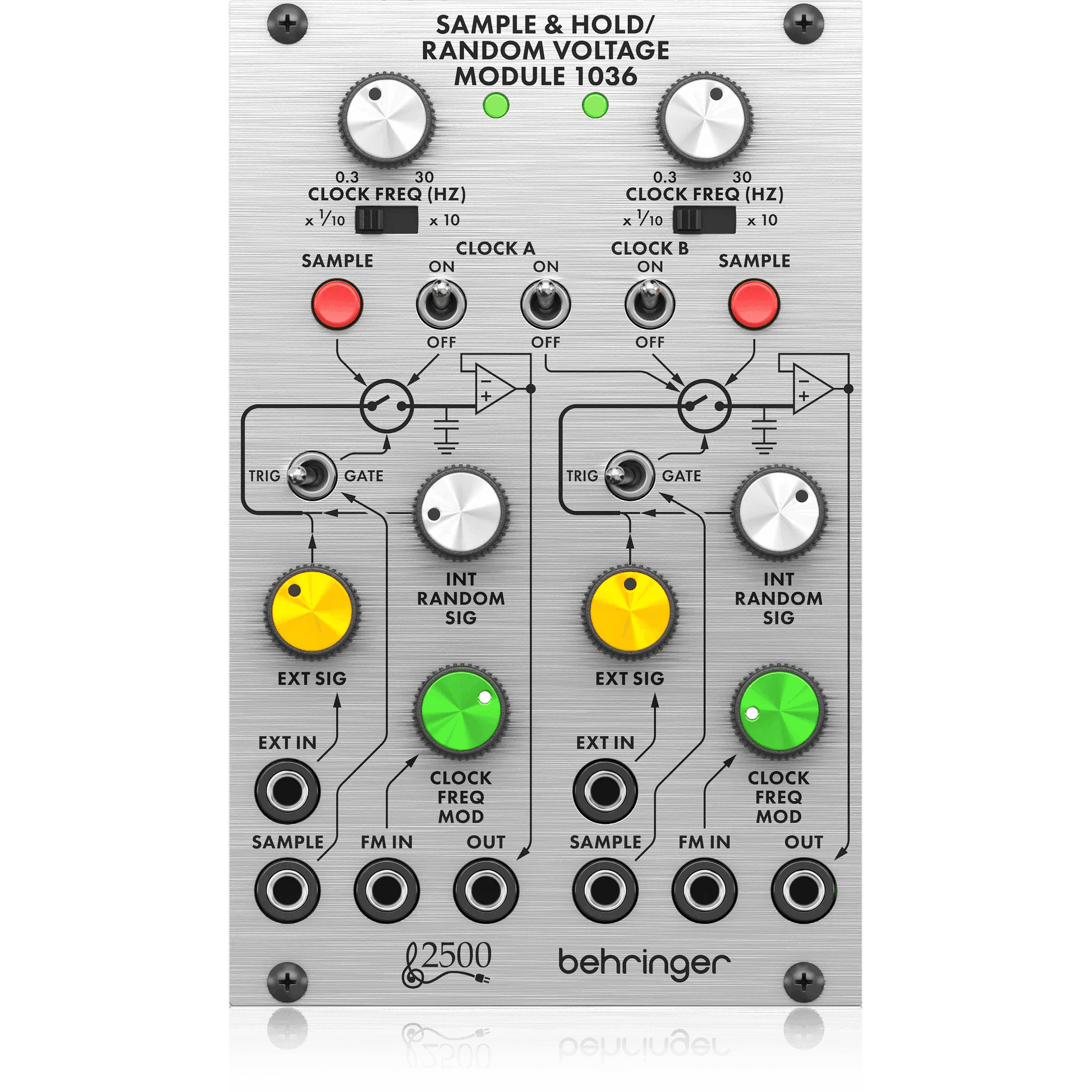

Behringer SAMPLE & HOLD / RANDOM VOLTAGE MODULE 1036

Behringer SAMPLE & HOLD / RANDOM VOLTAGE MODULE 1036

Regular price Dhs.485.00 AED
Regular price Dhs.0.00 AED Sale price Dhs.485.00 AED
Sale Sold out

For Wholesale Enquiries Please Contact Us On WhatsApp

This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co

Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information

KEY FEATURES

  • Classic 1036 analog dual sample and hold module from the '70s

  • Authentic reproduction of the circuitry from the "2500" Series

  • Contains 2 independent sample and hold circuits, 2 random noise generators, and 2 voltage-controlled clocks

  • Produces random tone sequences, scales and arpeggios

  • Audio signal input and output for each Sample and Hold circuit with a sample command input to control the timing of samples from different sources

  • Clock Frequency control adjusts the frequency of each clock and the sampling rate

  • Manual sample control is available using momentary push buttons

  • Sampling can also be controlled externally via a trigger or gate signal using the external input connection

  • An internally generated random signal can be used as the sampled signal with an adjustable level control for each circuit

  • Eurorack specs: 16 HP, XX mA +12 V, XX mA -12 V


DESCRIPTION

The first 2500 series synth modules came out in the 70s and tended to be extremely expensive. They were mainly all discrete transistor designs with some op-amps as at the time op-amps were high cost. The discrete circuitry gave the modules a very distinctive sound and were used by artists like The Who, Jean Michel Jarre, Vangelis, Kraftwerk and so many more, giving us some of the greatest records and film soundtracks we’ve ever heard. Modular synths were a landmark development in electronic music and today, it’s about to get better.

SPECIFICATIONS

Inputs

FM in

Type

2 x 3.5 mm TS jacks

Impedance

50 kΩ, unbalanced

CV range

0-10 V

Sample

Type

2 x 3.5 mm TS jacks

Impedance

10 kΩ, unbalanced

Max input level

5 V

Ext in

Type

2 x 3.5 mm TS jacks

Impedance

25 kΩ, unbalanced

Max input level

10 V

Outputs

Out

Type

2 x 3.5 mm TS jacks

Impedance

1 kΩ, unbalanced

Max output level

10 V

Controls

Clock freq

0.3-30 Hz

Clock range

Clock value factor of x0.1 or x10

Clock on/of

Engage pulse generators

Sample

Generate sample command

Trig/gate

Selects sample (trig) or continues sample (gate)

Int random sig

0 to ±7 V

Ext sig

-∞ to unity gain

Clock freq mod

-∞ to unity gain

Power

Power supply

Eurorack

Current draw

40 mA (+12 V), 40 mA (-12 V)

Physical

Dimensions

43 x 81 x 129 mm (1.7 x 3.2 x 5.1")

Rack units

16 HP

Weight

0.18 kg (0.4 lbs)
