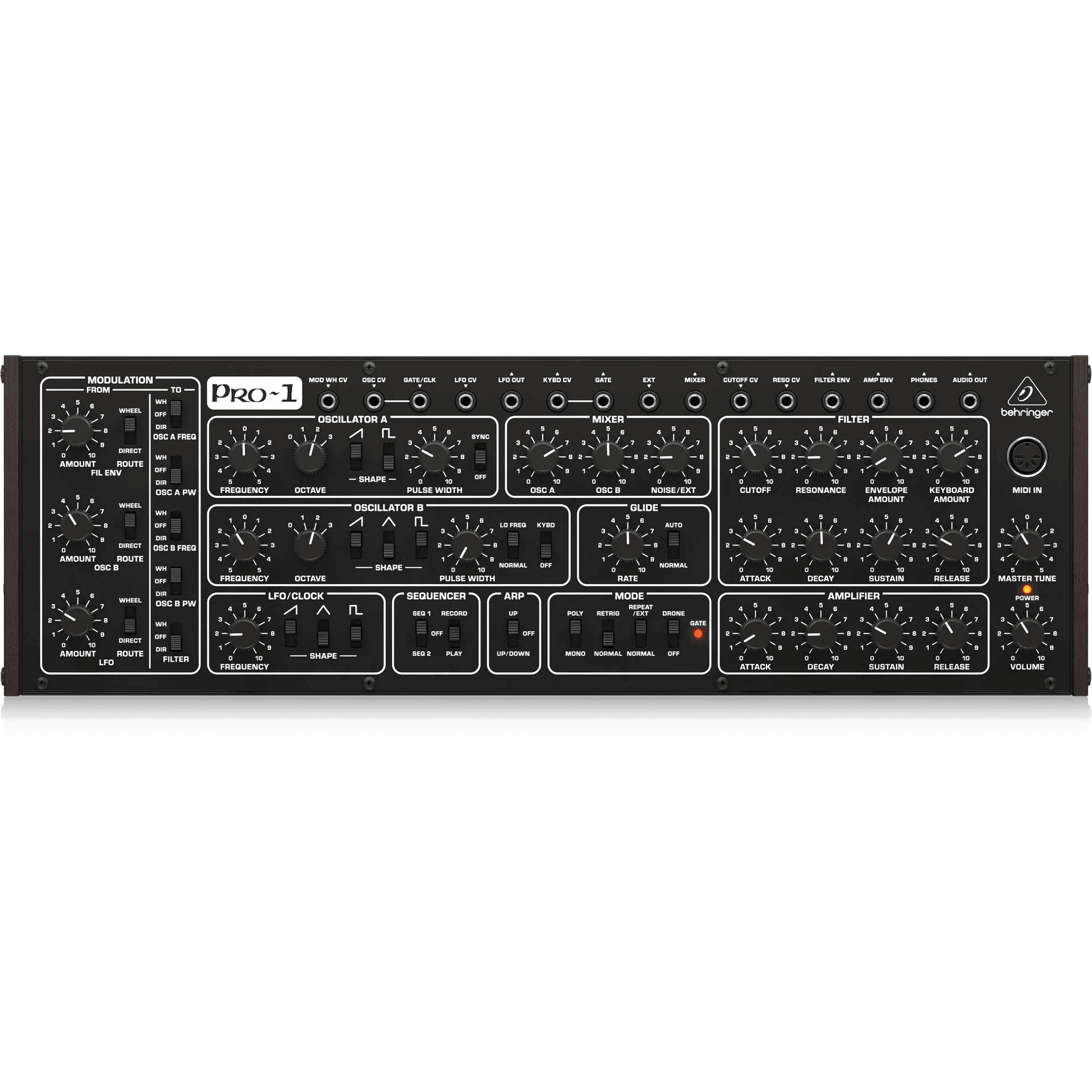

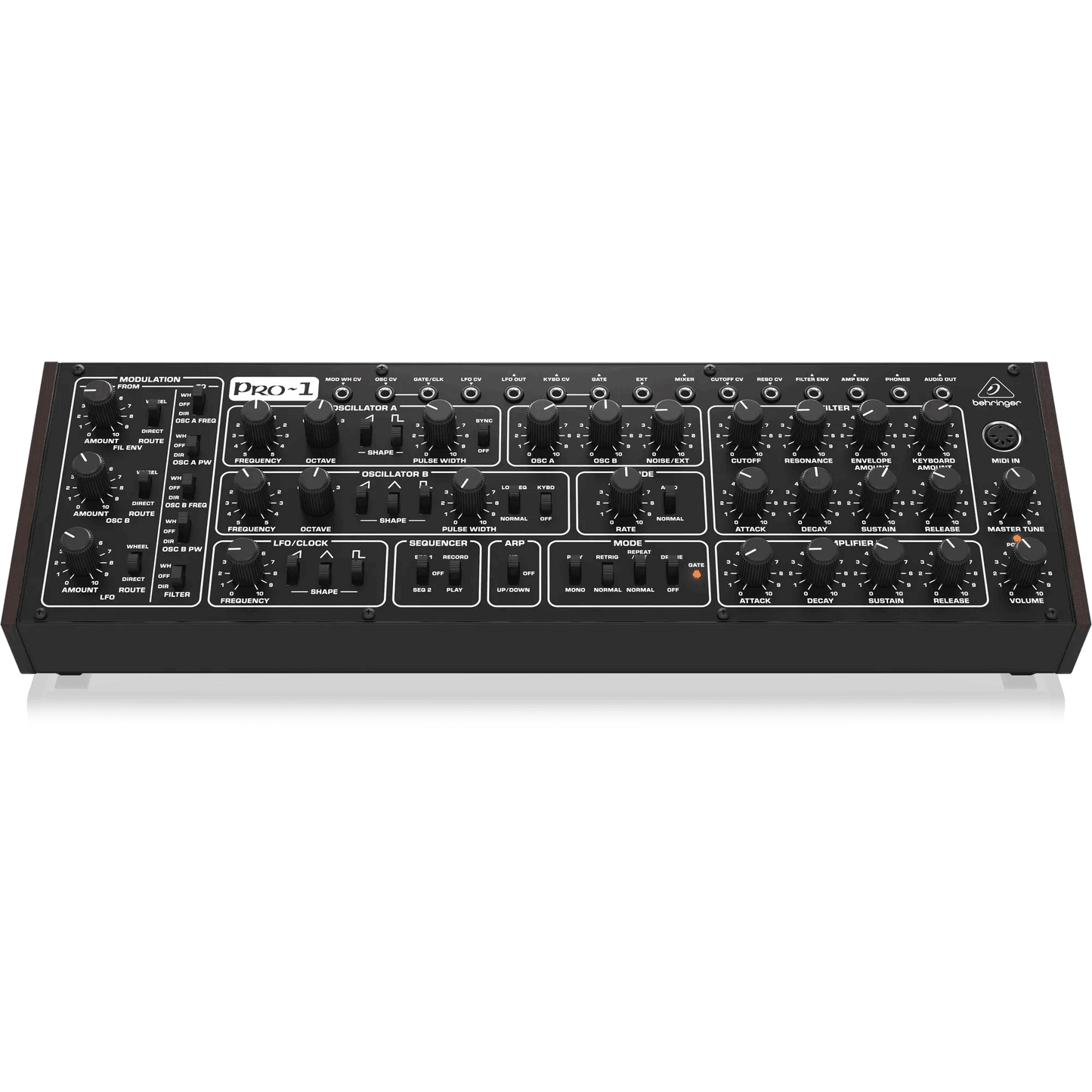

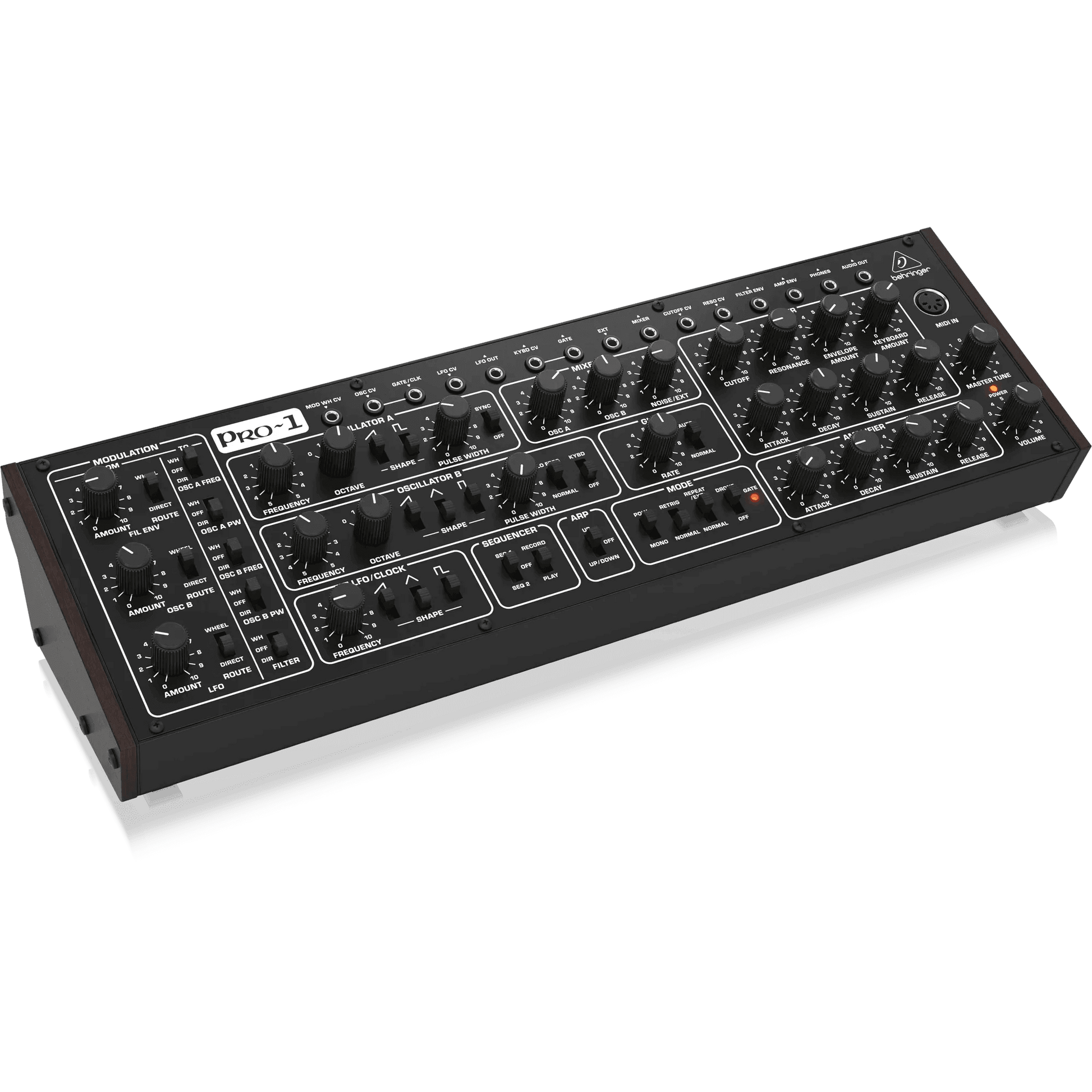

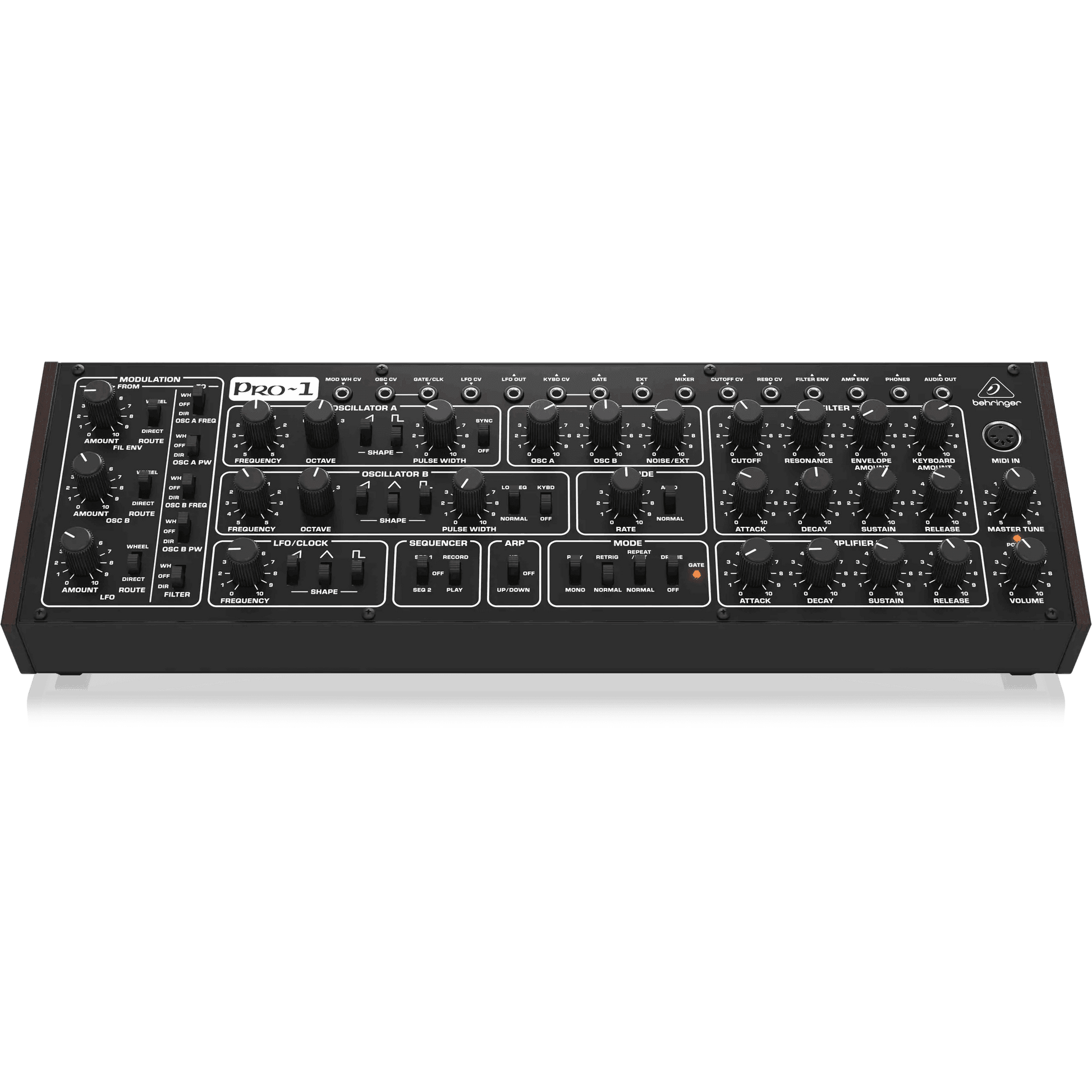

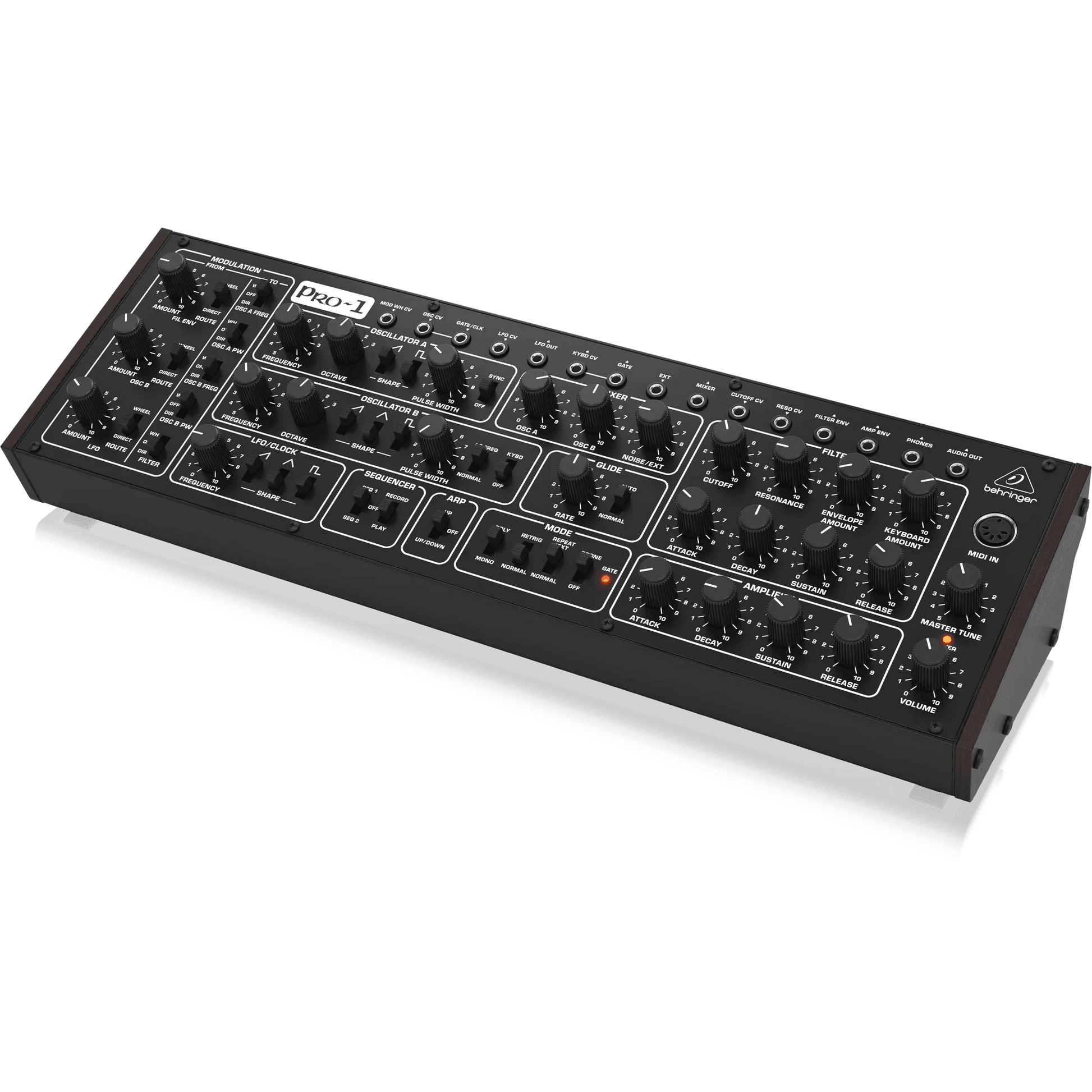

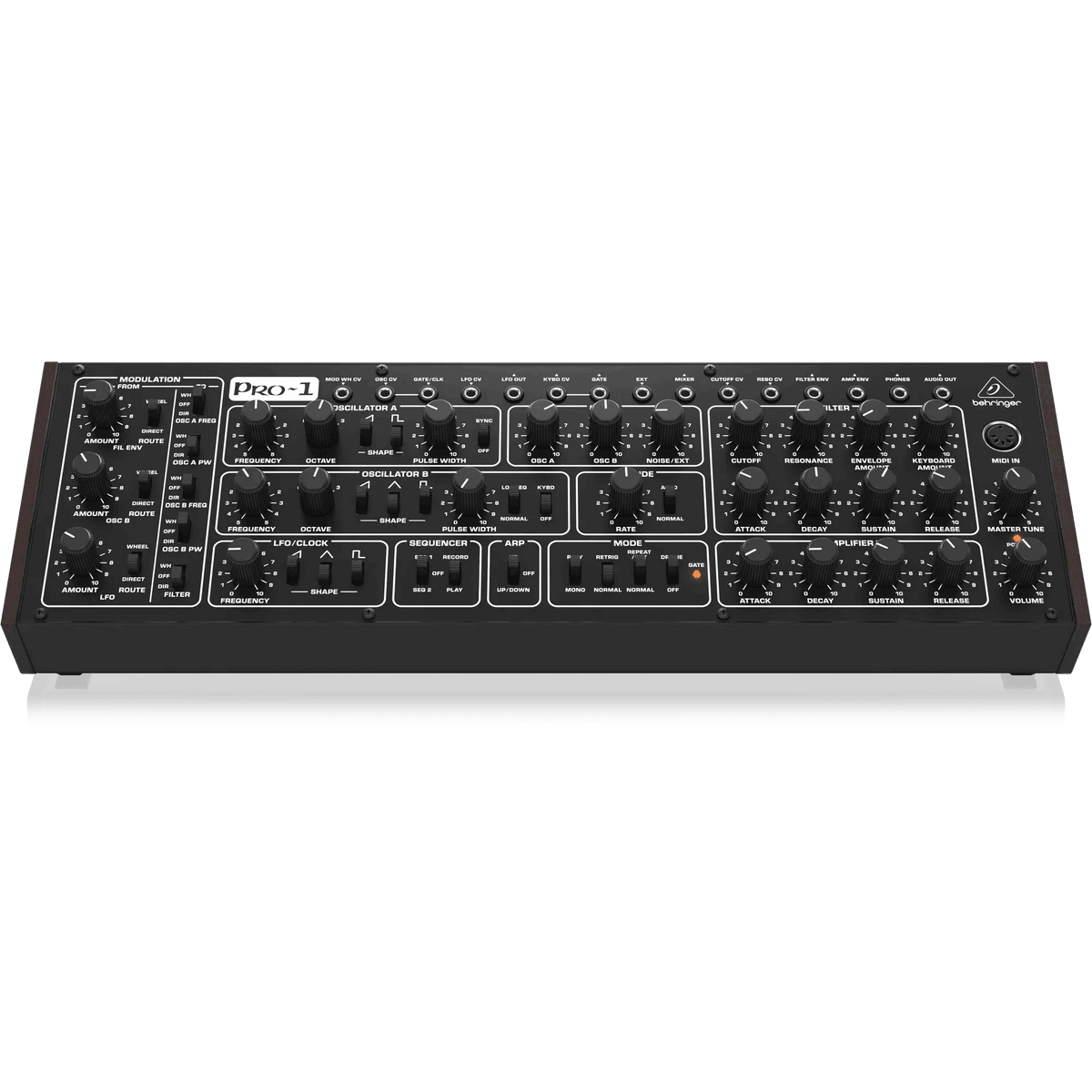

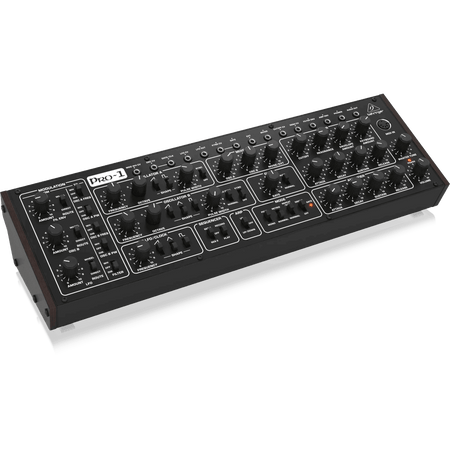

Behringer PRO-1 Analog Synthesizer
Behringer PRO-1 Analog Synthesizer
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
KEY FEATURES-
Amazing analog synthesizer with dual VCO design allows for amazingly fat music creation
-
Authentic reproduction of original circuitry with legendary 3340 and 3320 semiconductors
-
Pure analog signal path based on authentic VCO, VCF and VCA designs
-
3 simultaneous oscillator shapes (OSC A: Saw / Pulse, OSC B: Saw / Triangle / Pulse waveforms)
-
Dedicated and analog LFO with simultaneous Sawtooth, Triangle and Square oscillator shapes
-
2 envelope generators for modulation of VCF and VCA
-
Easy-to-use 64-note dual sequencer (LFO clock serves as master clock)
DESCRIPTION
Making its debut in 1981, the monophonic Sequential Circuits Pro-One* quickly established itself as the synthesizer of choice for numerous artists including: Thompson Twins, the Prodigy, Depeche Mode, Vince Clarke, New Order, Prince, Soft Cell and a host of others. An ultra-affordable homage to that iconic synthesizer with all the features of the original and then some, the PRO-1 lets you conjure up virtually any sound with incredible finesse and ease. With its pure analog signal path, dual authentic VCOs with 3 selectable waveforms, plus extremely flexible VCF and VCA filters, the PRO-1 is sure to become one of your favorite keyboards. Owning the PRO-1 is like having your own personal time machine, enabling you to embrace the past – or make your imprint on the future!
SPECIFICATIONS
Synthesizer Architecture | |
Number of voices |
Monophonic |
Type of oscillators |
2 x 3340 |
Type |
Analog |
Oscillators | 2 (32.70 Hz to 8372.02 Hz across 4 ranges) |
LFO |
1 (0.08 Hz to 30 Hz) |
VCF | 1 x 4-pole low pass (24 dB/octave slope) |
Envelopes | VCF,VCA |

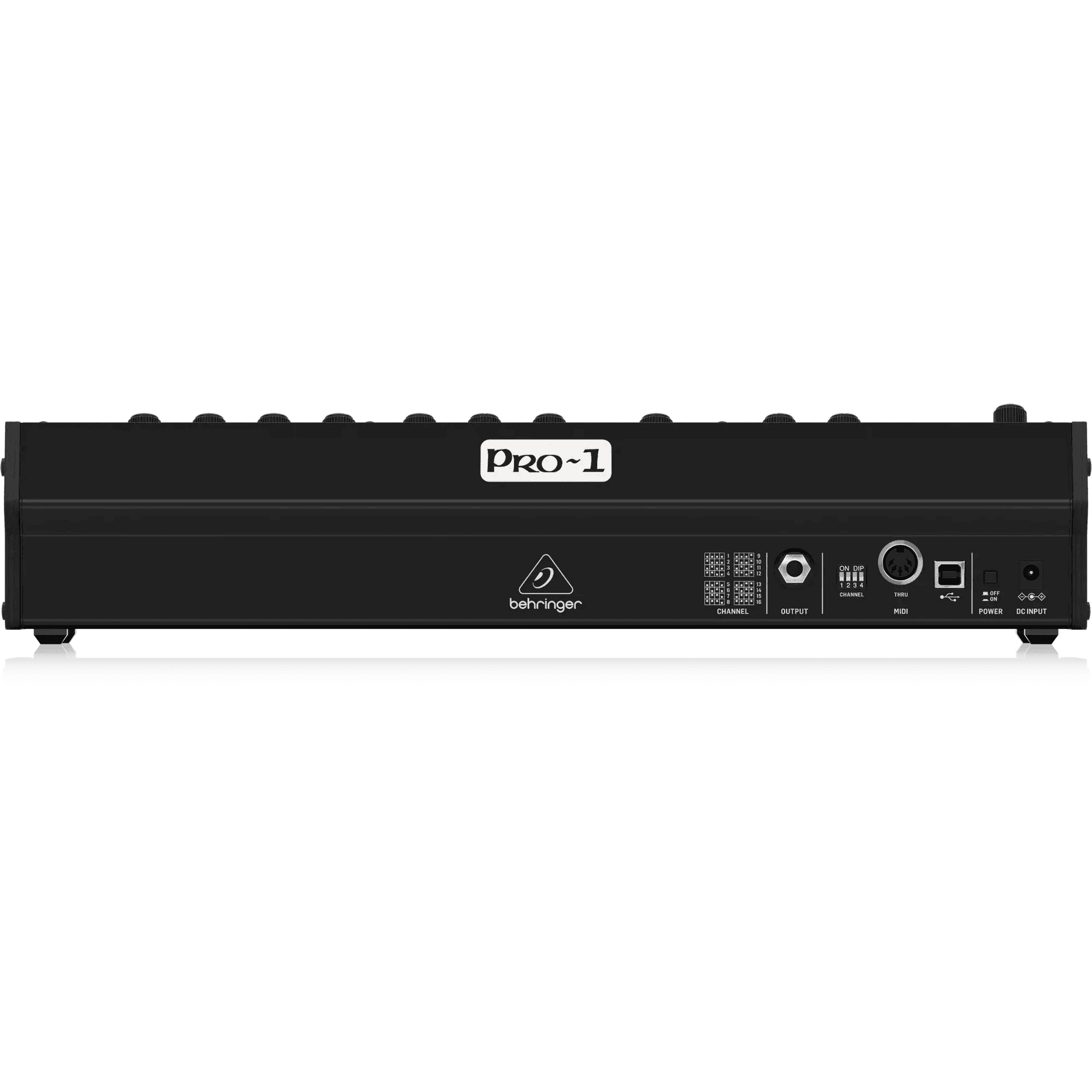

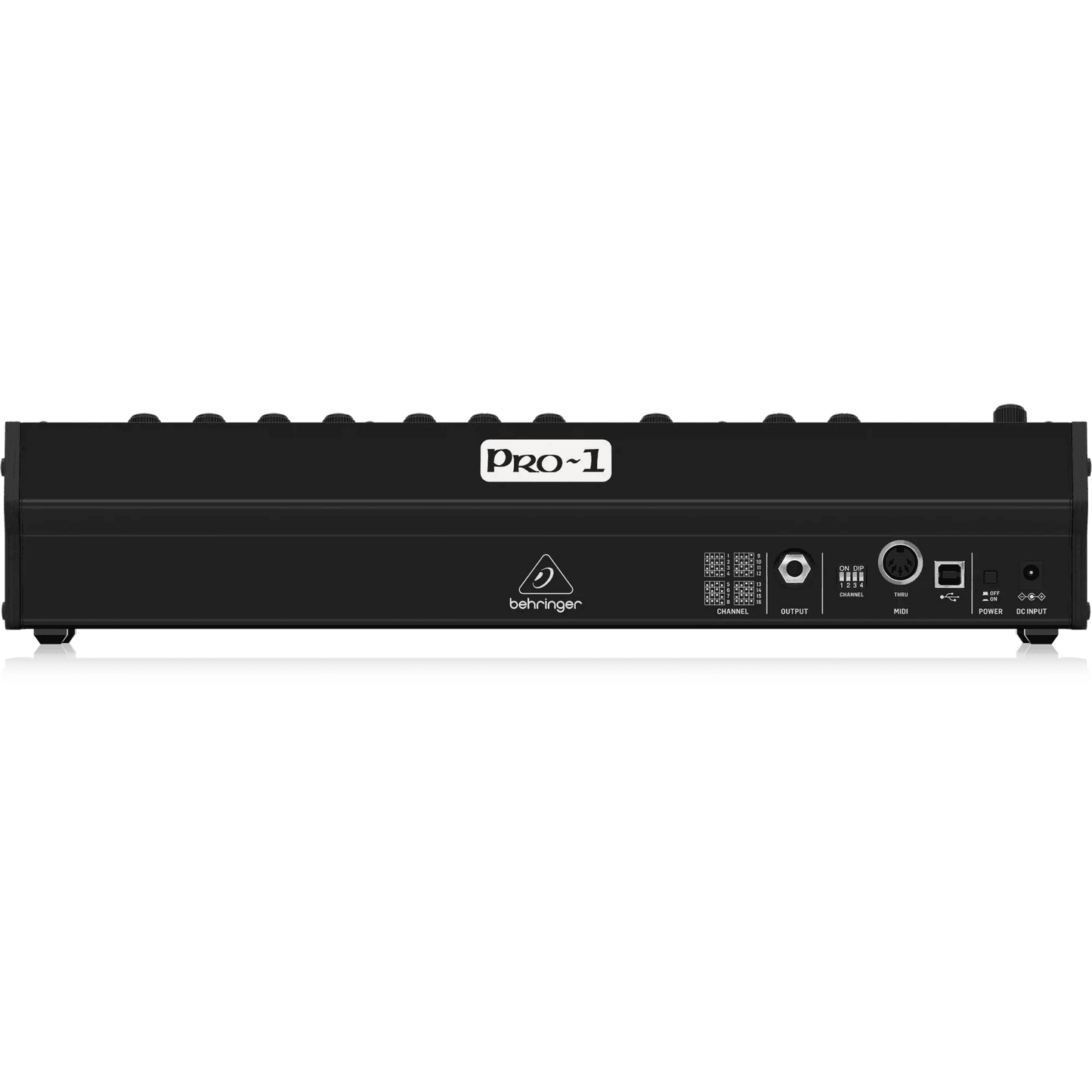

Connectivity | |
Output |
1⁄4" TS, unbalanced max. +12.0 dBu |
Headphones | 1/8" TRS, unbalanced max. 7.5 mW@32 Ohm 8 Ω |
Headphones output impedance MIDI In/thru | 8 Ω |
MIDI In/thru | 2 x 5-pin DIN/ 16 channels |
USB (MIDI) | USB 2.0, type B |
USB | |
Type |
Class compliant USB 2.0, type B |
Supported operating systems | Windows 7 or higher/ Mac OS X 10.6.8 or higher |
Oscillator Section | |
Controls |
Frequency (OSC A&B): 0 to 10 |
Octave0,1,2or3 | |
Pulse Width (OSC A&B) 0 to 10 | |
Switches |
Shape (OSC A&B): Sawtooth, Pulse, and Triangular (OSC B only) |
OSC A sync: on/off | |
OSC B LO Freq or Normal | |
OSC B KYBD or Off | |
Modulation Section | |
Controls |
From Filt env 0 to 10 |
From OSC B 0 to 10 | |
From LFO 0 to 10 | |
Switches |
From Filt env: pitch bend wheel or direct |
From Osc B: pitch bend wheel or direct | |
From LFO : pitch bend wheel or direct | |
To OSC A Freq: pitch bend wheel, off or direct | |
To OSC A PW: pitch bend wheel, off or direct | |
To OSC B Freq: pitch bend wheel, off or direct | |
To OSC B PW: pitch bend wheel, off or direct | |
To Filter: pitch bend wheel, off or direct | |
Mixer Section | |
Controls | OSC A, B and Noise/External input |
Glide Section | |
Controls |
Rate: 0 to 10 |
Switches | Auto or Normal |
LFO/Clock Section | |
Controls |
Frequency 0 to 10 |
Switches | Sawtooth, Triangle and Pulse |
Sequencer Section | |
Switches |
Seq 1, off or Seq 2 (64 note) |
Record or Play | |
Arpeggiate Section |
|
Switches | Up, off or up/down |
Mode Section |
|
Switches |
Poly or mono |
Retrig or normal | |
Repeat/ext or normal |
|
Drone or off |
|
LED | Gate |
Filter Section |
|
Controls |
Cutoff frequency: 0 to 10 |
Resonance: 0 to 10 |
|
Env amount: 0 to 10 |
|
KYBD amount: 0 to 10 |
|
Attack: 2.0 mS to 6.5 S | |
Decay: 2.0 mS to 15 S |
|
Sustain: 0 to 5 V |
|
Release: 2.0 mS to 25 S |
|
Amplifier Section | |
Controls |
Attack: 2.0 mS to 6.5 S |
Decay: 2.0 mS to 15 S | |
Sustain: 0 to 5 V | |
Release: 2.0 mS to 25 S | |
Output Section | |
Controls |
Volume: 0 to 10 |
Master tune -5 to +5 | |
LED |
Power |
Inputs (TS 3.5 mm) | |
Mod Wh CV |
0 V to +5 V |
OSC CV |
-5Vto+5V |
Gate/Clk |
More than 2 V (envelope triggers @ 2V) |
LFO CV |
-5 V to +5 V |
Ext |
Input impedance: 85 Kohm |
Cutoff CV |
0 V to +5 V |
Resonance CV |
0 V to +5 V |
Outputs (TS 3.5 mm) | |
LFO out |
Triangle: +/-2.5 V, Pulse: +4 V, Sawtooth: +5 V |
KB CV |
0 V to +7 V |
Gate |
0 V / +5 V |
Mixer | 1/8" TRS, unbalanced max. +20.0 dBu |
Filter env | 0 V to +5 V |
Amp env | 0 V to +5 V |
Phones | Signal output |
Audio out | Signal output |
Power Requirements | |
External power adaptor | 12 V DC |
Power consumption | 8 W maximum |
Environmental | |
Operating temperature range | 5 ̊C to 40 ̊C (41 ̊F to 104 ̊F) |
Physical | |
Dimensions (H x W x D) | 95 x 424 x 136 mm (3.7 x 16.7 x 5.4") |
Weight | 1.8 kg (4.0 lbs) |
Shipping weight |
2.7 kg (5.9 lbs) |
Eurorack HP | 80 |
