Behringer

Behringer P16-HQ 16-Channel Personal Monitoring Mixer

Behringer P16-HQ 16-Channel Personal Monitoring Mixer

Dhs.945.00 AED
Dhs.945.00 AED
Sale Sold out

For Wholesale Enquiries Please Contact Us On WhatsApp

This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co

KEY FEATURES

  • Easily create highest-quality personalized monitor mixes from 16-channel input stream

  • Excellent new 114 dB D/A converter for noise free output even at high levels

  • New high-quality output amplifier stage for improved volume with low-impedance headphones and in-ears

  • Intuitive control surface with total recall and presets for custom mixes

  • 16 backlit channel select buttons for immediate access

  • Level and Panorama/Balance control with LED indicators

  • 3-band EQ per channel and main with adjustable mid-band frequency

  • Solo and Mute functions per channel and main

  • Output limiter for hearing protection

  • Additional mono/stereo line output for active monitor speakers

  • Single Ultranet CAT5e connection delivers power and 16 signals to personal mixers

  • For larger setups, P16-HQ can be daisy-chained or connected to P16-D hubs

  • Phantom powered via Ultranet or with external DC power supply (included)

  • Ultra-low system latency of less than 1 millisecond

  • Mounts securely on a mic stand with P16-MB (not included)

  • MIDI input allows real-time remote control from external MIDI devices

  • Fully compatible with Behringer P16-M personal mixers.



DESCRIPTION

The Behringer P16-HQ builds on the success of P16-M, an industry favorite, with its new high-quality D-A converter, output amplifier, a design refresh and more! The P16-HQ is a great and affordable way to give performers control over their own monitor mix; leaving room for engineers to create the best overall mix possible.

The P16-HQ includes a new digital-to-analog converter with a dynamic range of 114dB, coupled with a new high-quality amplifier stage providing improved performance and volume, especially with low-impedance headphones and in-ears.


SPECIFICATIONS

Category Specification

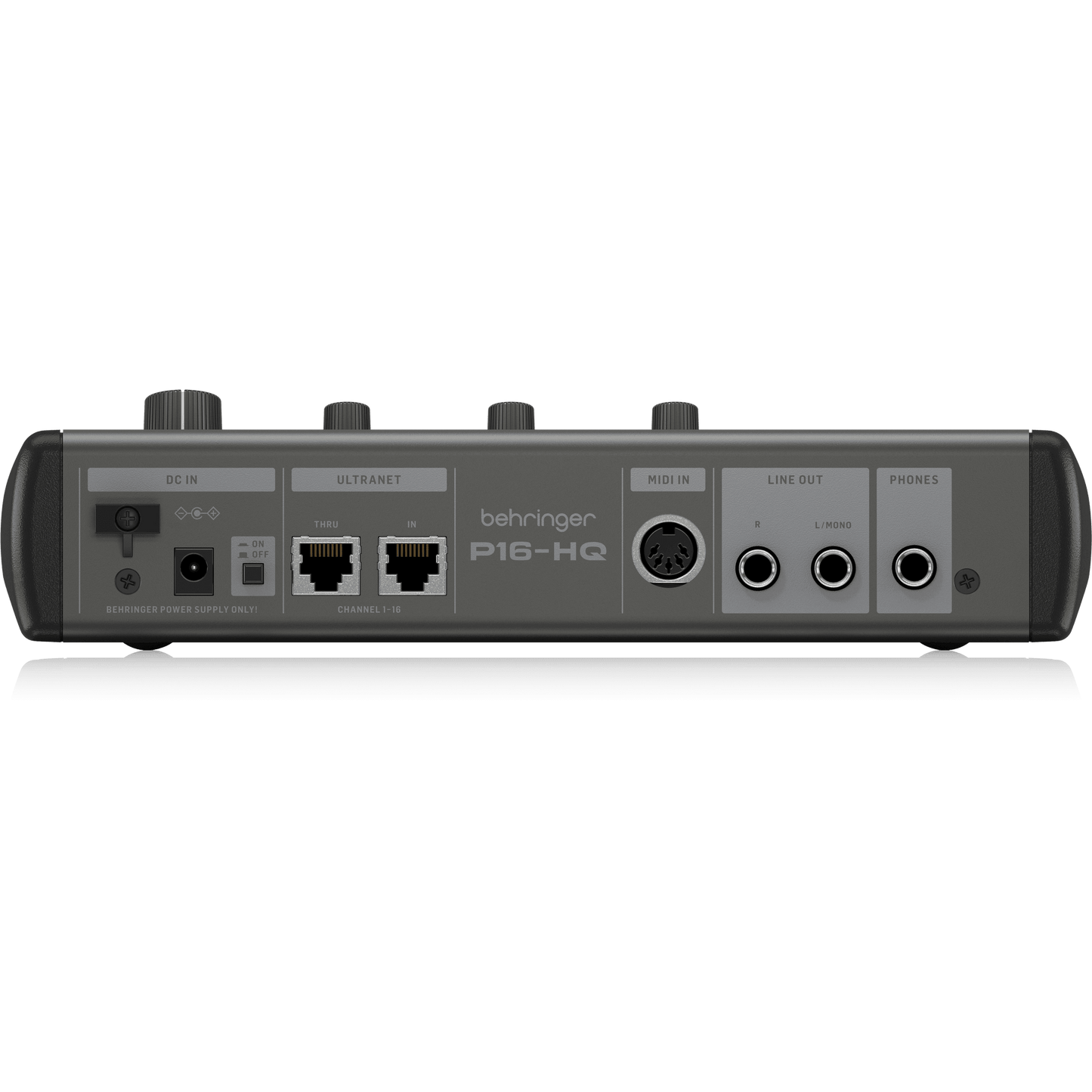

Audio Connections
Phones 1/4" TRS, stereo
Line Out 2 x 1/4" TS, unbalanced
Ultranet Thru / In 2 x RJ45
MIDI In 5-pin MIDI connector
Performance Line Out
Frequency Response 20 Hz – 20 kHz (+0 / -0.5 dB)
THD+N 0.002 % typ.
Residual Noise -99 dBu unweighted / -102 dBu A-weighted
Crosstalk L / R < -75 dB
Output Impedance 1 kΩ
Max. Output Level +12.5 dBu @ 200 kΩ load / +2.7 dBu @ 600 Ω load
Performance Phones Out
Frequency Response 20 Hz – 20 kHz (+0 / -0.1 dB)
THD+N 0.002 % (typ.) / 0.007 % @ 350 mW output
Residual Noise -94.5 dBu unweighted / -97.5 dBu A-weighted
Crosstalk L / R < -90 dB
Max. Output Level 50 mW @ 600 Ω load
100 mW @ 300 Ω load
400 mW @ 30 Ω load
Controls
Equalizer Bass: ±12 dB @ 100 Hz (shelving)
Mid: ±12 dB, semi-parametric
Frequency: 100 Hz – 10 kHz (adjustable)
Treble: ±12 dB @ 10 kHz
Output Limiter: Ratio ∞:1
Level: -20 to +15 dBu (Phones)
