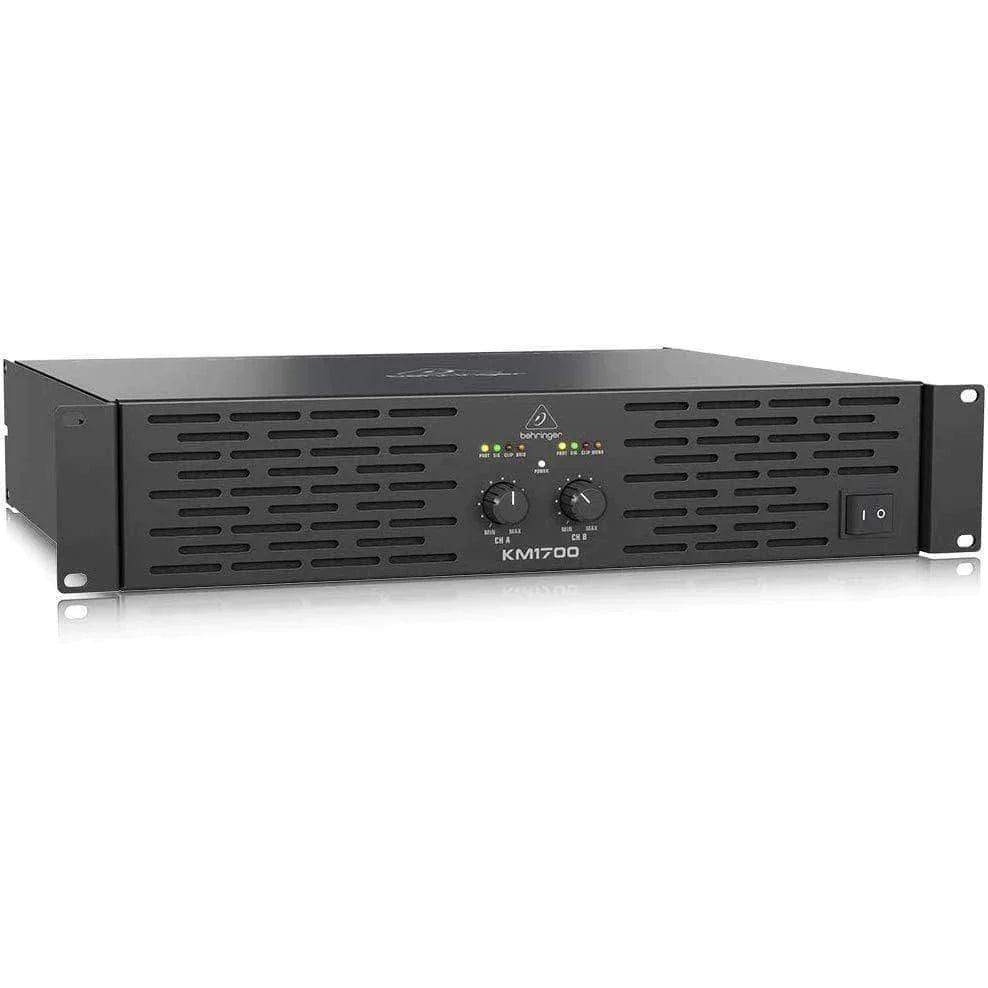

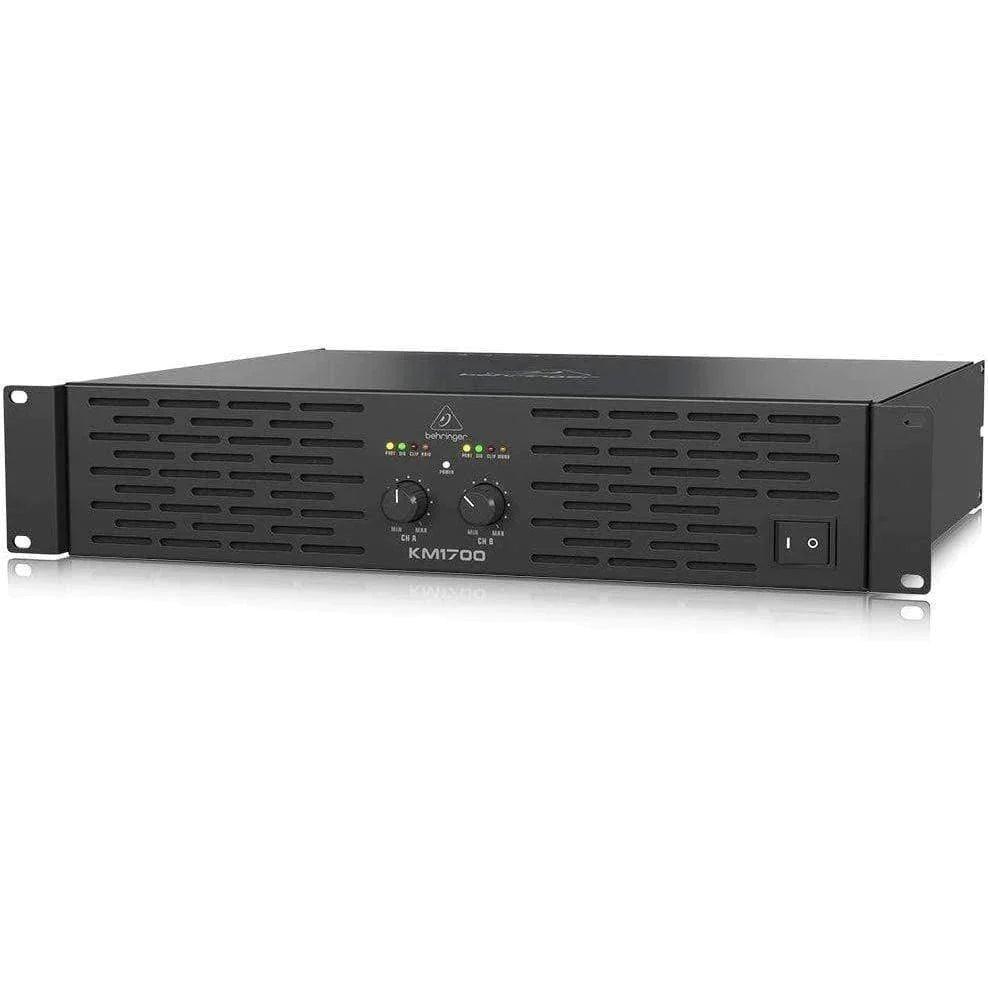

Behringer KM1700 Power Amplifier 2x800W @ 4Ohm / 2x500W @ 8Ohm w/ ART
Behringer KM1700 Power Amplifier 2x800W @ 4Ohm / 2x500W @ 8Ohm w/ ART
Couldn't load pickup availability
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
The KM1700 from Behringer is a stereo power amplifier that is capable of delivering 500W into 8 Ohm loads, or 800W into 4 Ohm loads. In bridged-mono mode, it can reach an output power of 1700W. The amplifier features Behringer's ATR technology, which is designed to preserve a quick, tight transient response even at high volume levels.

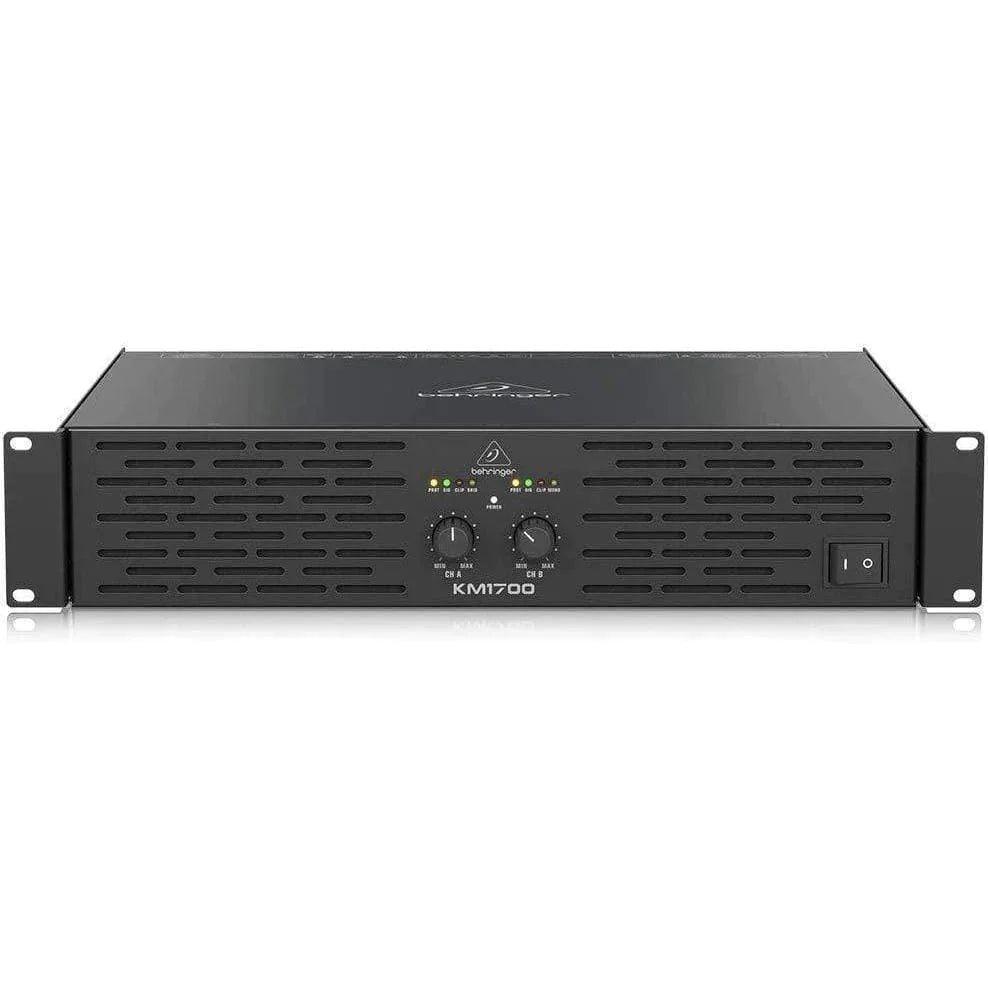

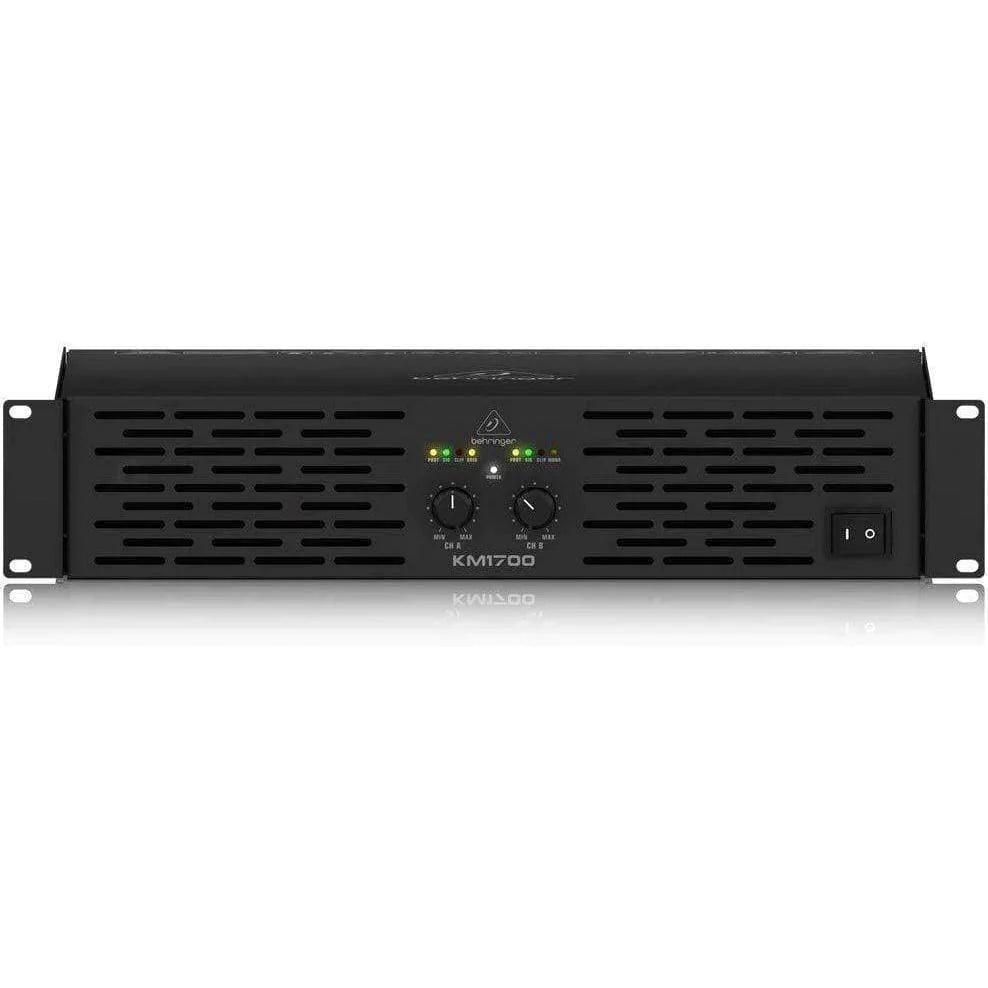

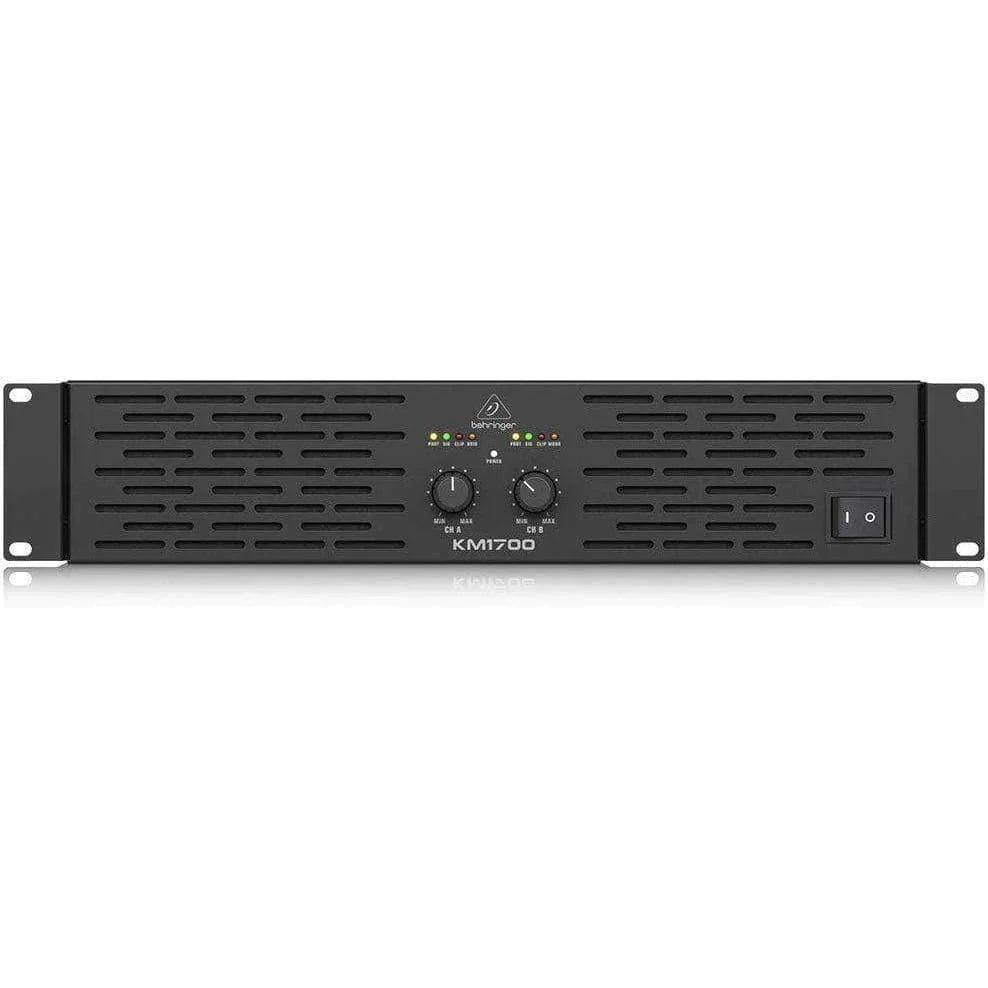

Its front panel controls are simple: two positive-detent gain knobs allow you to control the level of each independent channel. To keep you abreast of the amplifier's various goings-on, LEDs have been provided for monitoring of power, signal, and overloads.

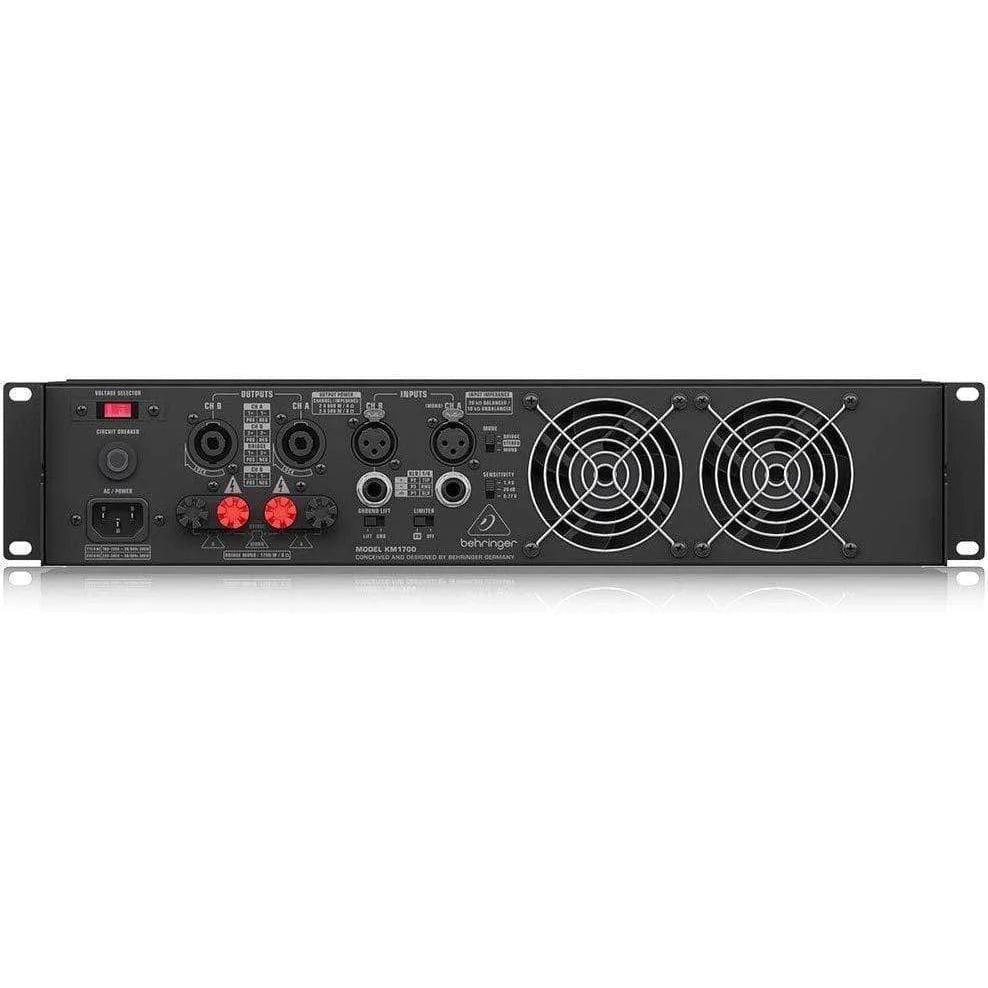

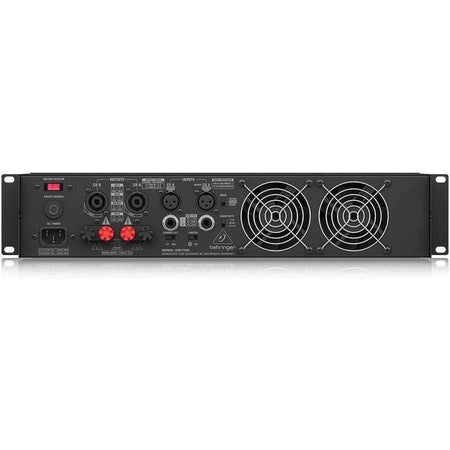

Turn your attention to the back panel and you'll notice two balanced XLR inputs, as well as two unbalanced 1/4" TRS jacks. The amplifier provides two locking speaker connections with touch-proof binding posts, thus supporting the wiring systems of most professional speakers. You'll also see the selector which switches between mono, stereo, or bridged mono mode, as well as a ground/lift switch and a selector to turn on the built-in limiter.
Features:
- 2 x 800W into 4 Ohms
- 2 x 500W into 8 Ohms
- 1700 Watts into 8 Ohms (bridged mono mode)
- ATR (Accelerated Transient Response) technology for punch and clarity
- Switchable limiters offer maximum output level with reliable overload protection
- Power, signal and clip LEDs to monitor performance
- XLR and 1/4" TRS input connectors
- Professional speaker connectors and touch-proof binding posts
- Independent DC and short circuit protection on each channel automatically protects amplifier and speakers
- High-current toroidal transformer for high transient response
- Front to back ventilation
- Impact-resistant, all-steel 2U rackmount chassis
Tech Specs |
Power Amplifier |
Number of Channels 2 |
Power Rating 4 Ohms: |
800 W per Channel |
8 Ohms: |
500 W per Channel |
1700 W Bridged |
Amplifier Class Class-H |
Performance |
Protections AC Fuse, DC Fault, Short Circuit, Thermal |
Frequency Response 20 Hz to 20 kHz +0/-0.5 dB (at Rated Power -10 dB) |
10 Hz to 80 kHz (at Rated Power -3 dB) |
Damping Factor >120 at 8 Ohms |
Input Sensitivity 0.77 V or 1.4 V |
Input Impedance XLR: |
20 Kilohms (Balanced) |
1/4" TRS: |
10 Kilohms (Unbalanced) |
Max Gain 35.6 dB |
SNR >100 dB |
Distortion <0.03% (at 8 Ohms, 1/2 Power) |
Signal Processing |
Limiting Yes |
Connectivity |
I/O 2 x XLR Input |
2 x 1/4" TRS Input |
2 x speakON Output |
2 x Binding Post Pair Output |
Power |
AC Input Power 120 VAC, 60 Hz |
Power Consumption 500 W (1/8 Power) |
Physical |
Display & Indicators White LED (Power) |
Green LED (Signal) |
Red LED (Clip) |
Yellow LED (Protect) |
1 x Yellow LED (Mono) |
1 x Yellow LED (Bridged Mode) |
Dimensions 3.5 x 19.0 x 14.8" / 8.8 x 48.2 x 37.5 cm |
Weight 27.5 lb / 12.5 kg |
Packaging Info |
Package Weight 31.1 lb |
Box Dimensions (LxWxH) 20.6 x 18.7 x 6.7" |
