Behringer
Behringer Four Play
Behringer Four Play
Couldn't load pickup availability
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
KEY FEATURES
- Ultra-low noise quad VCA and mixer module
- Each VCA features manual Level control for independent mixing
- Dedicated CV attenuators with dual LED's for monitoring of bipolar CV signals
- Adjustable VCA response curve from linear to exponential
DESCRIPTION

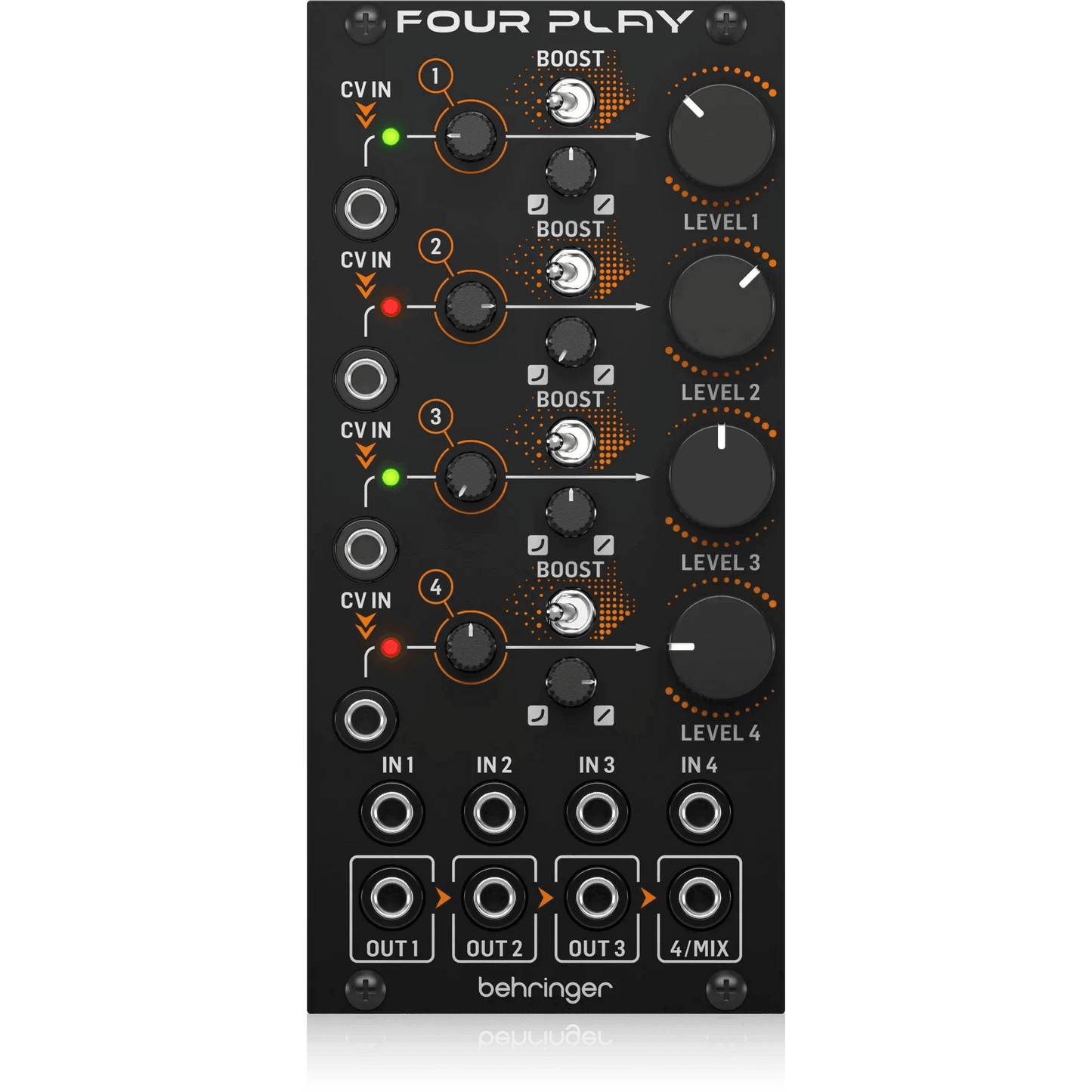

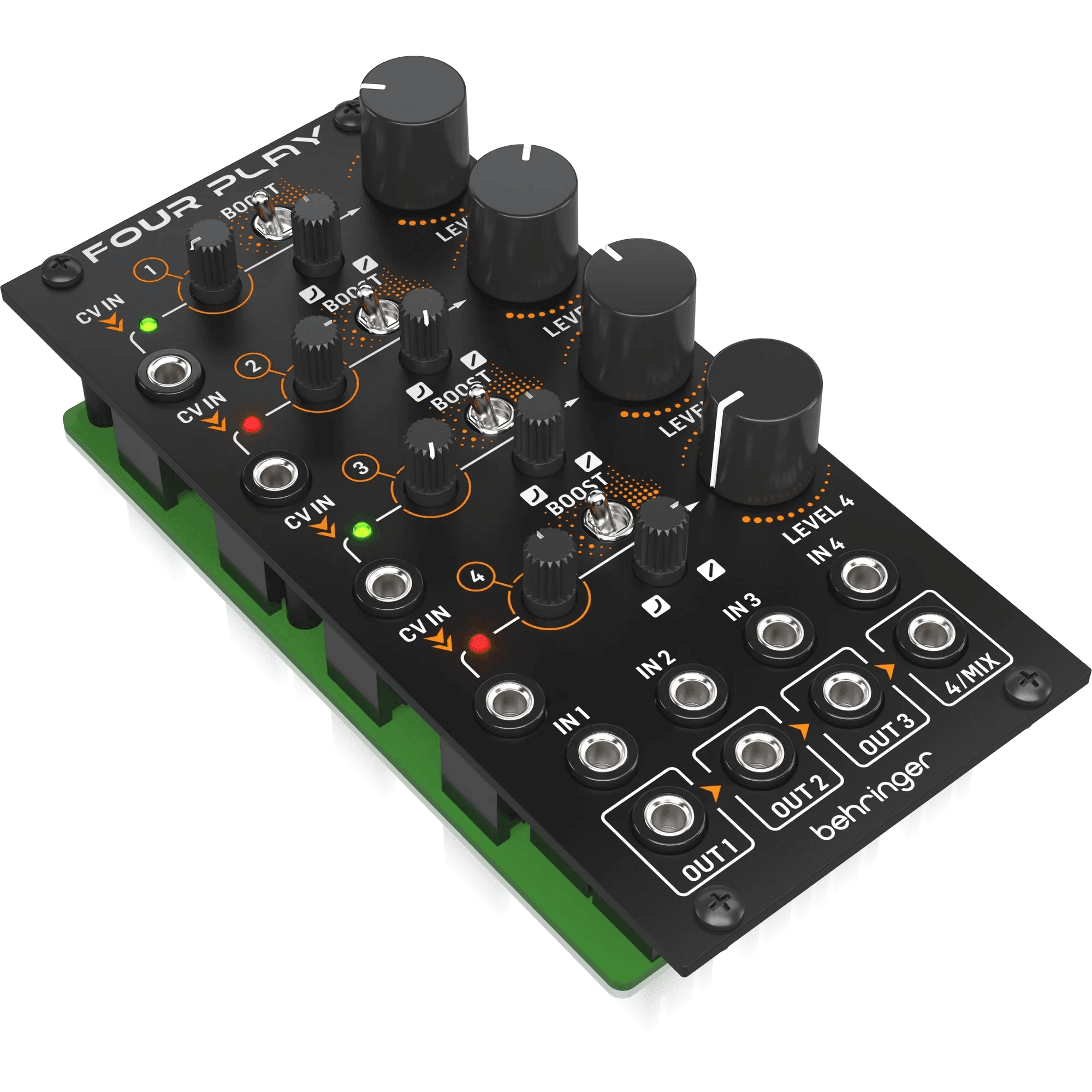

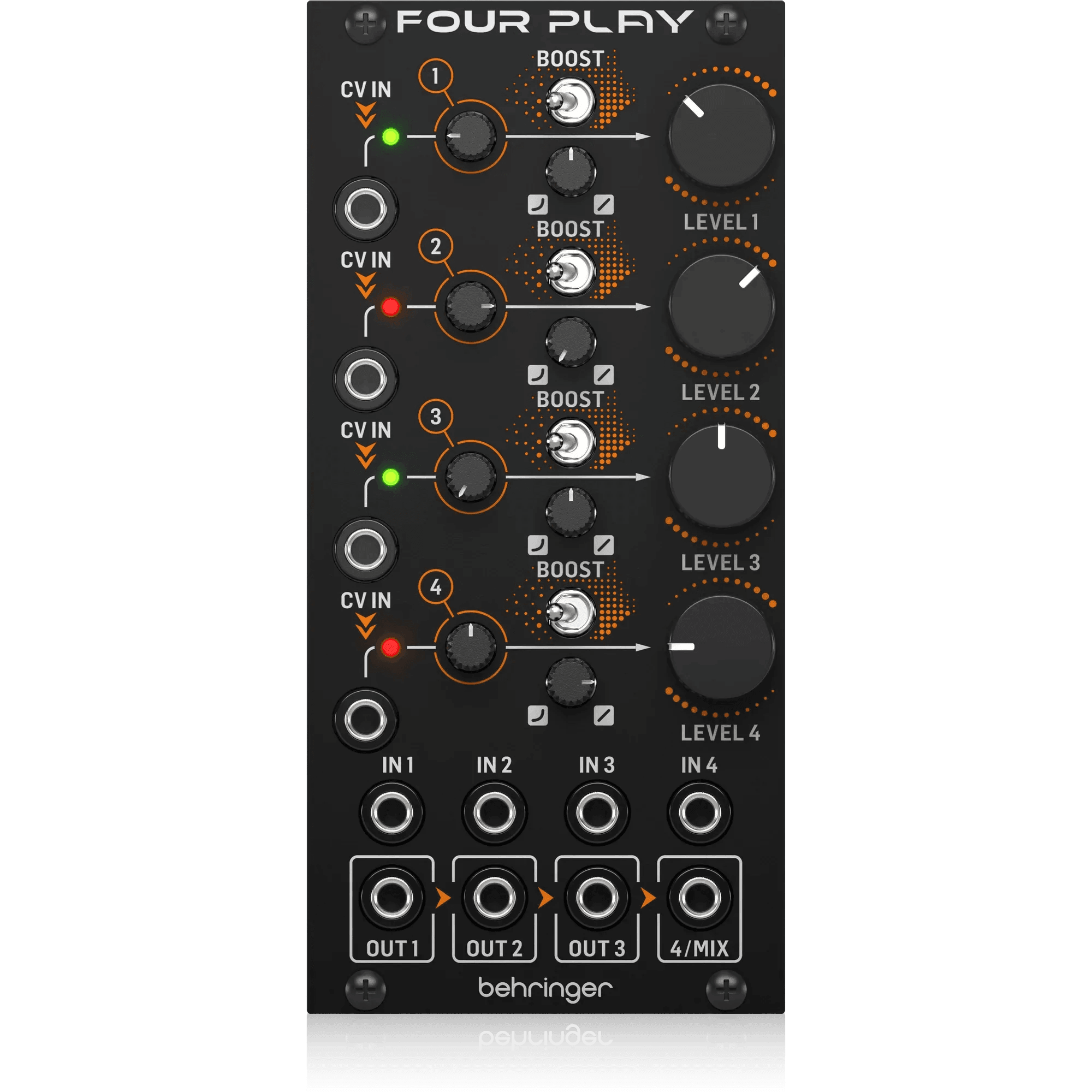

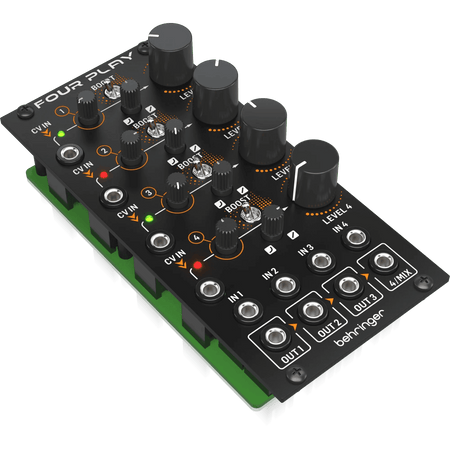

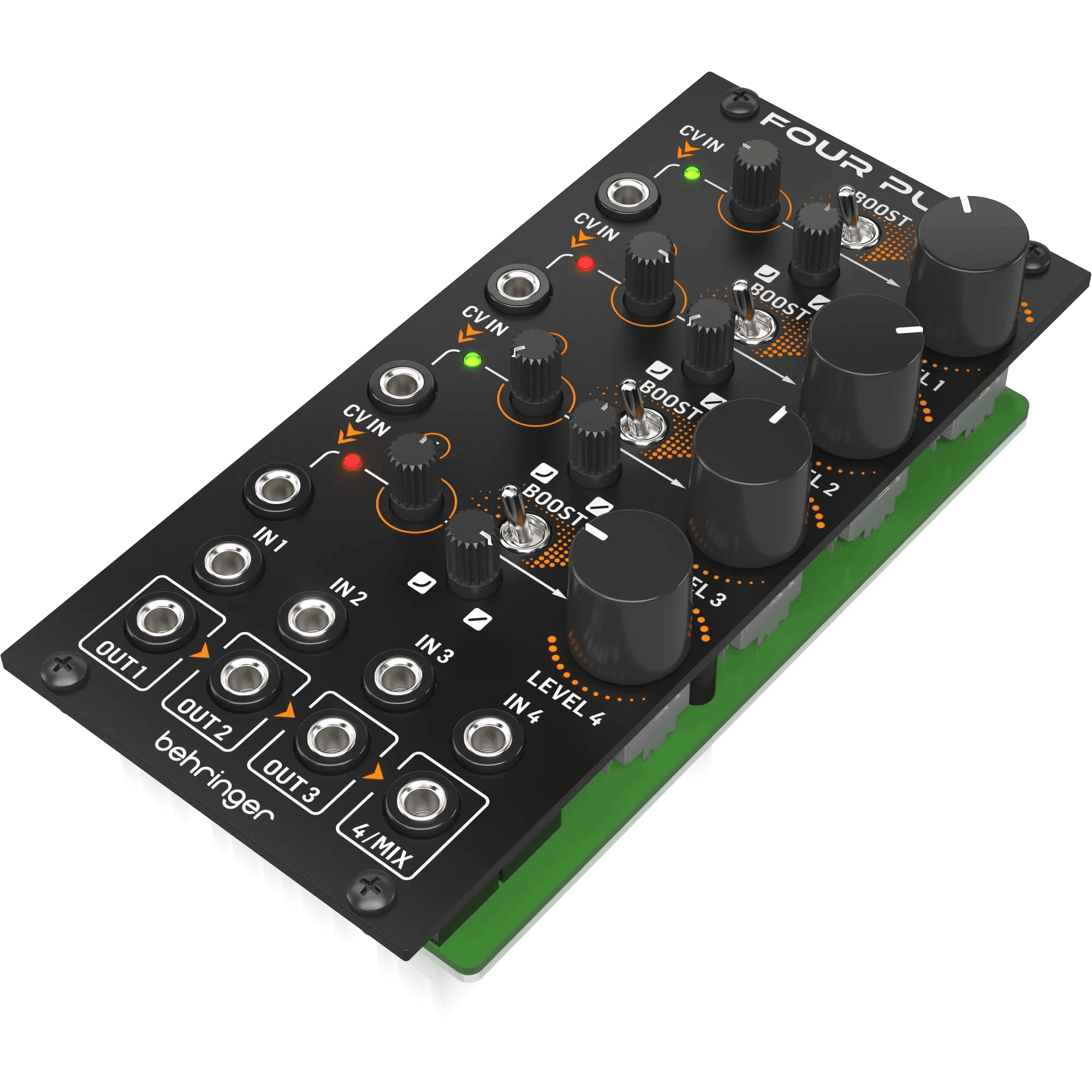

This is the Behringer FOUR PLAY. A high performance quad VCA and mixer module that can fit in a standard Eurorack case. The best part? It’s at a very affordable price. Mix the FOUR PLAY in with your existing rig or start your modular synth journey from here. Either way you’re sure to have a lot of fun.
SPECIFICATIONS
|
CV In |
|
|
Type |
4 x 3.5 mm TS jacks, DC coupled |
|
Impedance |
> 1 MΩ, unbalanced, half normalled |
|
Max input level |
10 V p-p |
|
In |
|
|
Type |
4 x 3.5 mm TS jack, DC coupled |
|
Impedance |
30 kΩ, 15 kΩ with boost enabled, unbalanced |
|
Max input level |
+19 dBu |
|
Outputs |
|
|
Type |
4 x 3.5 mm TS jack, DC coupled |
|
Impedance |
100 Ω, unbalanced, half normalled |
|
Max output level |
+19 dBu |
|
Output noise at unity gain |
-92 dBu, 22 Hz-22 kHz |
|
Output noise at full attenuation |
-98 dBu, 22 Hz-22 kHz |
|
Maximum attenuation |
-97 dB at 1 kHz |
|
Controls |
|
|
CV attenuator |
-∞ to unity gain |
|
Exp/Lin |
Exponential to linear CV response |
|
Level |
-∞ to unity gain |
|
Boost switch |
Adds +6 dB input gain |
|
CV LED |
Green =positive CV, Red =negative CV |
|
Power |
|
|
Power supply |
Eurorack |
|
Current draw |
100 mA (+12 V), 100 mA (-12 V) |
|
Physical |
|
|
Standard operating temperature range |
5° C to 40° C (41° F to 104° F) |
|
Dimensions |
60.6 x 129 x 41.3 mm (2.39 x 5.08 x 1.63") |
|
Rack units |
12 HP |
|
Weight |
0.14 kg (0.31 lbs) |
