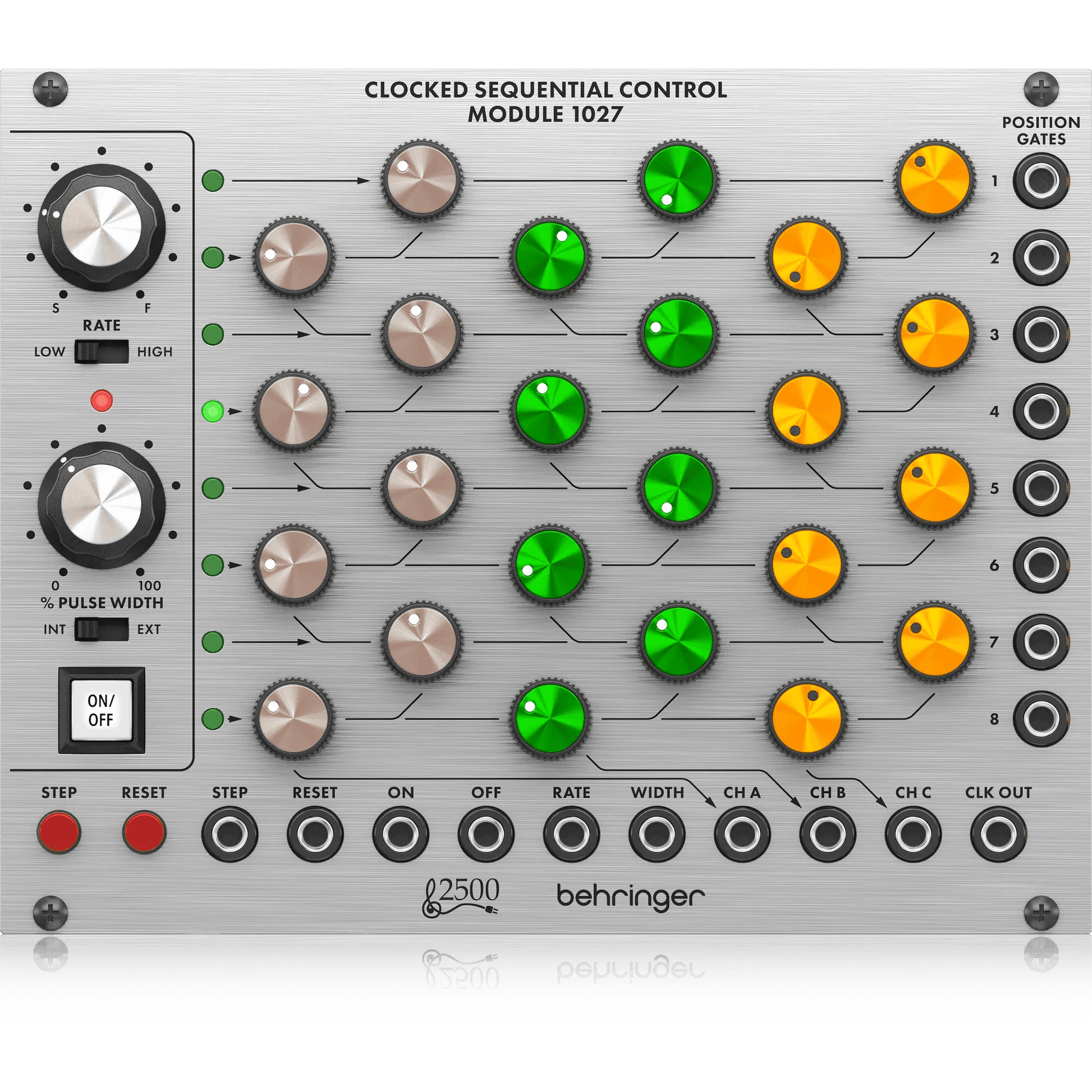

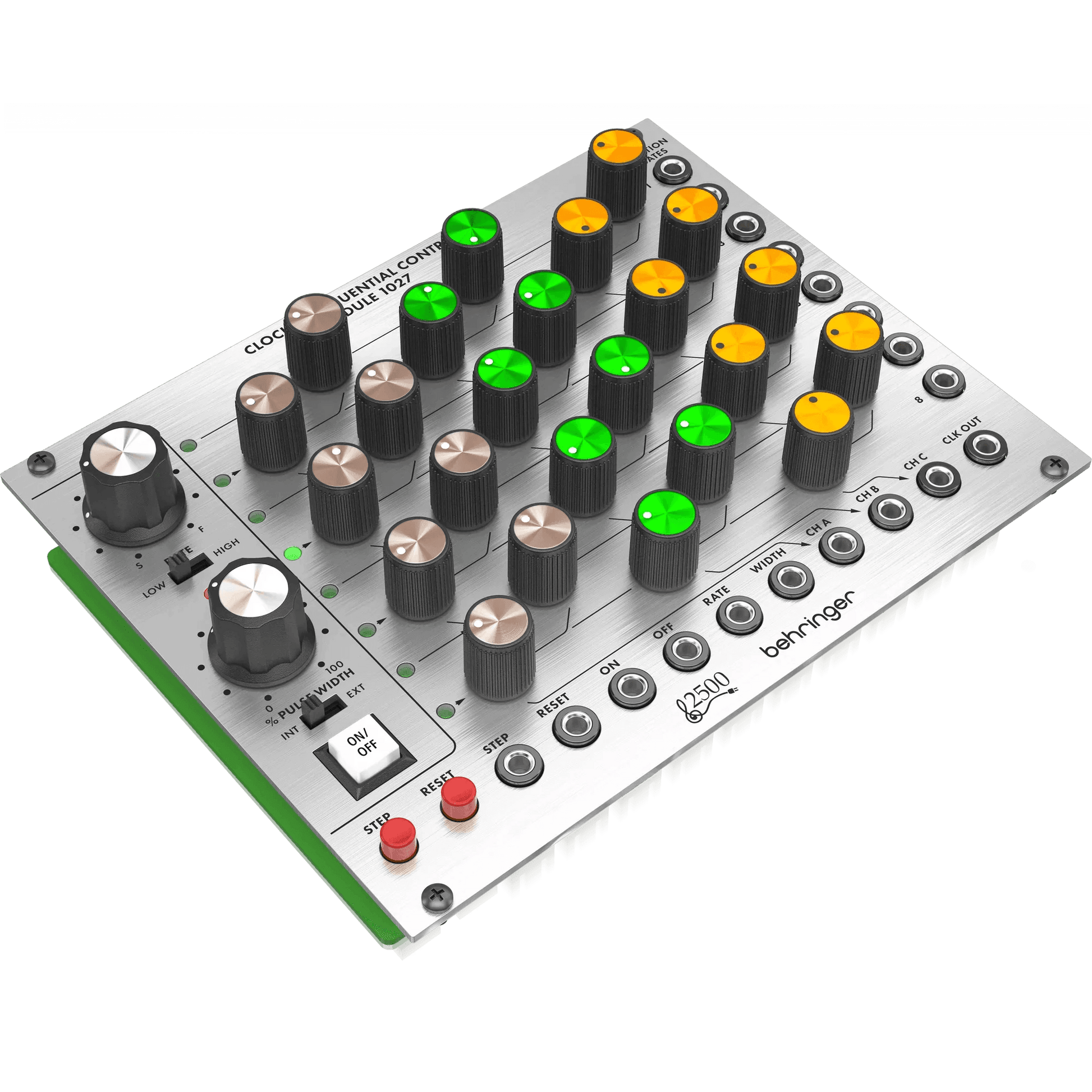

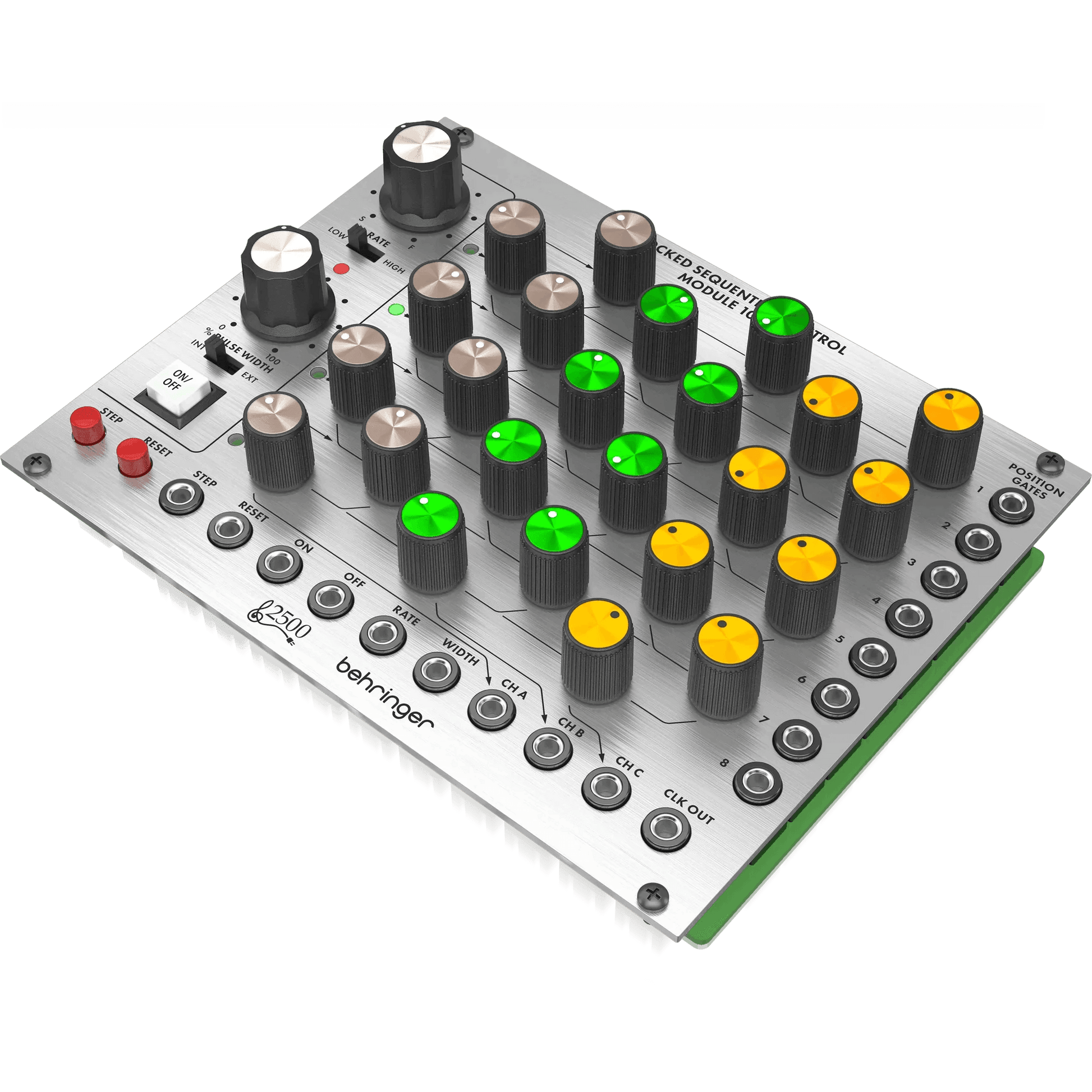

Behringer CLOCKED SEQUENTIAL CONTROL MODULE 1027

Behringer CLOCKED SEQUENTIAL CONTROL MODULE 1027

Dhs.662.00 AED
Dhs.0.00 AED Dhs.662.00 AED
Sale Sold out

For Wholesale Enquiries Please Contact Us On WhatsApp

This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co

Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information

KEY FEATURES

  • Classic 1027 clocked sequential controller module from the '70s
  • Authentic reproduction of the circuitry from the "2500" Series
  • Contains an integrated circuit 8-step counter and 3 channels (A, B and C) of control voltages
  • 8 rows of 3 controls provide 3 independently adjustable voltage outputs for each step of the counter



DESCRIPTION

This is the Behringer 2500 series CLOCKED SEQUENTIAL CONTROL MODULE 1027. An authentic reproduction of the original “System 2500” circuitry from the 70s that can fit in a standard Eurorack case. The best part? It’s at a very affordable price. Mix the CLOCKED SEQUENTIAL CONTROL MODULE 1027 in with your existing rig or start your modular synth journey from here. Either way you’re sure to have a lot of fun.



SPECIFICATIONS

Inputs



On / of



Type

2 x 3.5 mm TS jacks, DC coupled

Impedance

100 KΩ, unbalanced

Maximum input level

10 V

Minimum switching threshold

2.5 V, trigger

Rate



Type

1 x 3.5 mm TS jack, DC coupled

Impedance

100 KΩ, unbalanced

Maximum input level

10 V, 1 V/oct.

Width



Type

1 x 3.5 mm TS jack, DC coupled

Impedance

100 KΩ, unbalanced

Maximum input level

10 V

Step/Reset



Type

2 x 3.5 mm TS jacks, DC coupled

Impedance

100 KΩ, unbalanced

Maximum input level

10 V

Minimum switching threshold

2.5 V

Outputs



Ch A / B / C



Type

3 x 3.5 mm TS jacks, DC coupled

Impedance

1 KΩ, unbalanced

Maximum output level

10 V

Clock out



Type

1 x 3.5 mm TS jacks, DC coupled

Impedance

1 KΩ, unbalanced

Maximum output level

5 V

Power



Power supply

Eurorack

Current draw

70 mA (+12 V), 30 mA (-12 V)

Physical



Dimensions

43 x 162 x 129 mm (1.7 x 6.4 x 5.1")

Rack units

32 HP

Weight

0.37 kg (0.81 lbs)
