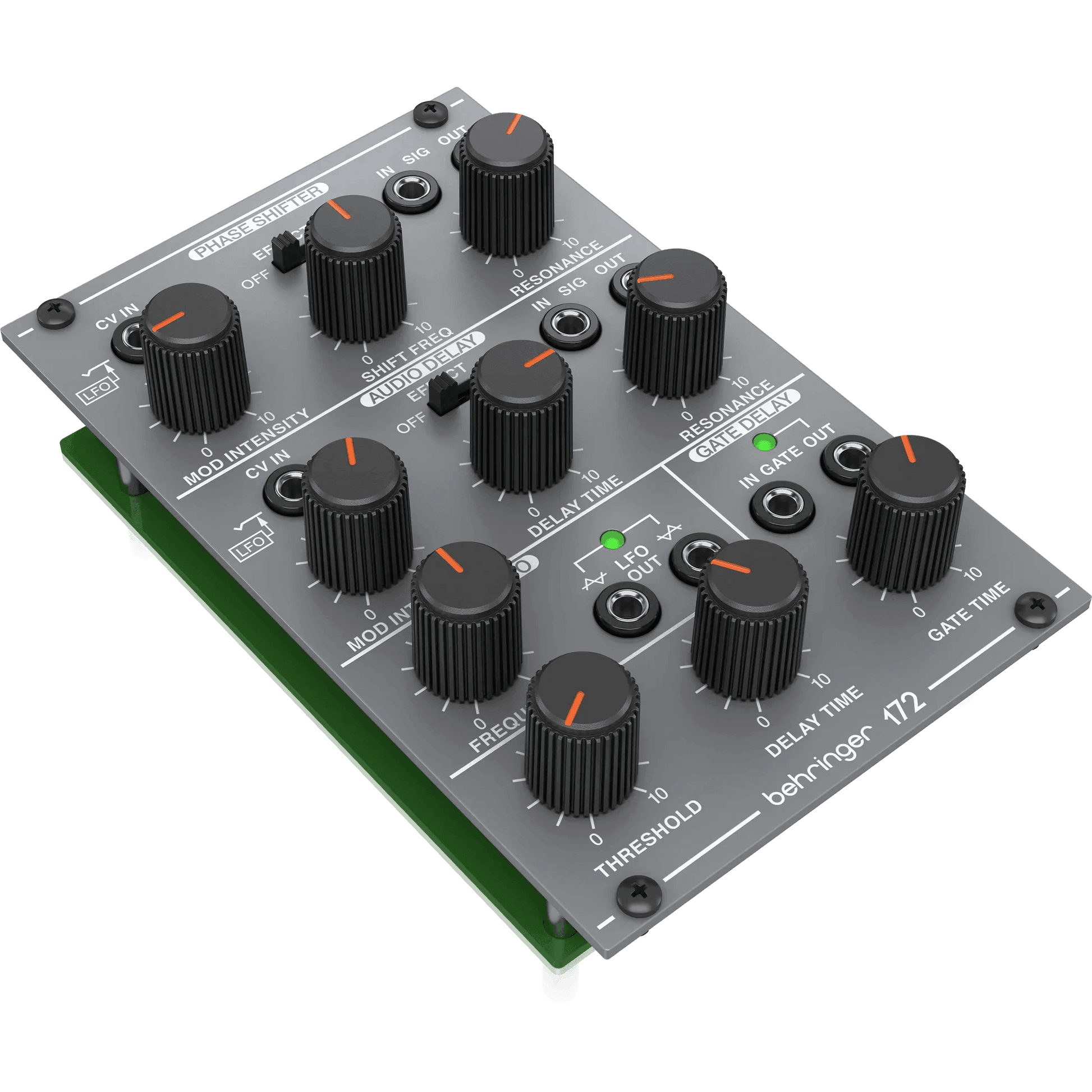

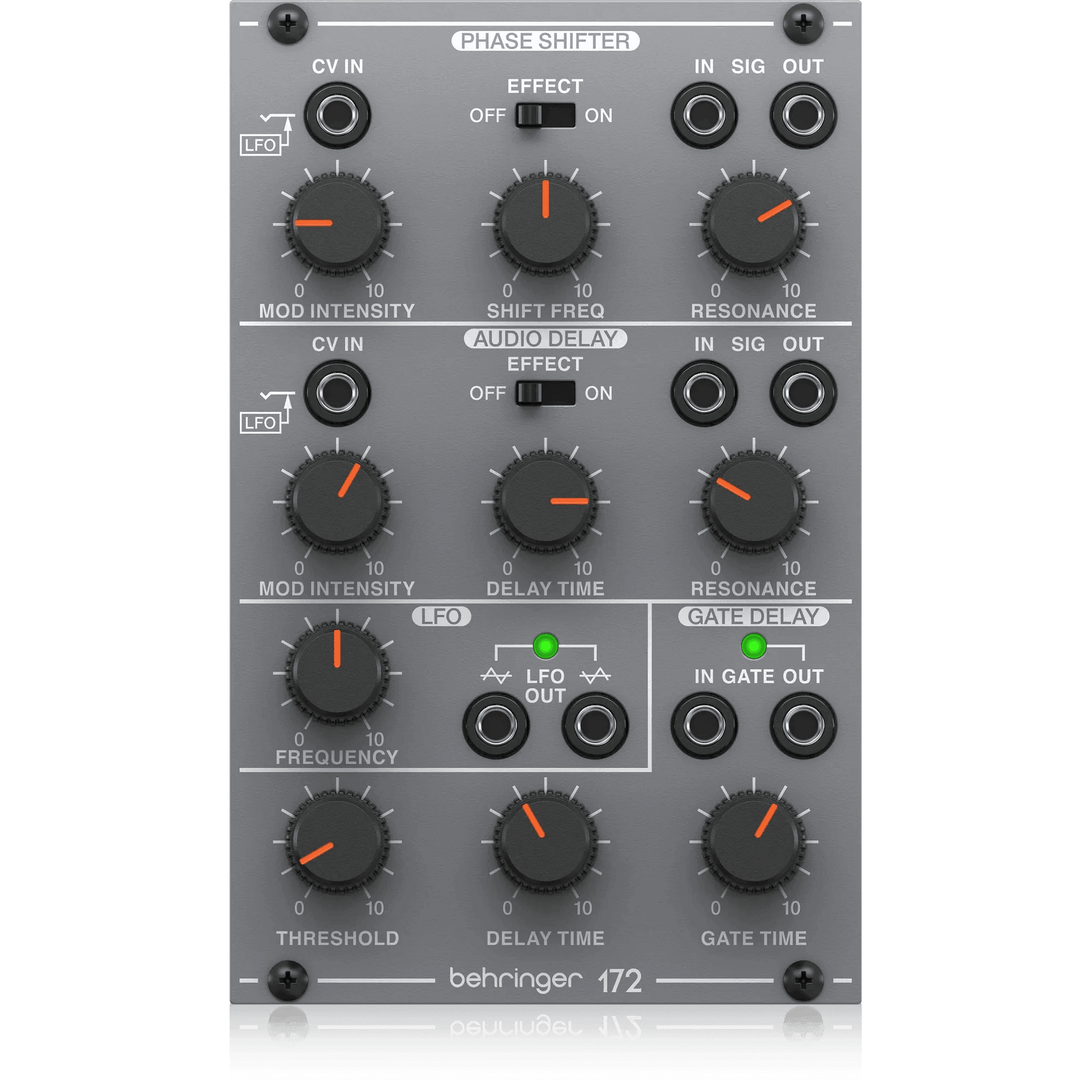

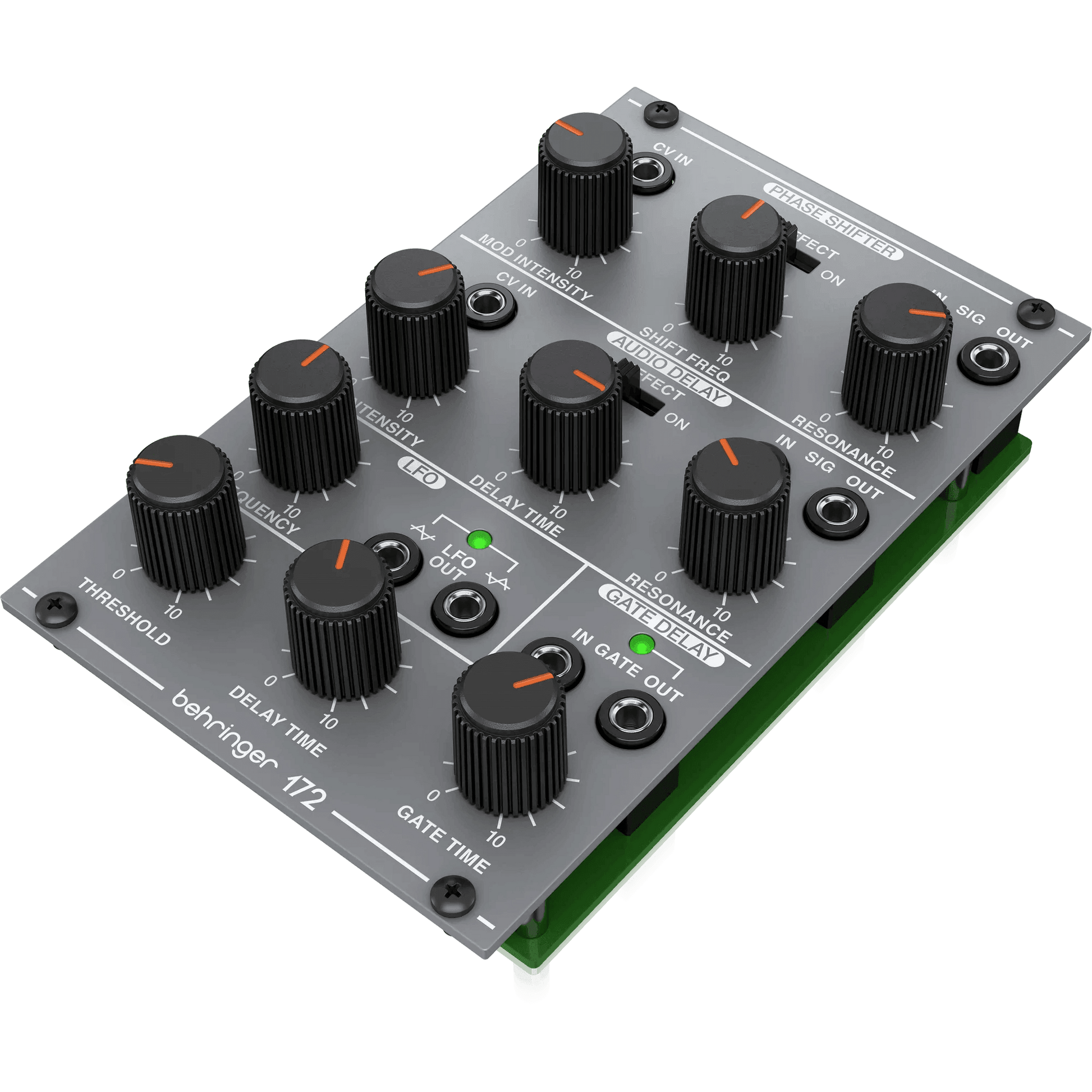

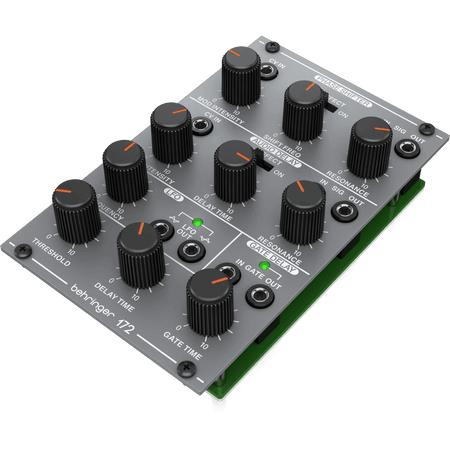

Behringer 172 Phase Shifter/Delay/LFO
Behringer 172 Phase Shifter/Delay/LFO
Couldn't load pickup availability
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
KEY FEATURES
-
Amazing Phase Shifter/Delay/LFO module from the '80s
-
Authentic reproduction of original "System 100M*" circuitry
-
6-step phase shifter with mod intensity, shift frequency and resonance controls
-
Analog BBD delay with mod intensity, delay time and resonance controls
-
Gate delay with threshold, delay time and gate time controls for creative pulse shaping
-
LFO with frequency control plus normal and inverted output for ensemble and stereo effects
-
12 controls and switches give you real-time access to all important parameters
-
Eurorack specs: 16 HP, 50 mA +12 V, 50 mA -12 V
DESCRIPTION
The 80s was the golden age of electronic music. Synthesizers were at their prime and almost every hit song and movie soundtrack at that time had a synth in one form or another. Modular synths have become more and more popular with professionals and enthusiasts over the years and they’re about to get even better.
172 PHASE SHIFTER/DELAY/LFO
This is the Behringer SYSTEM 100 172 PHASE SHIFTER/DELAY/LFO. An authentic reproduction of the original “System 100M” circuitry from the 80s that can fit in a standard Eurorack case. The best part? It’s at a very affordable price. Mix the 172 PHASE SHIFTER/DELAY/LFO in with your existing rig or start your modular synth journey from here. Either way you’re sure to have a lot of fun.
Phase Shifter
The 172 PHASE SHIFTER/DELAY/LFO comes with a 6-step phase shifter with Modulation Intensity, Shift Frequency and Resonance Controls. Adjusting these parameters can vary the phase effect from a slight warble to an intense swirling effect that add a sense of movement to your music.
Delay
The Analog BBD Delay on the 172 also features independent Modulation intensity, Delay Time and Resonance controls. These controls allow you to dial in some amazing chorus and flanging effects that give spaciousness to your tone.
LFO and Gate Delay
You can control when a gate triggers by plugging in a signal to the Gate Delay input on the 172. Here, you can control the gate and delay time for some creative pulse shaping. A frequency control on the 172’s LFO allows you to change the pitch while the normal and inverted output jacks are ideal for creating ensemble and stereo effects.
Eurorack Ready
Installing the 172 PHASE SHIFTER/DELAY/LFO is designed to fit into a standard Eurorack case. Just connect the power cables to the power supply and mount the module using the included screws. This allows for the 172 to be mixed with other synth modules for a truly unique set up.
Complete Your Collection
Whether you’re just getting into modular synths or looking to complete your collection, the 172 PHASE SHIFTER/DELAY/LFO module from Behringer is a great tool to have when creating amazing music.
Get the 172 PHASE SHIFTER/DELAY/LFO from your local Behringer dealer today!
SPECIFICATIONS
Inputs
| Phase shifter signal input | |
| Type |
3.5 mm TS jack, AC coupled |
| Impedance |
70 kΩ, unbalanced |
| Max input level |
+16 dBu |
| Phase shifter CV input | |
| Type |
3.5 mm TS jack, DC coupled |
| Impedance |
>50 kΩ, unbalanced |
| Max input level |
+10 V |
| CV range |
0 V to +10 V |
| Audio delay signal input | |
| Type |
3.5 mm TS jack, AC coupled |
| Impedance |
15 kΩ, unbalanced |
| Max input level |
+20 dBu |
| Audio delay CV input | |
| Type |
3.5 mm TS jack, DC coupled |
| Impedance |
>70 kΩ, unbalanced |
| Max input level |
+10 V |
| CV range |
0 V to +10 V |
| Gate input | |
| Type |
3.5 mm TS jack, DC coupled |
| Impedance |
47 kΩ, unbalanced |
| Max input level |
+10 V |
| CV range |
0 V to +10 V |
Outputs
| Phase shifter signal output | |
| Type |
3.5 mm TS jack, DC coupled |
| Impedance |
1 kΩ, unbalanced |
| Max output level |
+18 dBu |
| Audio delay signal output | |
| Type |
3.5 mm TS jack, DC coupled |
| Impedance |
1 kΩ, unbalanced |
| Max output level |
+16 dBu |
| LFO output | |
| Type |
2 x 3.5 mm TS jacks, DC coupled |
| Impedance |
1.2 kΩ |
| Max output level |
10 V p-p |
| Gate output | |
| Type |
3.5 mm TS jack, DC coupled |
| Impedance |
500 Ω |
| Max output level |
+5 V |
Controls
| Phase shifter effect switch |
Off / on |
| Phase shifter mod intensity |
-∞ to unity gain |
| Phase Shift frequency |
200 Hz to 8 kHz |
| Phase shifter resonance |
Off to maximum resonance |
| Audio delay effect switch |
Off / on |
| Audio delay mod intesity |
-∞ to unity gain |
| Audio delay time |
1 ms to 7 ms |
| Audio delay resonance |
Off to maximum resonance |
| LFO frequency |
0.02 Hz to 10 Hz |
| Gate Threshold |
0.3 V to 5 V |
| Gate delay time |
0.3 ms to 6 s |
| Gate time |
0.3 ms to 6 s |
Power
| Power supply |
Eurorack |
| Current draw |
60 mA (+12 V), 60 mA (-12 V) |
Physical
| Dimensions |
44 x 81 x 129 mm (1.7 x 3.2 x 5.1") |
| Rack units |
16 HP |
| Weight |
0.19 kg (0.42 lbs) |
