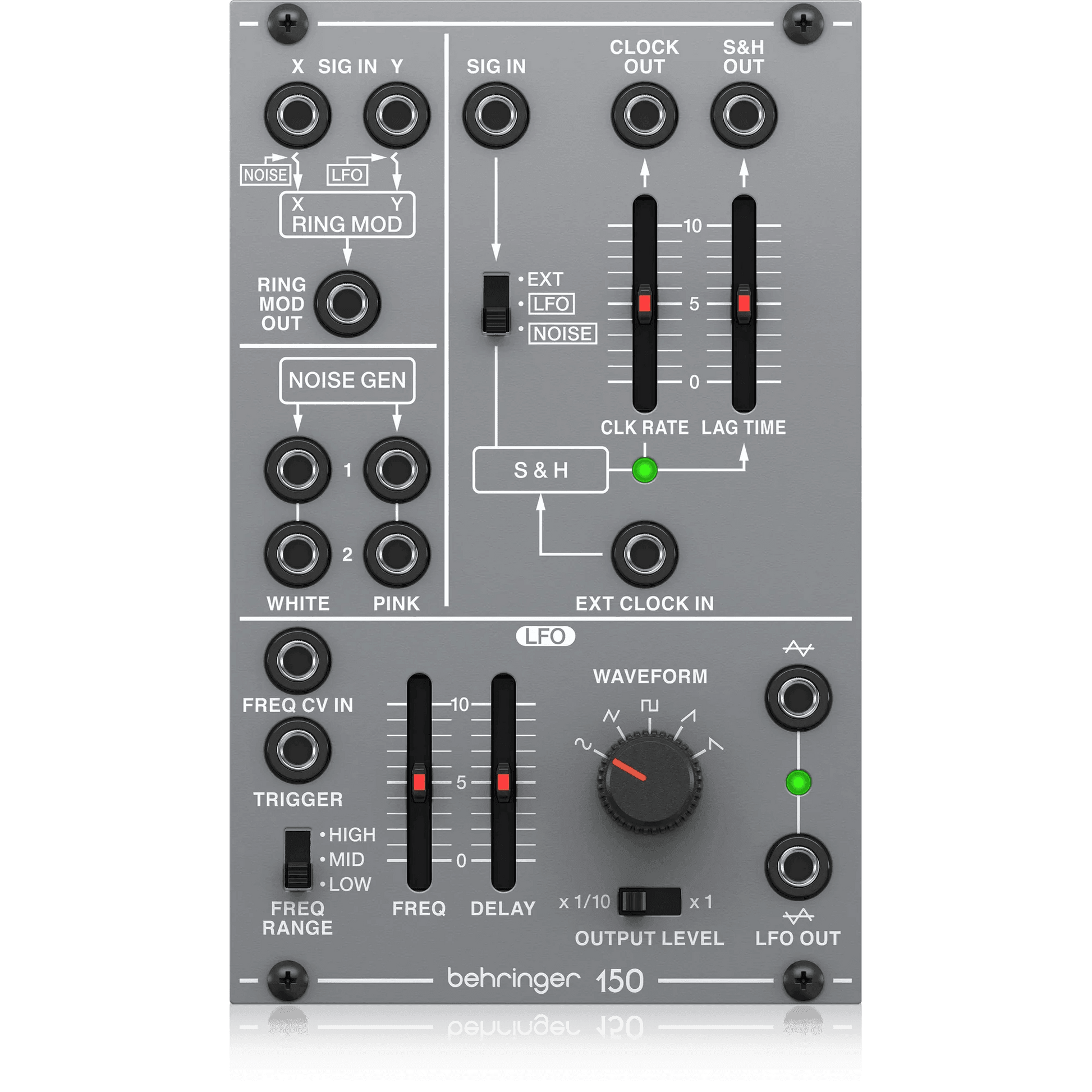

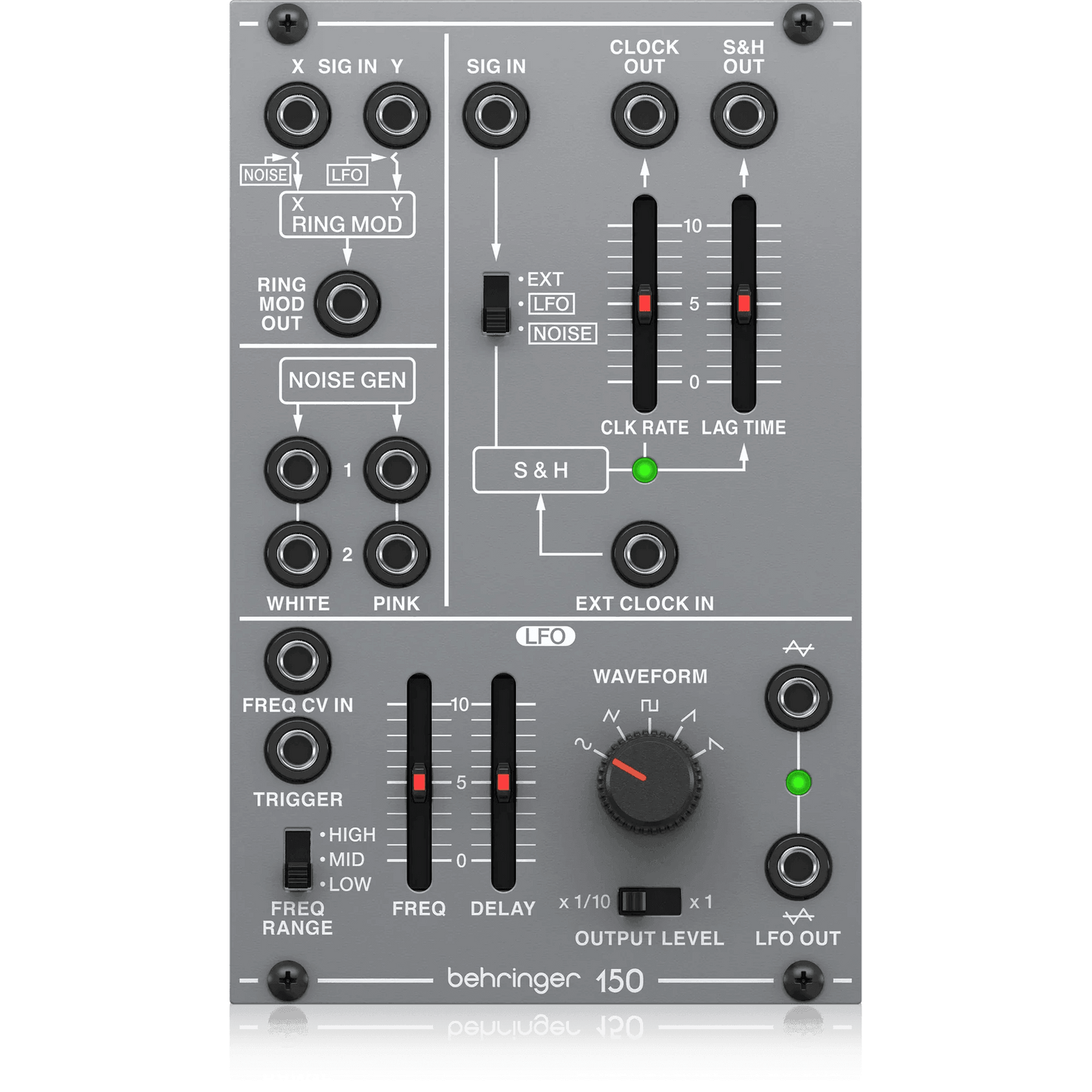

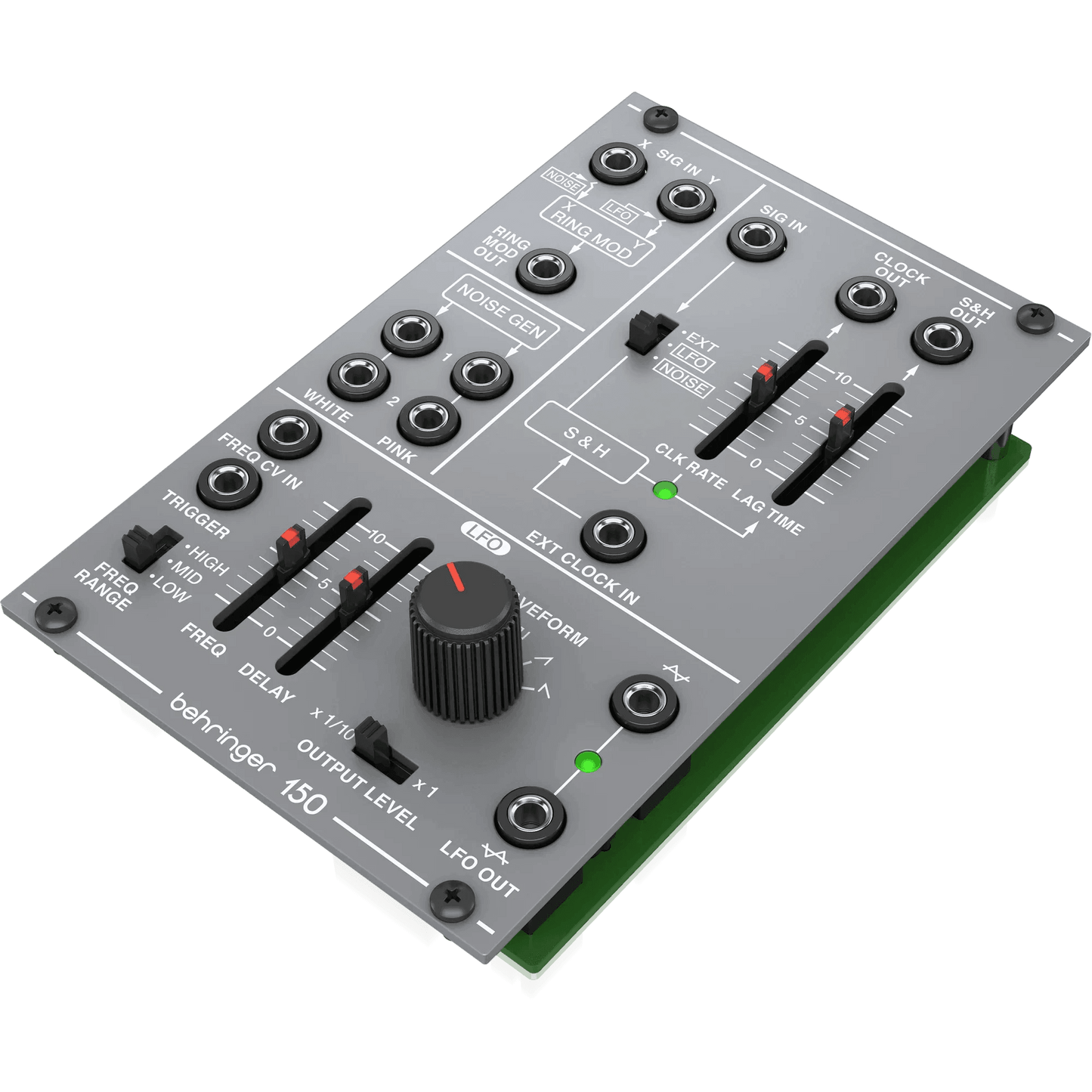

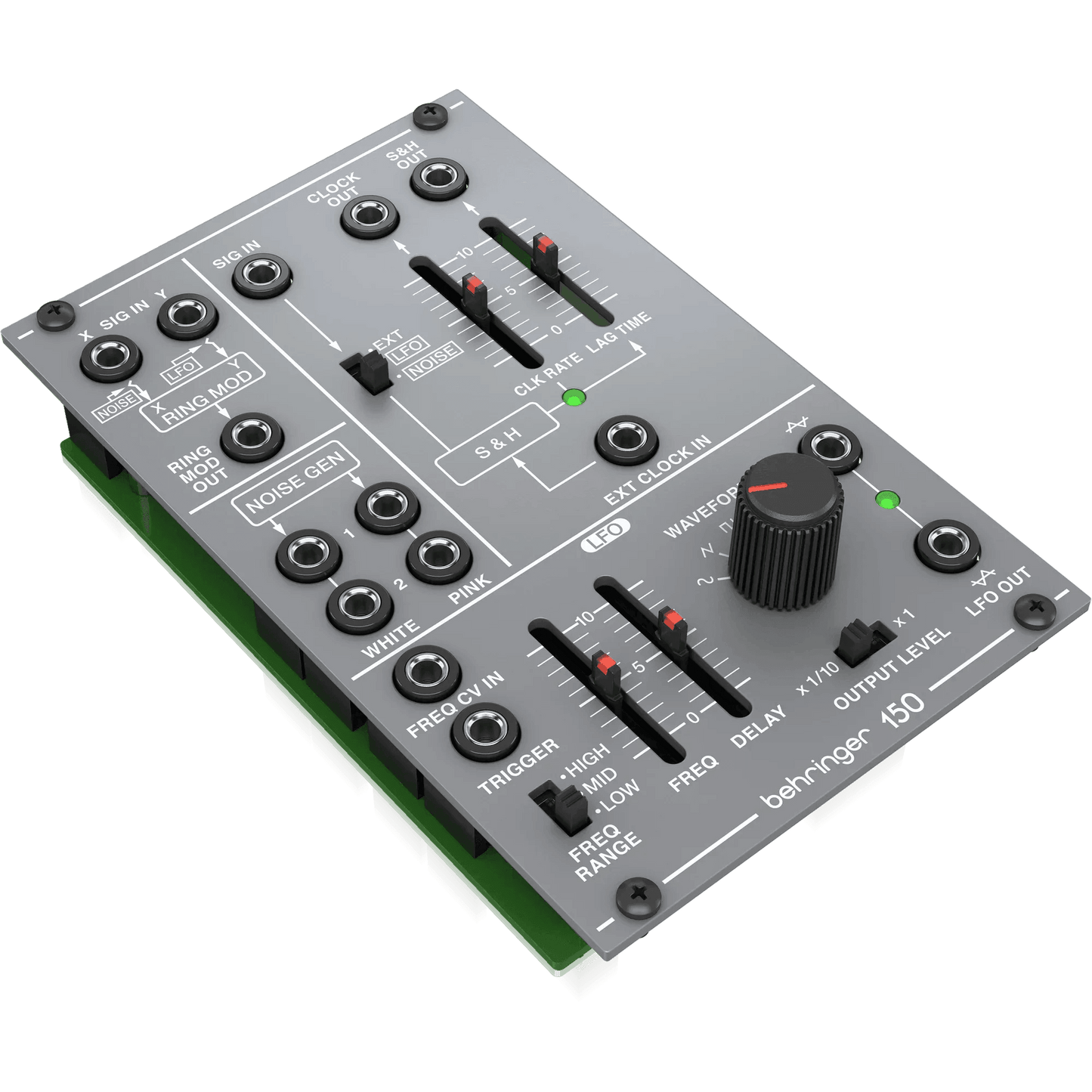

Behringer 150 RING MOD/NOISE/S&H/LFO
Behringer 150 RING MOD/NOISE/S&H/LFO
Couldn't load pickup availability
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
KEY FEATURES-
Amazing Ring Modulator/Noise Generator/S&H/LFO module from the '80s
-
Authentic reproduction of original "System 100M*" circuitry
-
Ring modulator for metallic and bell sounds
-
2 noise generators with simultaneous white and pink noise sources
-
LFO features 5 waveforms: sine, triangle, square, ramp and saw tooth, plus phase lock to keyboard
-
2 simultaneous LFOs with wide frequency range and delay controls plus external CV input
-
Sample & Hold generator with clock rate and lag time controls, 3 way input selector for noise, LFO or external input
-
8 controls and switches give you real-time access to all important parameters
-
Eurorack specs: 16 HP, 60 mA +12 V, 50 mA -12 V
DESCRIPTION
The 80s was the golden age of electronic music. Synthesizers were at their prime and almost every hit song and movie soundtrack at that time had a synth in one form or another. Modular synths have become more and more popular with professionals and enthusiasts over the years and they’re about to get even better.
SPECIFICATIONS
|
Signal Connections |
|
|
Ring modulator |
|
|
Ext signal X / Y |
2 x 3.5 mm jack |
|
X Impedance |
100 kΩ unbalanced |
|
Y impedance |
100 kΩ unbalanced |
|
Maximum level |
+20 dBu |
|
R.M out |
1 x 3.5 mm jack |
|
Impedance |
100 Ω unbalanced |
|
Maximum level |
+15 dBu |
|
Noise generator |
|
|
White |
2 x 3.5 mm jack |
|
Impedance |
1 kΩ unbalanced |
|
Output level |
0 dBu |
|
Pink |
2 x 3.5 mm jack |
|
Impedance |
1 kΩ unbalanced |
|
Output level |
0 dBu |
|
S & H |
|
|
Ext signal |
1 x 3.5 mm jack |
|
Impedance |
100 kΩ unbalanced |
|
Maximum level |
+ 17 dBu |
|
Ext clock in |
1 x 3.5 mm jack |
|
Impedance |
100 kΩ unbalanced |
|
Threshold |
> 1 V |
|
Clock out |
1 x 3.5 mm jack |
|
Impedance |
1 kΩ unbalanced |
|
S & H out |
1 x 3.5 mm jack |
|
Impedance |
1 kΩ unbalanced |
|
LFO |
|
|
Freq CV in |
1 x 3.5 mm jack |
|
Impedance |
100 kΩ unbalanced |
|
CV input range |
0 V to +10 V |
|
LFO out |
2 x 3.5 mm jack |
|
Impedance |
1 kΩ unbalanced |
|
Output level |
1 V p-p / 10 V p-p |
|
Controls |
|
|
S & H |
|
|
Clock rate |
1 x slider, 2 Hz - 25 Hz |
|
Lag time |
1 x slider, 0 - 8 seconds |
|
Ext / LFO / noise |
3-way sliding switch |
|
LFO |
|
|
Freq range |
3-way sliding switchHigh / mid / low, selectable |
|
Frequency |
1 x slider, 0.03 Hz - 30 Hz in 3 ranges |
|
Delay |
1 x slider, 4 ms to 8 seconds |
|
Waveform |
5-way switch Sine / triangle / square / sawtooth /inverted sawtooth, selectable |
|
Output level |
2-way sliding switch x1/10 / x1, selectable |
|
Power |
|
|
Power supply |
Eurorack |
|
Current draw |
60 mA (+12 V), 50 mA (-12 V) |
|
Physical |
|
|
Dimensions (H x W x D) |
44 x 81 x 129 mm (1.7 x 3.2 x 5.1") |
|
Rack units |
16 HP |
|
Weight |
0.16 kg (0.35 lbs) |
