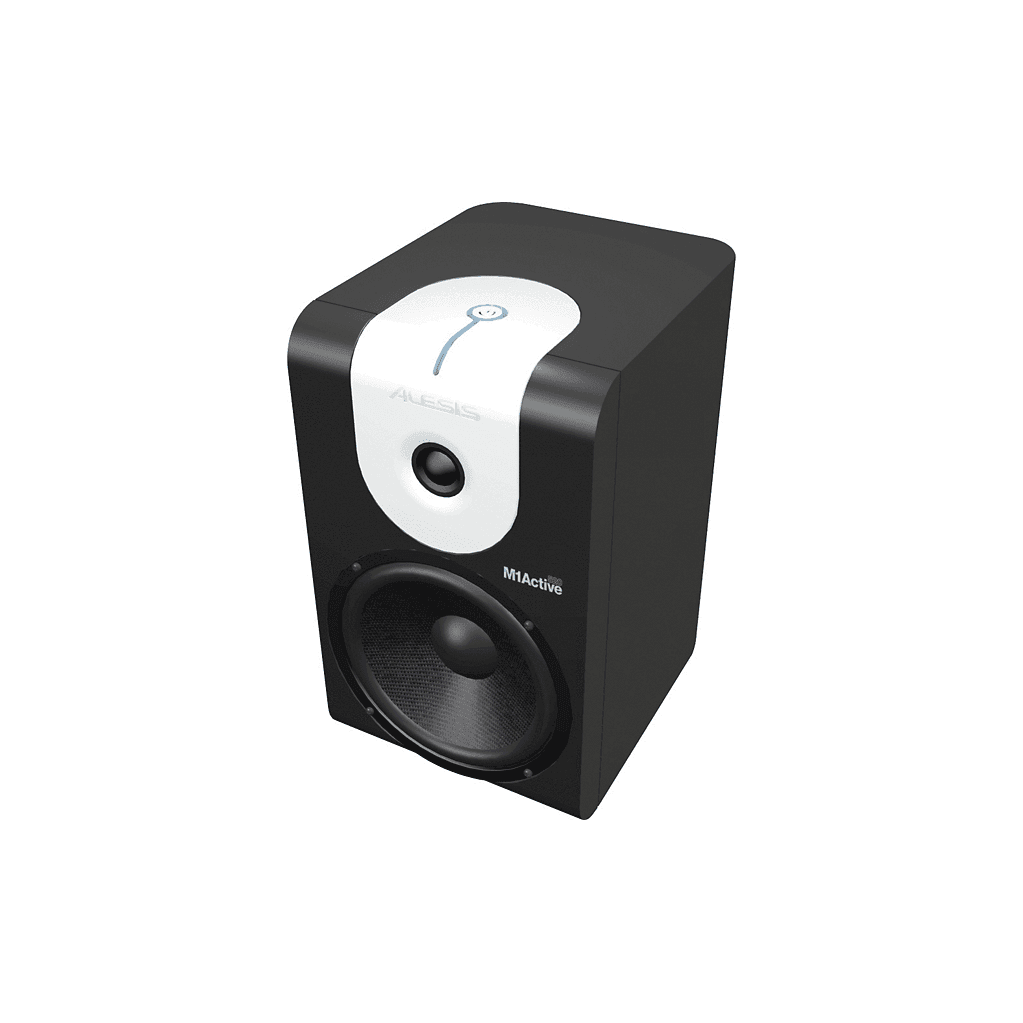

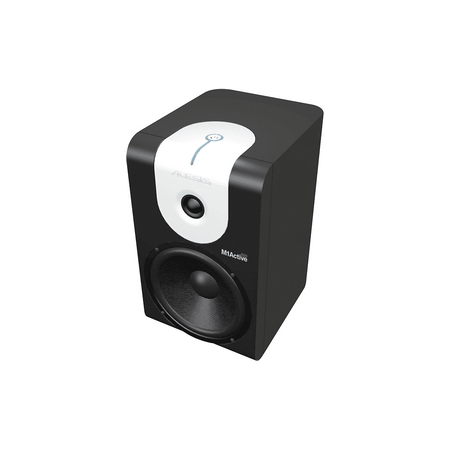

Alesis M1A520 Pair 75W Active Monitor (Pair)
Alesis M1A520 Pair 75W Active Monitor (Pair)
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
Note: This studio monitor is sold as a pair
Description
This pair of Alesis M1 Active 520 Near-Field Reference Monitors offers an incredible definition and flat frequency response with the help of high-precision drivers and a carefully designed crossover. The rear-port provides deep bass-extension and high SPL output, and the rear-mounted EQ switches allow the user to tailor the speaker to the studio environment. A 1"-thick front baffle minimizes speaker resonance and the acoustic waveguide evenly disperses high-frequency sound. The Bass Density control lets you dial in balanced sound regardless of room or placement. The Alesis M1 520 monitor's top-mounted power/clip indicator lets you know if the speaker is clipping.
FEATURES
-2-way, 75W active near-field reference monitors
-5" low-frequency driver
-1" silk dome tweeter
-Acoustic waveguide
-Low-Frequency Density switch
-Rear port design
-Hi, Mid, and Low-Frequency EQ switches
-Top-mounted Power Switch/Clip Light
-1"-thick front baffle
-Magnetically shielded
-1/4" TRS connector
-Volume control
Tech Specs |
Low-Frequency Driver 5" Polypropylene cone |
Mid Frequency Driver No |
High-Frequency Driver 1" Silk Dome Tweeter |
LF Amplifier 50 Watts |
HF Amplifier 25 Watts |
Crossover Active, 2.8 kHz |
Frequency Range 56 Hz - 20 kHz |
Impedance 10 kOhms, Unbalanced |
20 kOhms, Balanced |
Maximum Sound Pressure Level (SPL) 90 dB @ 1m |
Controls and Indicators 1 x Gain Control Knob |
1 x Acoustic Space Switch |
1 x Hi Boost Switch |
1 x Mid-Boost Switch |
1 x Lo 3dB Roll Off Switch |
1 x AC Voltage Selector Switch |
1 x Top-Mounted Power Switch/Clip LED |
Connectors 1 x 3-pin XLR Female, Balanced |
1 x 1/4" TRS/TS Phone, Bal/Unbal |
Shielded Yes |
Dimensions (HxWxD) 10.5 x 6.5 x 7.75" (267 x 165 x 197mm) |
Weight 13 lb (6 kg) |
Specialties Multi-Voltage Power Supply with Selector Switch |
1/4" Input with Bal/Unbal Read |
Acoustic Space Compensator Switch for Wall or Corner Placement |
Rear Bass Port |
Packaging Info |
Box Dimensions (LxWxH) 21 x 15.2 x 12.5" |
