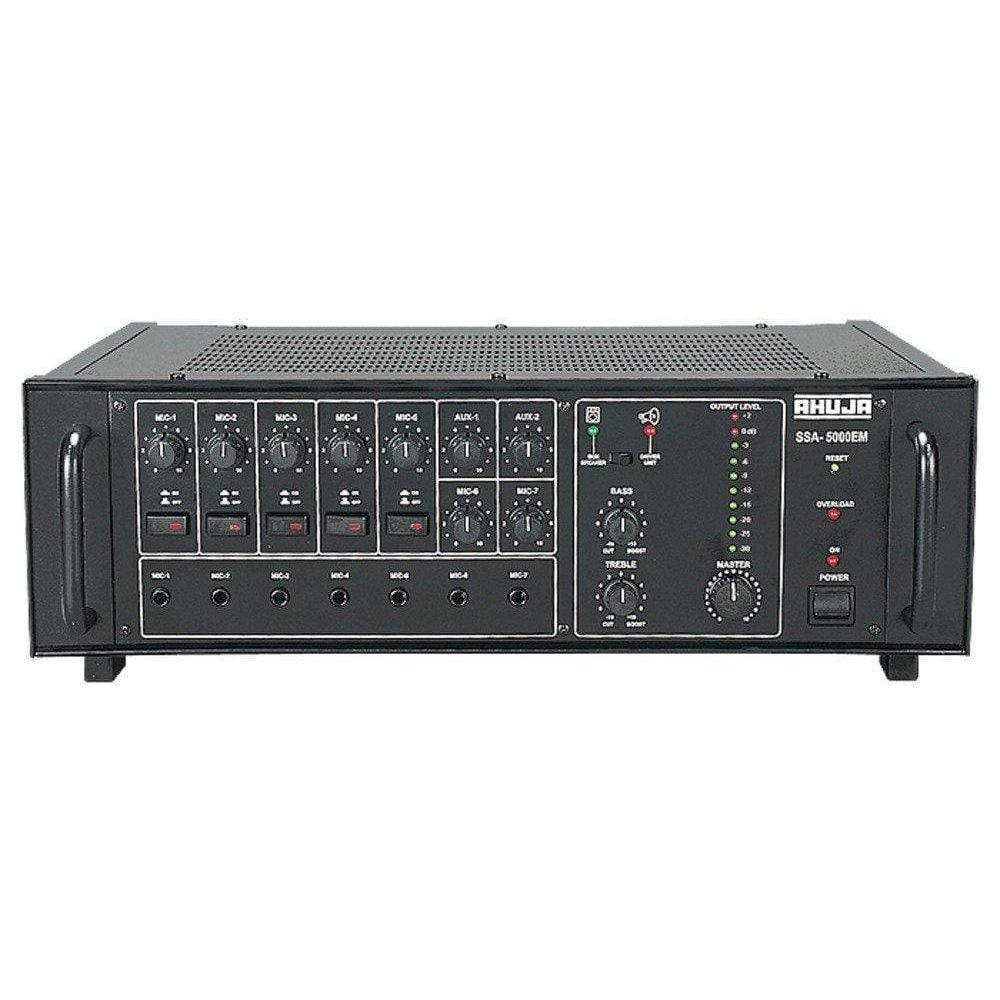

Ahuja SSA-5000EM 500 WATTS High Wattage PA Mixer Amplifier

Ahuja SSA-5000EM 500 WATTS High Wattage PA Mixer Amplifier

Regular price Dhs.2,310.00 AED
Regular price Dhs.0.00 AED Sale price Dhs.2,310.00 AED
Sale Sold out

For Wholesale Enquiries Please Contact Us On WhatsApp

This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co

  • 7 Mic & 2 Aux Inputs.
  • Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme.
  • Line Input for connecting the output from any external mixer or permitting SSA-5000EM to be used as a Booster Power Amplifier.
  • Resettable circuit breaker for protection against overload and short circuit.
  • Instant transfer to DC power (Car Battery) if AC power fails.
  • Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.

    Power Output

    750W Max., 500W RMS at 10% THD, 450W RMS at 5% THD, 415W RMS at 2% THD

    Output Regulation

    ≤ 2 dB, no load to full load at 1kHz

    Input Channels

    7 × Mic 0.8mV/4.7kΩ, 2 × Aux 100mV/470 kΩ, 1 × Line 1V/50kΩ

    Frequency Response

    50-15,000Hz ±3dB

    Signal to Noise Ratio

    60dB

    Tone Controls

    Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz

    Outputs

    Preamp 200mV/600Ω, Line 1V/1kΩ

    Speaker Outputs

    4Ω, 8Ω, 70V & 100V

    Power Supply

    AC: 220-240V 50/60Hz DC: 36V (3×12V Car Battery)

    Power Consumption

    AC: 1000VA DC: 8A

    Dimensions

    W510 × H172 × D385 mm

    Weight

    26.7kg
