Ahuja

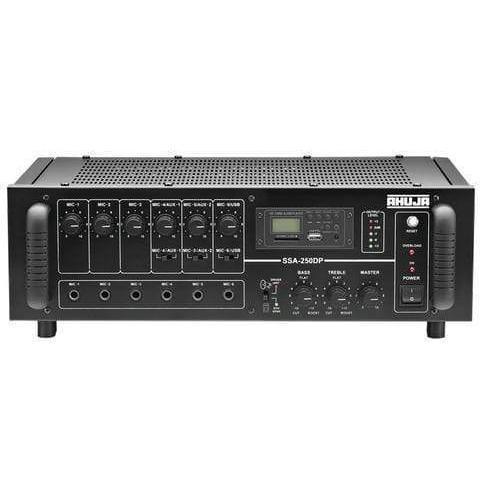

Ahuja SSA-250DP Amplifier
Ahuja SSA-250DP Amplifier
Couldn't load pickup availability
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
- 6 Mic & 2 Aux Inputs.
- Built-in MP3 player with remote control for USB, SD/MMC card reader.
- Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the program.
- Line Input for connecting the output from any external mixer or permitting SSA-250DP to be used as a Booster Power Amplifier.
- Resettable circuit breaker for protection against overload and short circuit.
- Instant transfer to DC power (Car Battery) if AC power fails.
- Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
SPECIFICATIONS
|
Power Output |
300W Max., 250W RMS at 10% THD, 220W Max., 160W RMS at 10% THD 220W RMS at 5% THD, 200W RMS at 2% THD |
|
Output Regulation |
≤ 2 dB, no load to full load at 1kHz |
|
Input Channels |
6 × Mic 0.65mV/4.7kΩ, 2 × Aux 100mV/470 kΩ, 1 × Line 1V/50kΩ |
|
Frequency Response |
50-15,000Hz ±3dB |
|
Signal to Noise Ratio |
60dB |
|
Tone Controls |
Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz |
|
Output |
Preamp 200mV/600Ω, Line 1V/1kΩ |
|
Speaker Output |
4Ω, 8Ω, 70V & 100V |
|
Digital Player |
MP3 Player with USB, SD and MMC Card Reader |
|
Power Supply |
AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery) |
|
Power Consumption |
AC: 460VA DC: 6A |
|
Dimensions |
W450 × H160 × D340 mm |
|
Weight |
16.0kg |
