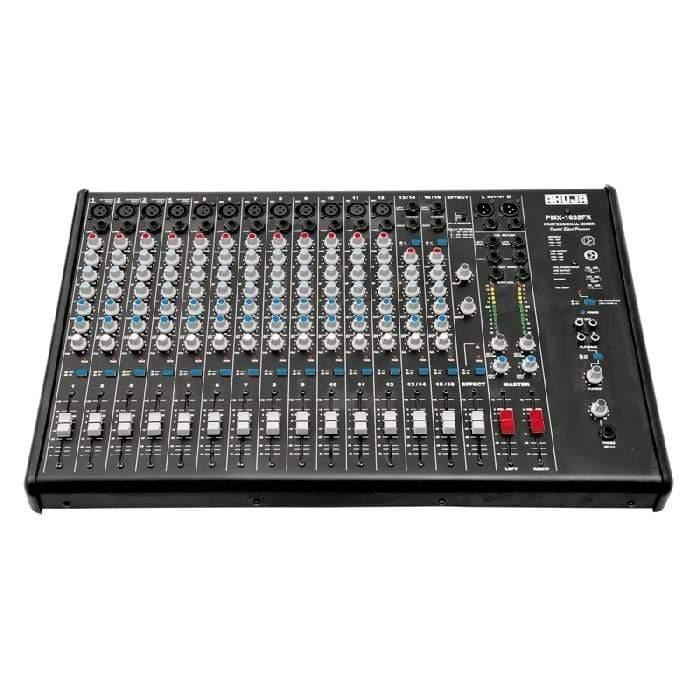

Ahuja PMX1632FX 12 CH Audio Mixer

Ahuja PMX1632FX 12 CH Audio Mixer

Regular price Dhs.1,617.00 AED
Regular price Dhs.0.00 AED Sale price Dhs.1,617.00 AED
Sale Sold out

AC Operation, With Digital Effects

  • Rugged, stable, high-quality analog mixers with user-friendly construction & aesthetically designed side panels.
  • PMX-1632FX has 12 MIC/LINE Balanced Mono input channels and 2 STEREO Balanced input channels.
  • MIC/LINE Balanced Mono inputs with enhanced headroom.
  • All MIC inputs are through 3 pin F/XLR connectors and All LINE & STEREO inputs are through 6.3mm stereo phone jack sockets.
  • Four MIC inputs (MIC-1 to MIC-4) are available with 48V phantom supply which can be switched ON/OFF through a common switch.
  • STEREO Balanced input in two selectable sensitivities of -10dBu & +4dBu.
  • Separate EFFECT channel is provided for controlling the built-in digital effect processor through a delay selector switch and delay, repeat, and level controls.
  • Each MIC/LINE channel has a GAIN control, 3 band active Equalizer controls, a Pre-fader AUX1 control, a Post-fader
  • AUX2 /EFX control & a PAN control.
  • Each Stereo channel has a GAIN control, 2 band active Equalizer controls, AUX1 Pre fader control, AUX2/EFX Post fader control and a BALANCE control.
  • Channel ON/OFF switch provided on each individual channel. Peak LED for signal clipping indication.
  • High precision 60mm slide fader on each channel.
  • Balanced Left & Right Line outputs through M/XLR connectors as well as 6.3mm stereo phone jack sockets.
  • Easy and accurate monitoring of Left & Right output levels through individual 12 segments LED array.
  • Two AUX SEND outputs with level controls: one each for monitoring and effects processing applications.
  • Two stereo AUX RETURN balanced inputs with level controls.
  • Headphone output with Level Control for output monitoring.
  • Stereo Tape Playback inputs through L&R RCA sockets provided with ON/OFF switch & level control.
  • Stereo Record output through L&R RCA sockets.
  • Operates on 240V 50Hz AC mains.

MIC INPUT

.

Impedance/Gain

2kΩ Balanced/65dB

LINE INPUT

.

Impedance/Gain

20kΩ Balanced/45dB

STEREO INPUT (L/Mono & R)

.

Impedance/Gain (-10dBu Input)

10kΩ Balanced/14dB

Impedance/Gain (+4dBu Input)

10kΩ Balanced/0dB

THD

<0.08%

FREQUENCY RESPONSE

.

L/R Line Output

25Hz - 20kHz (+0, -1dB)

EQUALIZATION

.

Bass/Mid/Treble

±12dB at 100Hz/2kHz/10kHz

Clip LED Indication

4 dB prior to true clip

LINE OUTPUT

.

Nominal/Max Level

4dBu/21dBu (1.22V/9V)

Impedance

600Ω

Delay System

Digital Signal Processing

Delay Range Settings

1: 60-300ms, 2: 300-500ms, 3: 500-650ms

Headphone Output

200mV at 8Ω, THD <1%

MAXIMUM GAIN

.

Mic Input to Line Outputs

78dB

Line Input to Line Outputs

58dB

Stereo Input to Line Outputs

28dB (-10dBu Input), 14dB (+4dBu Input)

AUX Send (Pre)

1.4V/100Ω Unbalanced

AUX Send (Post)

2.7V/100Ω Unbalanced

AUX Return (L&R)

150mV/10kΩ Balanced

TAPE

.

Record Output

250mV/600Ω

Playback Input

250mV/1kΩ (variable thru’ GAIN control)

Signal to Noise Ratio

>70dB

Power Supply

AC: 220-240V, 50Hz

Dimensions

W609 × H110 × D435mm

Weight

9.7kg
