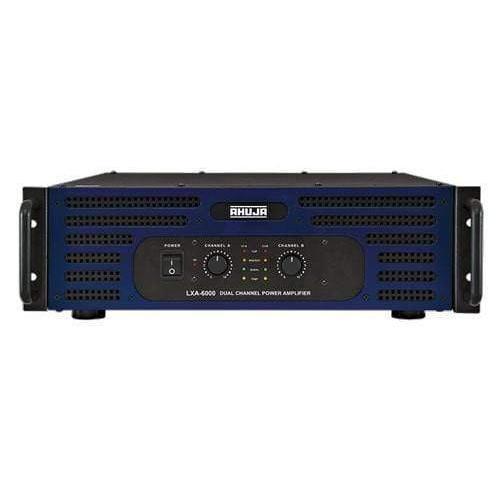

Ahuja LXA6000 Amplifier
Ahuja LXA6000 Amplifier
Couldn't load pickup availability
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
- Dual-channel direct coupled amplifier.
- 6000 watts rated output.
- Rugged and most reliable. A new benchmark for professionals requiring a sonically superior high power amplifier.
- 80Hz / 120Hz LPF.
- Built-in circuit for HF protection.
- Limiter ON/OFF.
- Two selectable input sensitivity.
- Class H operation for optimum efficiency.
|
Stereo/Mono |
8Ω : 1300W + 1300W RMS, 4Ω : 2000W + 2000W RMS, 2Ω : 3000W + 3000W RMS |
|
Bridged Output |
8Ω : 4000W RMS, 4Ω : 6000W RMS |
|
THD + N |
< 1.0% |
|
Frequency Response |
(-1dB) 20-20,000Hz |
|
Power Bandwidth |
(0.5% THD) 20-20,000Hz |
|
Input Sensitivity |
0dBu (775mV), 4dBu (1.23V) |
|
Input Impedance |
10k Unbalanced, 20k Balanced |
|
Signal to Noise Ratio |
> 95dB |
|
Channel Separation |
> 65dB at 1kHz |
|
Damping Factor |
400: 1 (8W ) |
|
Slew Rate |
35V/µs |
|
Protections |
Temperature, DC, RFI, Short Circuit, Overload, Built-in Limiter (ON/OFF) AC: Circuit Protector 25A; ± DC: Fuse 2 x 30Amp. (T 30A L) for each zone Fuse 2×3 Amp. (T 3A L) |
|
Input Connectors |
2 × XLR, Stereo Phone Jack 6.3mm |
|
Output Connectors |
Speakon 4-Way and heavy-duty Binding Post for each channel |
|
Cooling |
Variable Speed DC Fan with Temperature Sensing |
|
Front Panel Controls |
2 × 41 Step Level Attenuators |
|
Indicators |
Power ON, Signal, Clip, Temperature, Protect (Ch. A & B) |
|
Power Consumption (Rated) |
7200VA @ 220-240V ~ 50/60Hz |
|
Dimensions |
W482 × H153 × D605mm |
|
Weight |
39.00kg |
