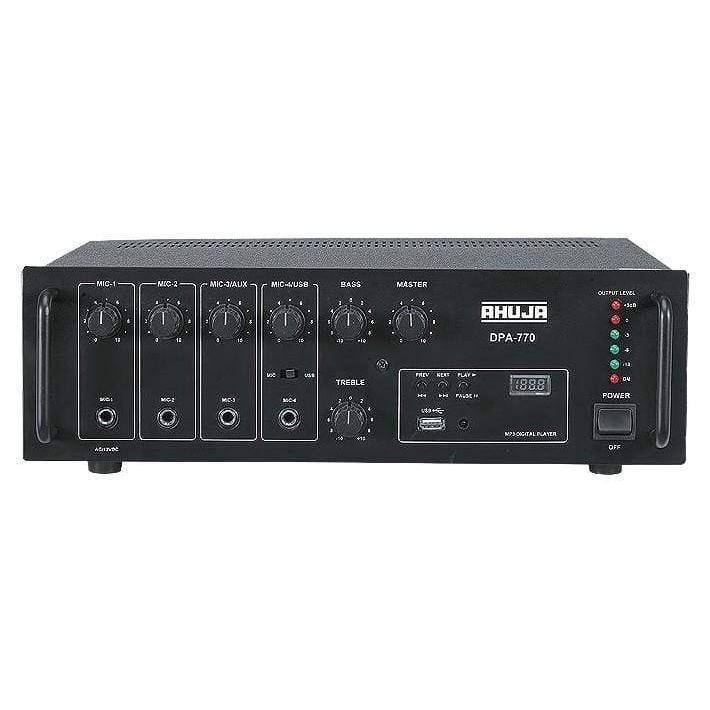

Ahuja DPA-770 PA Mixer Amplifier
Ahuja DPA-770 PA Mixer Amplifier
Couldn't load pickup availability
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
DPA-770
75 WATTS WITH BUILT-IN DIGITAL PLAYER
MEDIUM WATTAGE PA MIXER AMPLIFIER
- 4 Mic & 1 Aux Input.
- Built-in MP3 player with USB reader and remote control.
- Line Output for connecting to a Booster Amplifier.
- Active Bass & Treble controls.
- Instant transfer to DC Power (Car Battery) if AC power fails.
- 5 LED array for output level monitoring.
|
Power Output |
100W Max., 75W RMS at 10% THD, 70W RMS at 5% THD |
|
Output Regulation |
≤ 2 dB, no load to full load at 1kHz |
|
Input Channels |
4 × Mic. 0.6mV/4.7kΩ, 1 × Aux 100mV/330kΩ |
|
Frequency Response |
50-15,000Hz ±3dB |
|
Signal to Noise Ratio |
55dB |
|
Tone Controls |
Bass: -10dB +7dB at 100Hz, Treble: -10dB +7dB at 10kHz |
|
Outputs |
Line: 1V/3.5kΩ |
|
Speaker Outputs |
4Ω, 8Ω, 16Ω & 100V |
|
Digital Player |
MP3 Player with USB Reader |
|
Power Supply |
AC: 220-240V 50/60Hz, DC: 12-14V Car Battery |
|
Power Consumption |
AC: 140VA DC: 3A |
|
Dimensions |
W385 × H130 × D310 mm |
|
Weight |
9.6kg |
