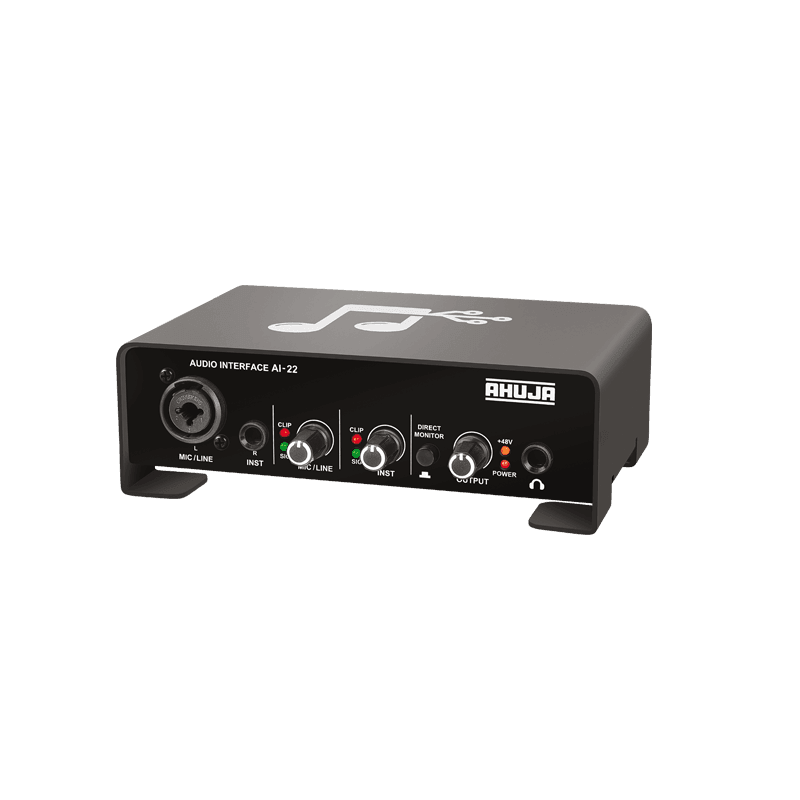

Ahuja AI202 PA Effect Processor 2 x 2 USB Audio Interface
Ahuja AI202 PA Effect Processor 2 x 2 USB Audio Interface
Couldn't load pickup availability
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
KEY FEATURES
- Studio Quality(16Bit/48kHz) Digital Recording.
- Features two inputs (Mic/Line & Instrument Level) and two outputs.
- Extreme low-Latency digital streaming.
- Switchable Phantom power.
- Supports Windows/Android & Mac iOS.
- Compatible with popular DAW softwares.
- USB 2.0 Bus-powered.
- Compact durable Aluminum body.
SPECIFICATIONS
|
MICROPHONE INPUT / LINE INPUT |
. |
|
Type |
Combo XLR Female X2/ 2 x 6.3mm TRS, Balanced |
|
Input Impedance (Balanced) |
2.2kΩ/ 18kΩ |
|
THD+N (1kHz @ +0dBu Output) |
<0.5% |
|
S/N Ratio (1kHz @ +0dBu Output) |
>55dB |
|
Input Level (0dBu Gain, 1kHz) |
3mV ±1mV / 45mV ± 2mV |
|
Phantom Power |
+48 VDC at both XLR Female only |
|
INSTRUMENT INPUT |
. |
|
Type |
2 x 6.3mm TRS, Balanced |
|
Input Impedance |
1MΩ |
|
Input Level (0dBu Gain, 1kHz) |
3.50mV ± 1mV |
|
Frequency Response |
20-20,000Hz |
|
Pad ON |
-18dB |
|
OUTPUT L & R |
. |
|
Type |
2 x 6.3mm Female, Unbalanced |
|
Maximum Output ±20mV |
550mV |
|
HEADPHONE OUTPUT |
. |
|
Type |
6.3mm Active Stereo |
|
Maximum Output ±20mV |
300mV/ch. @ 8Ω Load |
|
DIGITAL AUDIO |
. |
|
Bit Depth |
16 bit |
|
Internal Sample Frequency Selections |
44.1, 48 kHz |
|
Power |
USB Bus Powered |
|
Dimensions |
W175 × H58 × D123 mm |
|
Weight |
615g |
